Sensitive and touchy, this bass fuzz has tremendous bottom end and a beautiful harmonic structure that sounds blistering with a guitar too.

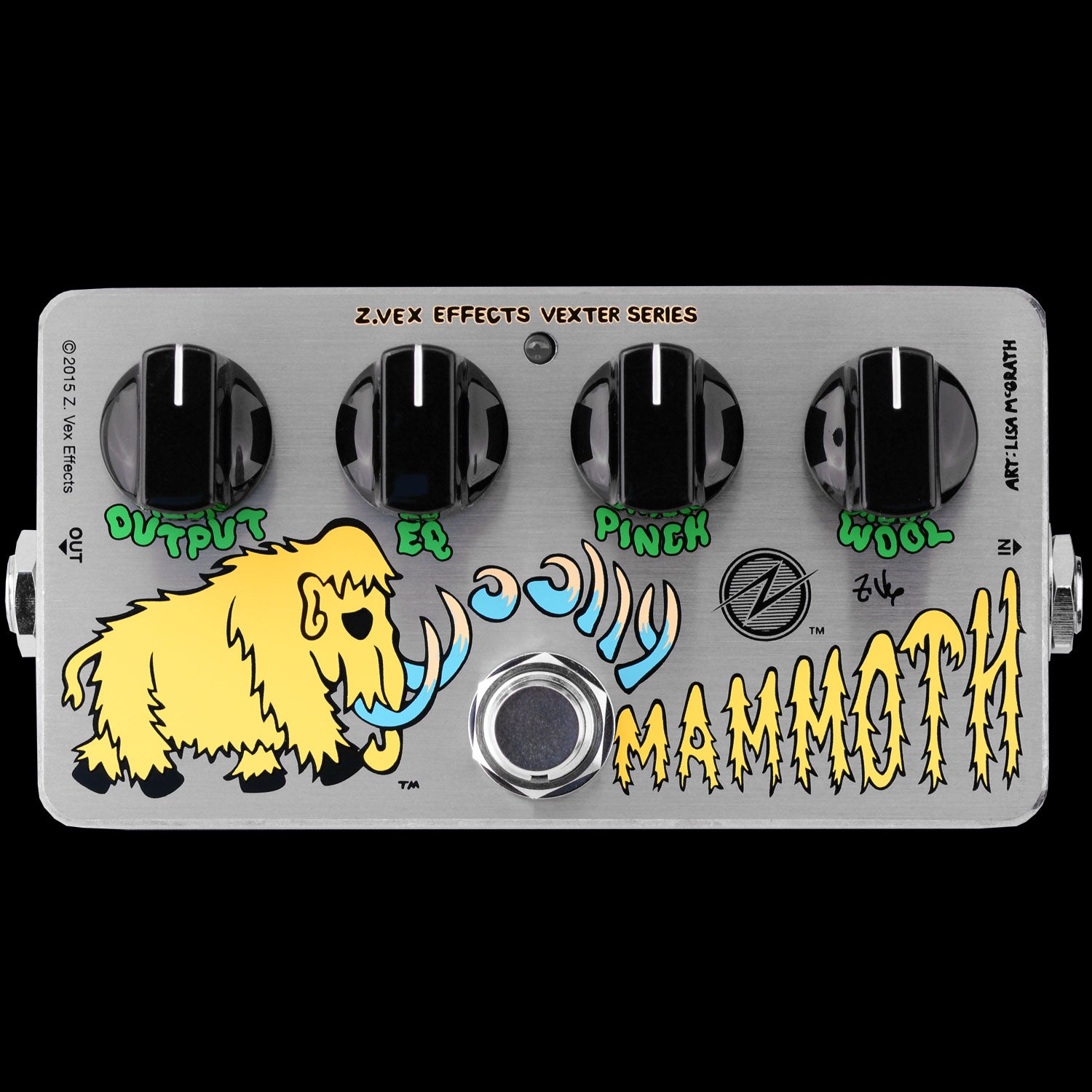

THE CONTROLS
OUTPUT: Designed for smooth repeatable level settings.
EQ : Tilts the spectral response, turning to the left adds lows and softens the highs, then mids, and finally reduces lows.
PINCH : The harmonic structure can be controlled with this knob. It adjusts the
pulse width of the waveform.
WOOL : Adjusts the amount of fur around the note.
TAMING THE BEAST
In the leftmost position, the waveshape is quite symmetrical which produces a smooth creamy sound. Turning it up slightly introduces lovely intermodulation distortion. Turning it clockwise narrows the waveshape into asymmetrical pulses, making the tone redier and brassier. This also introduces an unusually smooth 'gating' action, which gives you an absolutely eerie silence between notes.
At most settings you will notice that low frequency pressure is preserved. This circuit has a frequency response that continues several octaves below audibility. The subs will knock everything off your amps, so put the bottles on the floor. No kidding.
Oh! And the circuit (designed by Chuck Zwicky) draws less than one-half of a milliampere (0.0004 amps, typical). That
is less than one-hundredth the current consumption of most 'commercial' pedals, giving this pedal as high a battery life
as you can find anywhere. In fact, if you use an alkaline battery and always unplug the input cord between sessions, you may never have to change it at all.
In our continuing effort to be friendly towards the earth, the universe and its inhabitants; no animals were harmed during the making of this pedal.
POWER SUPPLY JACK
All Z.Vex pedals use 9V DC power supply with (–) polarity on the middle pin (typical BossTM power supply). Using the incorrect supply may damage your pedal.
Enjoy!
