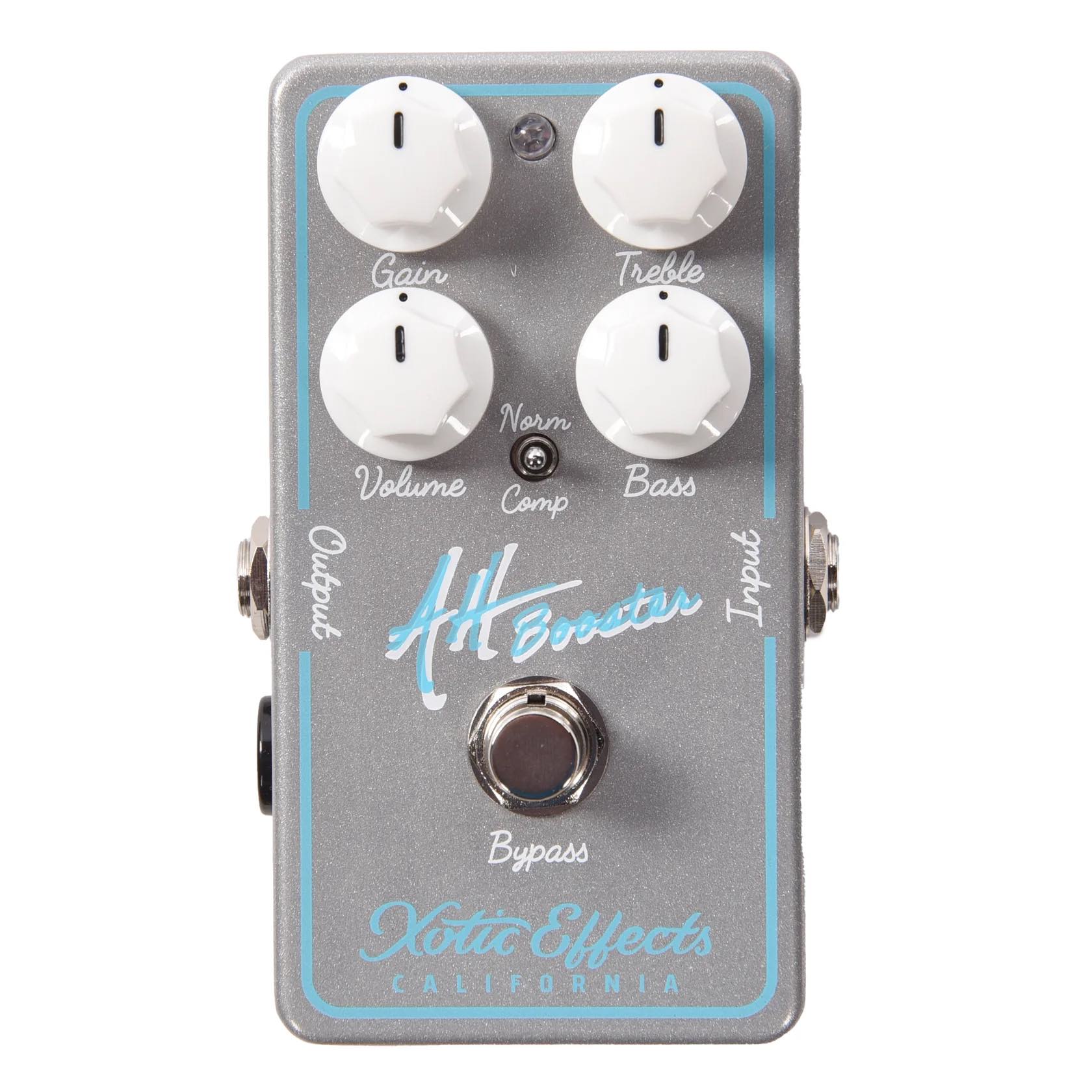

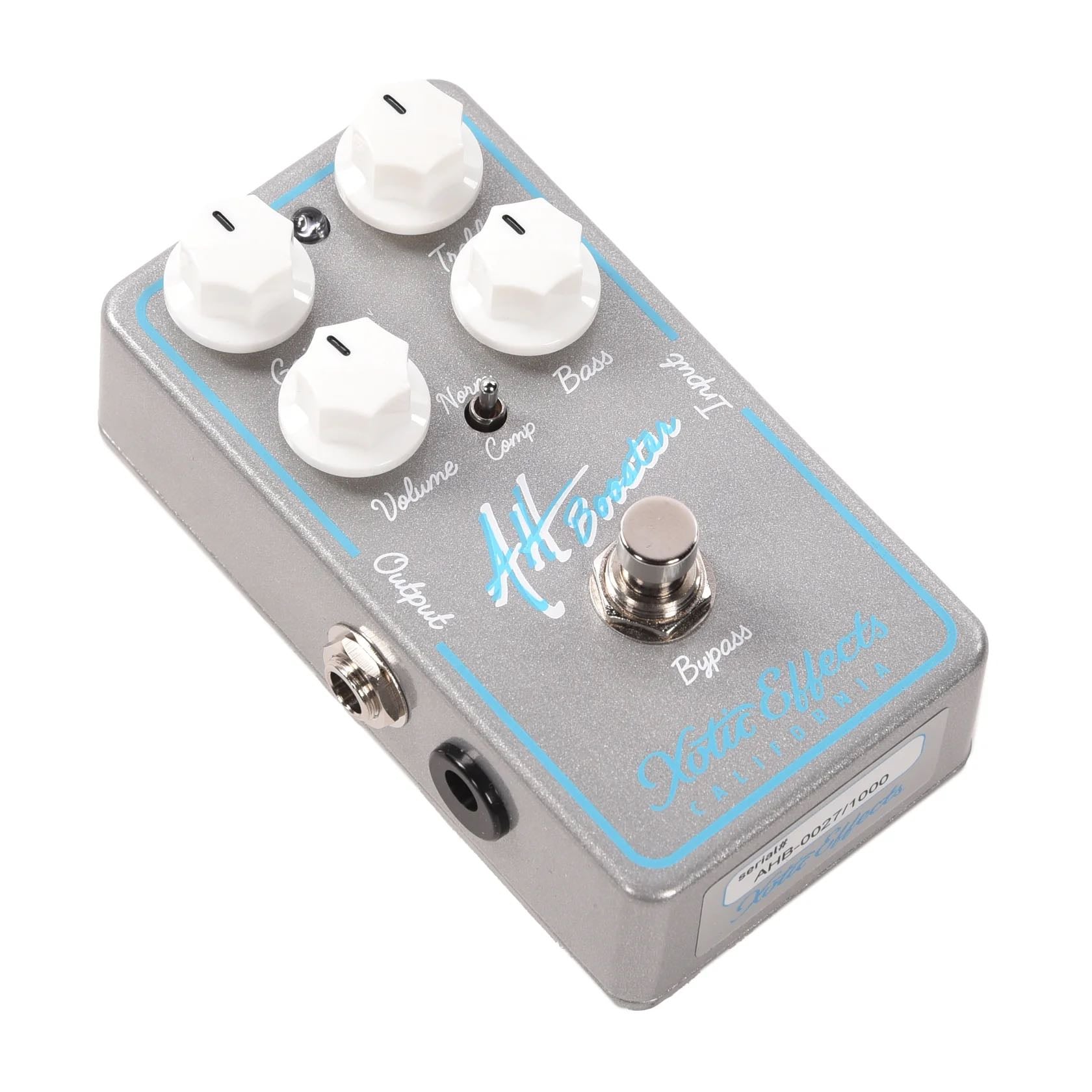

Xotic AH Booster Ltd

ALLEN HINDS MODEL

A musically delicious harvest natured over more than two decades of friendship between Allen and Xotic

• A versatile overdrive pedal with three different compression settings with full tonal controls
• An Incredible, touch responsive overdrive
• Adjustable +-15dB two band active EQ
• Run it at 18v for even more headroom!



AH-booster is based on legacy AC-Comp pedal which was Allen's favorite. We have revived its design with modern features such as 9-18 volt operation and improved tonal characteristics for a "tight" yet "smooth" overdriven sound.

• Dimensions (W/D/H): 4.39" x 2.38" x 1.98" (110mm X 60mm X 50mm)
• Weight: 0.6 lbs. (275g)
• Bypass: True Bypass Switching
• Power Consumption: 9VDC/4mA or 18V/5mA
• Battery Type: 9VDC (006P) x 1
• AC Adapter (Optional): 9VDC-18VDC Negative Tip(Regulated Only)5.1mm x 2.1mm barrel type
• Input Impedance: 500k ohms
• Output Impedance: 2k ohms
