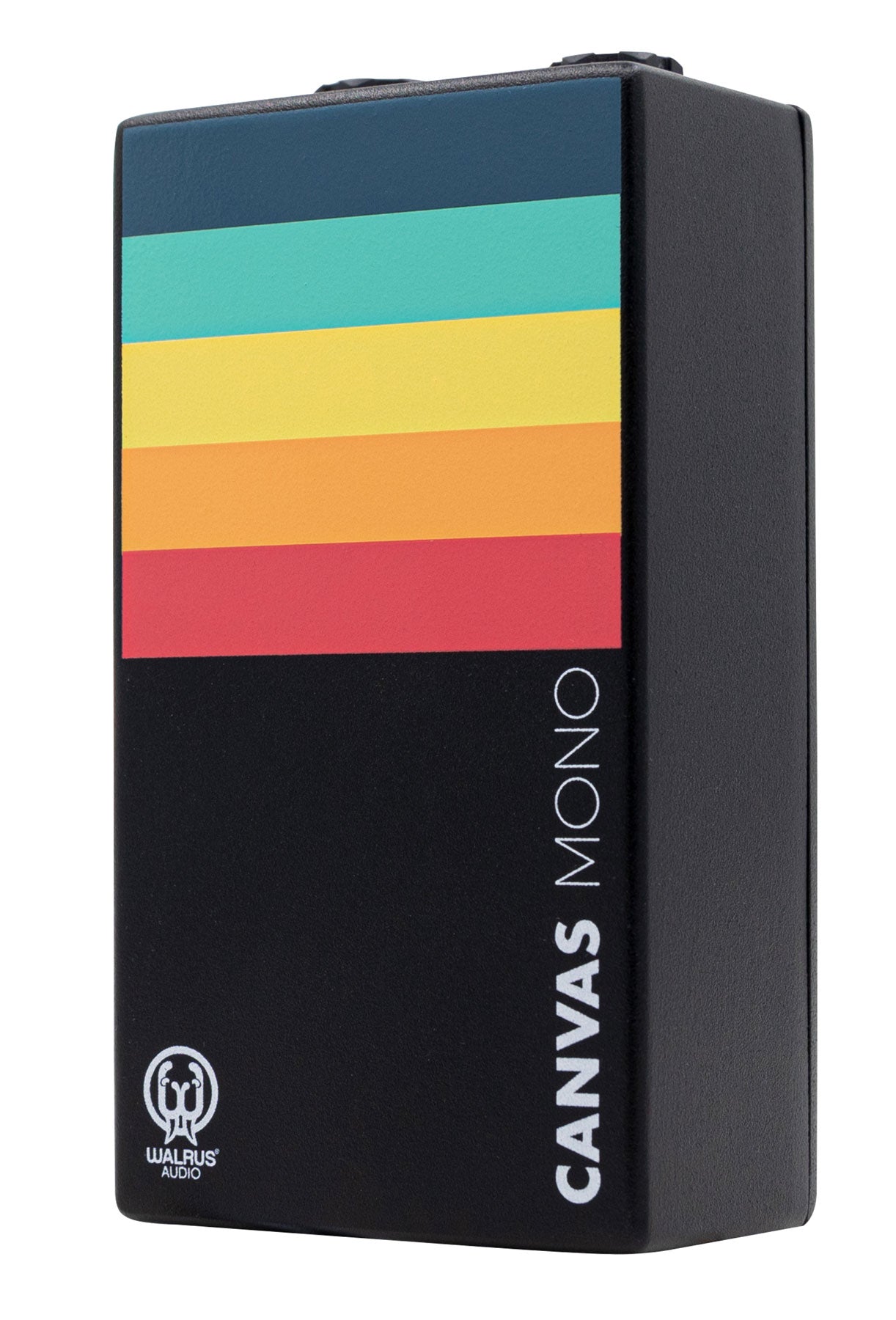

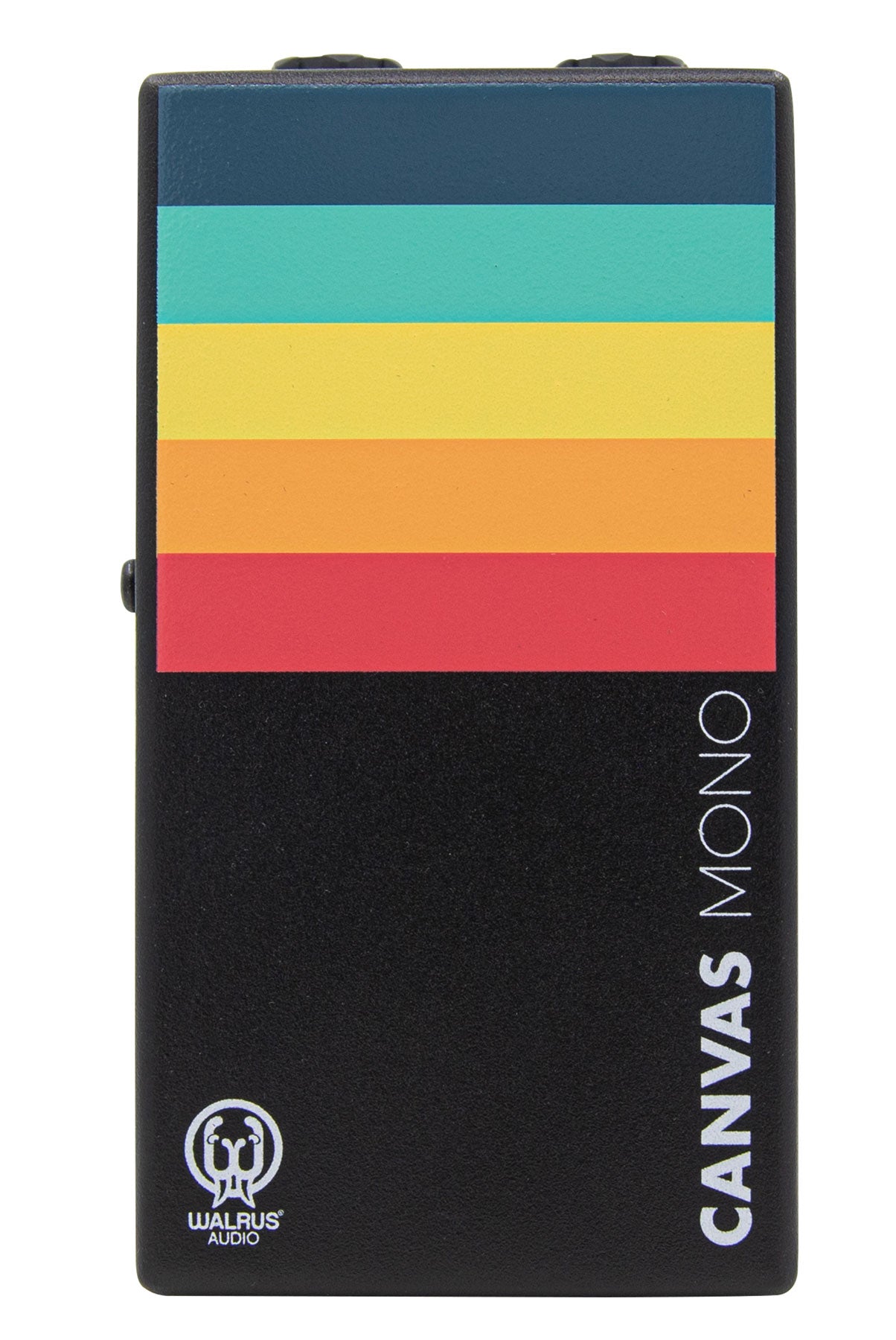

Walrus Audio CANVAS Mono

Canvas is Walrus Audio's first line of DI Boxes: Mono & Stereo version available
Convert your unbalanced signal into a balanced signal for interfacing properly with eg your recording interface or FOH mixer
Select between DI or LI (line isolator) mode
DI Mode = for high impedance sources such as E-Guitars or Basses
LI Mode = for low impedance line level sources such as Amp-sims (eg ACS1) or Keyboards
Fully passive – no power required
Stompbox format for super easy integration on pedalboard
Coolest looking DI Box on the market

Full Feature List

• Passive Line Isolator and Direct Injection device

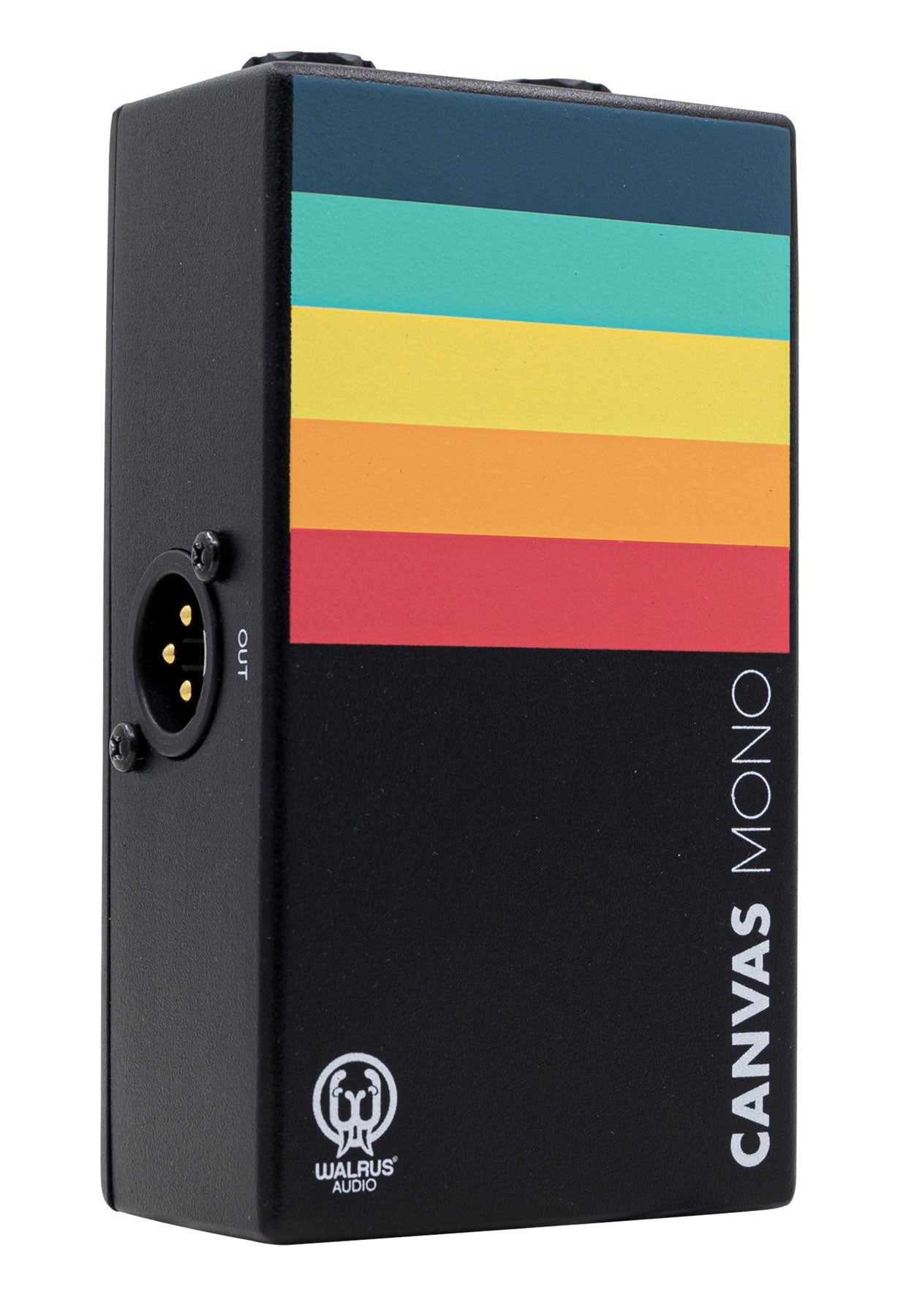

• Converts ¼” unbalanced input to XLR balanced output
• For interfacing with your recording interface or FOH mixer
• Works perfectly with amp-in-a-box devices eg Walrus Audio ACS1
• Stompbox format for easy integration on pedalboards
• Flat frequency response from 20Hz-20kHz
• Custom wound transformers for low THD and full frequency response
• Transformer isolated output

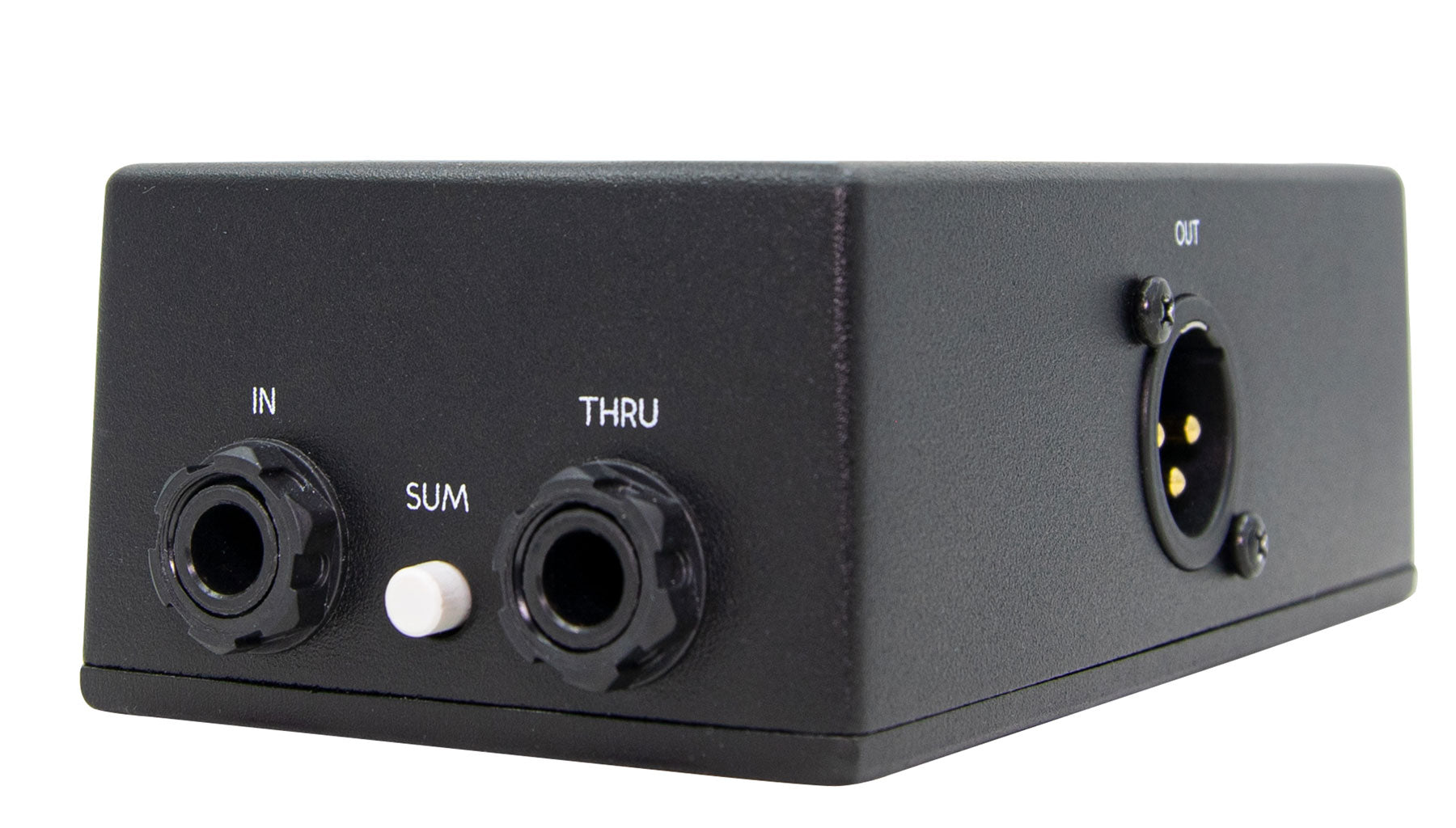

• Sum switch turns Thru channel into a second input
• Pad: Enabled a -15dB input pad (only in DI mode) to minimize distortion
• Choose between DI- or Line-Isolator-Mode
• GND Lift: Isolates GND pin on XLR to reduce hum
• Passive design – no power required
• Made in the USA
