TGT11 x Squareplug Patch Cable Kit 5 angled / 5 straight plugs

TGT11 is proud to introduce the world's lowest profile soldered patch cable known to mankind. Our custom sets of Mogami W2314 | SP400/SPS4- patch cables kits feature the incredibly thin and flexible Mogami W2314 cable and the brand new SPS4 (straight plug) and SP400 (square plugs) connector.

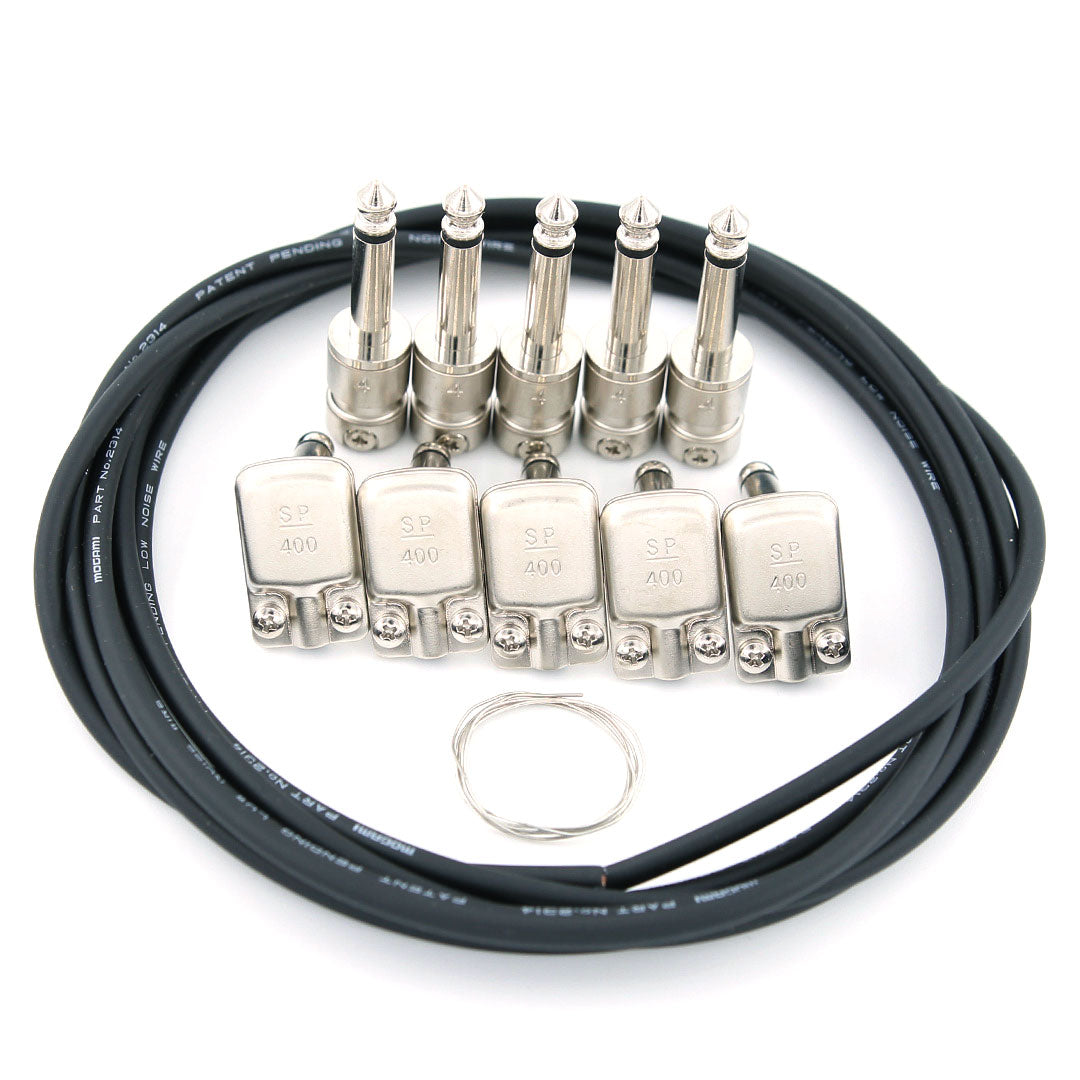

This TGT11 goodie bag holds 10 plugs and 3 meters of cable plus some solder.

FEATURES & SPECIFICATIONS:

Mogami W2314

Size (mm²) 0.51mm²
Capacitance at 1kHz, 20 °C 110pF / m
Material PVC
color Black

Square Plug SPS4

World's smallest straight mono [TS] solder-type 1/4”/6.35mm plug with strain relief for highest packing density

Serviceable, all–metal plug designed to snug–fit smaller diameter cables for optimum strain relief and improved EMI protection
Insulation sheet to prevent hot and ground signals from shorting

• 13mm [body diameter]
• 21mm [body length]
• fits cables up to 4.8mm OD

Square Plug SP400

Ultra–low–profile connector [measures only 8.3mm / 0.326" x 17mm / 0.67" x 28mm / 1.10"] for highest packing density
Serviceable, all–metal plug designed to snug–fit smaller diameter cables for optimum strain relief and improved EMI protection
Insulation sheet to prevent hot and ground signals from shorting
