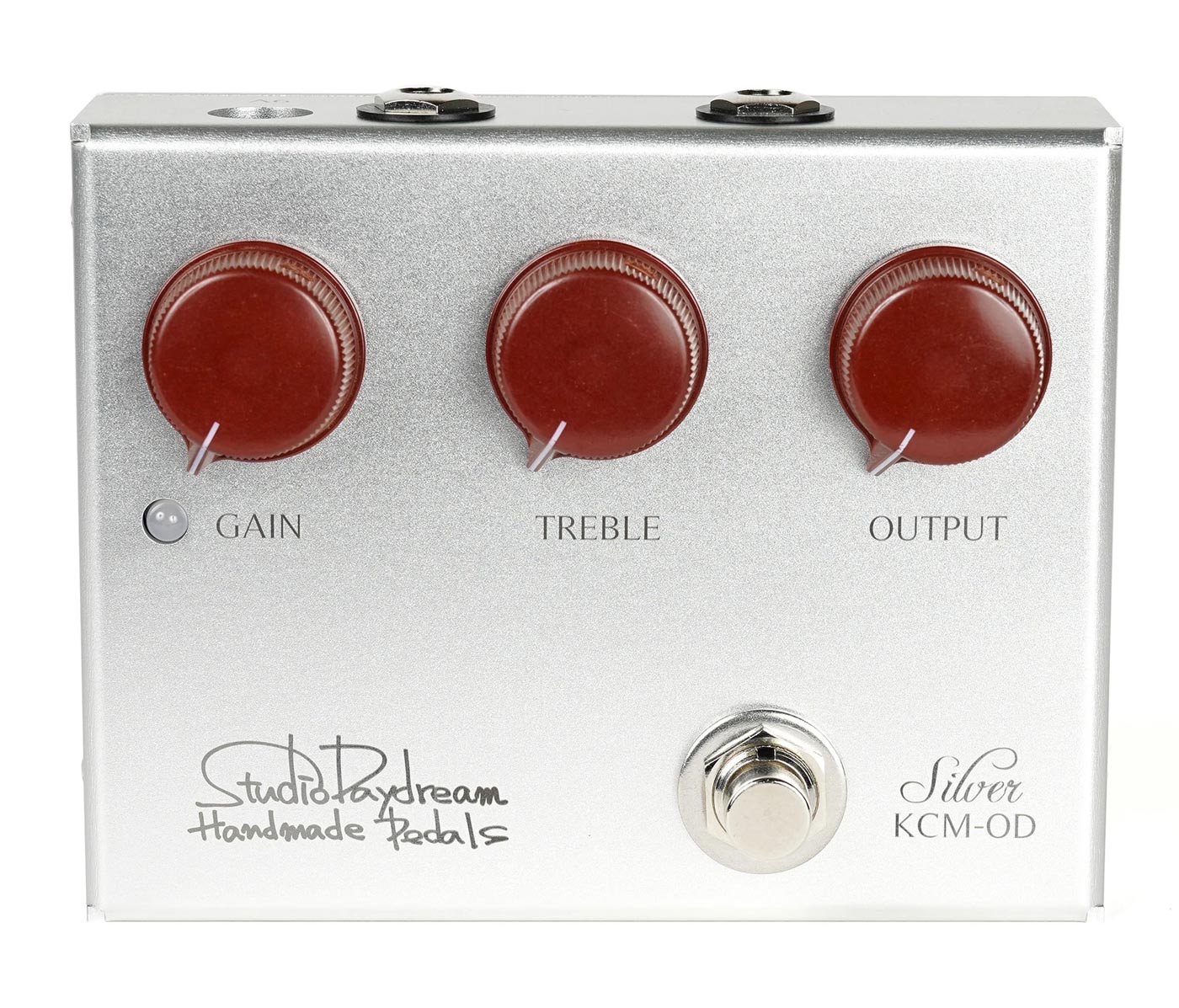

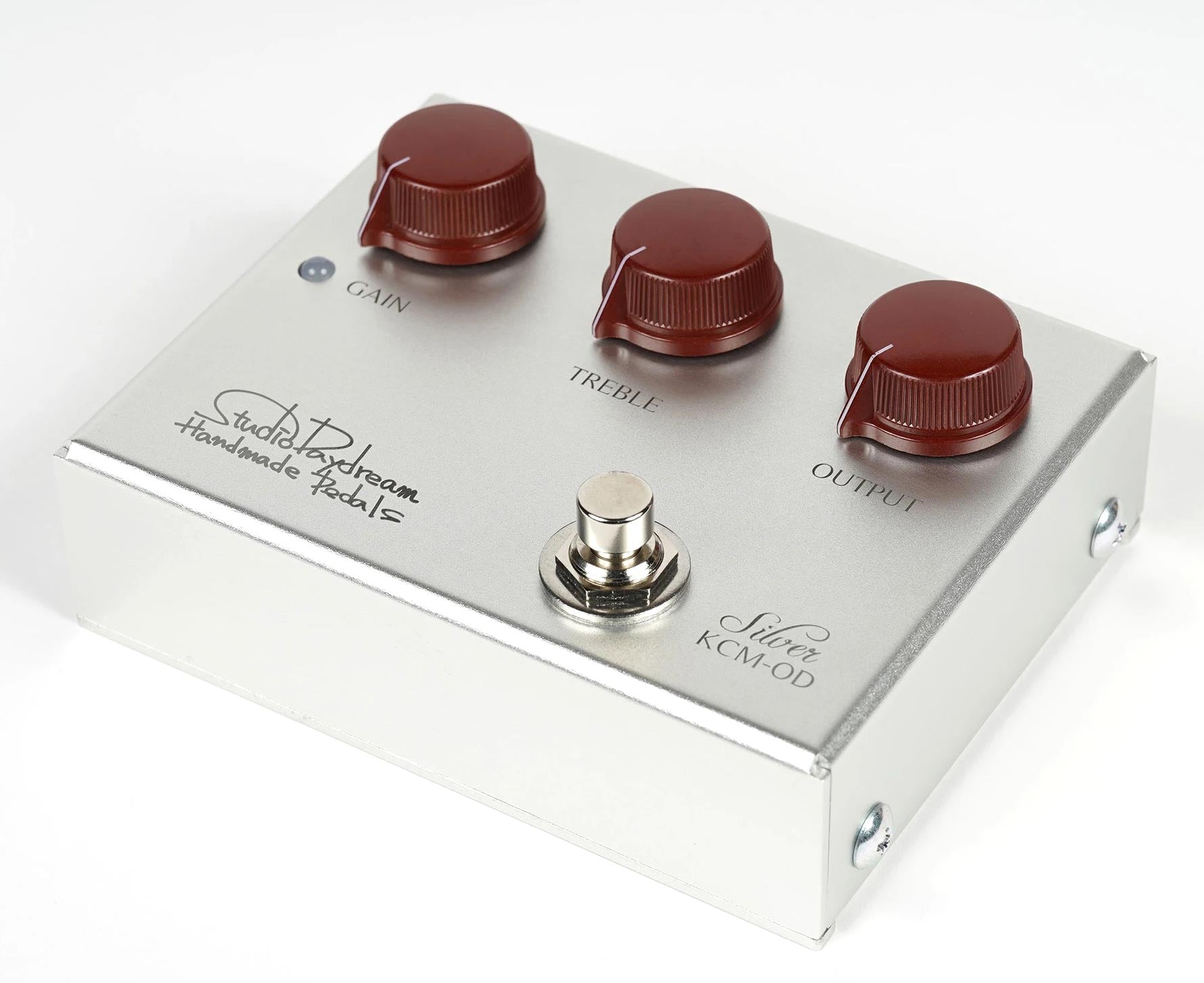

Studio DayDream KCM-OD Silver V10

A compact OD that stores an exquisite instrument with a comfortable midrange. Set to build sound foundation, covering booster to low gain overdrive. Through the proper use of carbon and metal film resistors, it also reproduces numerical resistance that can be normally difficult to obtain. Equipped with a 27V booster circuit using a charge pump IC. Careful selection of parts and construction of board design results in an extremely low noise finish. For this version, a dedicated casing along with a large pointer knob has been adopted.

Specifications

• Buffered Bypass
• Blue LED
• Controls : GAIN, TREBLE, OUTPUT
• Power consumption: DC9V

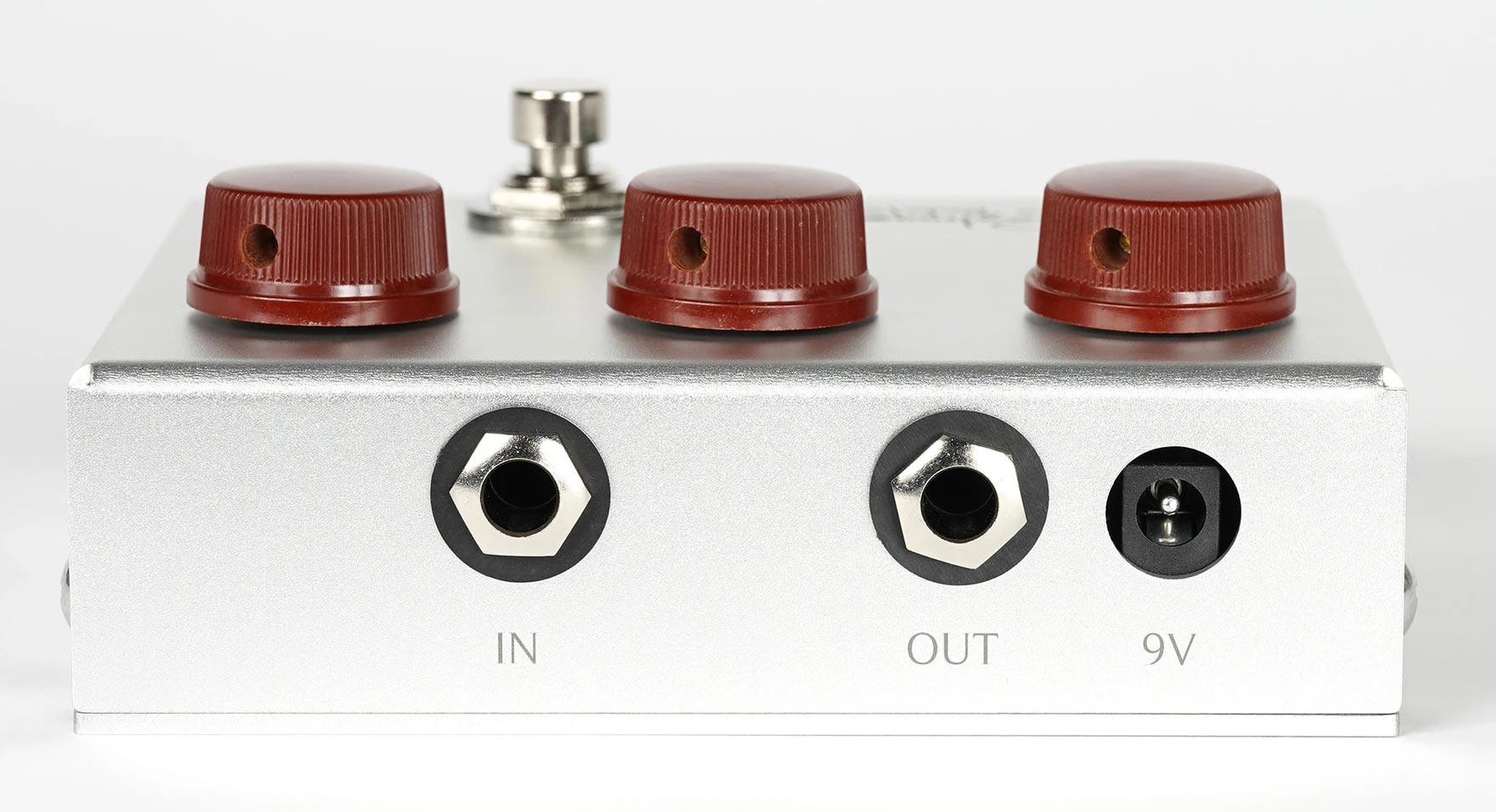

• Power supply : 006P battery or AC adapter [5.5mm AC adapter jack for 2.1mm negative pin]
• Dimensions: approx. D3.8” x W4.9” x H1.9” [D97mm x W125mm x H49mm] (Including the convex parts like the jacks, the knobs, the switches, etc.)

Notes

• To avoid the metal terminals of the battery snap short-circuiting the board, isolate the metal terminals with something like a terminal cap or tape when removing the battery and driving the adapter.
• This unit is for a 9V drive only. In the event that excessive voltage has been input, the protection circuit of this unit may activate protection against a short circuit of the power supply causing the power supply to be cut. This protection circuit can protect the unit from short-term excess voltage such as surges, but if the voltage continues to be in excess for over a certain period of time, it will stop working and need repairing.
