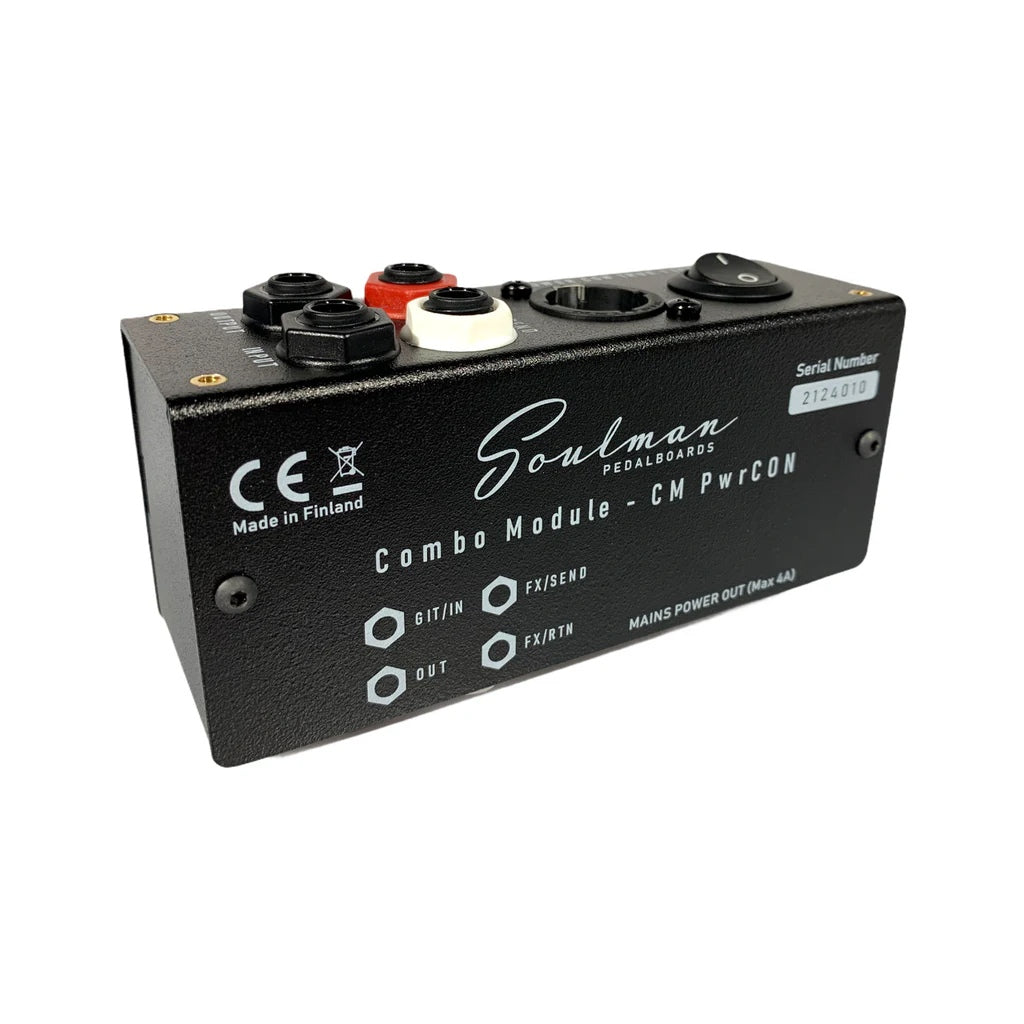

Soulman Combo Module 4TRS + PowerCON

Combo Module with 4TRS, PowerCon and Mains Switch

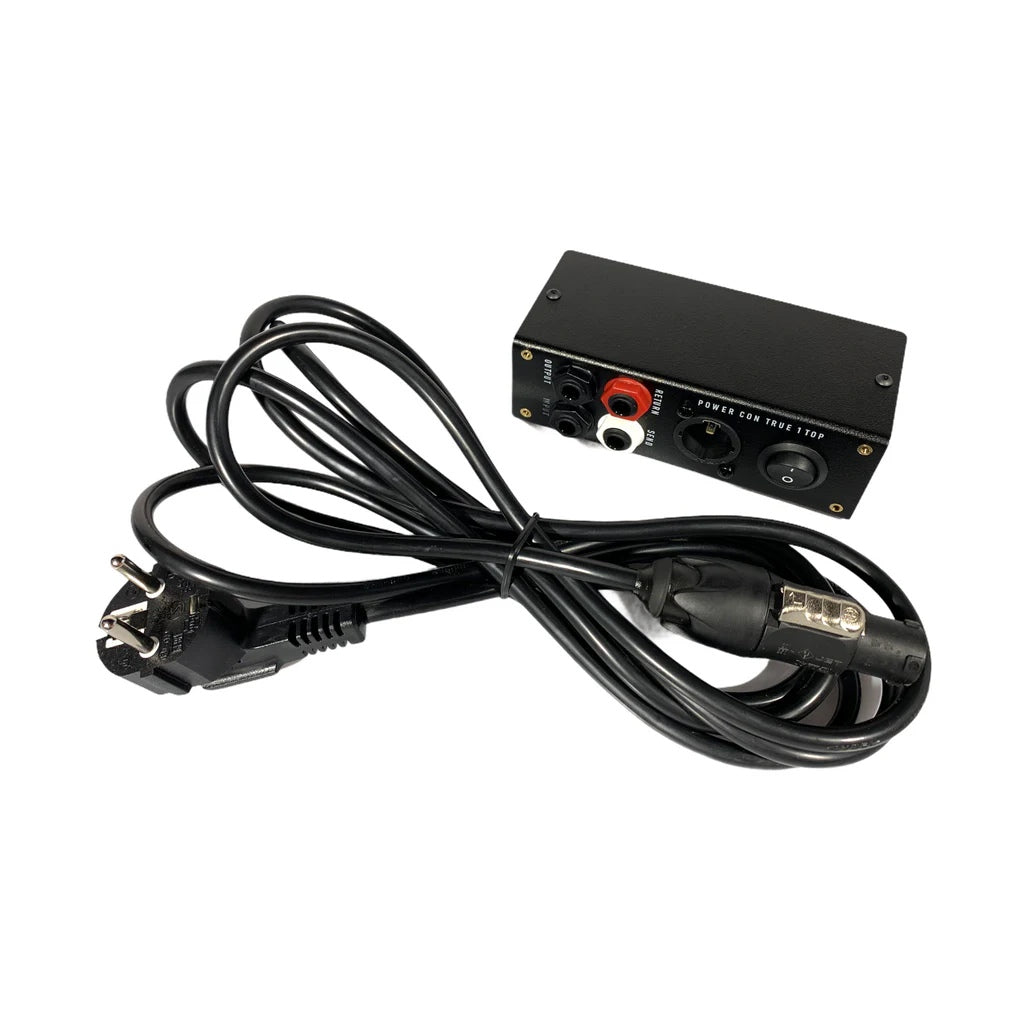

Suitable for all Pedalboards. 3m PowerCON Mains Power Cord included. (Recommended for the XS33, XS44 and M33 pedalboard models)

This is your pedalboard mains power connection and ON/OFF switch. Furthermore you have 4 separate TRS (Tip-Ring-Sleeve) connectors that may be used to send signals in any direction. You just hook up your signal cables and mains power cord (Power CON TRUE 1 TOP) and flip the switch and you are ready to go.

Under the board you have an IEC13 power outlet to connect your power supply to. We have mains cables in different lengths. Make sure you choose the right cable. If you need a custom solution just contact us!

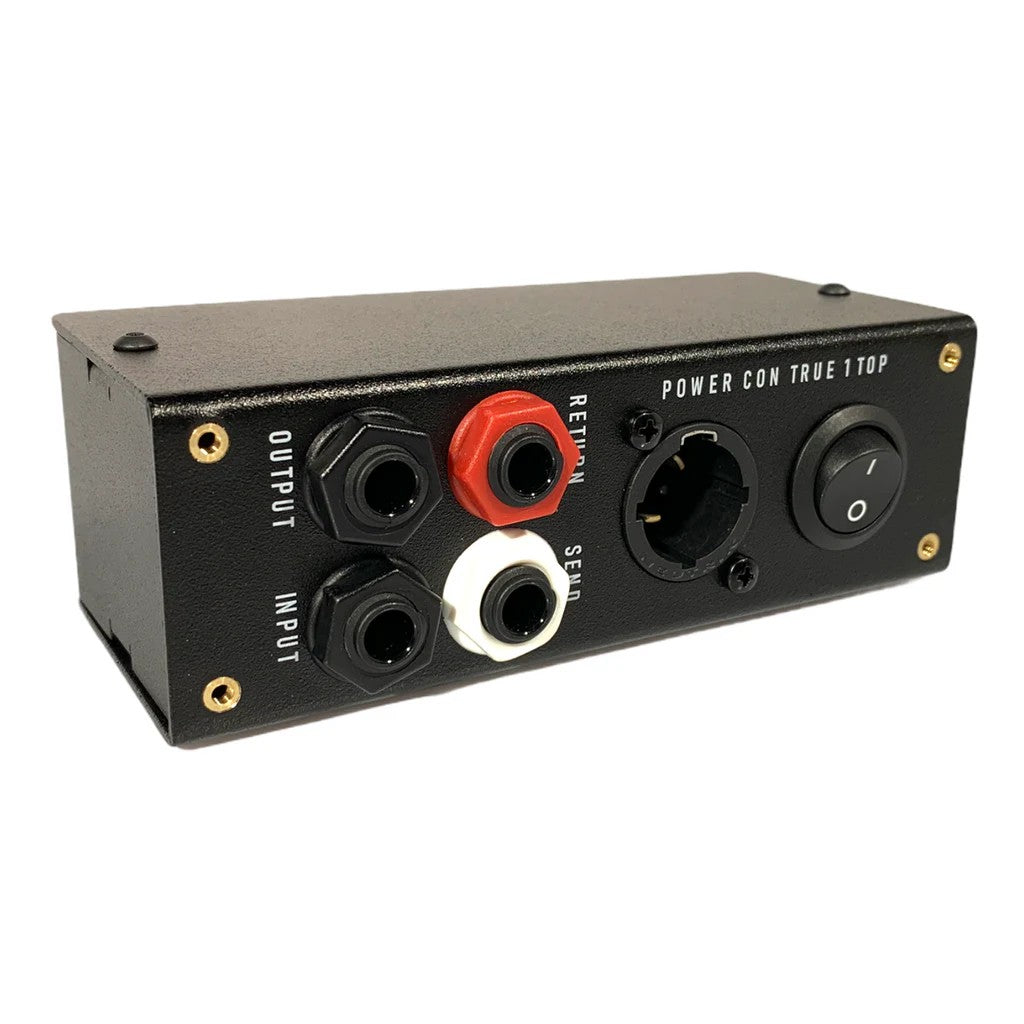

Front panel: 1 x PowerCon Mains Inlet + Switch. 4 x TRS connectors.

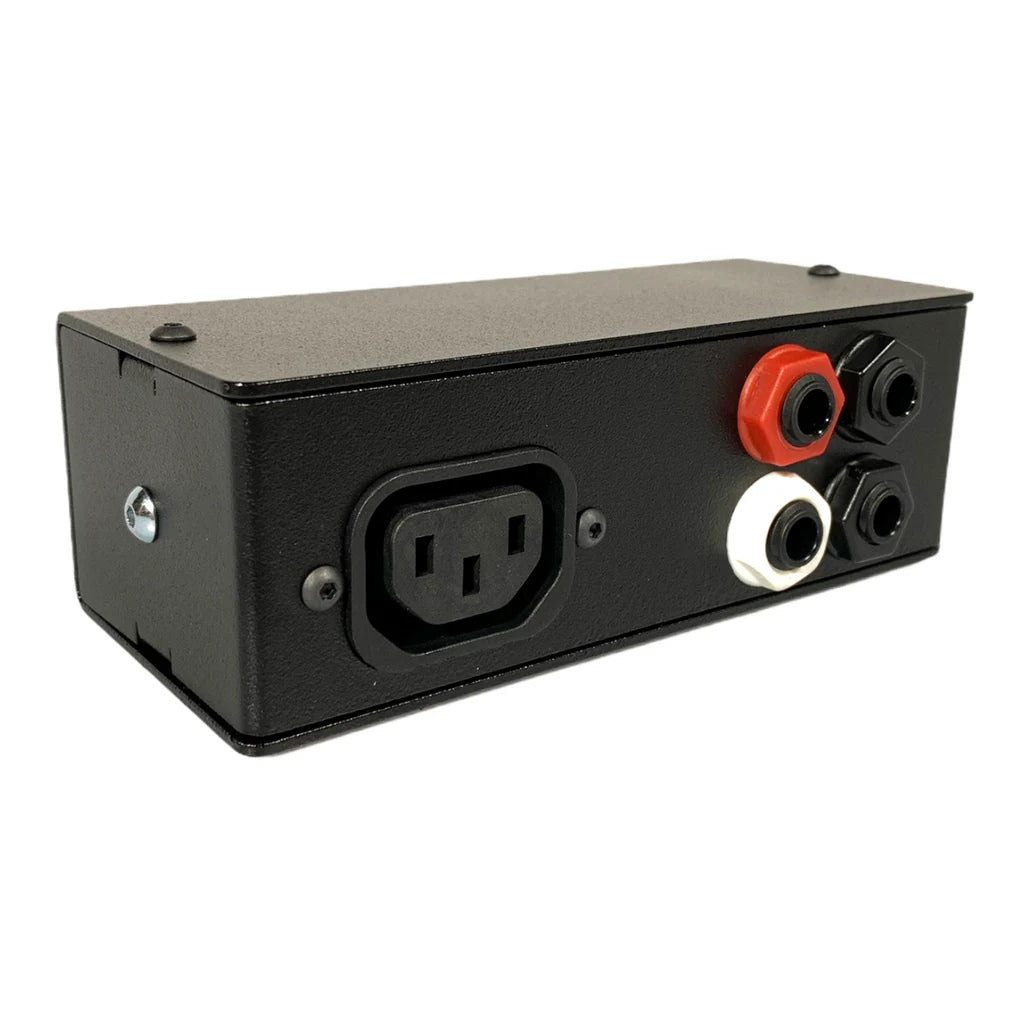

Back panel (under the pedalboard) 1 x IEC Mains outlet. 4 x TRS connectors.
