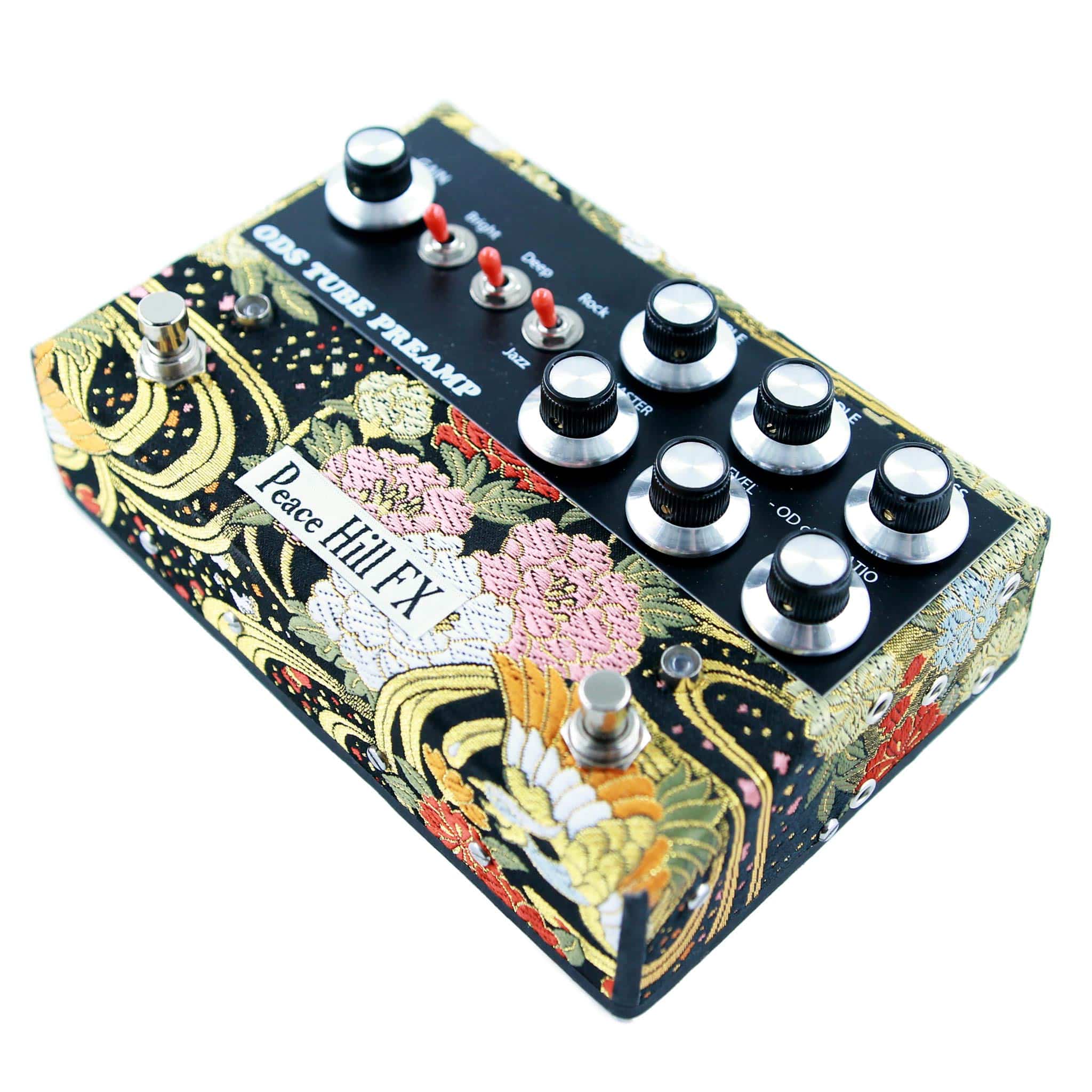

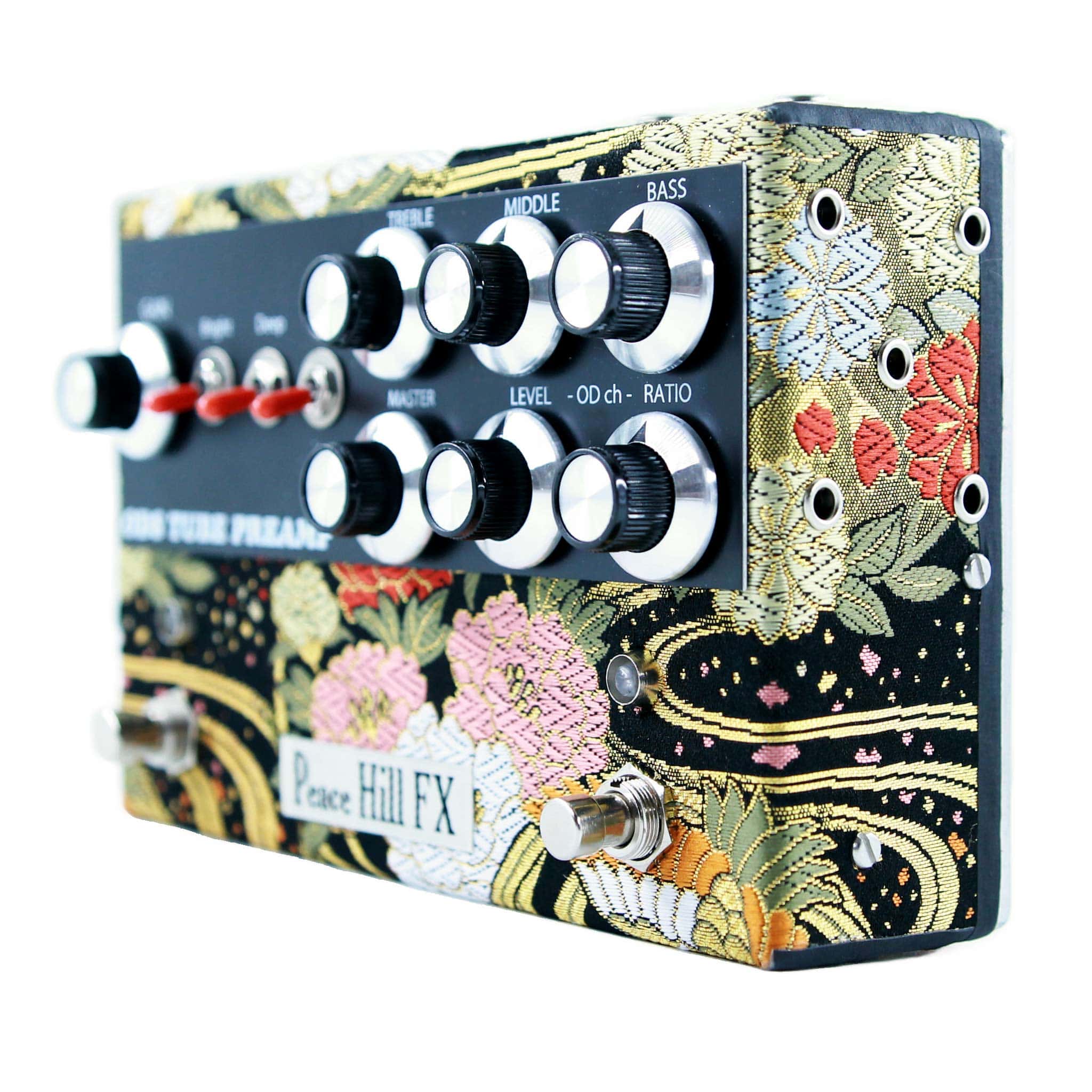

Peace Hill FX ODS Tube Preamp Kimono #1

Authentic Japanese two-channel tube tone inspired by legendary boutique D-style amplifiers.

The ODS Tube Preamp captures the sound and feel that defined countless iconic guitar performances. Inspired by classic boutique “D” amplifiers, it combines a rich, Fender-influenced clean channel with a harmonically complex overdrive channel, both generated entirely by real vacuum tubes.

Handcrafted in Minoh City, Osaka, each unit is built using high-end and vintage components, carefully selected and assembled by hand. No two pedals are exactly alike—each ODS Tube Preamp is created as a true one-of-a-kind instrument, reflecting Peace Hill FX’s commitment to tone, craftsmanship, and musicality.

Tone & Character

• Two-channel all-tube preamp: Clean and Overdrive
• Clean channel developed from modified Fender-style circuits
• Overdrive channel delivers rich overtones and natural tube saturation
• Based on the original ODS design without EQ on the drive channel for pure overdrive character
• Extremely dynamic and touch-responsive, from pristine cleans to singing lead tones

Flexible Integration

• Place at the end of your effects chain and connect to an amp’s return for consistent tube tone
• Works musically into the input of solid-state or transistor amplifiers
• Connect directly to speaker simulator pedals for silent or direct setups
• Excellent as a recording preamp when plugged into an audio interface
• Ideal for home recording, studio work, and headphone practice

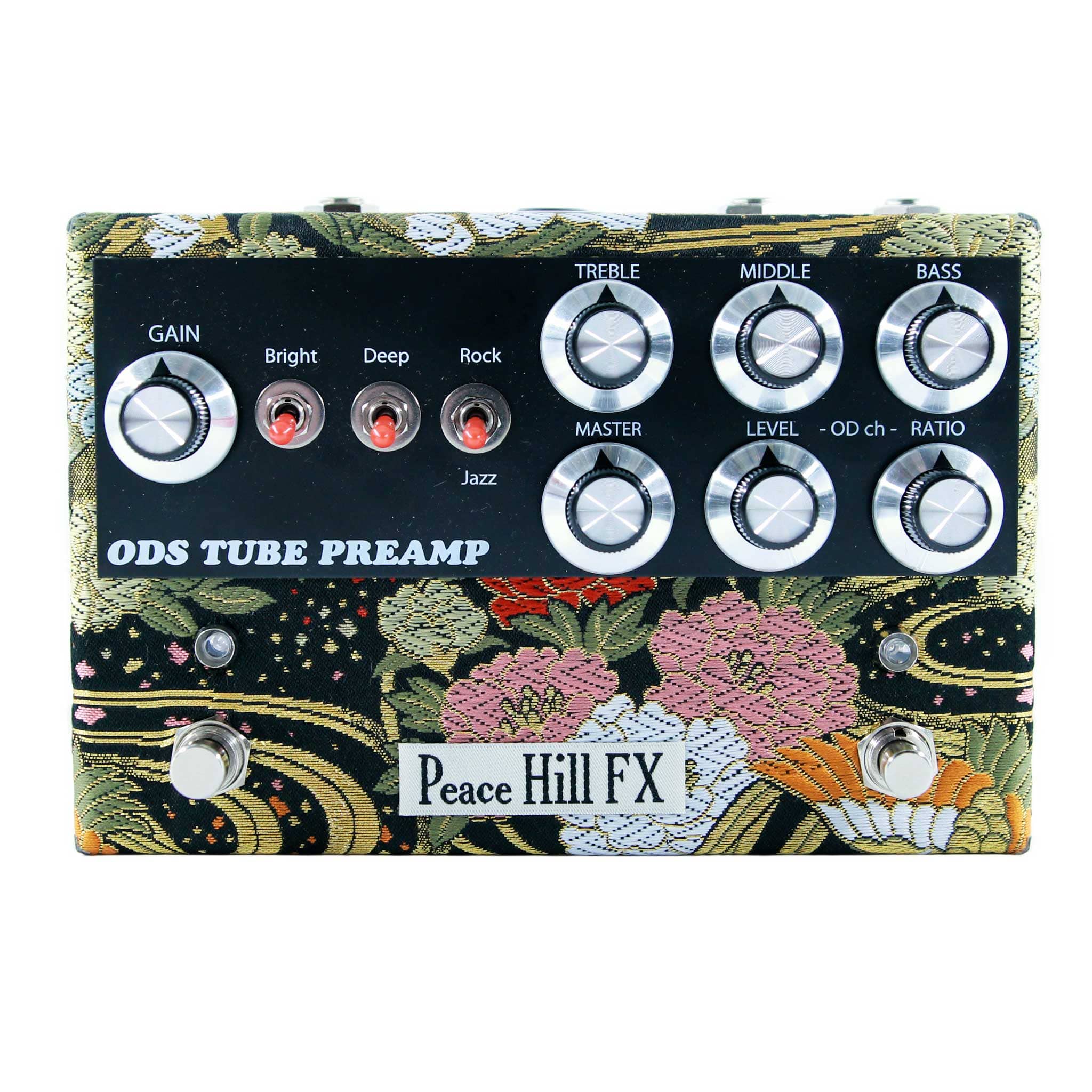

Controls & Sound Shaping

• GAIN – Input gain for the clean channel
• Bright – Adds high-frequency clarity and presence
• Deep – Enhances low-end depth and body
• Rock / Jazz – Alters overall volume and EQ character
• 3-Band EQ – Fender-style tone stack with musical interaction
• OD ch LEVEL – Controls input level and distortion depth of the overdrive channel
• OD ch RATIO – Sets output level of the overdrive channel relative to clean
• MASTER – Overall output volume without altering the core tone

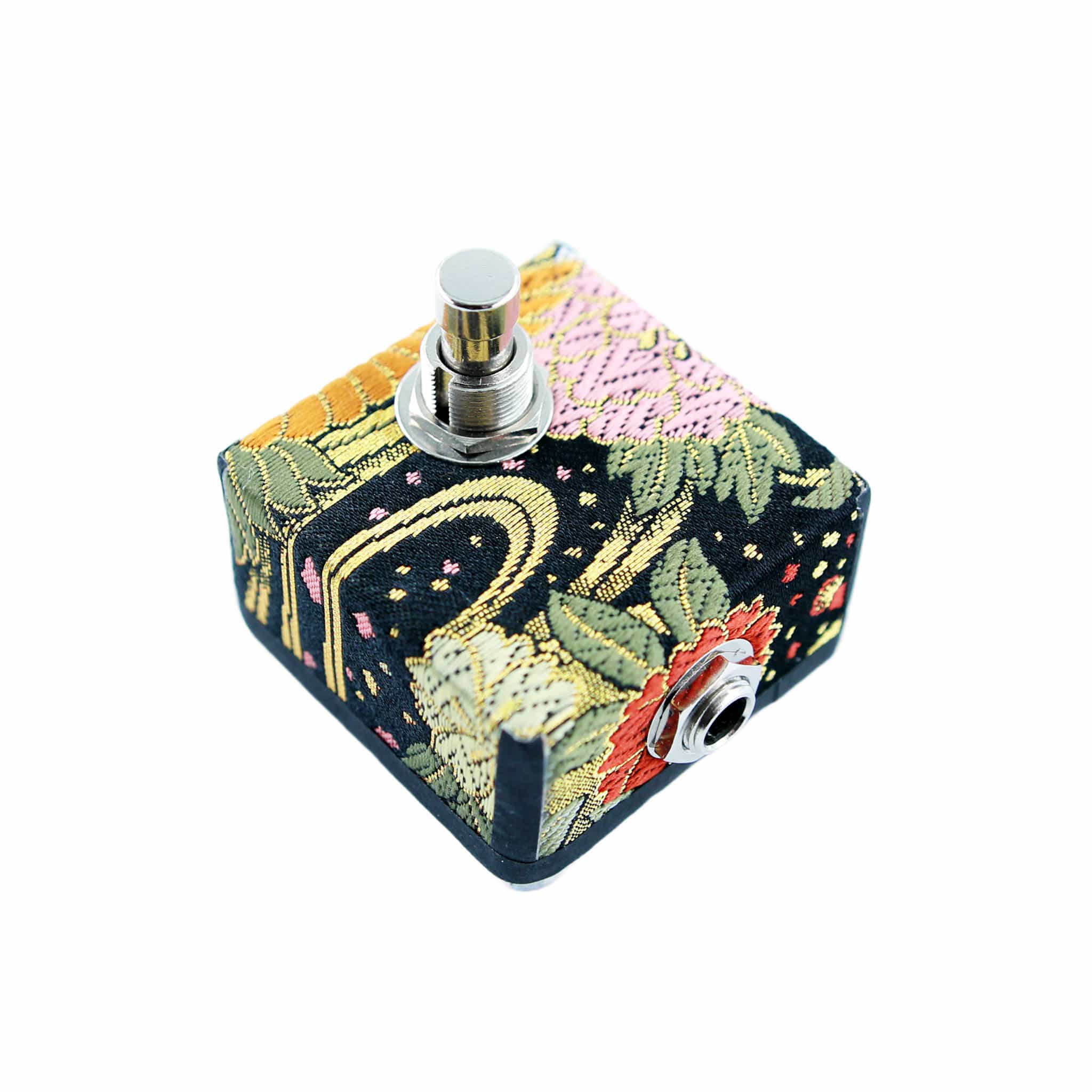

• Optional Remote Switch – External channel switching via footswitch (sold separately)

Handcrafted in Japan

Manufactured entirely in Osaka Prefecture, Japan, each pedal features meticulous internal wiring and refined exterior finish—where sound, beauty, and craftsmanship meet.

Power Requirements

• 12V DC, center-negative
• 500mA minimum (650mA recommended with remote switch option)
• Tube-driven, high-voltage design that generates heat during operation
