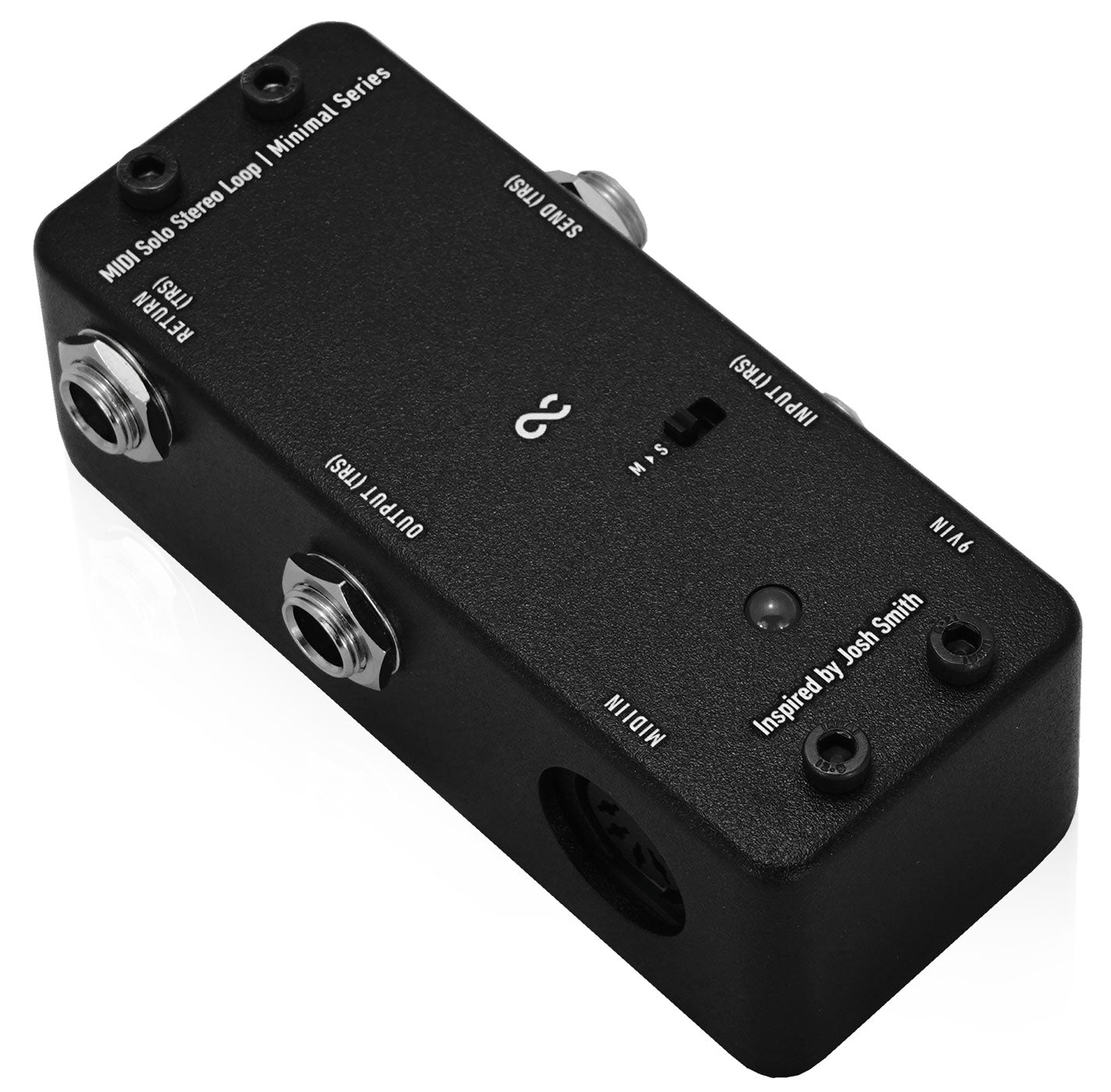

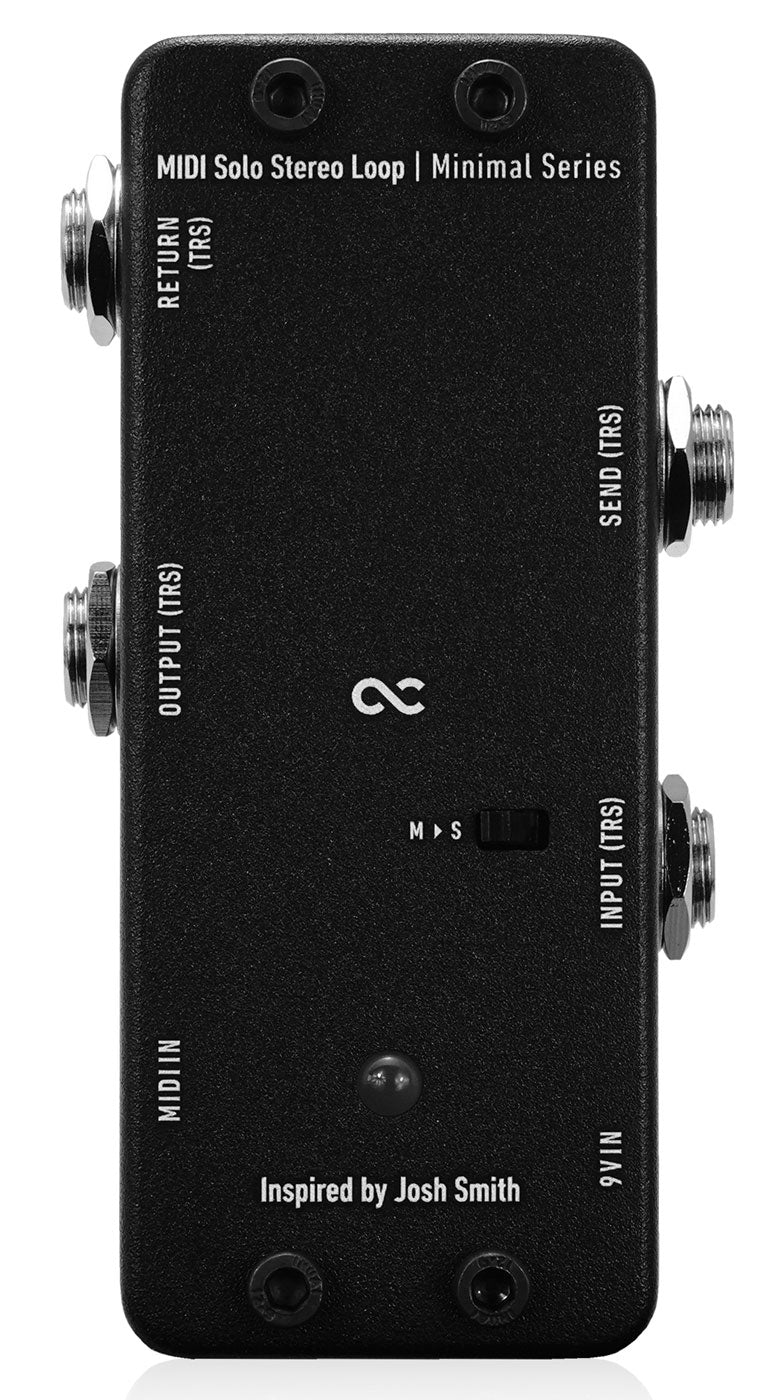

One Control Minimal Series MIDI Solo Stereo Loop Inspired by Josh Smith

The One Control SSL was created to be the smallest stereo 1 loop switcher controlled by midi. SSL provides a simple method to expand pedals with a midi controller/switcher. The side encode switch allows the user to assign midi channel 1 to 4 to the loop, the relay based design ensures the minimum signal loss.

• 9VDC INPUT: Typical 9V center negative power supplies can be used.
• LED: It lights up when the loop is engaged.
• LOOP SEND (Stereo): Sends the input signal via this jack when the loop is engaged, usually connects the jack to the input of external guitar pedal.
• LOOP RETURN (Stereo): The signal output from the external guitar pedal reaches here.
• INPUT(Stereo): Input Jack.
• OUTPUT(Stereo): Output Jack.

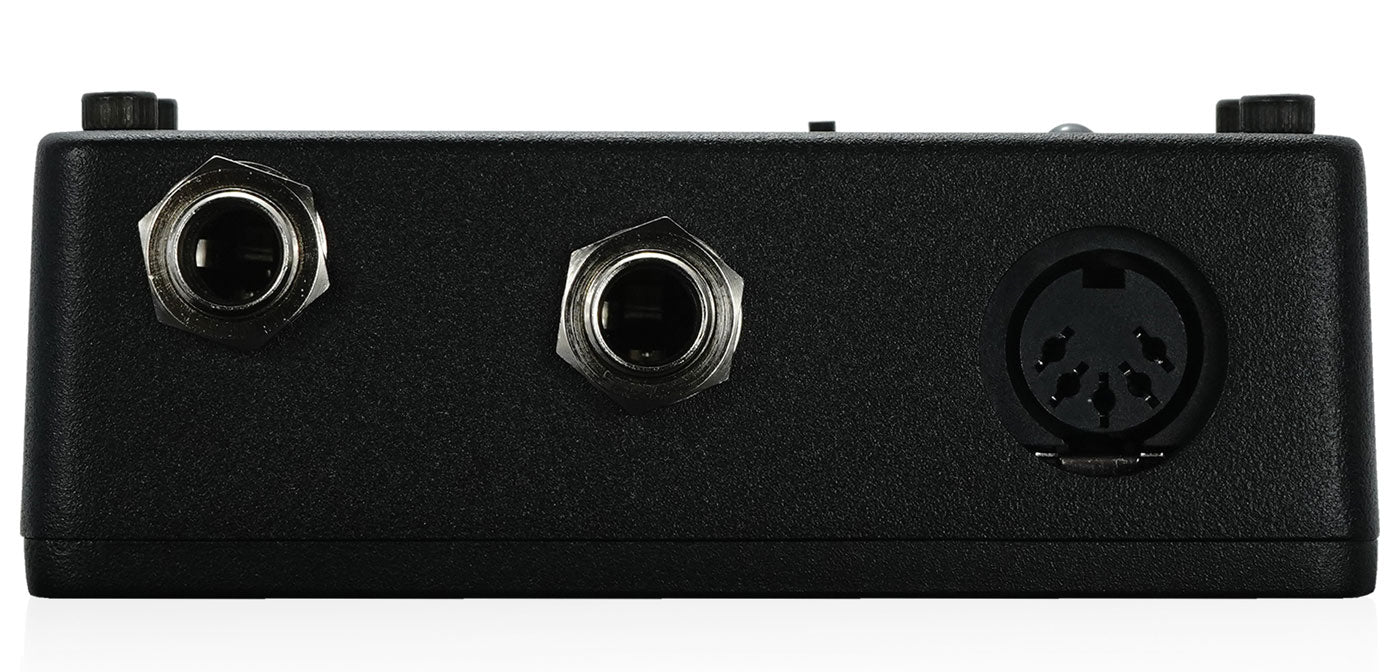

• MIDI IN: Receives midi messages from midi controller/switcher.
• M>S: Toggle switch allows user to setup the different input/output cables.
• Left side (M>S mark): Mono input vs. Stereo Send/Return/Output.
• Right side: i. Stereo Input vs. Stereo Send/Return/Output.
• Mono Input vs. Mono Send/Return/Output.
• Stereo Input vs. Mono Send/Return/Output.

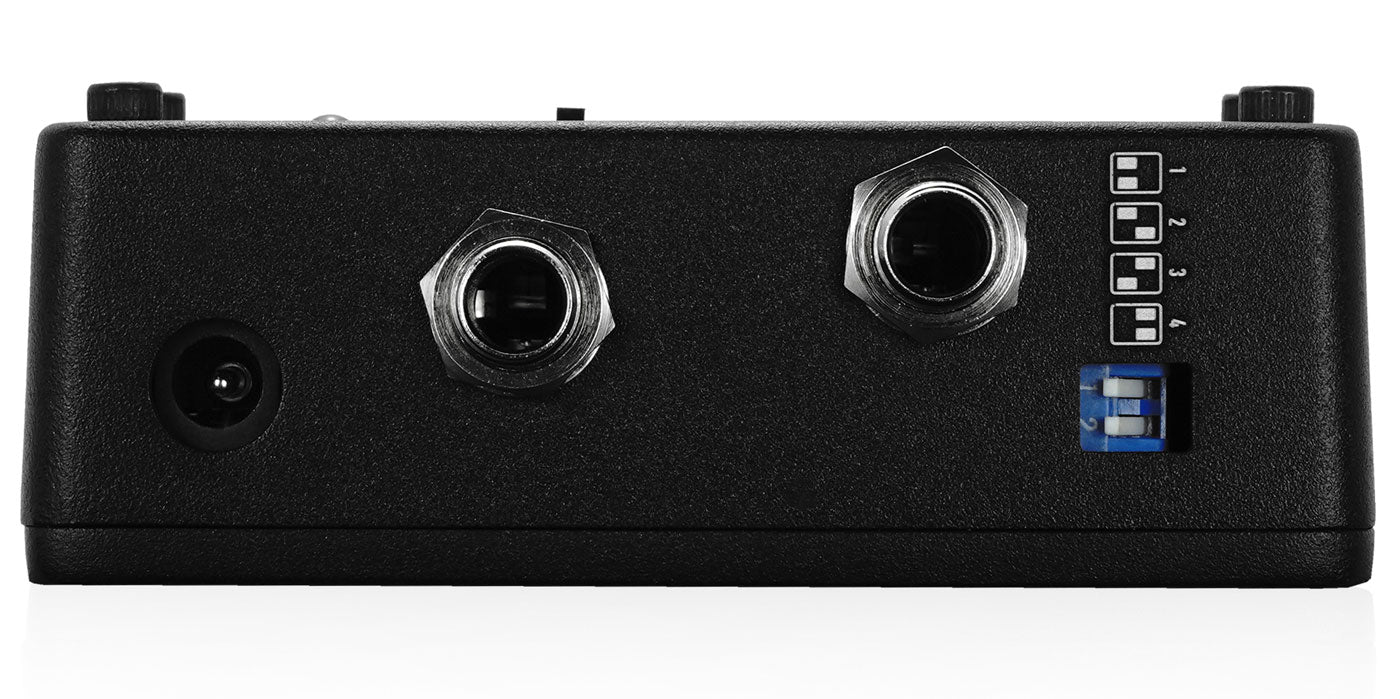

• Midi Channel Encoder: The encoder setup the working midi channel (1~4).

Operation

When SSL is powered up, the LED blinks to indicate the working midi channel, for example, the LED blinks once on channel 1, blinks 4 times on channel 4. SSL is able to be controlled by Program Change (PC) number or Control Change (CC) number.

PC#: 0 off, 1 on. CC#: Controller 102, Value 0~63 off, Value 64~127 on.

Specifications

• CURRENT DRAW: max. 100 mA
• DIMENSIONS: 35x48x98 mm 1.38x1.89x3.85 Inch
• WEIGHT: 127g 4.48oz.
