Capture the Timeless Tone of the Deluxe Reverb
With a history spanning decades of musicians, this amplifier has become synonymous with iconic sound and an unrivaled presence on both stage and in the studio. Thanks to its clean and powerful tone, it's no coincidence that the Deluxe Reverb is a favorite among guitarists worldwide.
Production Years: 1963–1968.
Bring Out the Best in Your Music
With 22 watts of pure power, the Deluxe Reverb is more than capable of filling any room with crystal-clear tones and dynamic response.
The legendary combination of a 12-inch speaker and two 6V6 tubes delivers a soundscape that's as beautiful as it is versatile. Whether you're seeking subtle overdrive or raw power, the Deluxe Reverb is ready to deliver.
Our Modifications
We've chosen to modify this classic to feature a single channel instead of two. This channel corresponds to the Deluxe Reverb's "Vibrato" channel, which includes both reverb and tremolo. The tremolo is a bias-modulated tremolo, inspired by the Brownface style, where the tremolo circuit adjusts the bias of the power tubes. This creates a smooth, refined tremolo effect that gently raises and lowers the volume.
Additionally, we've trimmed the bass frequencies slightly to eliminate "boom" and provide greater stability in the low-end. With just one channel, the amplifier fits into a smaller, more portable cabinet.
To make this amplifier extra special, we've added a dwell function, offering greater control over the reverb sound. This feature can be especially useful when pairing the amplifier with effect pedals.
Handwired Swedish Built Amp
- Circuit: AB763 Handwired
- Channels: 1
- Output power: Approximately 22W
- Switch: Bright
- Speaker: Jensen C12N 8 Ohm 12"
- Preamp tubes: 2 x 12AX7 (V3,V4), 1 x 12AT7 (V2), 2 x 5751 (V1,V5)
- Rectifier tube: 1 x GZ34/5AR4 (V8)
- Output tubes: 2 x 6V6 (V6,V7)
- Reverb: 4AB3C1B + Dwell function
- Bias-Controlled Vibrato/Tremolo

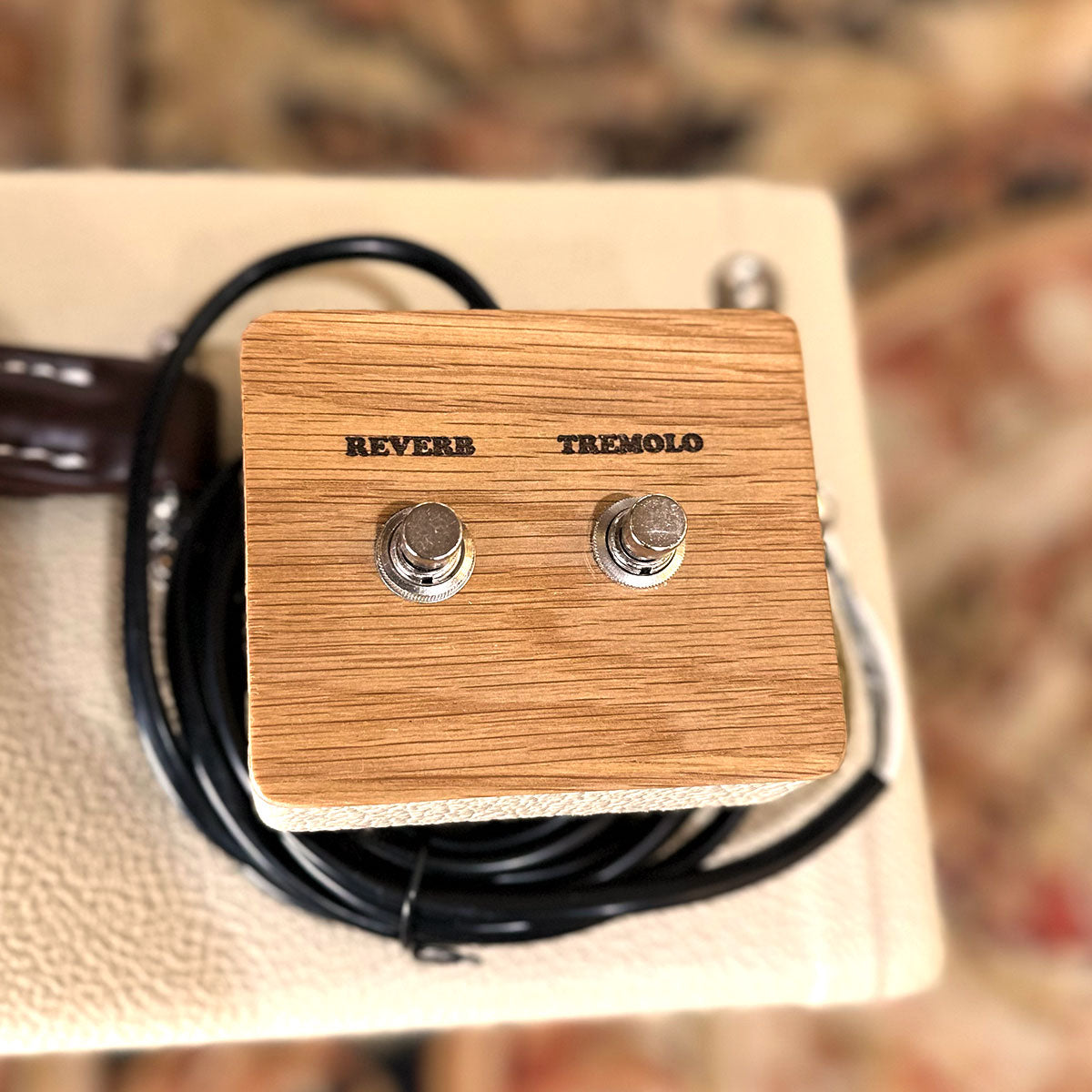

- Foot pedal: Reverb / Tremolo
- Face/backplate: Custom wood / Nordström logo
- Weight: 16.6 kg
- Cabinet: NA Blonde, Black & Wood (h 460 xw 506 xd 240 mm)
