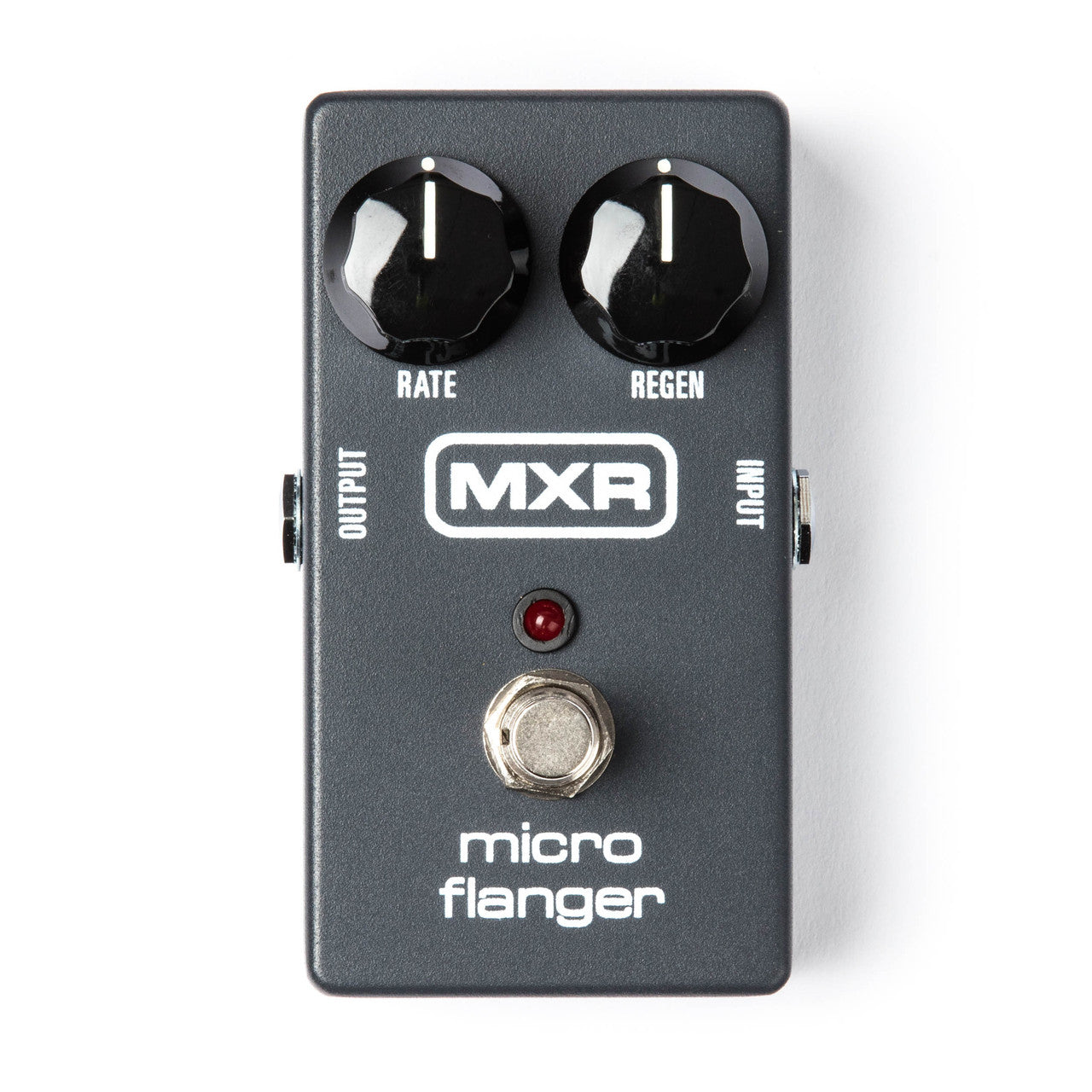

MXR M152 Micro Flanger

MXR MICRO FLANGES
The Micro Flanger provides the same tones and textures as its big brother but with a simpler interface featuring Speed ​​and Regeneration controls.

Based on the benchmark sounds of the MXR M117 Flanger, the MXR Micro Flanger features many of the same flanging effects of its big brother, but in a smaller and more convenient size. Originally released in the '80s, this faithful recreation features the same two critical controls—a Speed ​​knob to control the rate of cycling and a Regeneration knob to manage the overall intensity—and stays true to its 100% analog bucket brigade technology for the ultimate in warm and organic tone. The Micro Flanger has been updated with a true bypass switch so you don't lose any tone during bypass. Go from jet plane like sweeps to cool outer space type effects with the MXR Micro Flanger.

SPECIFICATIONS

• Input Impedance 1 MΩ
• Output Impedance 1 kΩ
• Max Input Level -2 dBV, 500 Hz
• Max Output Level +8 dBV
• Noise Floor* -88 dBV
• Rate Control 0.2 Hz to 5.5 Hz
• Delay Range 3.9 µs to 4 ms
• Bypass True Hardwire
• Current Draw 7 mA
• Power Supply 9 volts DC
