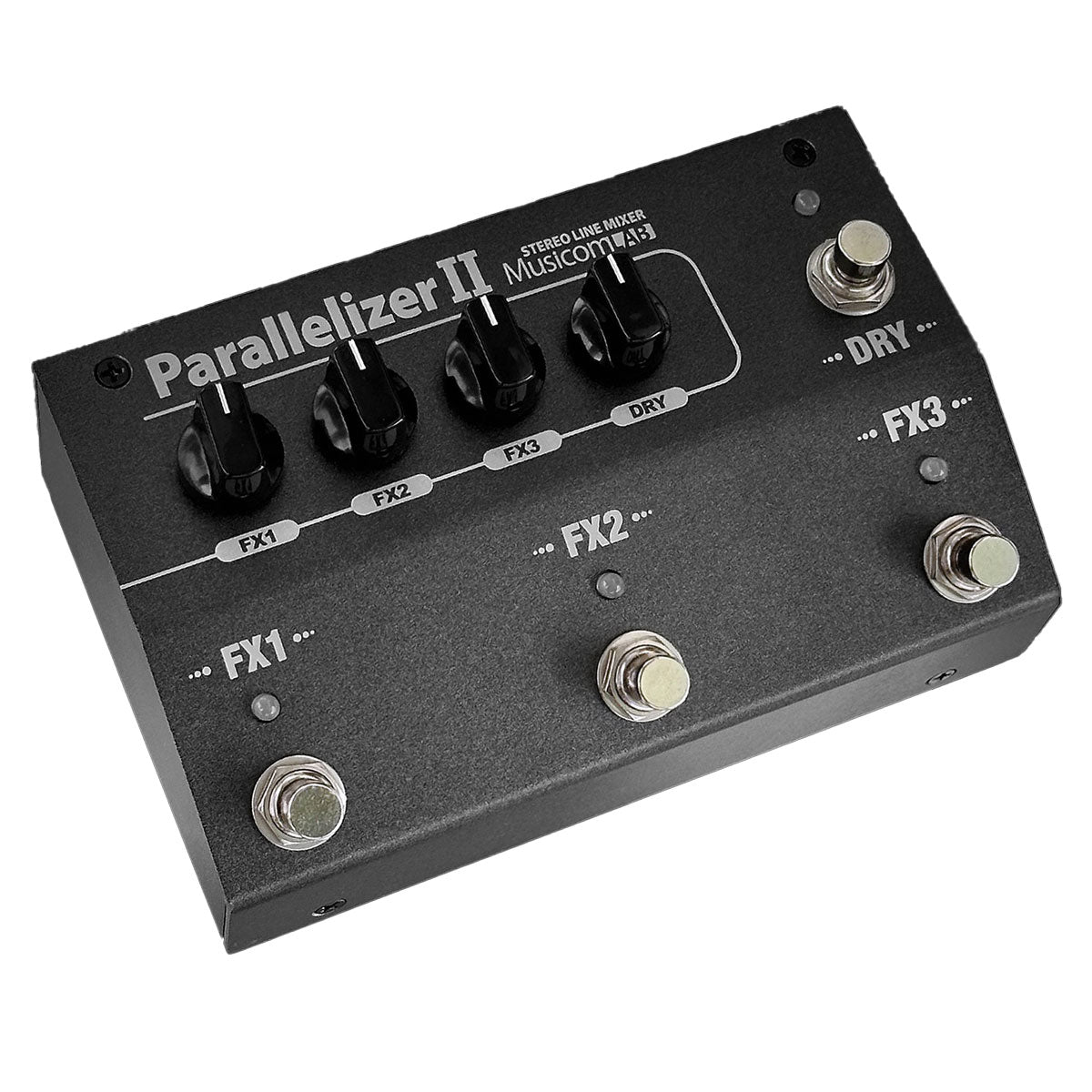

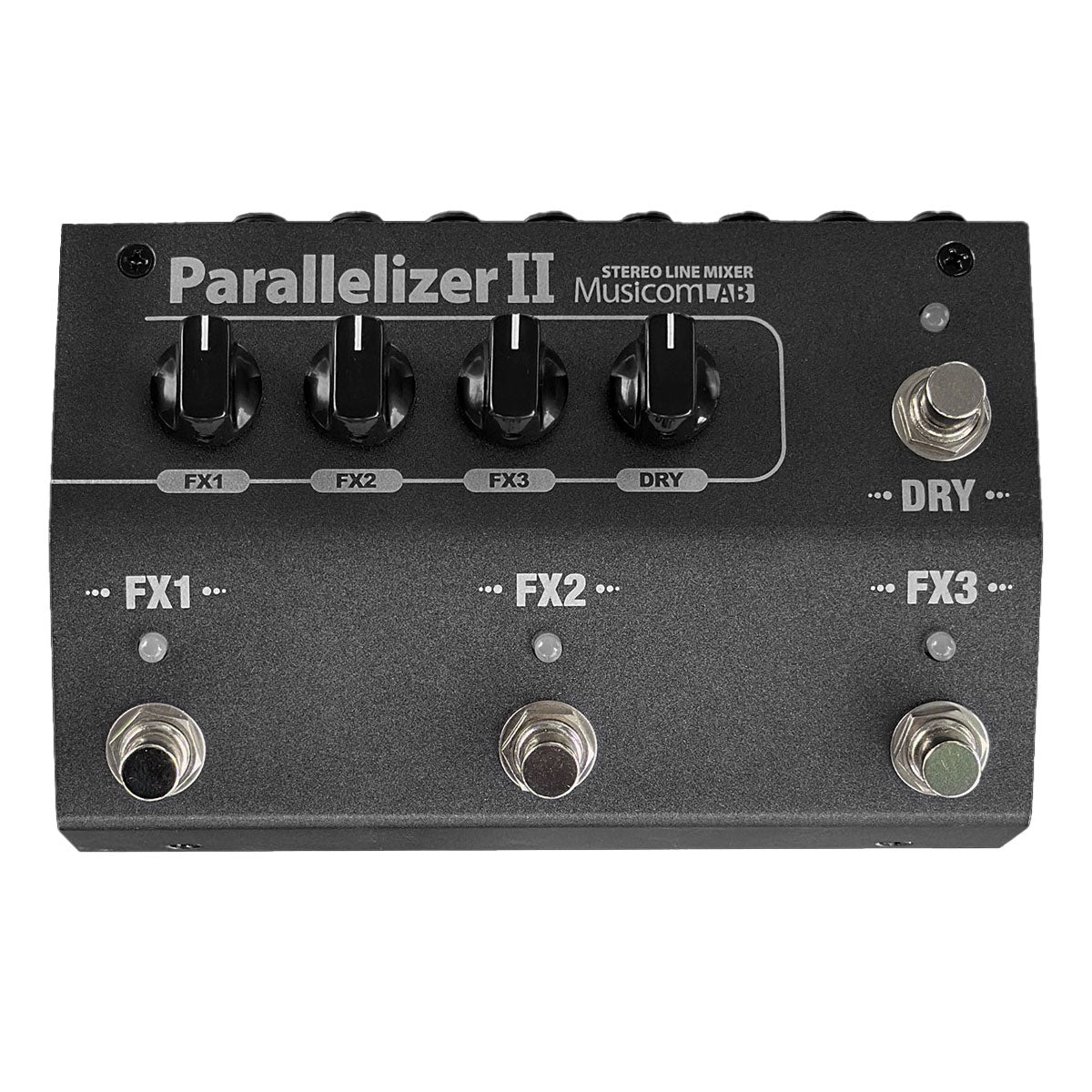

Musicom Lab Parallelizer II

PARALLELIZER V2

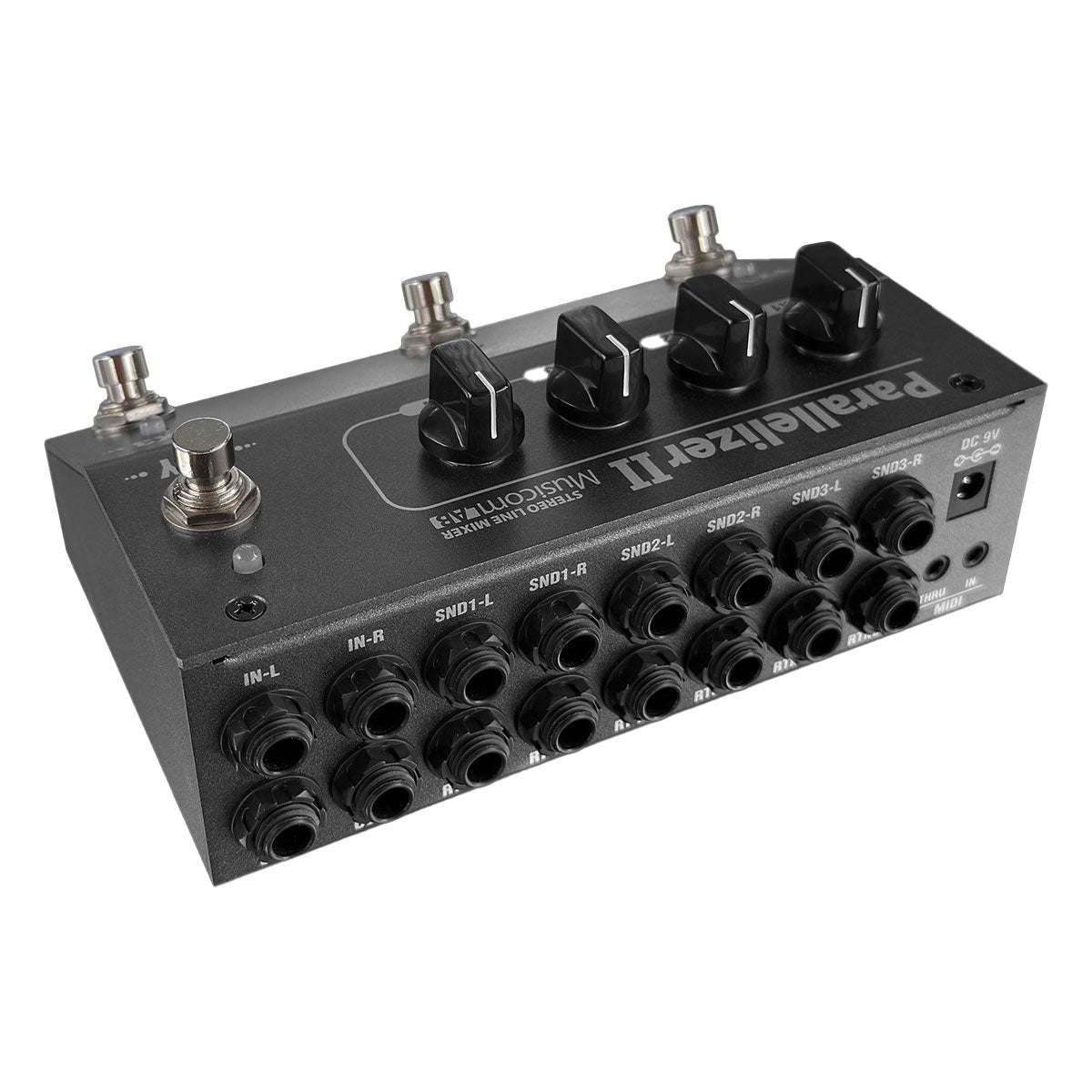

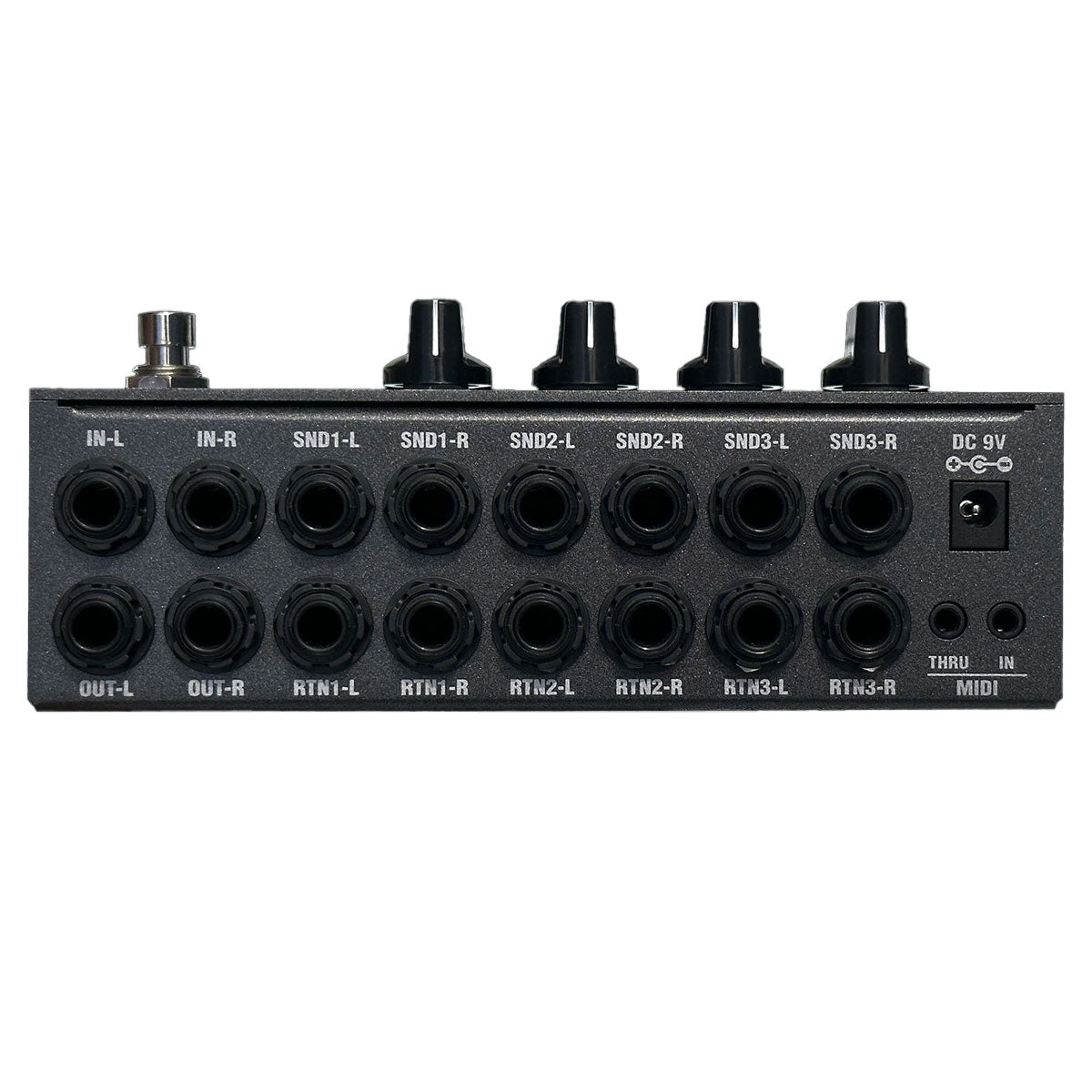

• 3 x Mono SENDs, 3 x Stereo RETURNS and Dry
• Adjust the effect level and dry level through each Knob
• Operates in 4 modes (Manual, MIDI PC, MIDI CC, MIDI PC+CC)
• 128 memory locations (when using MIDI PC)
• The 9V power input is converted to a +/-12V internally for any audio level
• Firmware update is available via MIDI.
• Heavy-duty footswitches
• Powered by 9VDC (center negative) 185mA
• Dimensions : 160(W) x 96(D) x 71(H) mm
• 6.3(W) x 3.8(D) x 2.8(H) inches
• Weight: 570 g / 1.26 lb

MANUAL
