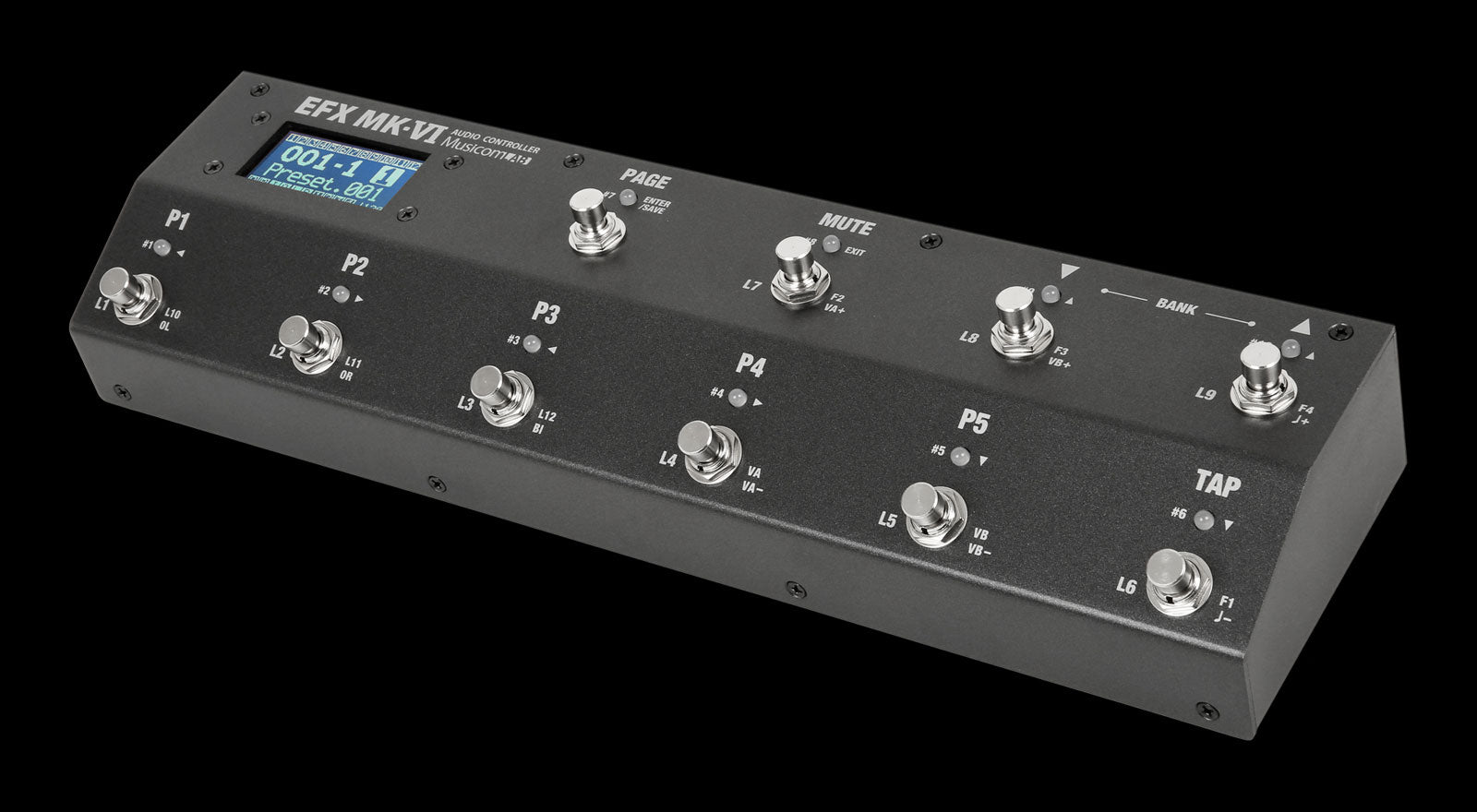

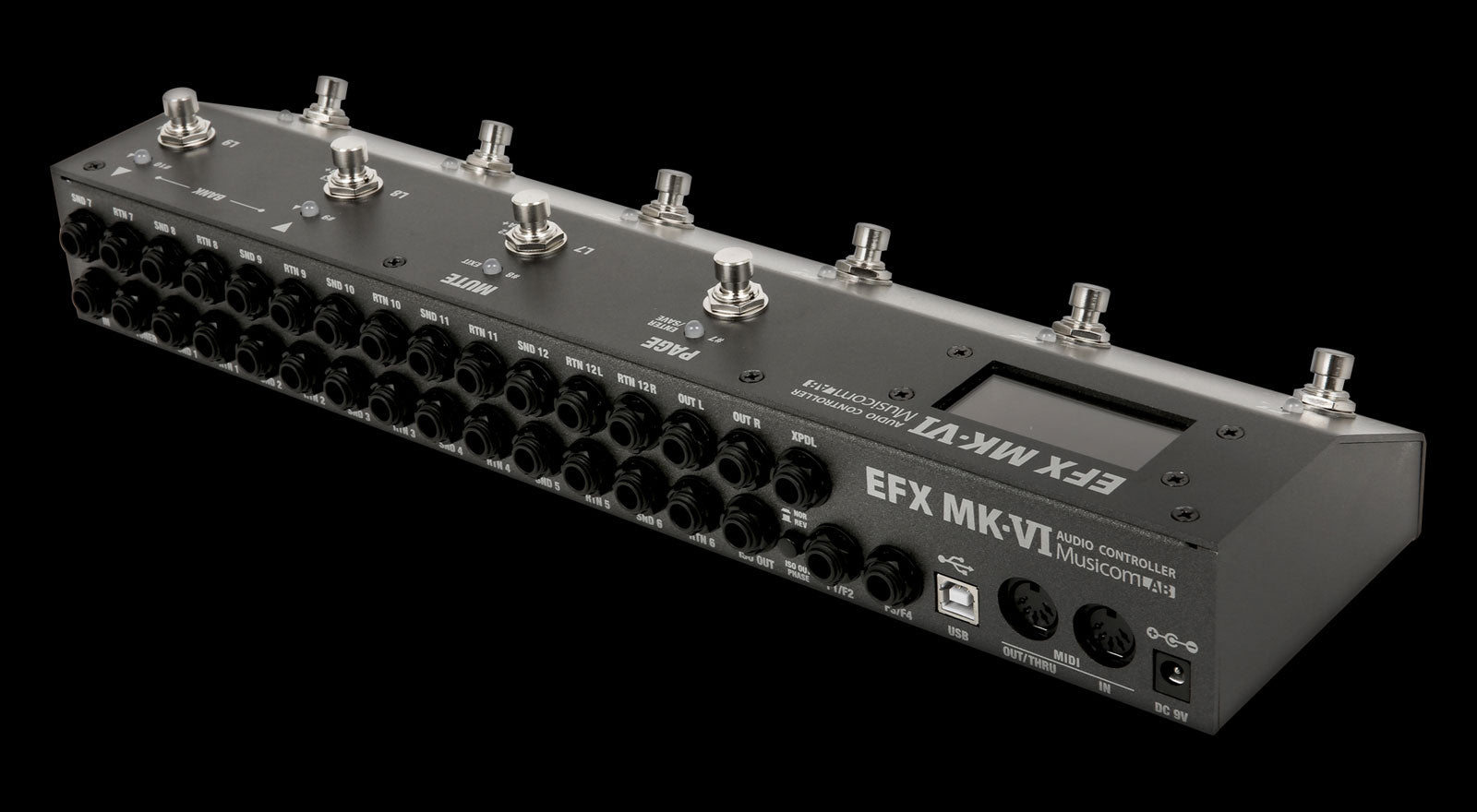

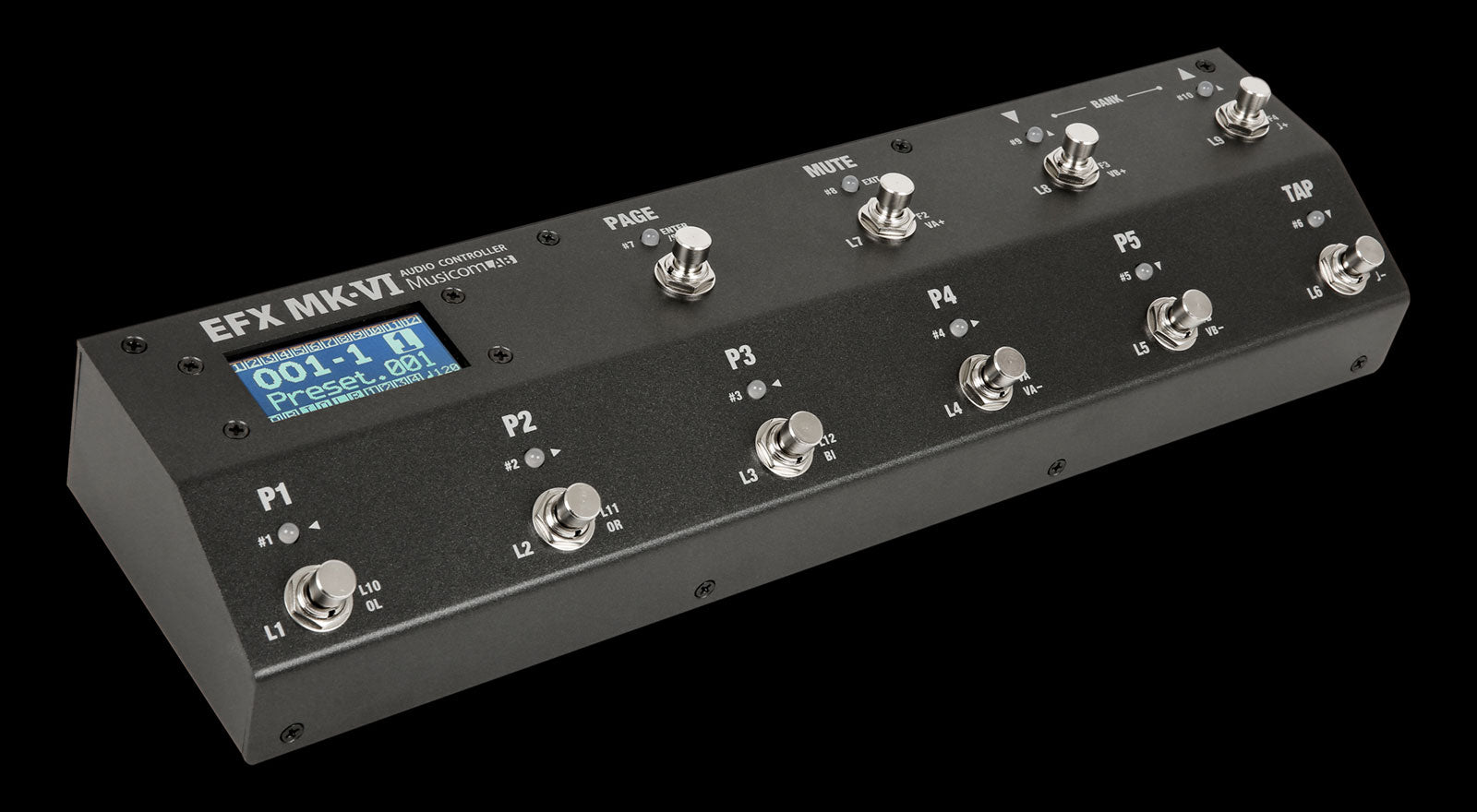

Musicom Lab EFX MK-VI

The EFX MK-VI Audio Controller is the ultimate floor-based all-in-one switching system.

The EFX MK-VI is a compact, easy to use, has 12 fully programmable loops, 4 function switches and a MIDI foot controller. The EFX MK-VI has a powerful MIDI function, so it can also be used with rack-based rigs. TGT11 has been a Musicom Lab dealer since 2011 and we love these loopers!

SPECS

• 11 mono loops and 1 mono-send/stereo-return loop
• Programmable loop order each preset
• 3 Buffers, Input, Output and buffer in loop6
• 2 internal Volume controllers
• (Carry-Over routing or Volume Control)
• 901 preset memory locations
• (180 banks of 5 presets, plus a Global Preset)
• Create up to 900 songs
• Organized the 900 songs into 64 sets of 120 songs
• 4 function switches via 2 TRS jacks
• (Latched / Momentary / Tempo Sync)
• Flexible switch setting
• Mute and Click-Less functions
• ISO OUT to prevent ground noise and phase issue
• 16 MIDI messages (PC, CC, Note or SysEx) each preset
• 8 MIDI messages (PC, CC, Note or SysEx) each switch
• 8 Audio actions each IA switch
• MIDI Time Clock or Alaog Tempo out for TAP-TEMPO
• One expression pedal or 2 foot-switch port port (XPDL)
• Graphic LCD to show a lot of information
• Easily copy presets, banks, songs and sets
• Easily name presets, songs, sets, pages and switches
• Heavy-duty footswitches
• Powered by 9VDC (center negative) 250mA
• Dimensions : 388(W) x 110(D) x 68(H) mm
• 15.3(W) x 4.3(D) x 2.7(H) inches
• Weight: 1,400 g / 3.1 lbs

MANUAL HERE
