Musicom Lab EFX-10D Switcher 2024

All new switcher from our longtime friend Hyungwoo at Musicom Lab!

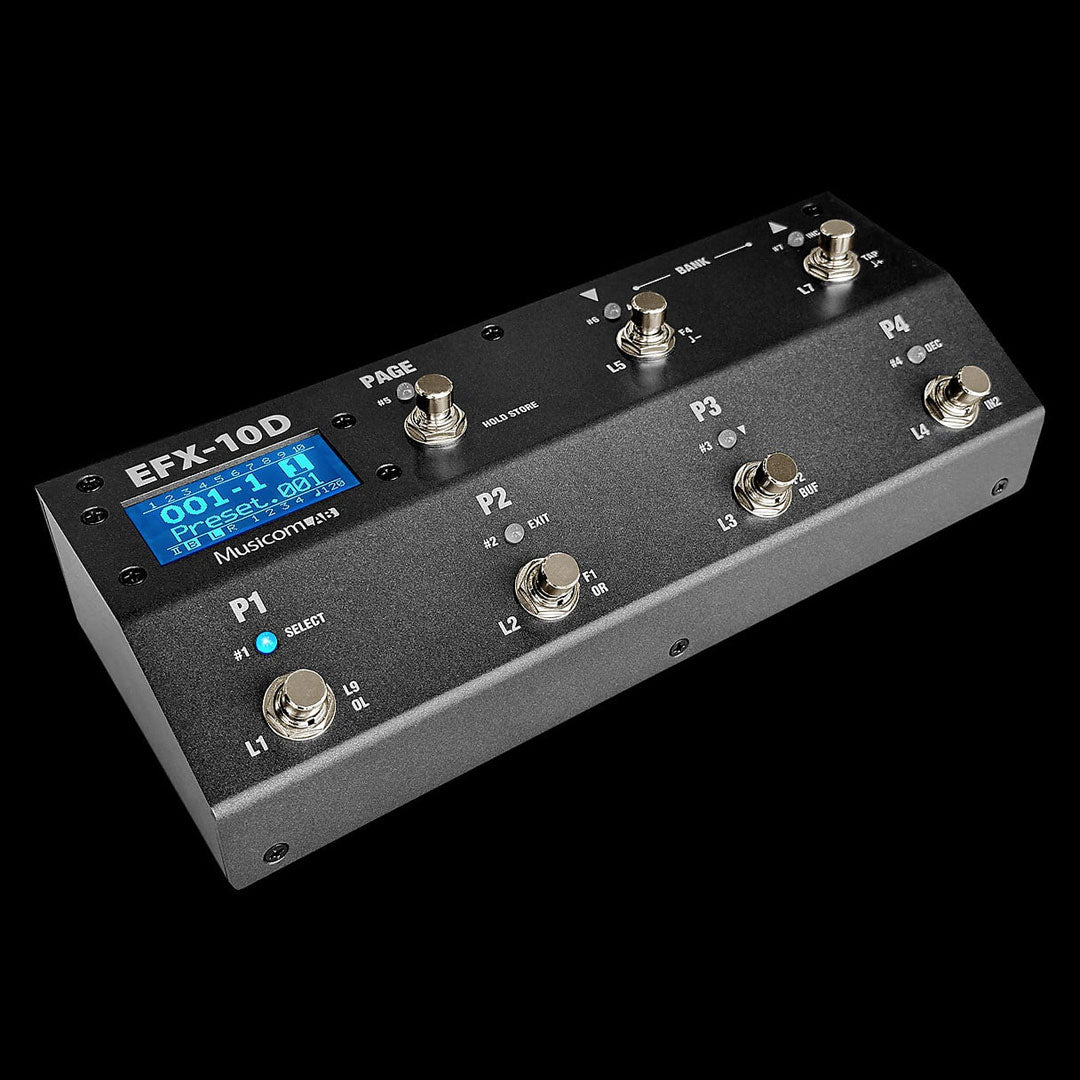

Presenting the all new MusicomLAB EFX-10D Audio Controller/MIDI Controller. This compact switcher packs a powerhouse level of features into a compact format.

You can easily edit all of the presets and functions via their computer-based editor that is available for Windows or Mac, as well as update the firmware via the built-in USB port.

Specifications:

• 10 mono loops
• Programmable loop order each preset
• One of 2 inputs is selectable using TRS jack
• Output L/R are capable using TRS jack
• Loop5/6, Loop7/8 and Loop9/10 are capable of using TRS jacks
• Up to 2 loops can be assigned to Carry-over between presets
• 801 preset memory locations
• (200 banks of 4 presets, plus a Global Preset)
• Create up to 800 songs
• Organized the 800 songs into 64 sets of 120 songs
• 4 function switches via 2 TRS jacks
• (Latched / Momentary / Tempo Sync)
• Flexible switch setting
• Click-Less functions
• 16 MIDI messages (PC, CC, Note or SysEx) each preset
• 8 MIDI messages (PC, CC, Note or SysEx) each switch
• 8 Audio actions each IA switch
• MIDI Time Clock or Analog Tempo out for TAP-TEMPO
• One expression pedal or 2 foot-switches (XPDL)
• USB Connection to a PC or MAC
• Graphic LCD to show a lot of information
• Easily copy presets, banks, songs and sets
• Easily name presets, songs, sets, pages and switches
• Heavy-duty footswitches
• Powered by 9VDC (center negative) 250mA
• Dimensions : 263(W) x 110(D) x 68(H) mm
• 10.4(W) x 4.3(D) x 2.7(H) inches
• Weight: 1,000 g / 2.2 lbs
