ML5R - Reorderable Loop Switcher

The ML5R is a reorderable loop switcher that redefines your approach to audio effects.

Experience entirely new sounds from your existing effects—just by switching up their order.

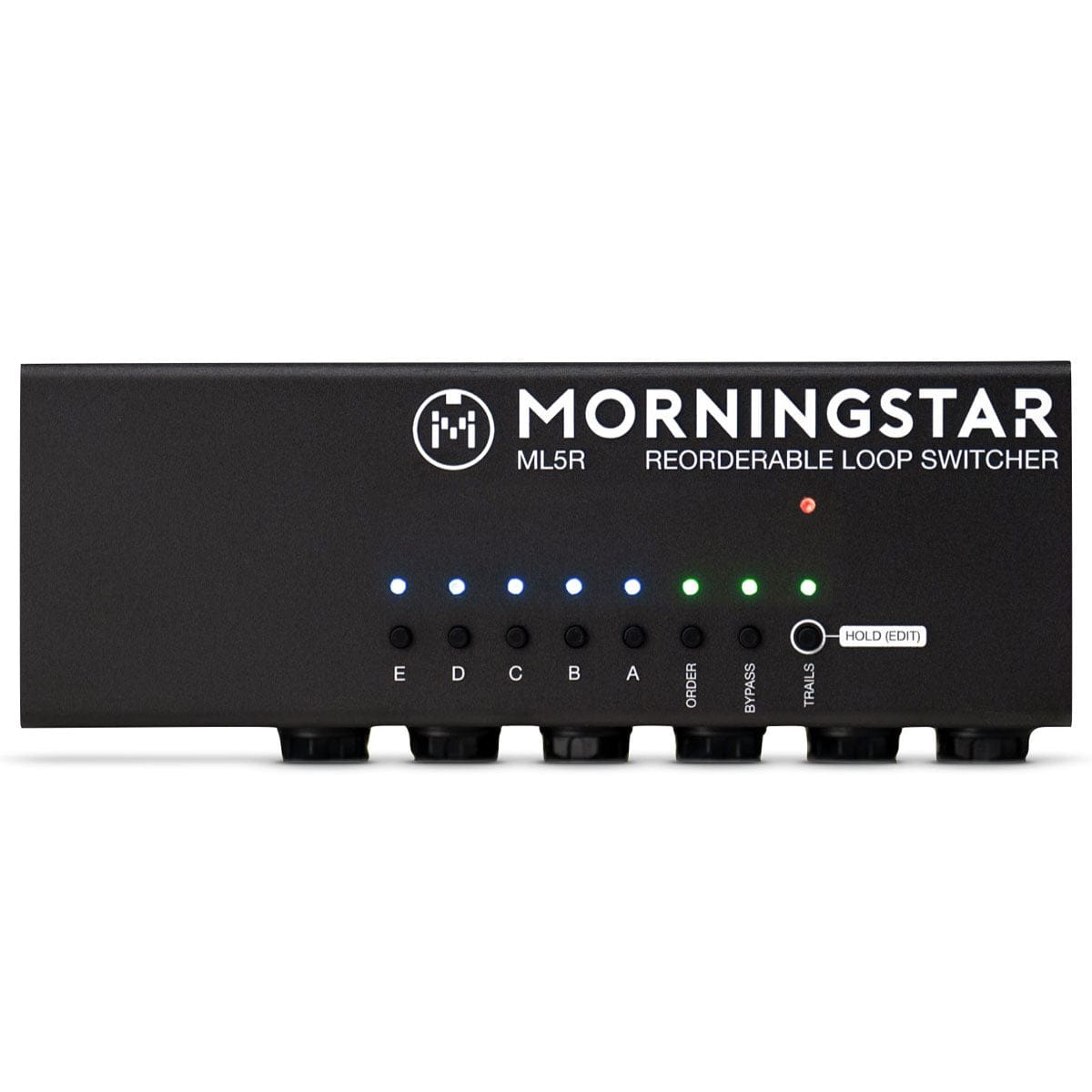

Its sleek, intuitive interface enables you to switch the order of your effects quickly, whenever you want.

No Editor Required

Everything you can do on ML5R, you can do on ML5R. Set loop Order, Bypass, and Trails with just a few simple switch presses.

Features

• Set Order: Simply press the loop buttons in your desired order, and the effect loops will be arranged accordingly.
• Set Bypass: Select the loops that you want engaged when you recall an ML5R preset. Bypassed loops can be engaged individually after a preset has been recalled.
• Set Trails: Enable spillover trails for your desired loop.
• Save: Save your custom loop order, bypass states, and trails as a preset in any of the 128 user slots. Simply send ML5R a Program Change message from 0 to 127 to recall your desired presets.
• 5 mono loops in series.
• Full MIDI Capabilities: Scroll through presets, toggle individual loops on/off, rearrange loop order, control master mute, and more. Take full control of ML5R with your MIDI controller.

Technical Specifications

• Dimensions: 169 x 58 x 58 mm, 400g
• Memory: 128 presets

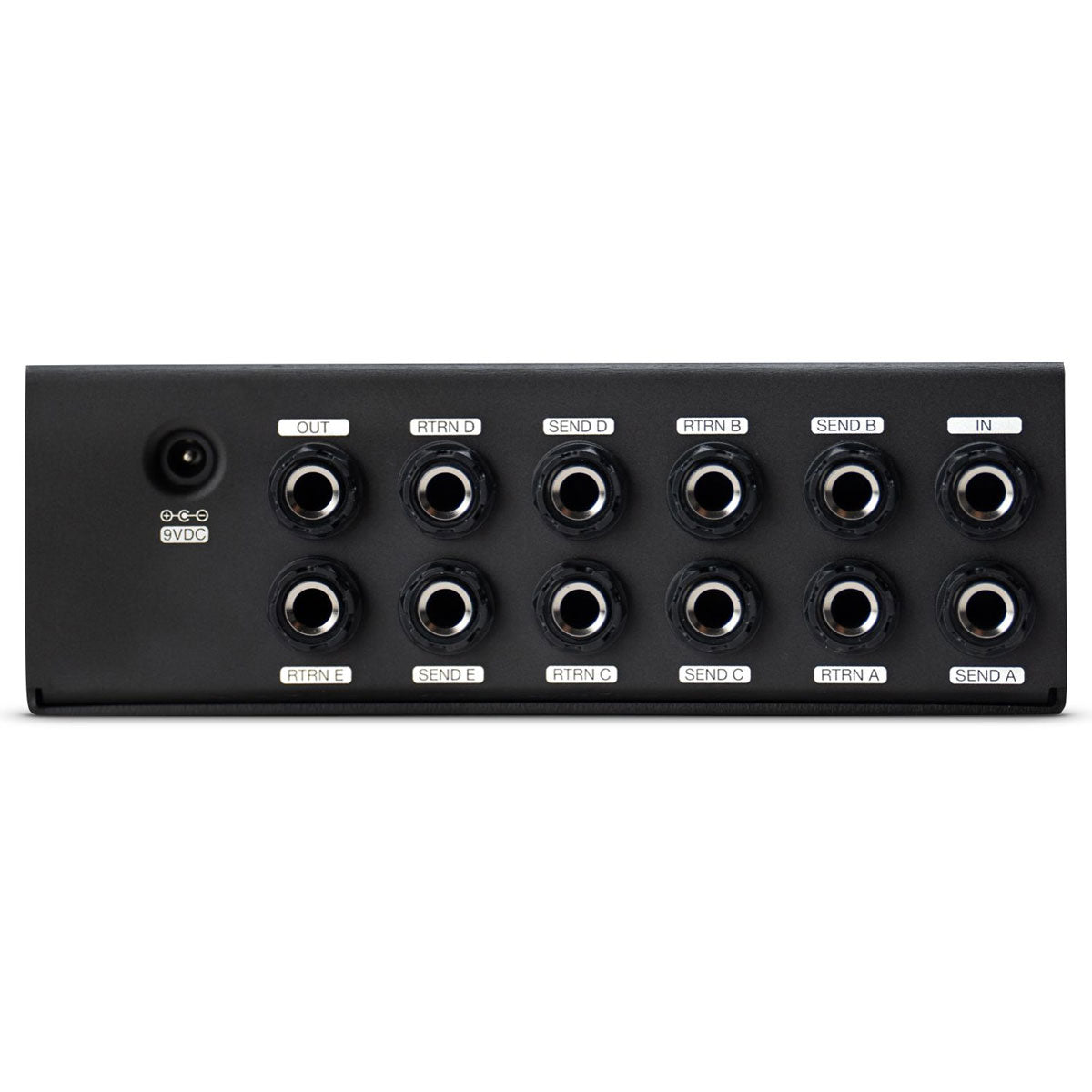

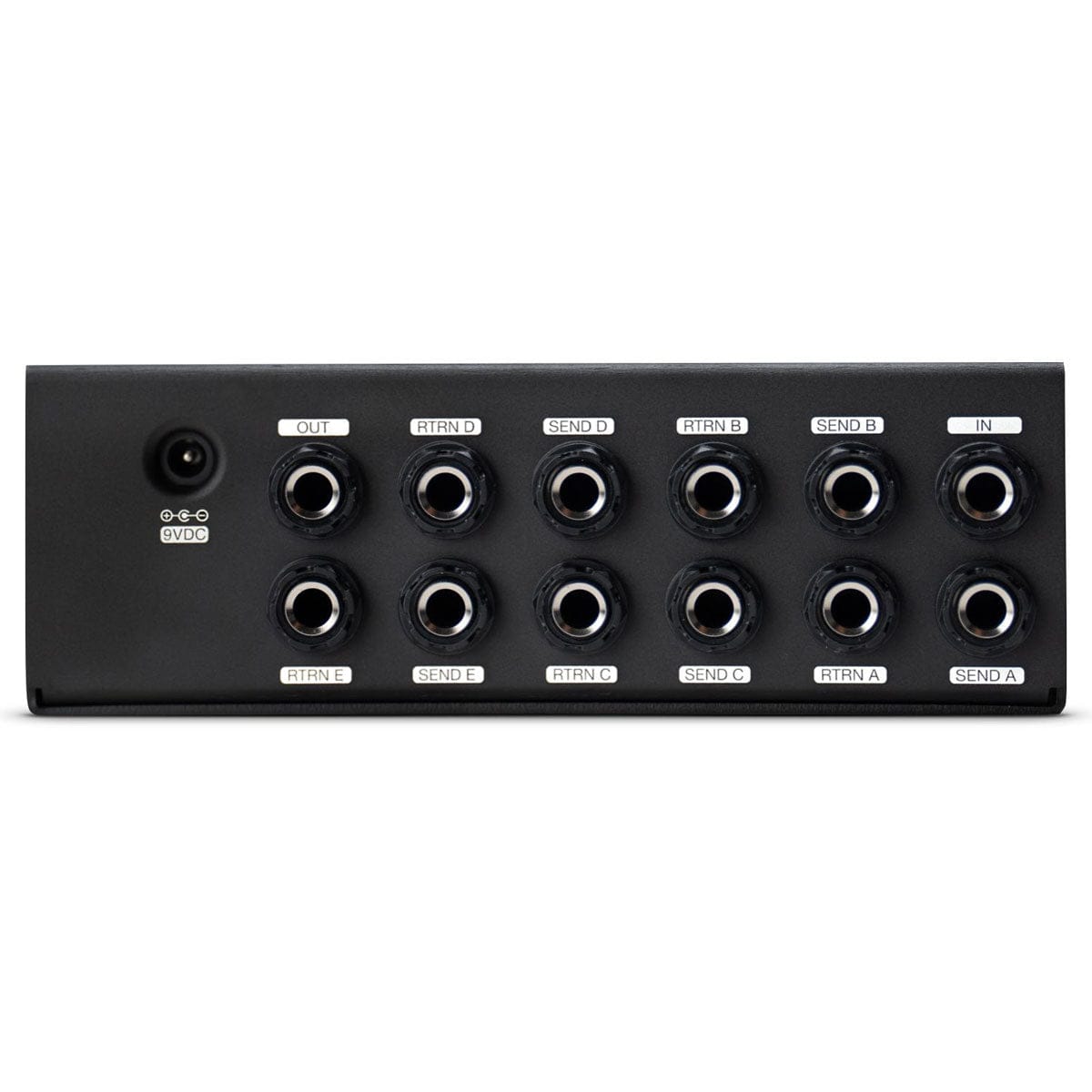

• I/O Ports (buffered):
  • 1x Audio In
  • 1x Audio Out
  • 5x Sends (mono)
  • 5x Returns (mono)

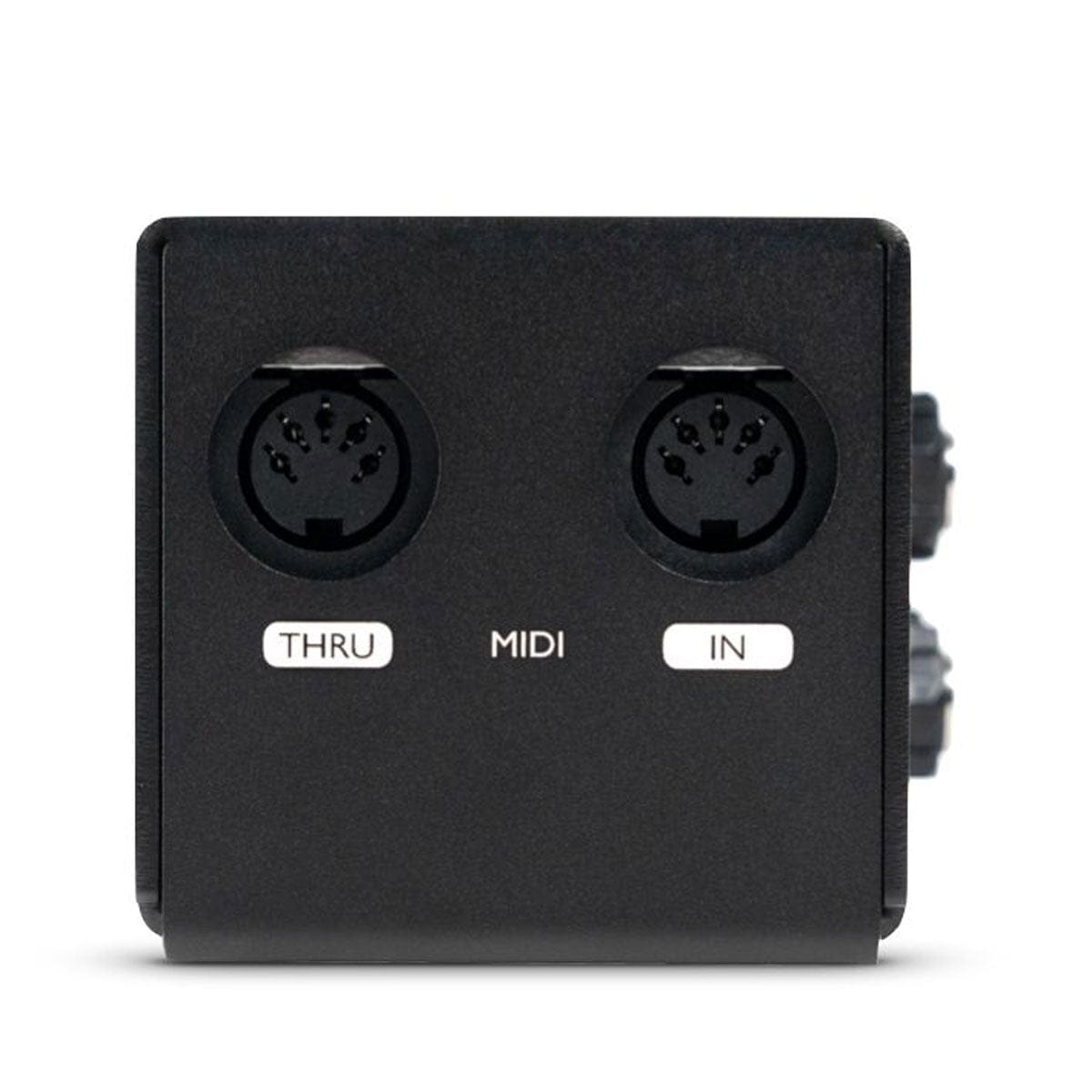

  • 1x 5-pin MIDI In
  • 1x 5-pin MIDI Thru
• Impedance:
  • Input/Returns: 1M ohms
  • Output/Sends: Approx 100 ohms
• Power Requirements:
• 9-18V DC center negative
• Minimum 160mA

More information in the ML5R Manual.
