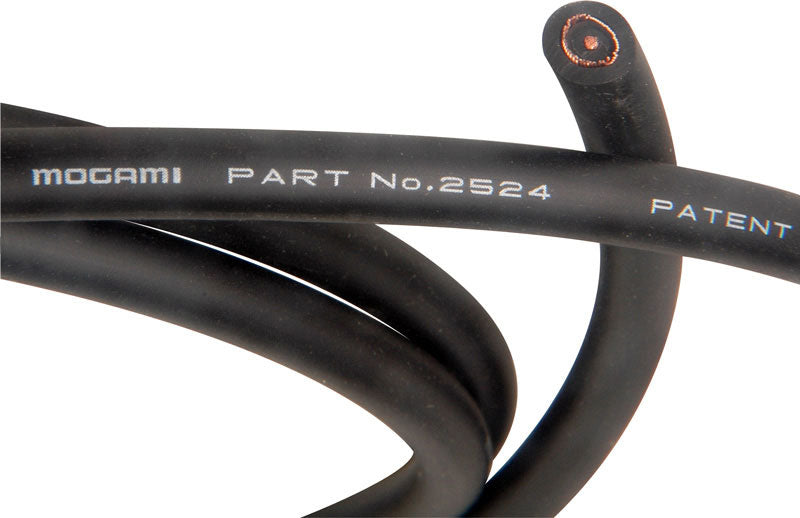

Mogami 2524 Gold Instrument Cable (per meter)

The Mogami 2524 Gold Instrument Cable is an award winning and highly recommended cable. Through out it's hands down one of the best cables out on the market.

Works perfectly with Switchcraft 226 and 280 plugs!

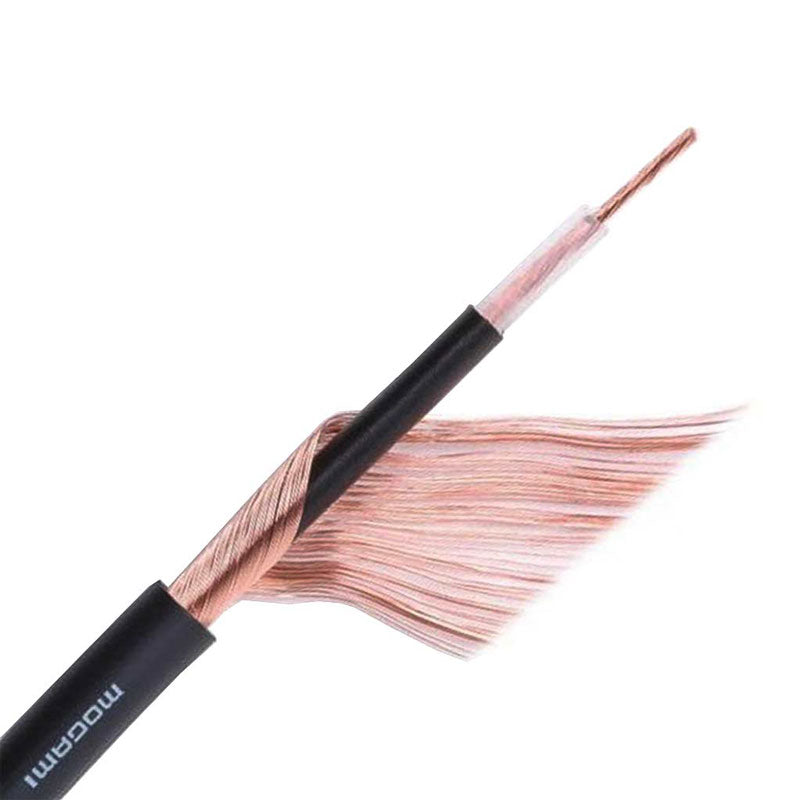

SPECIFICATIONS - 2524

Conductor

• Details - 50/0.12A
• Size(mm²) - 0.565mm² (#20AWG)



Insulation

• Ov. Dia.(mm) - 2.7Ø (0.106")
• Material - PE
• Color - Clear



Sub-Shield

• Ov. Dia.(mm) - 3.3Ø (0.130")
• Material - Conductive PVC (Carbon PVC)
• Color - Black



Main Shield

• Served-Shield - Approx. 55/0.18A



  Jacket

• Ov. Dia.(mm) - 6.0Ø (0.236")
• Material - PVC
• Color - Black

  Capacitance at 1kHz, 20°C - 130pF/m (39.7pF/Ft)

Inductance - 0.2µH/m (0.061µH/Ft)
