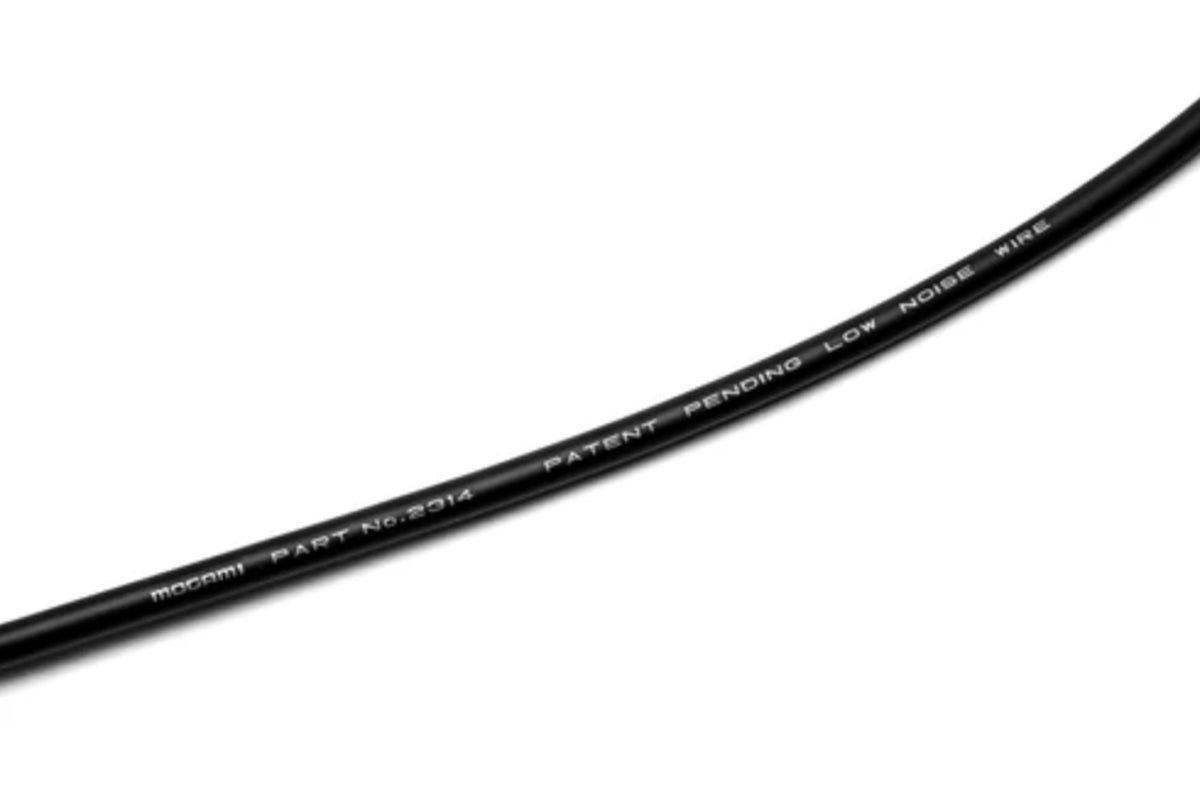

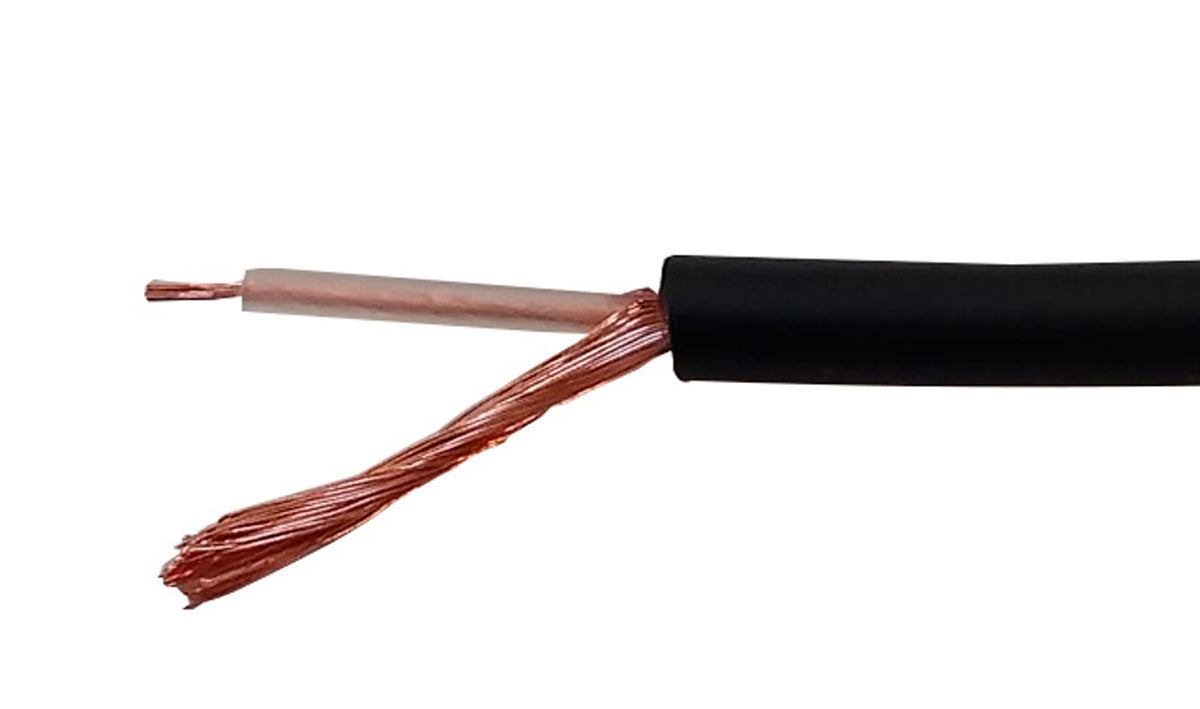

Mogami 2314 Pedalboard Cable (per meter)

The Mogami 2314 miniature instrument cable is ideal for pedalboard effects, and wherever you need a high quality instrument cable with a coaxial design and small cross section.

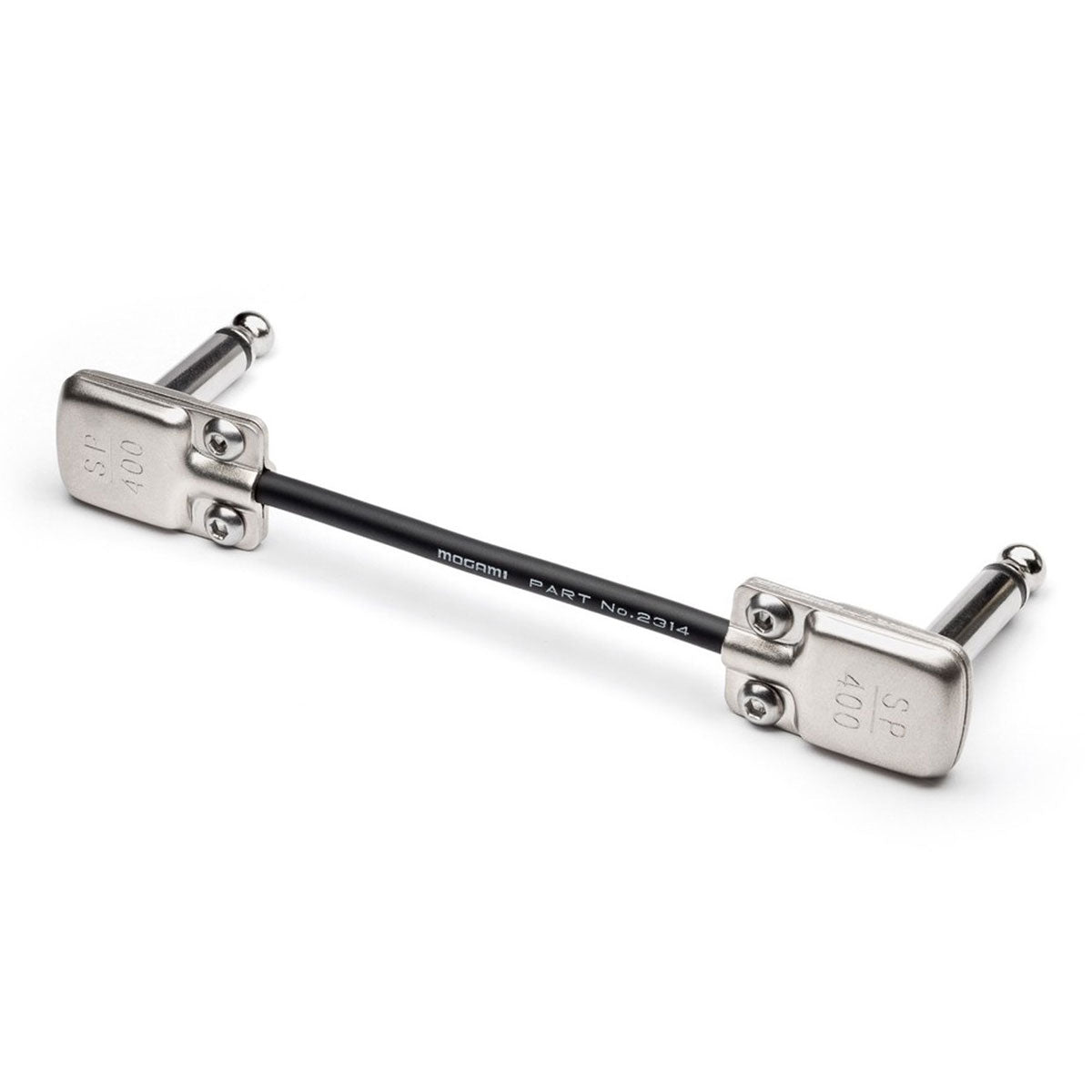

Compatible with Squareplug SP400 and SP4.

SPECIFICATIONS

• Part No. - 2314
• Conductor details - 30 / 0.8 OFC
• Size (mm²) - 0.51mm²
• Insulation - Over. Dia. (Mm) 1.5Ø
• Material - XLPE
• Color - Clear
• Shield Type - Served Shield
• Details Approx. - 37 / 0.12 OFC
• Jacket Ov. Dia. (Mm) - 4.0Ø
• DC Resistance at 20 ° C Inner Conductor 0.13Ω / m TYPE
• Shield Conductor 0.045Ω / m TYPE
• Capacitance at 1kHz, 20 °C 110pF / m
• Material - PVC
• Color - Black
