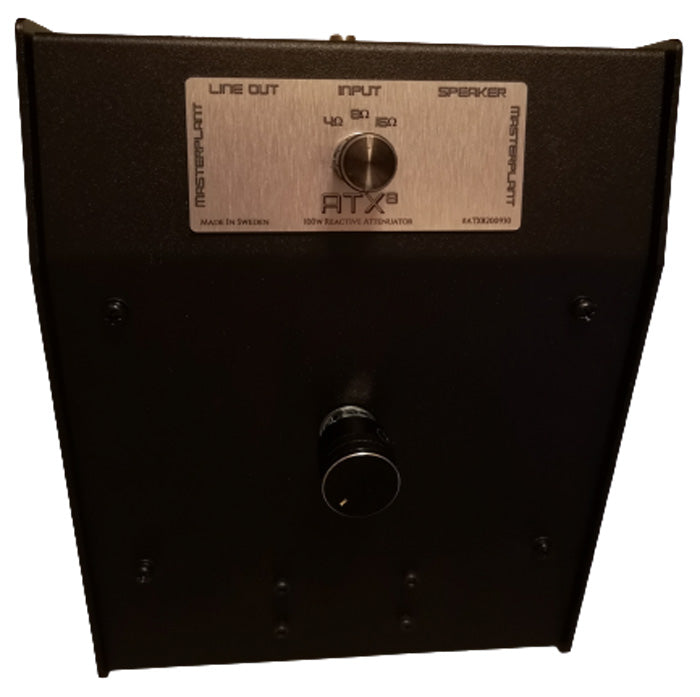

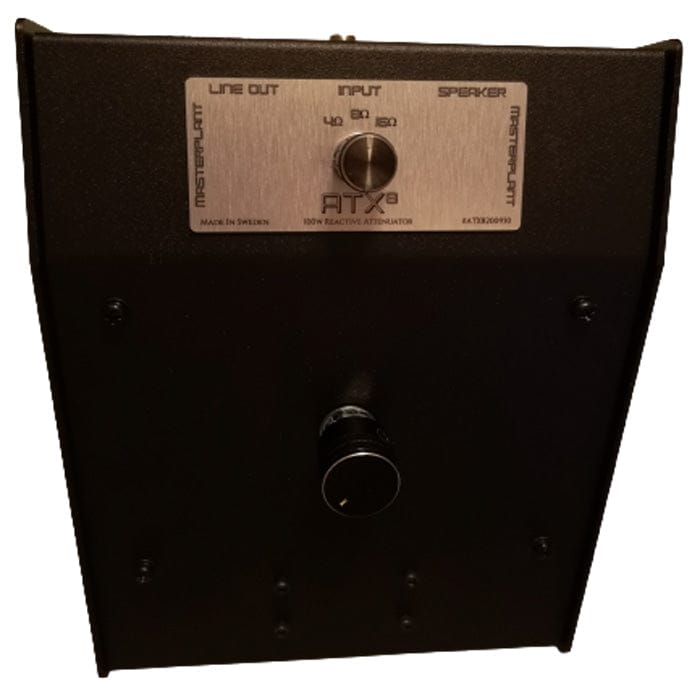

Masterplant ATX8 100w 4-8-16 ohms

Overview

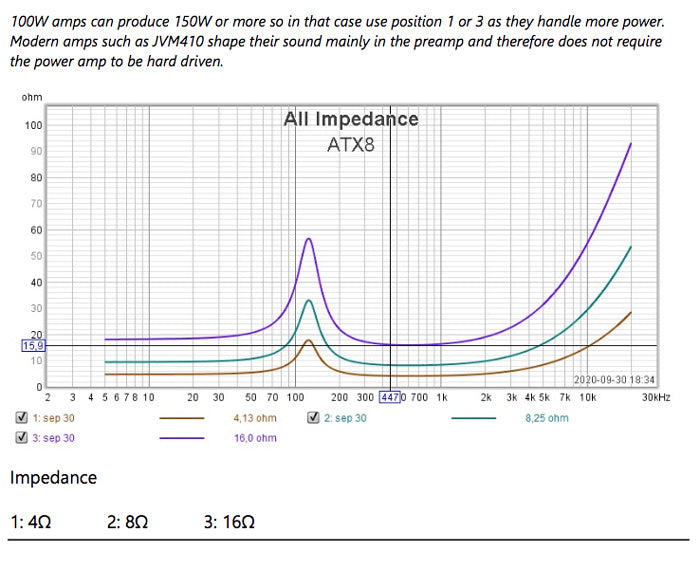

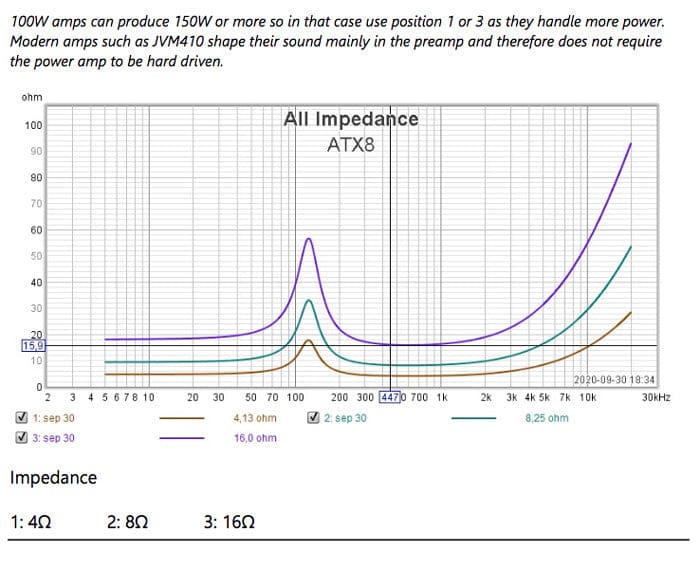

• 4x12 matched impedance curve
• ATX8 supports 4Ω-8Ω-16Ω amplifiers
• Speaker impedance ≥
• Power handling 100W

Features

• Continuous level control
• Full reactivity at all levels
• Line Out
• Compact, fits on the side of common 50W-100W amplifiers
• Passive Circuit

  Safety


• Automatic load mode (disconnect speaker cable)
• Do not block vent holes.
• Do not switch under power.

Size

• Width: 6.5" - 16.5 cm
• Depth: 8.3" - 21 cm
• Height: 3" - 7.6 cm
• Weight: 4.4 lbs - 2 kg

2 year limited warranty. Warranty applies to defective material and workmanship for the original purchaser when bought from MASTERPLANT or authorized dealer. Opening the unit will void the limited warranty and any required service or update must be performed by MASTERPLANT. A copy of the original receipt must be included with the unit. Warranty will not cover damage caused by misuse or accidents. It will not cover any damage inflicted to other equipment resulting from impedance mismatch or any other faulty use.
