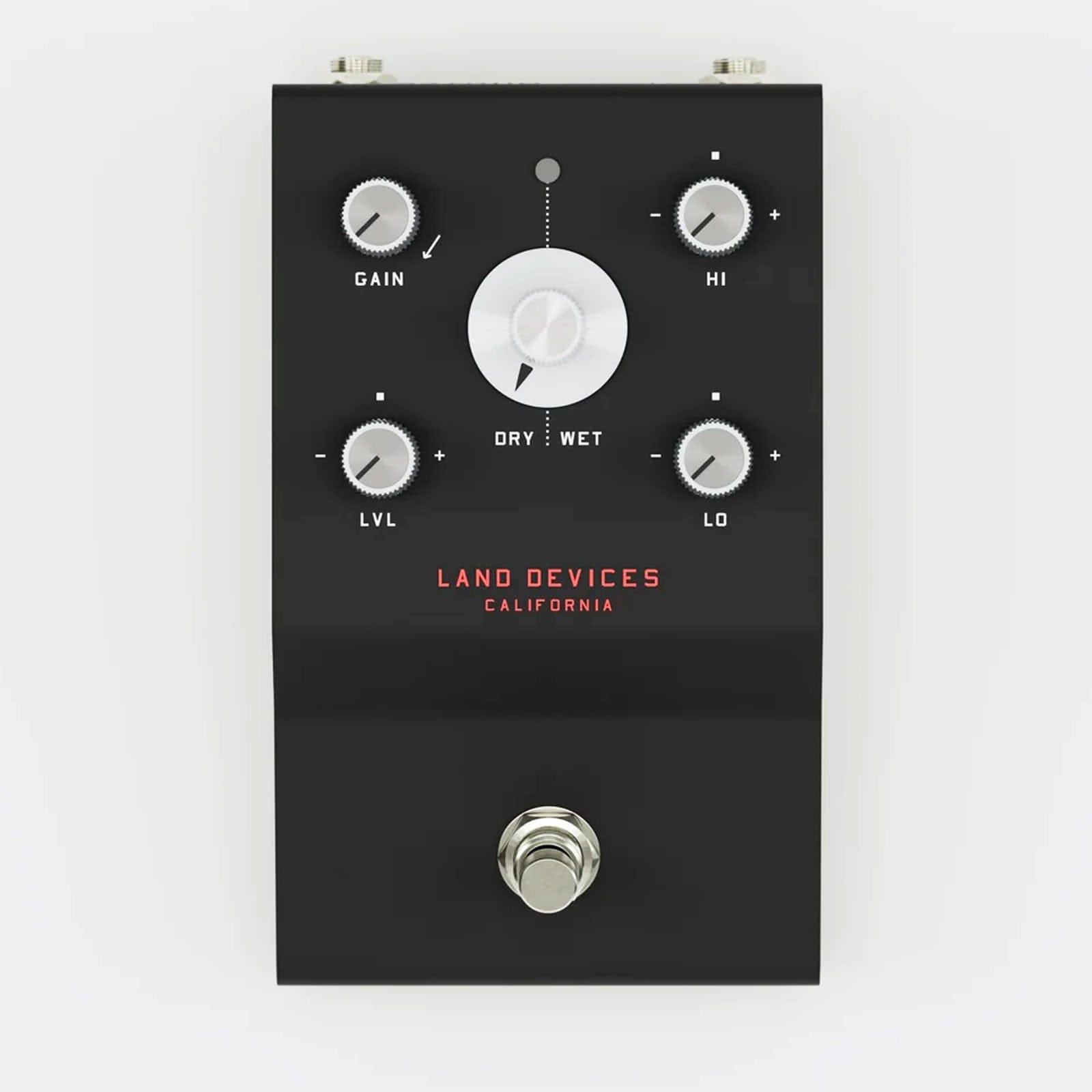

Hunter is an adaptation of a classic op-amp distortion paired with flexible treble and bass controls for more range and versatility. Hunter was made with synthesizers in mind and can be used in stereo or mono. The dry/wet control is front and center on the panel for live performance use, so you can blend the distortion in and out instead of on and off. The blend is also great for dialing in bass guitar. Of course, Hunter works equally well on electric guitar. Use either TS mono I/O or TRS stereo I/O.
CONTROLS
GAIN: Turn clockwise to increase distortion.
LVL: Output volume level. CCW for less, CW for more.
Dry | Wet: Fully CCW is 100% dry signal. Fully CW is 100% wet signal.
HI: Controls treble frequency. CCW for less, CW for more.
LO: Controls bass frequency. CCW to less, CW for more.
SPECS
• 137mm x 80mm x 67mm
• 1/4" TRS jacks for I/O
• Input impedance: 500kΩ
• Output impedance: 1kΩ
• Buffered bypass with relay switching
• Current draw: 30mA
• Power: 9VDC, 2.1mm center negative barrel
