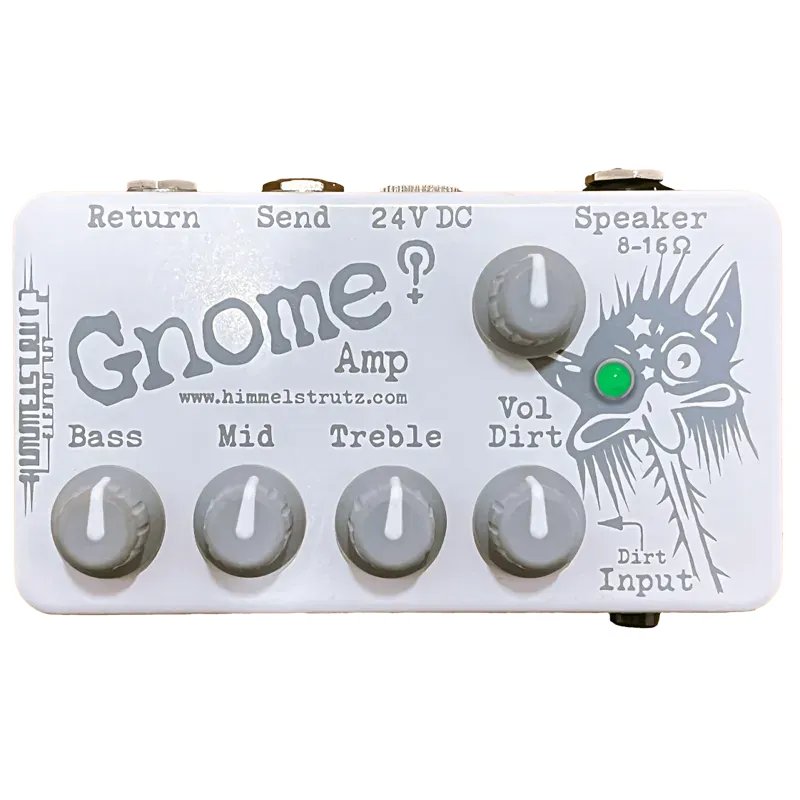

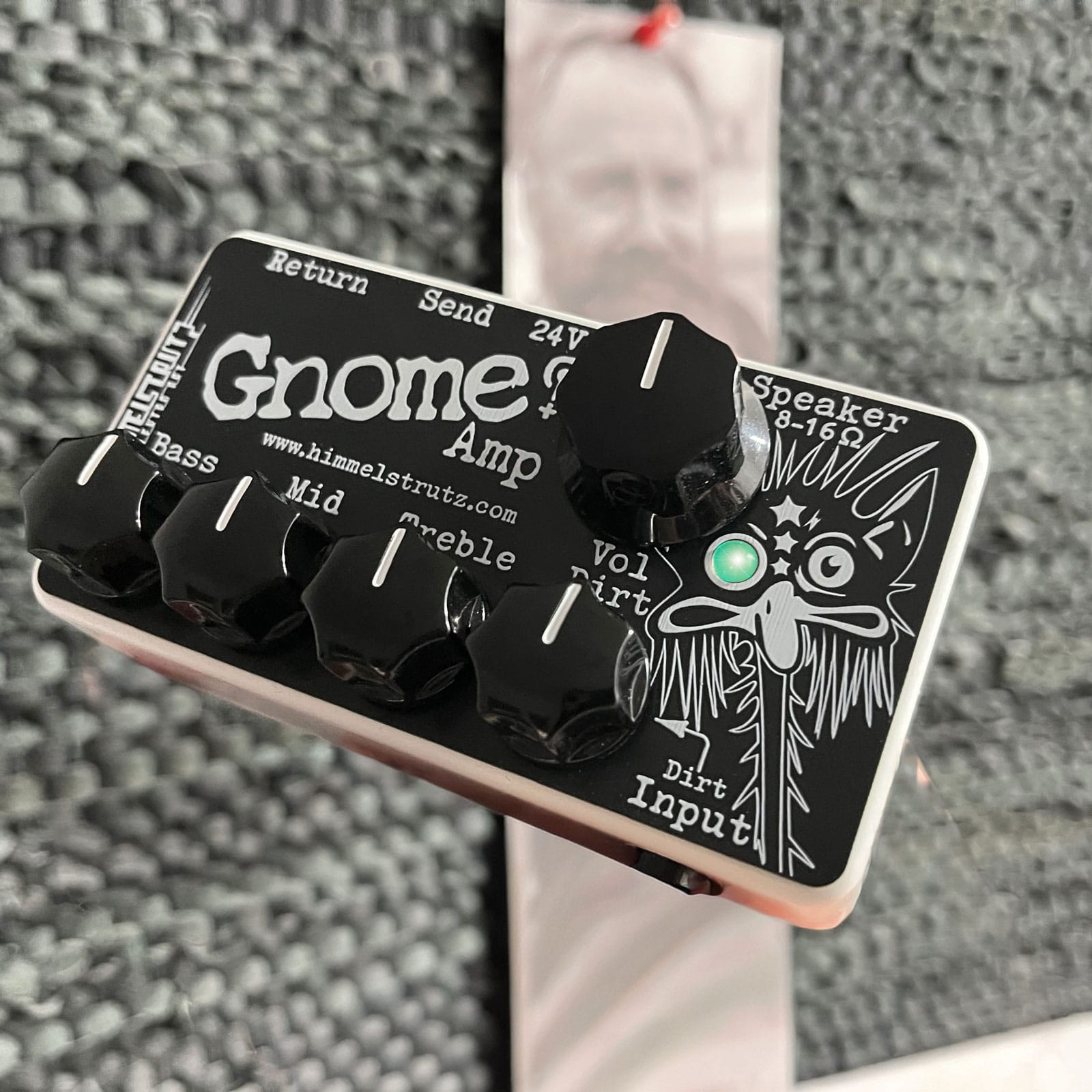

Himmelstrutz Gnome Amp 50w [incl PSU]

The GNOME – Compact, Loud, Analog

The Himmelstrutz GNOME is a compact, fully analogue guitar amplifier designed and assembled in Sweden. It features a discrete Class A preamp, a serial effects loop and a MOSFET power amplifier delivering up to 50 watts into a 4 Ω speaker.

Small enough to fit on a pedalboard yet powerful enough for serious playing situations, GNOME delivers 30 watts into 8 Ω or up to 50 watts into 4 Ω. No digital modelling. No impulse responses. No apps. Just pure analogue amplification with Bass, Mid, Treble and Volume controls in a classic pedal-sized enclosure.

Connections

• Instrument Input: Front-mounted high-quality 6.3 mm jack for guitar or bass.
• Speaker Output: Rear-mounted 6.3 mm jack for speaker cabinets rated at 4 Ω or higher.
• Power Output: Approx. 50 W into 4 Ω, approx. 30 W into 8 Ω.
• Speaker Safety: If no speaker is connected, GNOME will simply remain silent and will not be damaged.
• Effects Loop: Rear-mounted serial effects loop, ideal for delay, reverb and other time-based effects.
• Power Input: Dedicated 24 V DC input for the included 24 V / 2.5 A power supply.

Controls

• Dirt: Controls the amount of gain in the DIRT channel.
• Bass: Low-frequency tone control.
• Mid: Midrange tone control.
• Treble: High-frequency tone control.
• Volume: Master output level and overall loudness.

Channel Switching

• DIRT Switch: Front-mounted push switch for selecting between CLEAN and DIRT channels.

Dimensions & Weight

• Size: 111.6 × 61.6 × 50.0 mm (4.37 × 2.4 × 1.9 in)
• Weight: Approx. 450 g (0.99 lbs)

Colour & Finish

• May vary depending on season, production period or other good reasons.
• If you are curious about the current finish before ordering, just ask.

GNOME on Your Pedalboard

If you plan to power GNOME from a pedalboard power supply, the following options are recommended:

• CIOKS DC7 – 24 V DC / 2 A output available
• EVENTIDE PowerMAX – 24 V DC / 2 A output available
• STRYMON Zuma – 24 V DC / 1.5 A output available

You will also need suitable centre-positive connection cables, such as:

• Cioks L0110
• Cioks 2030
