Designed for today's guitar player. Designed for use with, or without, a pedal effects board. Comes with its own power supply, or easily powered with any pedal board power supply.
Here are the measurements of the Pro Guitar pedal: Length 10 ¾ inches, width 3 ¾ inches. Hinge point from the front 6 5/8 inches. Height in front, off the floor, when pedal volume is wide open 2 ¼ inches. Height in front, off the floor, when pedal volume is in off position 3 ¾ inches. Height in rear, off the floor, in the wide open volume position 1 5/8 inches. Height in rear, off the floor, in the off volume position 7/8 inch. Height in middle, off the floor, in the wide open position, and in off position 2, and 2 5/8 inches. All measurements approximate.
1. Friction adjustable clutch with Allen wrench. Up and down stiffness adjustment.
2. Negative tip 9 volt power supply, matches most guitar effect voltages. With a hookup cord from your pedal-board manufacturer, you can power the guitar pedal directly without using Hilton's power transformer.
3. Pedal comes with a 9 volt power supply.

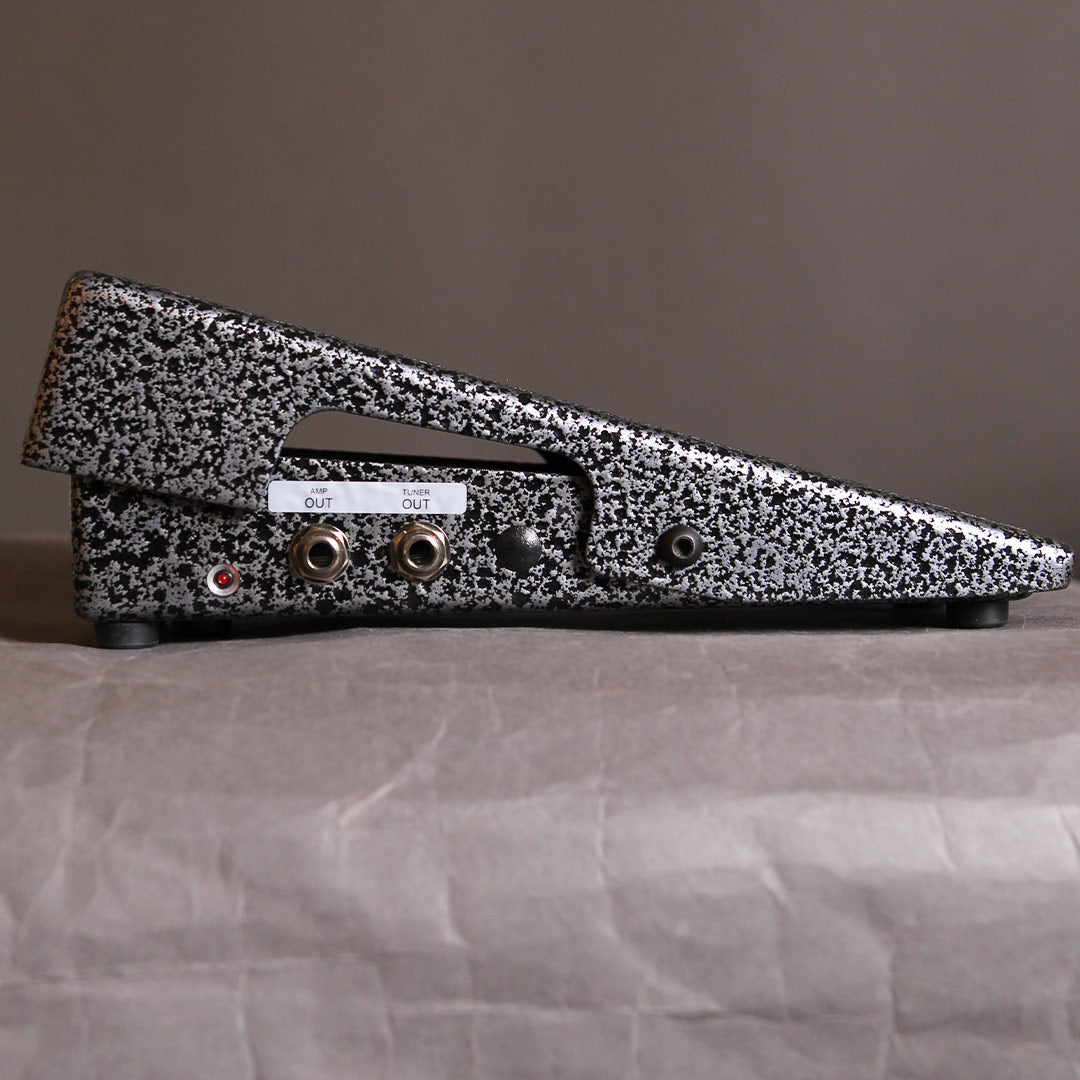

4. Guitar Pro Pedal comes equipped with a dedicated tuner output.
5. Best for pedal boards.
6. Best for standing guitarist. With a pedal board or not, most parallel to the floor when pedal is at full on position.
7. Set to be transparent.
8. In production.
9. Dynamic Response - Excellent, best in the industry.

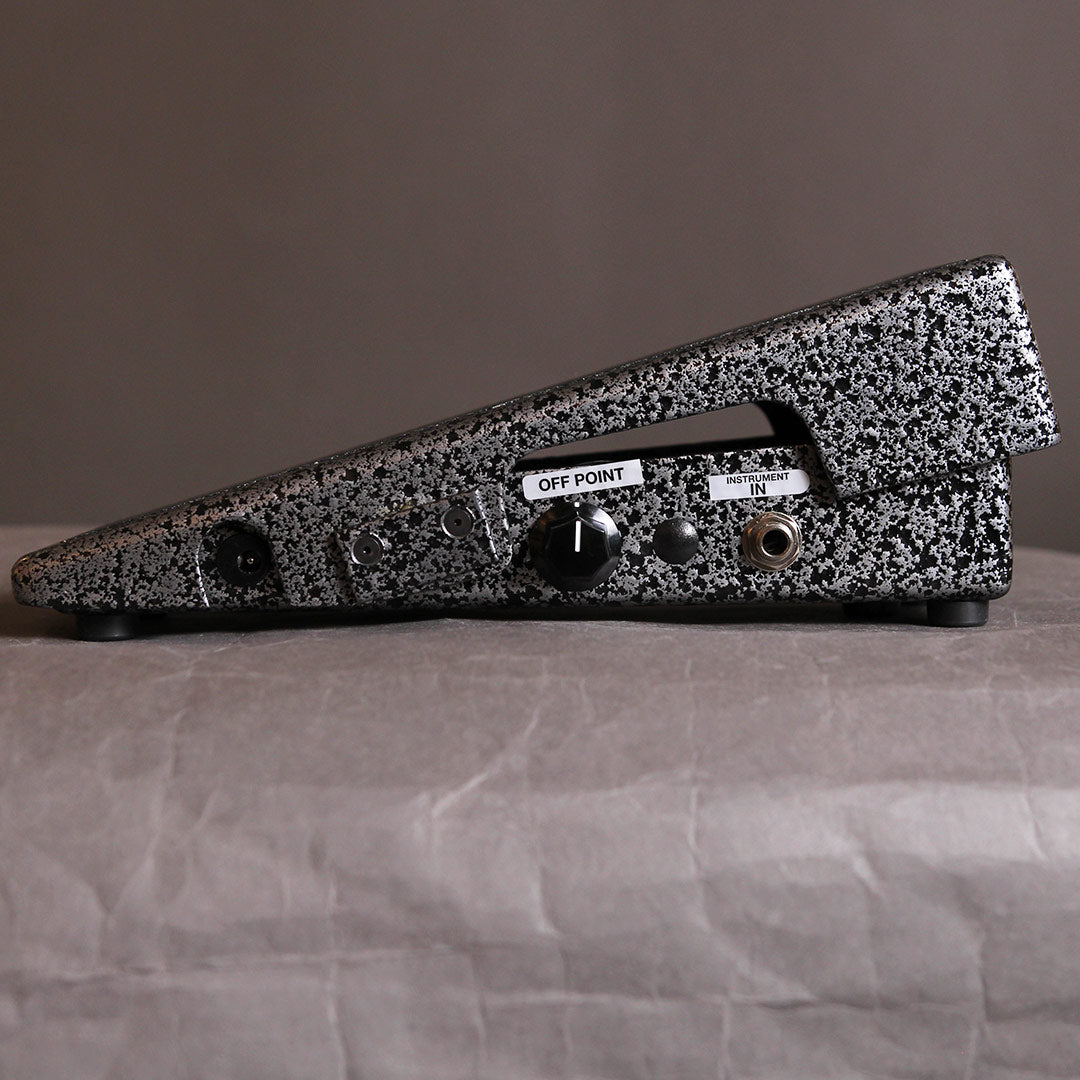

10. Off point control on the side of the pedal.
11. Patented infrared control system.
