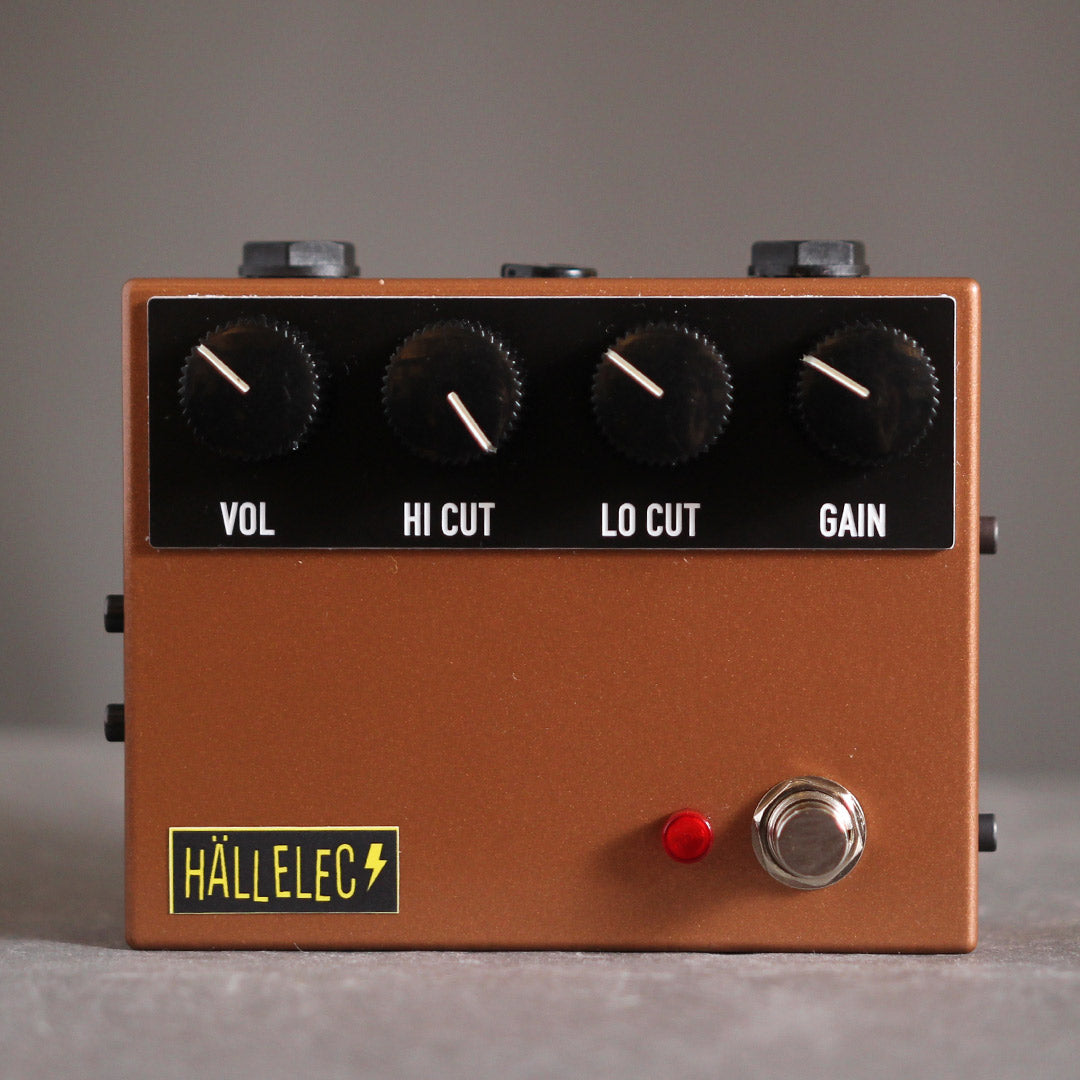

The HÄLLELEC TP1 is an instrument preamplifier designed to provide the same tone and feel as old tube amplifiers.

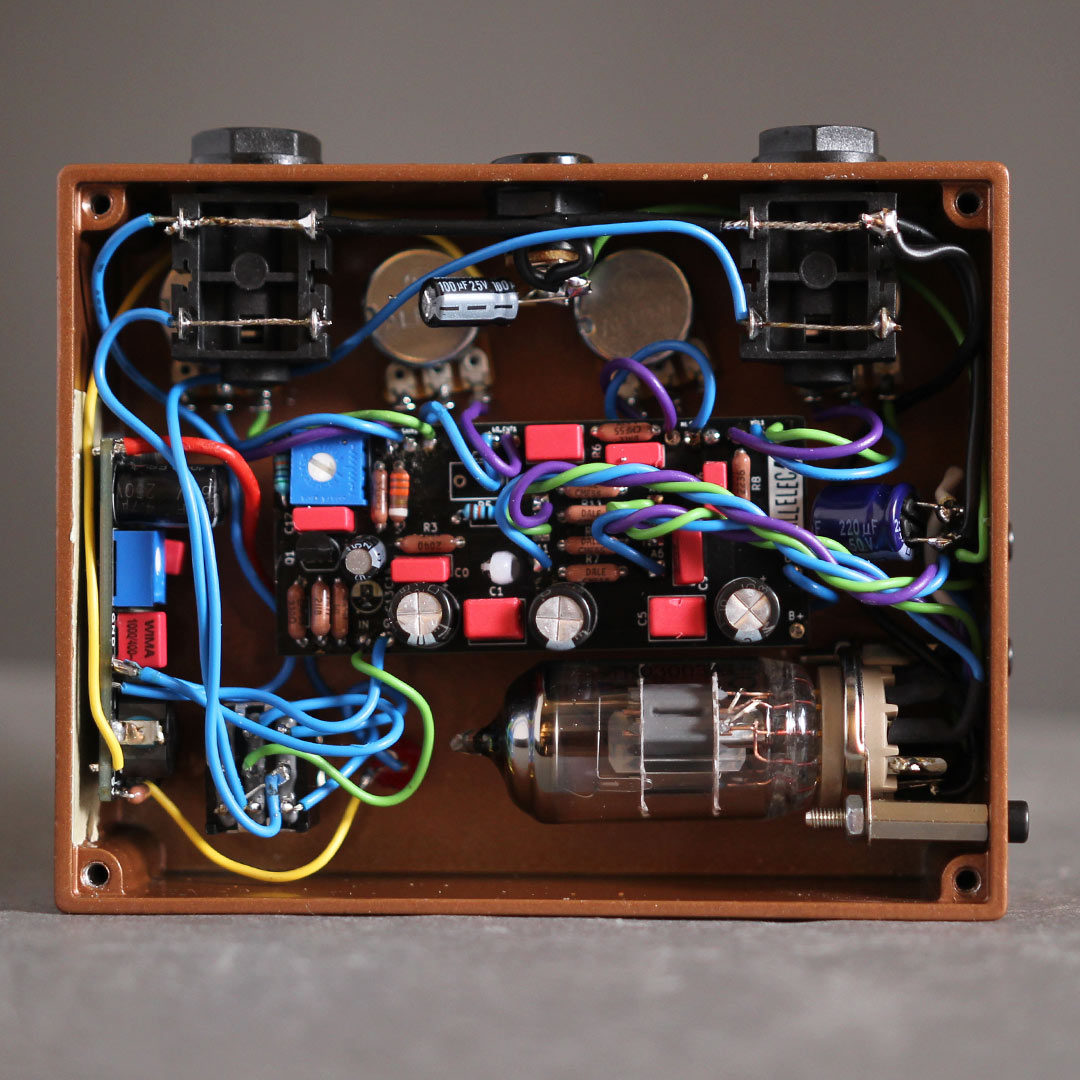

Designed around the duo-triode ECC83 (12AX7), it also incorporates a J-FET transistor in order to lower the noise floor and gain range. An internal charge pump steps up 9v to 180vDC, providing ample headroom for the tube. The result is a preamp that goes from subtle coloring to full on overdrive.
The pedal operates at 9vDC (center negative) and requires 400mA.
HÄLLELEC TP1 is an instrument preamp designed to provide the same character and color associated with old tube amplifiers.
The circuit is based around an ECC83 (12AX7), but also applies a J-FET transistor on the input to increase the gain and lower the noise level. Using an internal voltage converter, the tube is driven at 180v, the result is a preamp that can go from subtle color to total overdrive.
The pedal is powered by 9vDC (center negative) and draws approximately 400 mA.
Made in Stockholm, Sweden
