Split your signal, correct phase & kill hum.

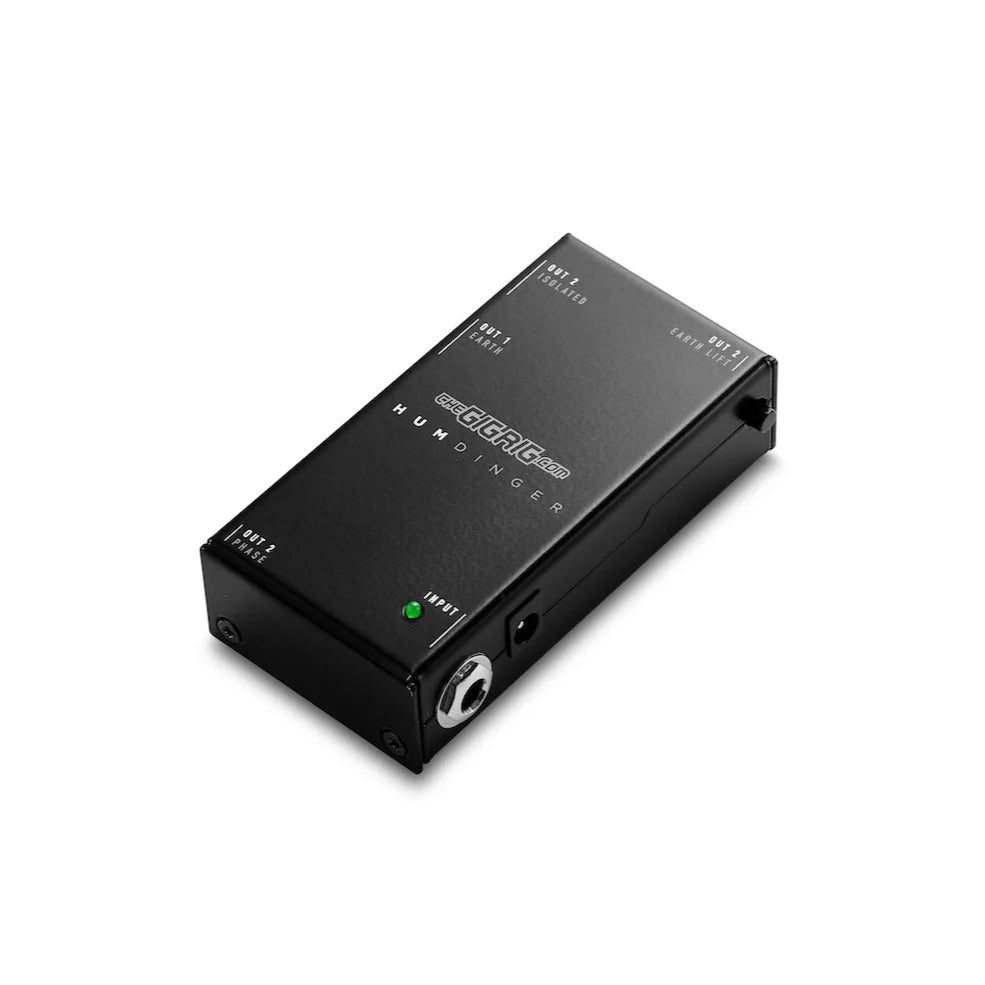

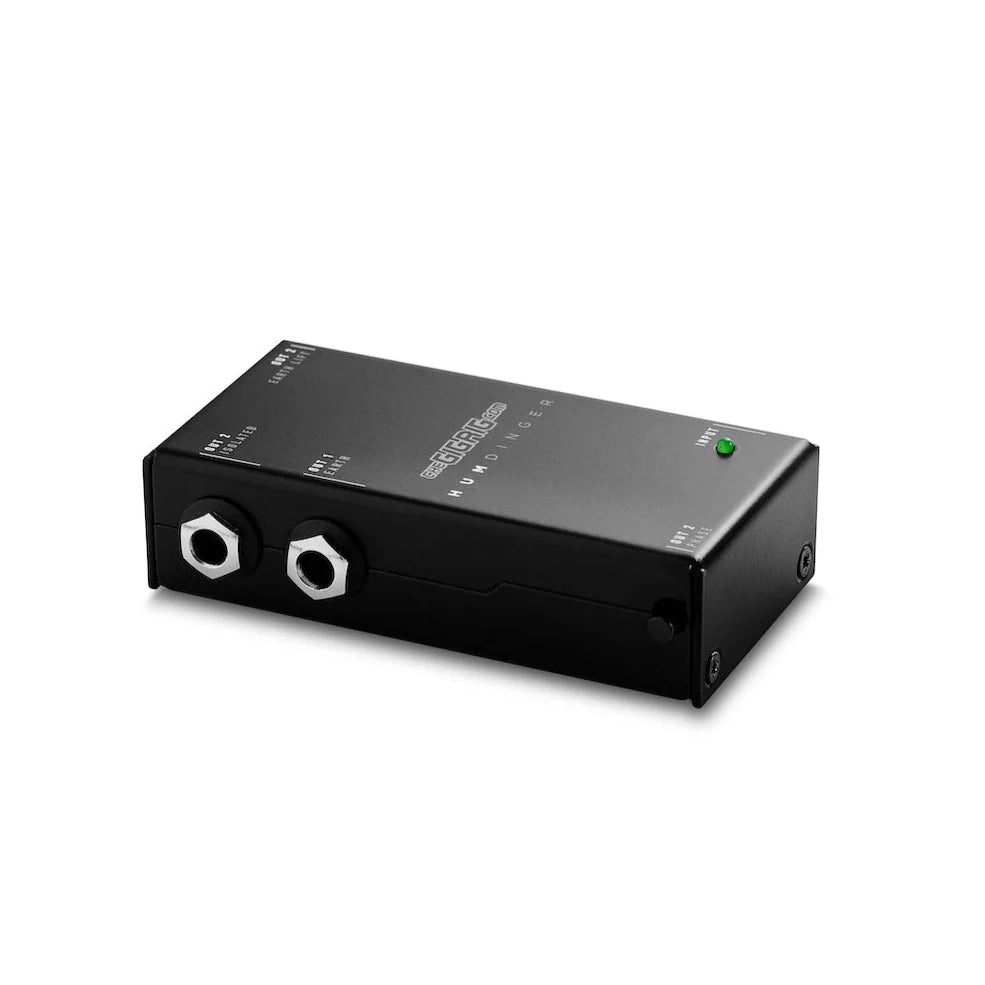

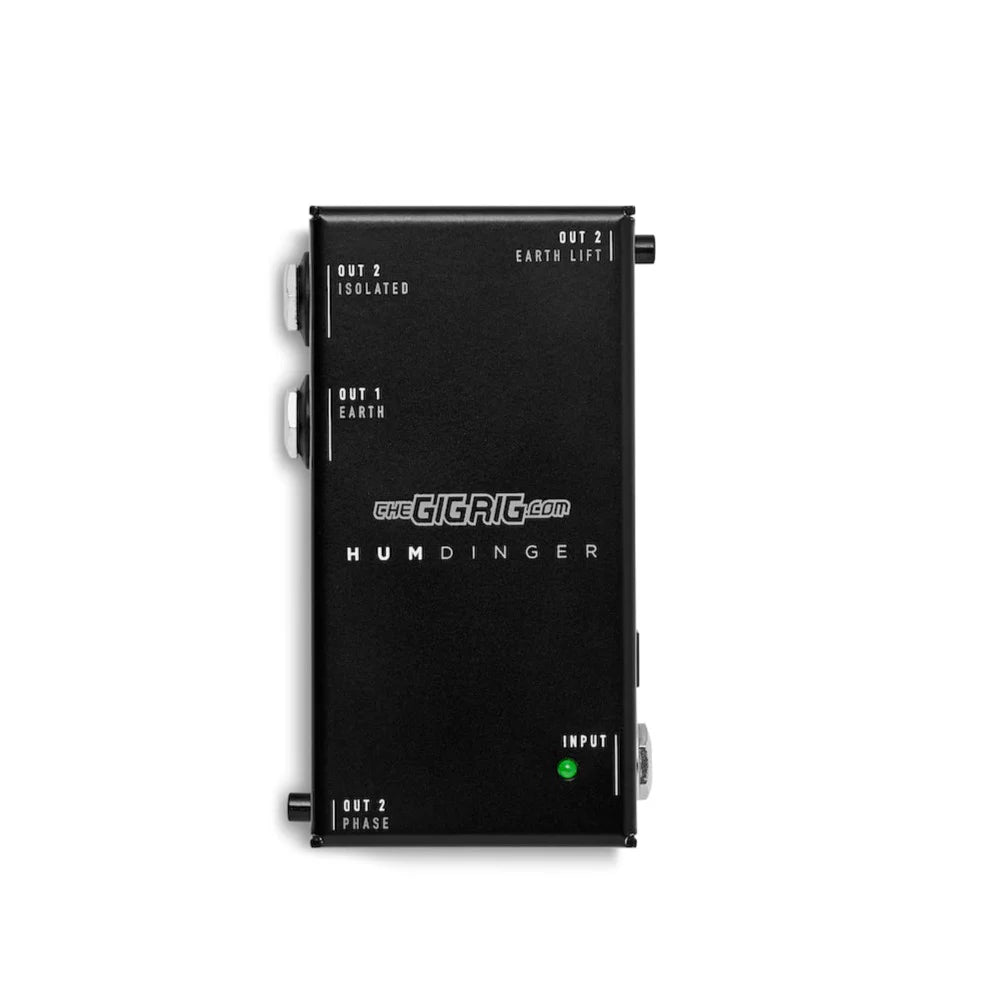

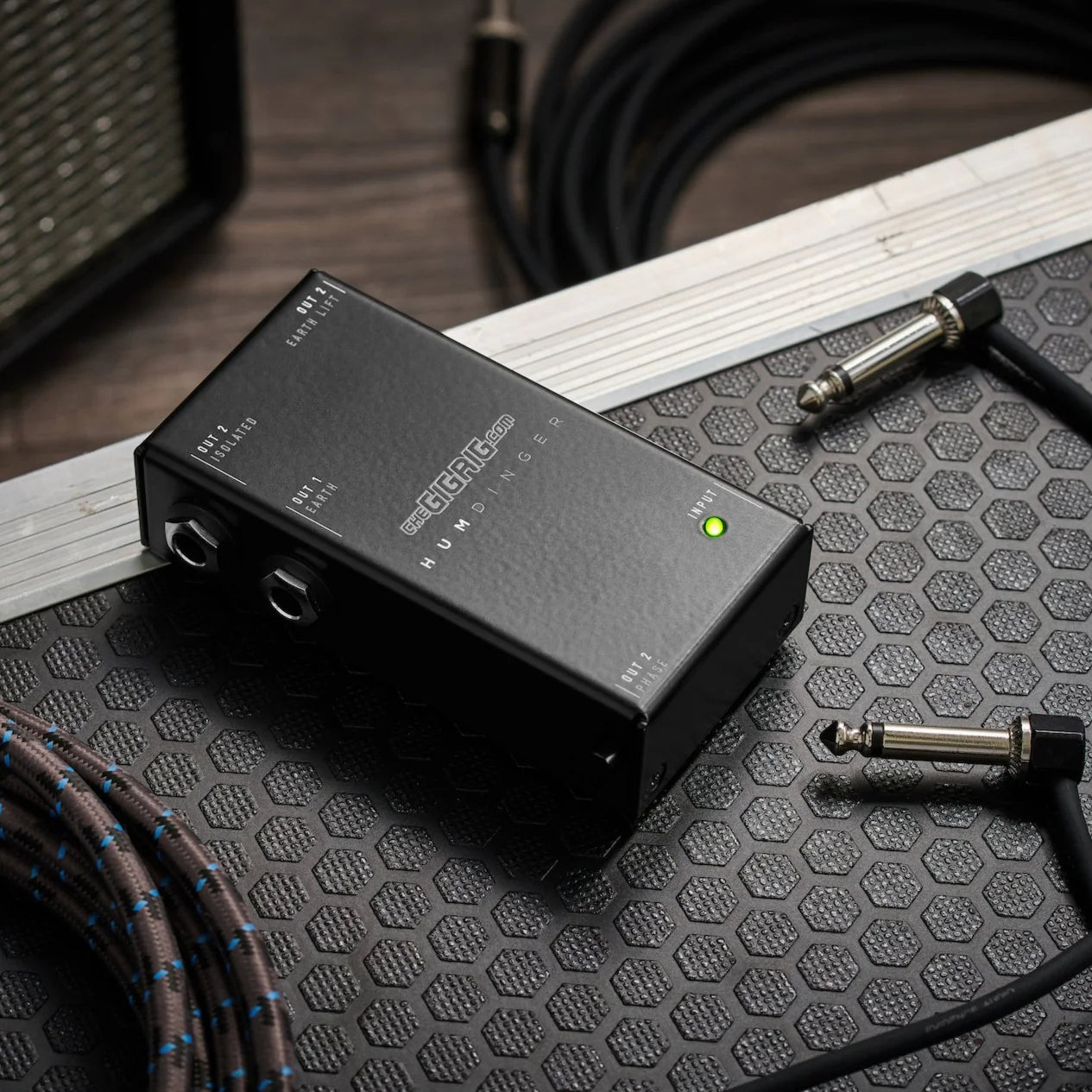

The NEW HumDinger V2 is the ultimate signal splitter. The ultimate solution focusing two amps at once

Great for DI, reamping, wet/dry and plenty more besides.

The Humdinger was designed to eliminate earth loops in audio equipment by isolating the second output. Earth loops are a common complaint. As soon as the ground on your gear has more than one main route to earth, you have the potential for an earth loop. The best and safest way to get rid of an earth loop is to isolate the ground that is causing the hum.

Features

• Great for DI, reamping, wet/dry and plenty more besides.
• The Humdinger was designed to eliminate earth loops in audio equipment by isolating the second output.
• Earth loops are a common complaint. As soon as the ground on your gear has more than one main route to earth, you have the potential for an earth loop. The best and safest way to get rid of an earth loop is to isolate the ground that is causing the hum.
• If you use 2 amps all you need to do is stick the HumDinger at the end of your effects chain. Your main (buffered) output goes to one amp and the isolated output goes to the other. Your earth is consistent through the main output but isolated through the isolated output.
• Using a mains powered effects pedal, simply place the HumDinger in the chain after the mains powered effect. The mains powered effect is your main ground and the ground from the amp is isolated.

Tech

• POWER - 9V DC (2.1mm center neg)
• CURRENT DRAW - 100mA
• OUTPUTS - 1 x buffered, 1 x isolated/phase reversible
• DIMENSIONS - 5.2cm x 2.6cm x 10.2cm / 2.05" x 1.02" x 4.02"
• WEIGHT - 0.25kg / 0.6lbs
