Hear your pedalboard's effects as they were designed to sound, unencumbered by the compromises of a standard pedalboard setup.

Introducing G3S Atom with screens next to each footswitch.

Since the launch of our G2 Pedalboard Switcher in 2013 we've never stopped dreaming about what would be next. 2020 saw the evolution of our G switching system - the mighty G3 and G3 Atom with their unparalleled signal path flexibility, MIDI control, and intuitive programming.

To this day the G3 range sets the standard for professional effects pedalboard control, allowing you to concentrate on the important thing - playing.

We've continued to bring new features such as Hi-Def Isolated Output (so no colouration through traditional transformers), as well as updated software including MIDI Sequencer, extra stompbox modes, Expression Pedal Inputs, and MIDI commands when turning presets on and off.

But there's one feature we've always wanted to add... something to help ease the pressure of remembering or manually labeling... a digital display for EACH footswitch.

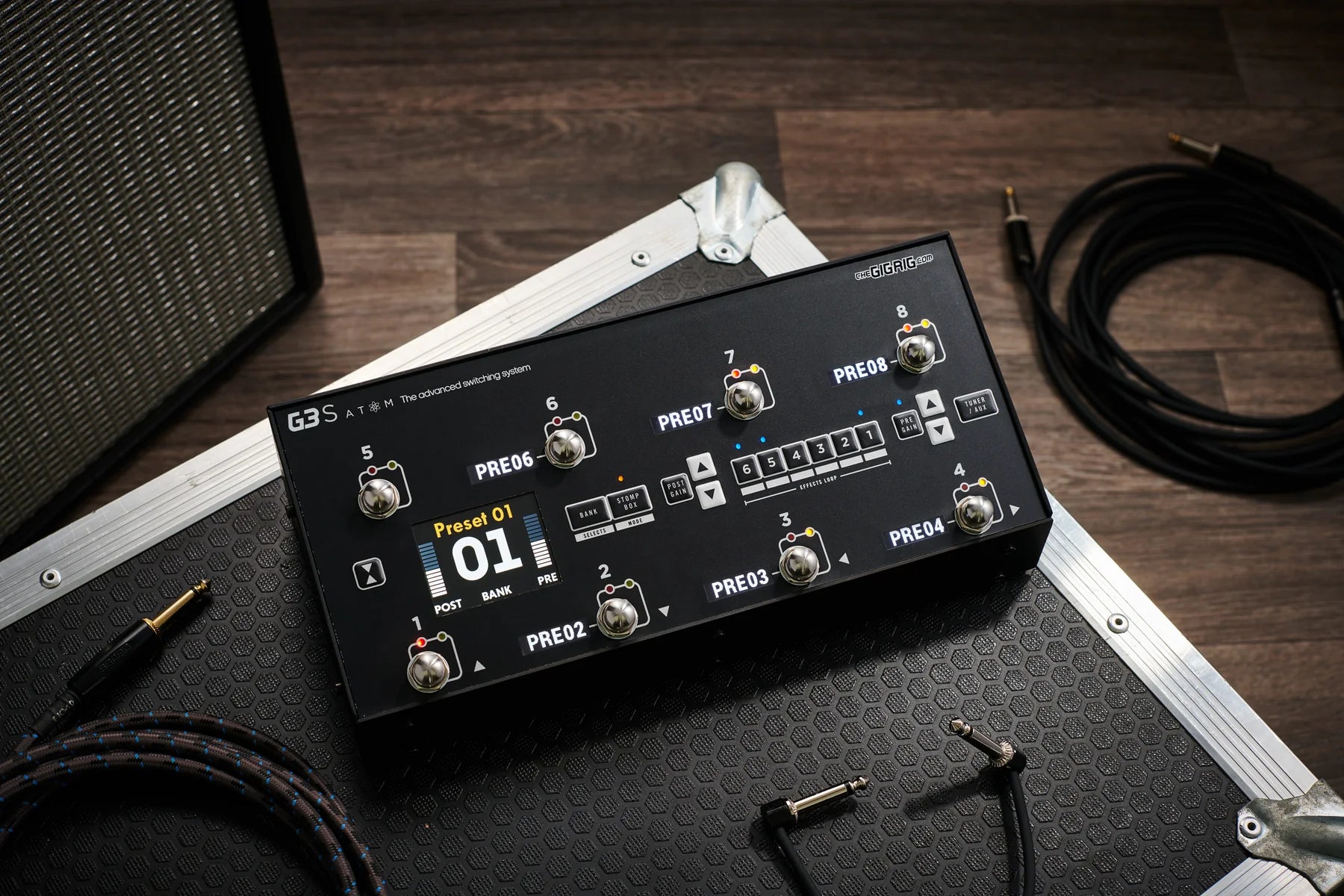

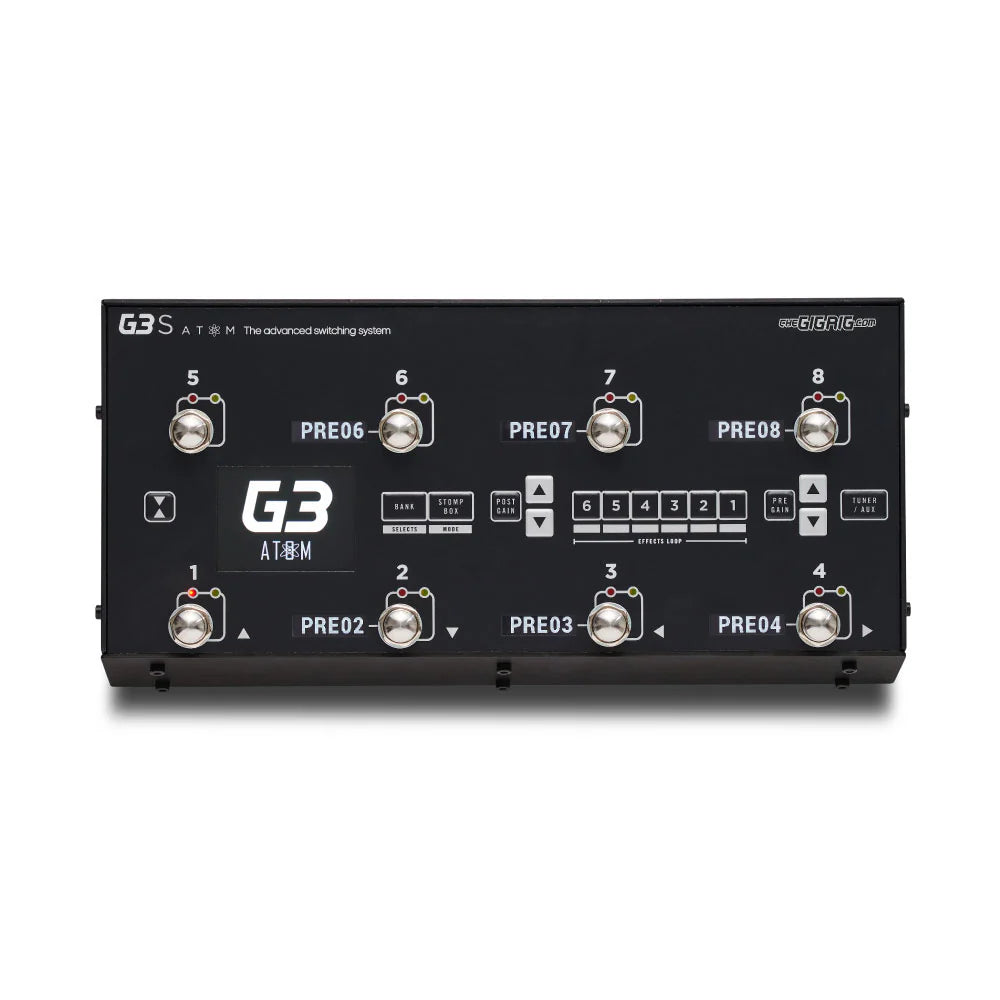

The G3S Atom features 6 additional dedicated footswitch screens alongside the Main G3 Atom screen, in total providing preset labels for all 8 switches.

These OLED displays are designed to be visible in any light and on even the darkest of stages - all without drawing any more current away from your power supply, and each display featuring up to five characters.

With its built-in Bluetooth you can connect to our new G3 Web Editor, or via the G3 iOS app to edit and label your 99 banks of Presets, update software, run system backups, and edit your song lists with ease.

NEW! - G3 Bluetooth Web Editor!

Specifications

• 99 Banks with up to 16 Pre-sets per Bank
• Programmable Pre Effects Loop Buffer/Boost
• Programmable Post Effects Loop True Stereo VCA Amplifier
• 6 x True-Bypass passive Stereo effects loops
• Fully movable loops - Reorganize your entire signal chain, Per Pre-set, in seconds
• 2 x Programmable Outputs one of which is transformer isolated and phase reversible to eliminate earth loops and phase problems when using two amps
• Built in Parallel and Wet/Dry configuration
• Send up to 20 x programmable mappable PC/CC MIDI Messages per pre-set
• 2 x Expression pedal inputs capable of controlling the onboard pre and post effect loop amplifiers as well as sending multiple MIDI CC messages, each with separate heel/toe values
• Program Reverb and Delay Trails/Spillover from any loop or combination of loops
• Simple intuitive programming via easily navigated built in menu system
• Ultra clean signal path to ensure your guitar signal is as pure as possible
• Bluetooth enabled - *Connect to G3 iOS app to update software, backup pre-sets, and edit song lists
• 7 x High Resolution Ultra-Bright* TFT LCD Screens: 1 x Main Screen 36mm x 48mm / 1.5" x 2" displaying Bank, Pre-set Number /Name, Pre/Post Gain levels and Menu System + 6 dedicated preset display screens 7mm x 25mm / 1/4" x 1" *Brightness Adjustable
• Black anodized aluminum chassis – Light weight and hard wearing
• Water resistant/splash proof overlay with quick select, tactile embossed membrane switches
• 8 x GigRig 'Optokick' Optical Footswitches - Designed by The GigRig, our footswitches use light instead of mechanics to do the foot switching and are milled from stainless steel, making them more robust than their mechanical alternatives. We believe these are the most reliable foot switches in the world.
• FREE GigRig Generator Power Supply - The Heart of our Modular Power Supply range, with UK Mains lead included as standard.

Tech

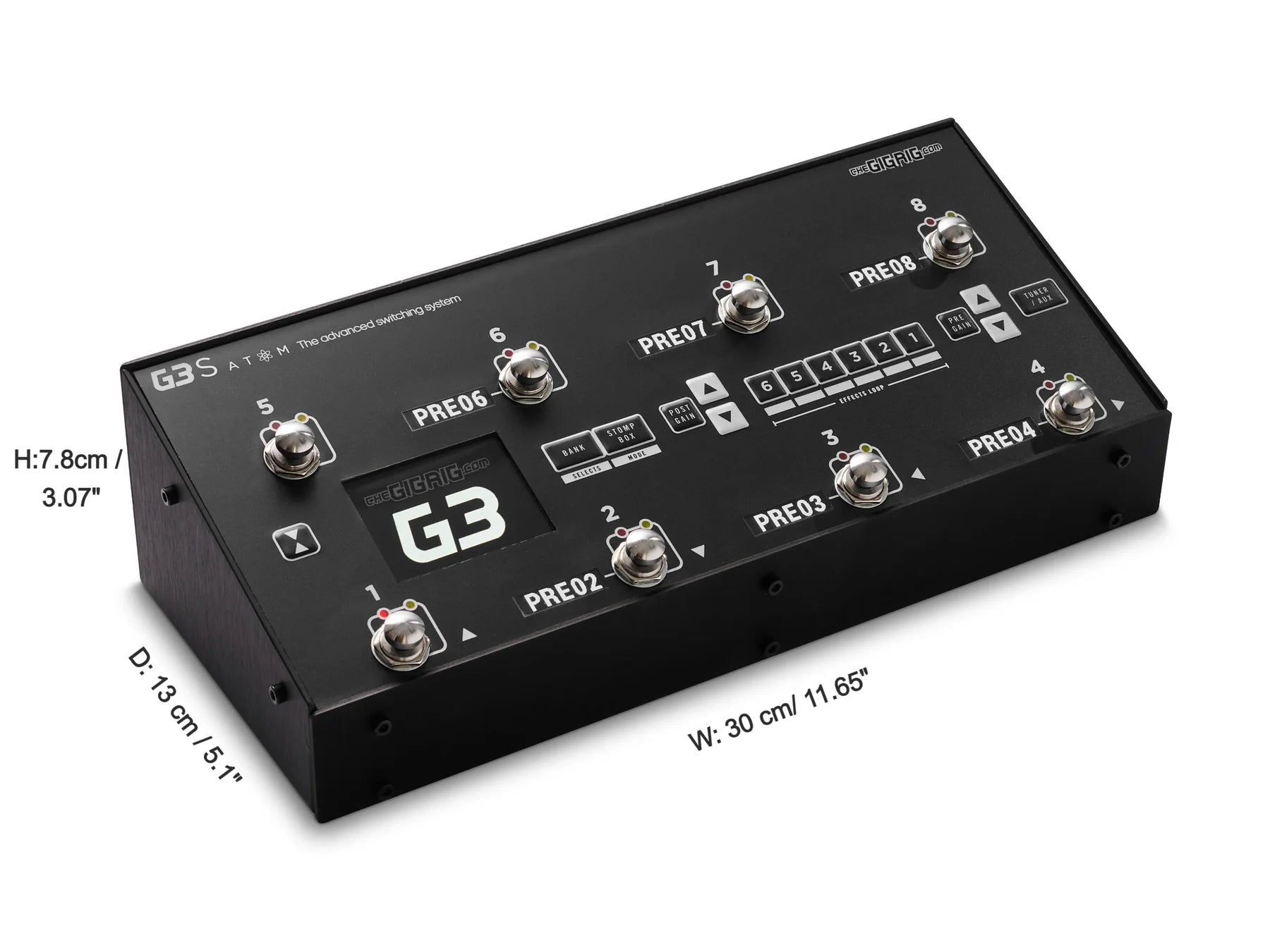

• Physical size: 29cm x 13cm x 7.8cm / 11.4" x 5.1" x 3.07"
• Screen size: Approximately 5 x 3.8cm / 1.96"x 1.5"
• Power Requirements: 9V DC (2.1mm center neg) @850mA. We recommend the use of The GigRig Generator power supply supplied with The G3 Switching System.
• Weight: 1.65kgs / 3.64lbs
