FEATURES
• Output: 50W of pure tube power
• Tubes: One 12AX7; two 6L6 (Matched Pair)
• Power Handling Capacity of Reactive Load (Max continuous): 200W @ 2/4 Ohms; 150W @ 8Ohms; 200W @16 Ohms
• Output Impedance: 2/4, 8 or 16 Ohms, selectable
• Load Amp Impedance: 2/4, 8 or 16 Ohms, selectable
• Can drive a 2 Ohm speaker load, using the 2/4 Ohm setting
• Active safety bypass feature disables internal power amp and maintains critical load on your amplifier if speaker output jack is accidentally unplugged.

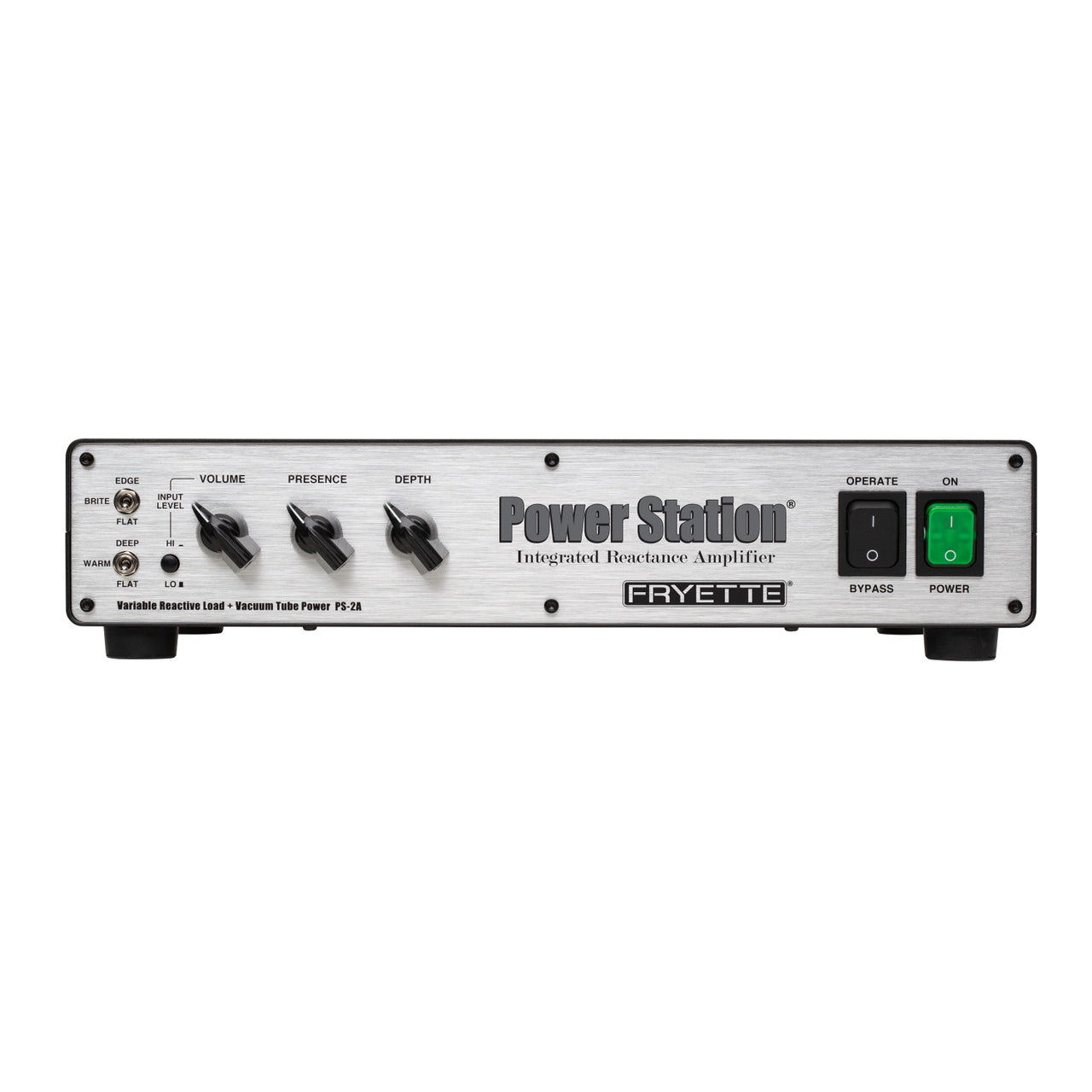

• Front panel controls: Bypass switch, Hi/Lo Input Level switch, High frequency response switch - Flat, Brite, Edge, Low frequency response switch - Flat, Warm, Deep, Volume, Presence and Depth controls, Standby switch (Bypass), Power switch

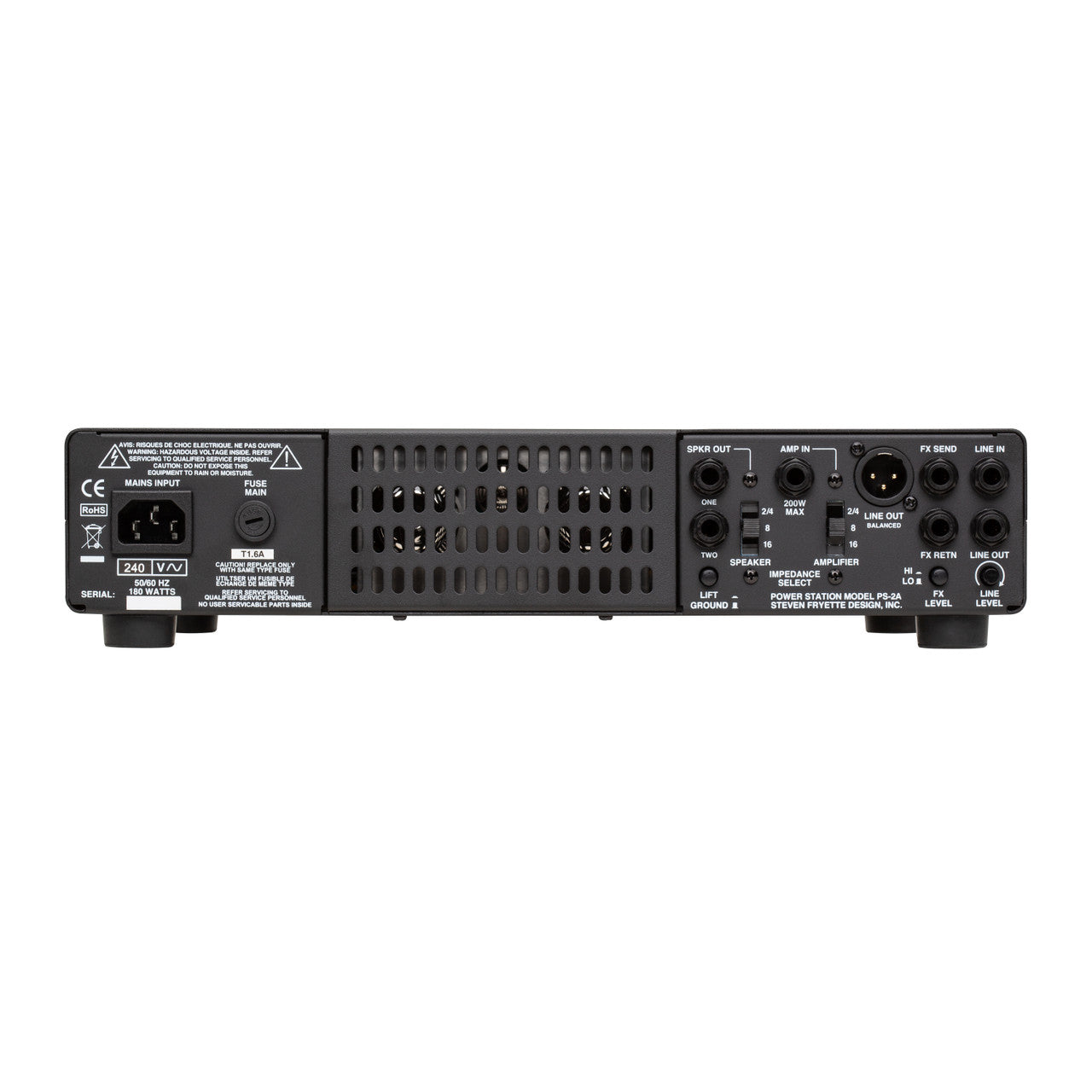

• Rear panel features: Amp In, Amplifier Impedance select – 2/4, 8 or 16 Ohms, Balanced Line Out XLR and Unbalanced 1/4” Line Out with Level Control, FX Send, FX Return, FX Level Switch, Unbalanced 1/4” Line In, Speaker Impedance select 2/4, 8 or 16 Ohms, Speaker Out 1, Speaker Out 2, Ground Lift, Mains Fuse, AC Input
• Carry bag and rack kits are available and sold separately
• Dimensions: 14 x 2.75 x 9 in.
• Weight: 15 lbs / Dimensions: 14(35)W x 2.75 (7)H x 9(23)D. / Weight: 15 Lbs (7 kg).
Shipping Dimensions: 18(46)W x 8(20)H x 14(36)D. Weight: 18 Lbs (8kg)
Carry Bag and a Rack Mount Kit are available.
