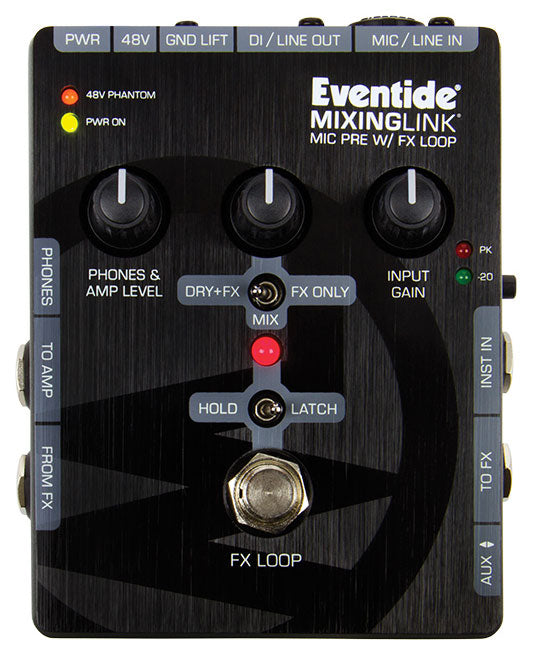

Eventide MixingLink

High quality mic pre with FX loop in a compact form factor

A stompbox size audio toolkit for on stage, in the studio and everywhere in between. Includes a quiet high gain mic-pre, 48V phantom power and enough I/O and control for applications such as FX Loop for microphone signal processing (vocals, horns, strings, etc), signal splitting and combining, complete re-amp setup, impedance and gain matching, mixing and more.

Features

• FX loop send and return supports balanced and unbalanced signals - interfaces with consoles or guitar pedals easily
• Latching or momentary footswitch control of FX loop for performance effects
• Works with a wide range of microphones including condenser and ribbon mics with up to 65dB of clean gain
• Aux I/O connection supporting stereo input and send
• Guitar amp output and headphone monitor output with separate master volume control
• International universal power supply included
• Operates on 9V battery (no phantom power when operating on a battery)
• 48V phantom power for condenser mics
• Balanced XLR output which supports DI and line levels
• Instrument and balanced line level inputs
• Versatile mix control supports 3 modes
• 100% Dry w/FX blended in
• Mic/FX balance control
• 100% FX (no Dry)
