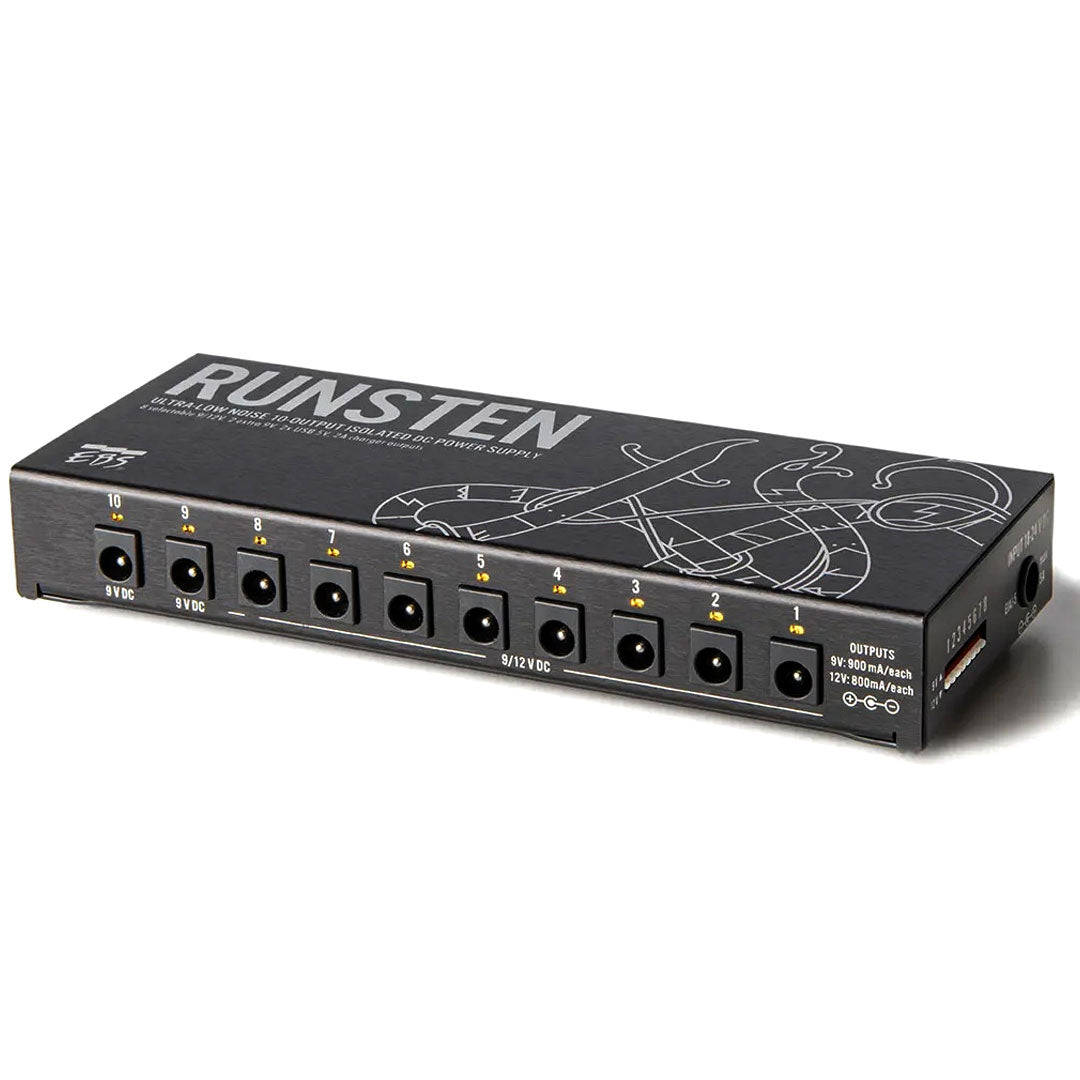

THE EBS RUNSTEN IS A GROUNDBREAKING DC POWER SUPPLY FOR PEDALBOARDS DESIGNED TO MEET THE INCREASING DEMANDS OF TODAY'S MUSICIANS FOR POWER, FLEXIBILITY, AND PORTABILITY. GET RID OF USING MULTIPLE POWER SUPPLIES AND GET READY FOR THE RUNESTONE. IT WILL HANDLE ALL YOUR DC POWER NEEDS.
Ten isolated DC outputs for versatile use
RUNSTEN provides ten isolated 9V DC outputs, eight readily switchable to 12V DC. Each output delivers up to 900 mA, nearly twice the capacity of most conventional multi-output power supplies. This increased power output allows musicians to power multiple pedals, even units usually requiring a dedicated power supply, from one RUNSTEN. It reduces the number of devices needed to power your pedals and minimizes the risk of noise issues related to power.
Up to 24V DC, and extended features with included cable kit
The RUNSTEN features a cable kit that includes adapters to use two outputs together in parallel or serial to increase the current up to 1800 mA or Voltage up to 24 V DC when required. DC distribution cables and adapters to reverse polarity and convert the size of a connector from 2.1 to 2.5 mm are also part of the kit.
Charge your cellphone and power external devices via USB
In addition to its powerful DC outputs, RUNSTEN features two 5V USB outputs. These provide convenient smartphone charging or power for a USB light during performances.
For the touring musician
Designed for global use, RUNSTEN operates with 100-240V AC, ensuring its readiness for your local performances and international tours.
Lightweight and compact design
Despite its powerful capabilities, RUNSTEN maintains a compact and lightweight design, weighing just 310 grams (0.68 lbs). It is an ideal solution for musicians seeking to reduce the weight and size of their pedalboard without compromising on power or flexibility.
With the RUNSTEN, EBS continues to empower musicians' creativity by providing innovative, space-saving solutions for their pedalboard setups, such as the original flat patch cables.
General Specs Extra features Examples
Technical Specifications for EBS RUNSTEN
Output Specifications:
Ultra-low noise DC Outputs:
8 x selectable 9 or 12V,
900 or 800 mA
2 x 9V, 900mA
All outputs are short-circuit protected and fully galvanically isolated.
Connections are center negative on 2.1mm DC jacks.
USB Outputs: 2 x USB Type A, 5V 2A each
Extended Use of Outputs:
To achieve 18 or 24 V DC output, connect the included Serial Adapter to two 9V (for 18V), or two 12V (for 24V) outputs.
To extend the current, connect the included Parallel Adapter to two outputs of the same Voltage to double the current up to 1800 mA).
Use the dedicated adapter included to invert center polarity to power a pedal with a Center positive power input jack.
Use the dedicated adapter included to connect to a 2.5 mm jack if needed.
All included adapters are available at the EBS webshop if more are needed.
Input specifications*
Input voltage range: 18-24V DC
Maximum power handling: 120W at 5A input.
* Dedicated external power supply included. The supplied AC/DC desktop-type adapter is rated 24V/2.5A, which equals a total maximum power of 60W, which should be sufficient for most setups.
Size: 175 x 69 x 25 mm / 6.89 x 2.72 x 0.98 inch
Weight: 310 g / 0.68 lbs
Cables included:
6x DC1-48 90/0
1x Center Negative to Center Positive adapter,
1x 2.1 mm Center Negative to 2.5 mm adapter,
1x Parallel Adapter Y-cable (current doubler)
1x Serial Adapter Y-cable (voltage doubler)
