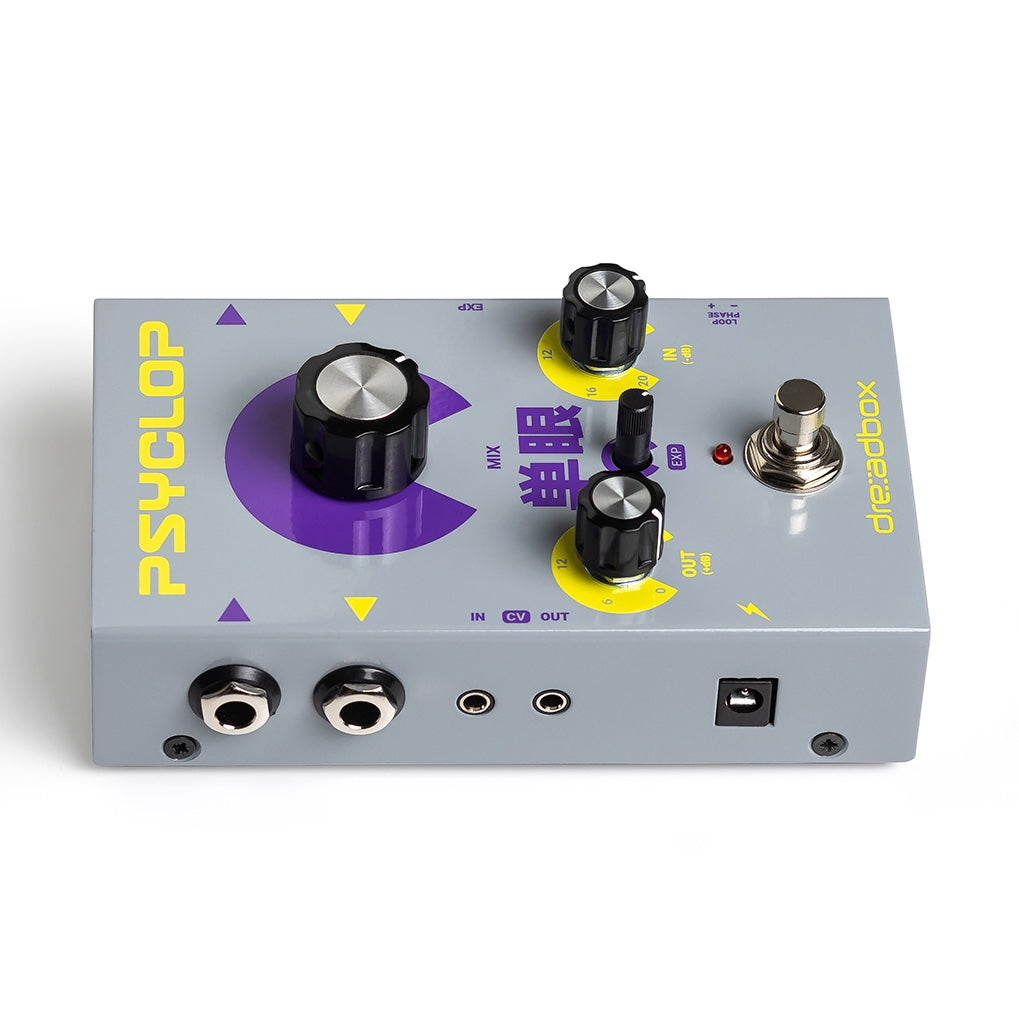

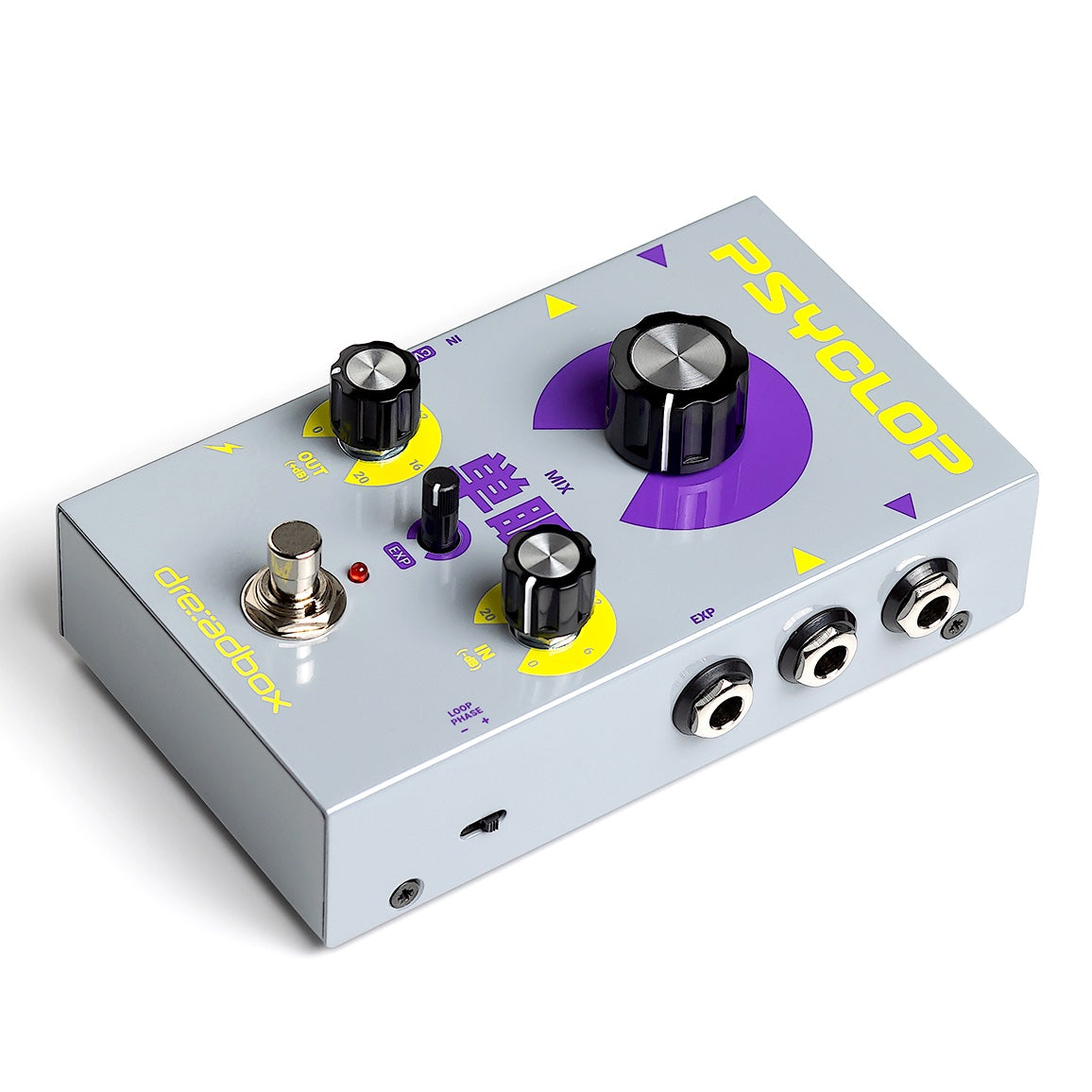

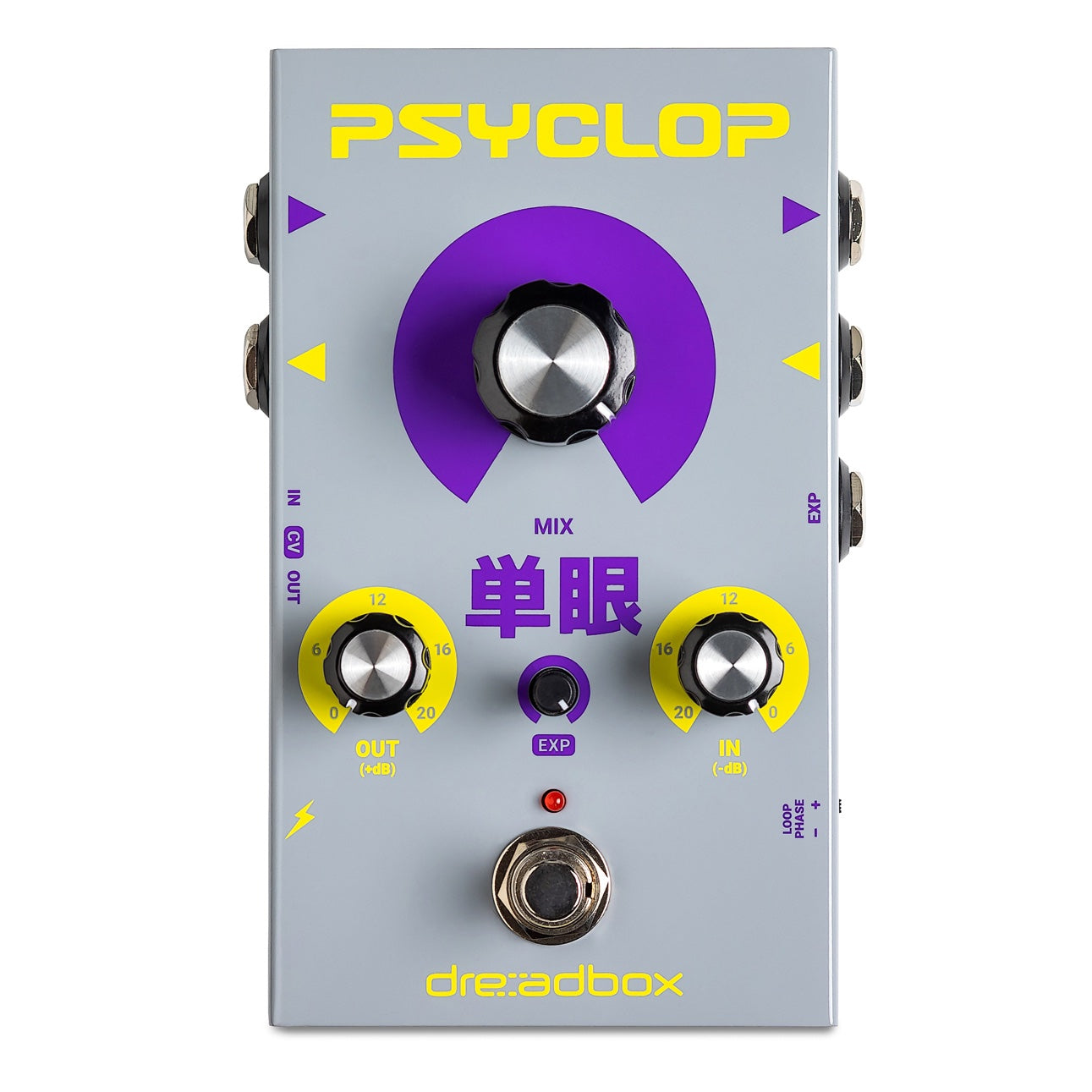

Dreadbox Psyclop Mixer/Attenuator/Booster

Psyclop is not an actual effect pedal, but a multi tool for other effects.

It helps you manipulate a chain, or even a single effect pedal.
We expanded the simple "effects loop" concept into something that every pedal board can benefit from.

SPECIFICATIONS
Circuit
Analog

Bypass
True Relay

Audio
Mono

Inputs / Outputs
IN/OUT : TS Unbalanced 6.4mm jack

Expression Input
TRS type

CV In/Out
TS mono 3.5mm

CV Out (with no input connected)
0-5V

CV Max Input
+/- 12V

Power Supply
9VDC BOSS style center pin negative 2.1mm (NOT INCLUDED)

Dimensions (cm)
14 x 9 x 5.6

Current Draw
25mA

• FX Looper / Mixer / CV
• Effects Chain Loop
• Dry/Wet Mixer
• Attenuator & Booster
• Expression to CV Converter
• Manage any signal
• True Bypass
• Compact design
