Darkglass Microtubes B7K Ultra V2 Aux
Pedals

Darkglass Microtubes B7K Ultra V2 Aux

4 975 SEK 4 975 SEK
SKU: 5493

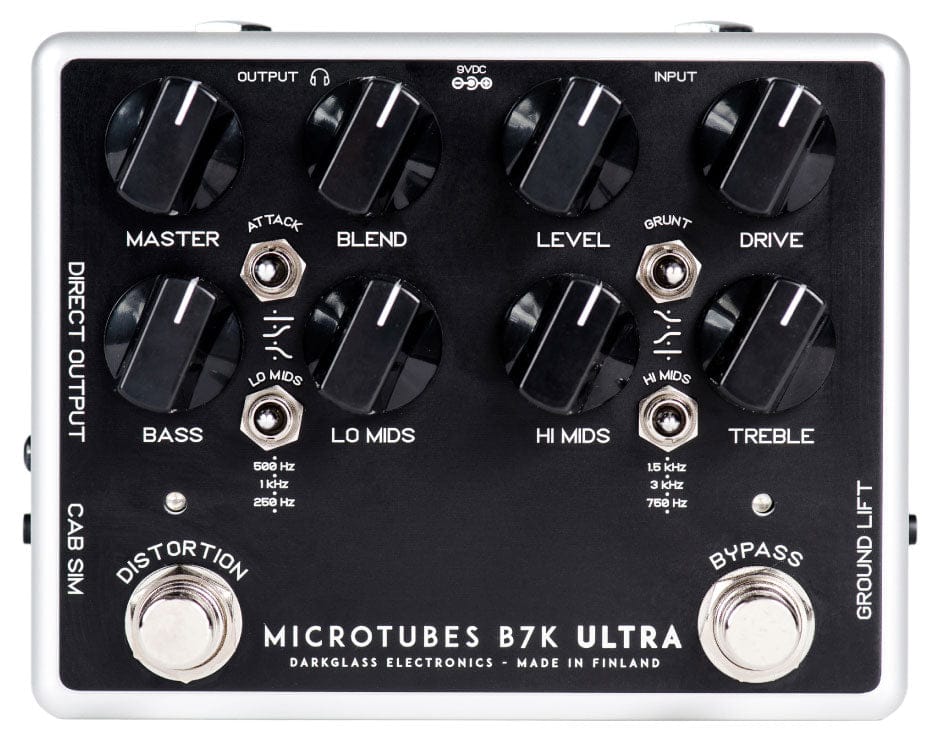

Darkglass Microtubes B7K Ultra V2 Aux

The upgraded Microtubes B7K Ultra features all the versatility and sonic possibilities of the first version plus:

  • Single user loadable cabinet simulation impulse response.
  • Micro-USB B port to connect to PC/Mac to load a different Virtual Cabinet through the Darkglass Suite.
  • 3.5mm headphone output with cabinet simulation.
  • Balanced XLR output with switchable cabinet simulation.

Features

Masters

Whereas the Level Knob controls the output of the overdrive section the Master volume adjusts the overall volume of the unit. Ideal for fine tuning the output on clean mode. It also serves as a DI level control.

Blend

Mixes the clean input signal with the overdriven signal. The clean signal remains at unity gain while the volume of the overdriven signal is set by the Level knob, allowing for fine control of the blend ratio.

Level

Sets the volume of the overdriven signal.

Drive

Sets the amount of saturation in the overdriven signal.

Attack Switch

Sets the amount of treble content to saturate: The "Boost" setting emphasizes the treble content extra clarity and presence. The "Flat" position leaves this register untouched while the "Cut" position will reduce the amount of high frequencies being saturated.

Shallow Switch

Sets the amount of low frequency content to saturate by selecting between three different bass boost levels before the clipping stage.

Bass

+-12dB @ 100Hz

Lo Mids

+-12dB switchable 250Hz, 500Hz and 1kHz

Hi-Mids

+-12dB switchable 750Hz, 1.5KHz and 3kHz

Treble

+-12dB @ 5kHz

Direct Output

Balanced XLR output for connecting the pedal to a microphone preamp, PA system etc.

Ground lift

Disconnects the signal ground on the Direct Output to break any ground loops. Set this switch to either position that has less noise. The switch does not affect the ¼” output.

Cab Sim

Toggle the cabinet simulation on/off on the Direct Output. This switch completely bypasses all digital circuits and allows you to get a zero latency signal when needed.

Headphones

B7K Ultra has an internal stereo headphone amplifier capable of driving a minimum load of 16 ohms from the 3.5mm stereo jack. Use the Master volume control to adjust the level.

USB

A Micro USB B connector allows you to connect the pedal to PC/Mac to load cabinet simulation impulse responses to the pedal and control various other settings.

DIMENSIONS

125x96x57mm (4.92x3.77x2.24in)

WARNING

WARNING: When the pedal is on bypass the master volume does not affect the headphone volume. In this case the total volume is adjustable in Darkglass Suite. With sensitive headphones the bypass volume can be very loud if not adjusted.

The Microtubes B7K Ultra v2 has a current draw of 110mA. Only use a regulated 9V DC adapter with a center-negative plug. Due to ecological reasons, it does not accept batteries. Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty
