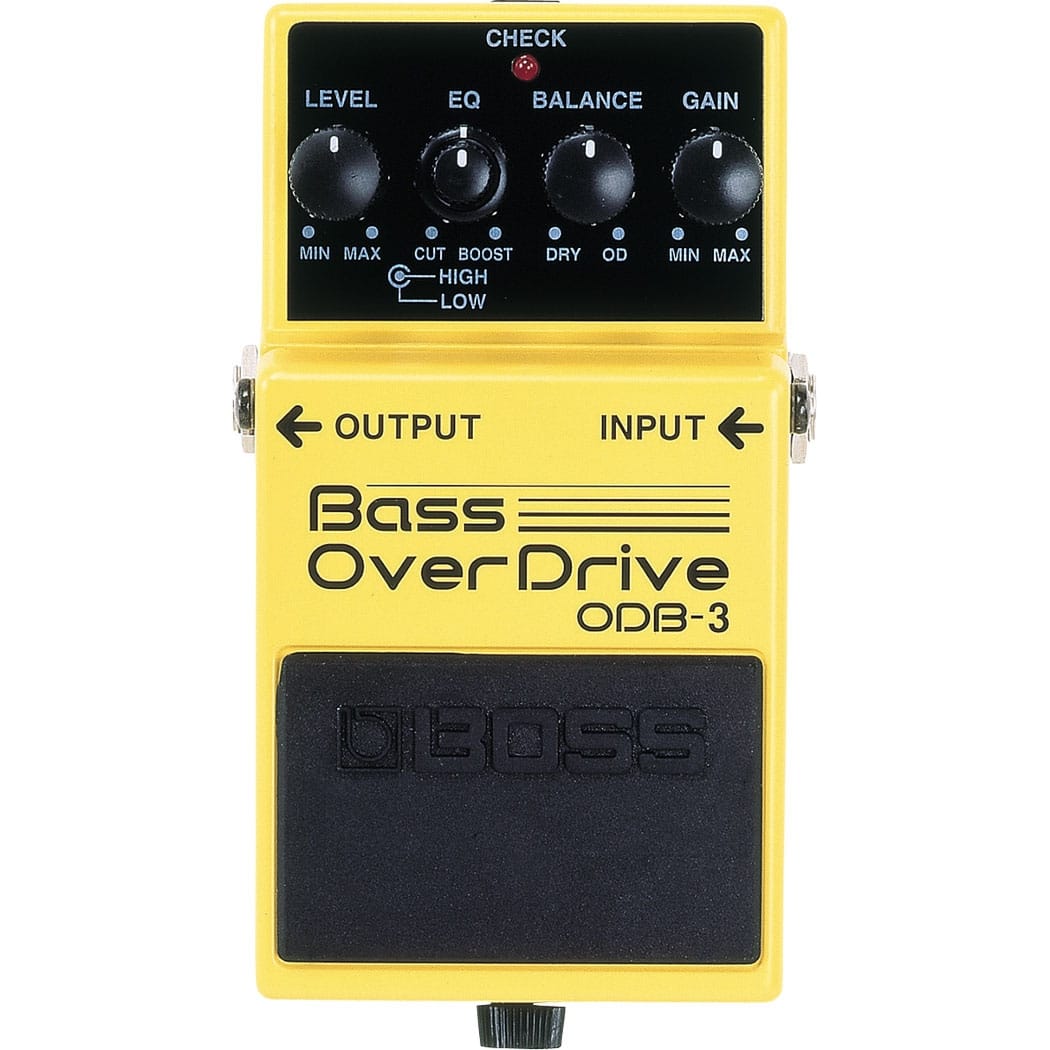

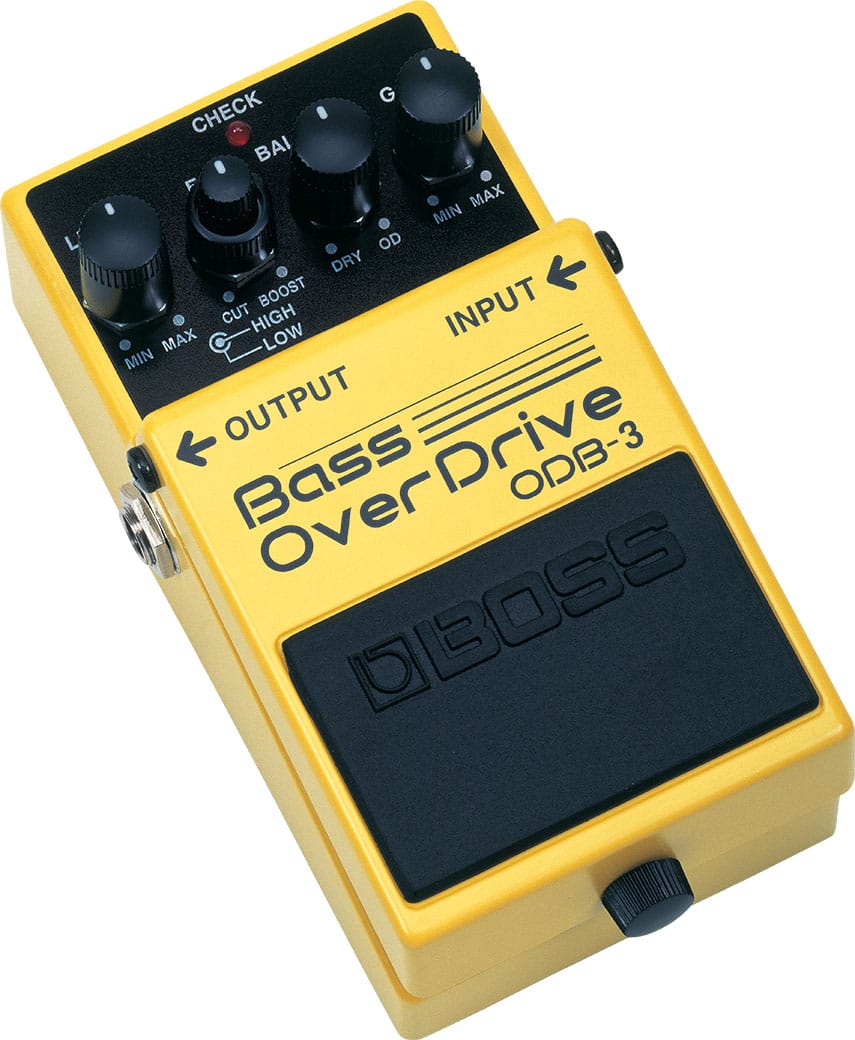

BOSS ODB-3 Bass OverDrive

The ODB-3 Bass OverDrive delivers the chest-resonating distortion that hard rock, thrash, and punk bassists have been waiting for. This hot compact pedal has been designed specifically for bass applications.

• OverDrive pedal specifically designed for bass
• Onboard two-band equalizer
• Balance knob controls dry/overdriven sound
• AC adaptor or 9V battery operation
• Boss 5-year warranty

Specifications

Nominal Input Level

-20 dBu

Input Impedance

1 M ohm

Nominal Output Level

-20 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohms or greater

Bypass

Buffered bypass

Controls

GAIN knob
BALANCE knob
EQ HIGH/LOW knob
LEVEL knob
Pedal switch

Indicator

CHECK indicator (Used for indication of check battery)

Connectors

INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack

Power Supply

Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw

20 mA

Expected battery life under continuous use

Carbon: Approx. 24.5 hours
Alkaline: Approx. 40.5 hours
*These figures will vary depending on the actual conditions of use.

Accessories

Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)

Options (sold separately)

AC adaptor: PSA series

Size and Weight

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-3/8 inches

Weight (including battery)

390 g
14 oz
