THE ORIGINAL CHORUS.

Produces everything from mild, natural chorusing to the penetrating stereo chorus popular in contemporary music. Covers a wide frequency range and includes both high- and low-cut filters.

• Nominal Input Level: -20 dBu
• Input Impedance:1M ohm
• Nominal Output Level -20 dBu
• Output Impedance1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass

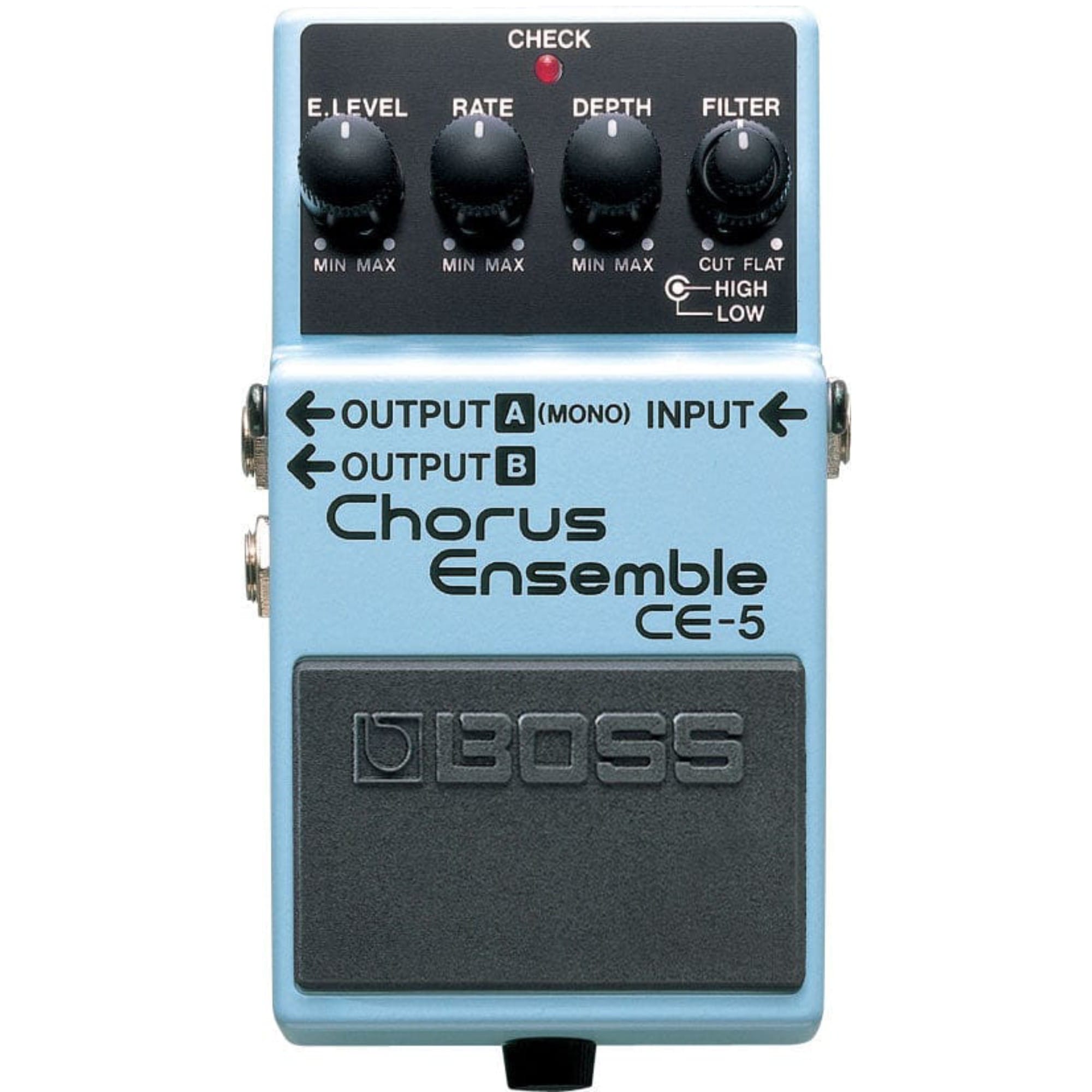

• ControlsHIGH FILTER/LOW FILTER knob

• DEPTH knob
• RATE knob
• E.LEVEL knob
• Pedal switchIndicator
• CHECK indicator (Used for indication of check battery)

Connectors

• INPUT jack: 1/4-inch phone type
• OUTPUT A/B jack: 1/4-inch phone type
• DC IN jackPower SupplyAlkaline battery (9 V, 6LR61)
• AC adapter (PSA series: sold separately)
• Current Draw55 mA
• Expected battery life under continuous use Alkaline: Approx. 6.5 hours

*These figures will vary depending on the actual conditions of use.AccessoriesLeaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61) Options (sold separately) AC adapter: PSA series
