UNBELIEVABLE “TALKING” WAH EFFECTS!

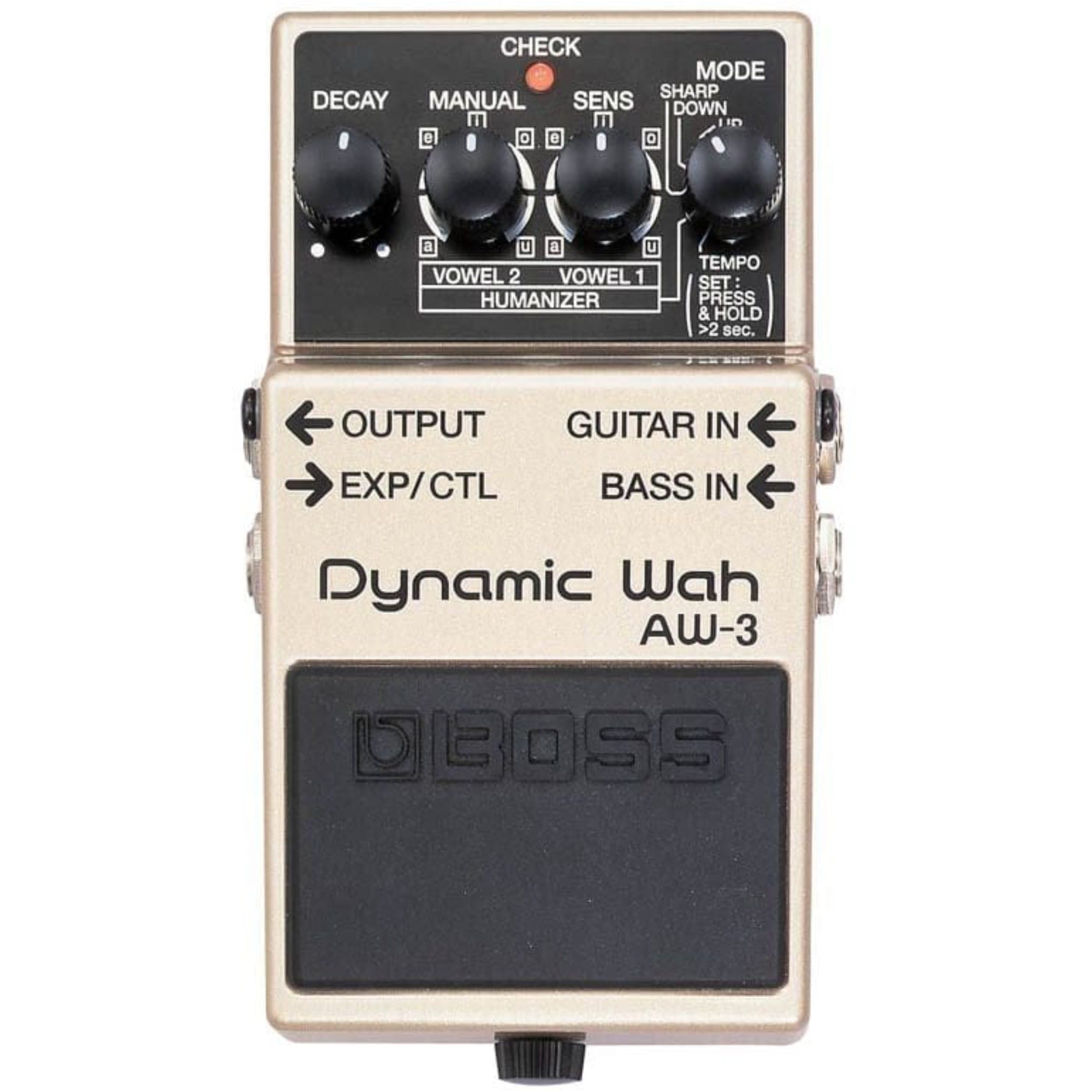

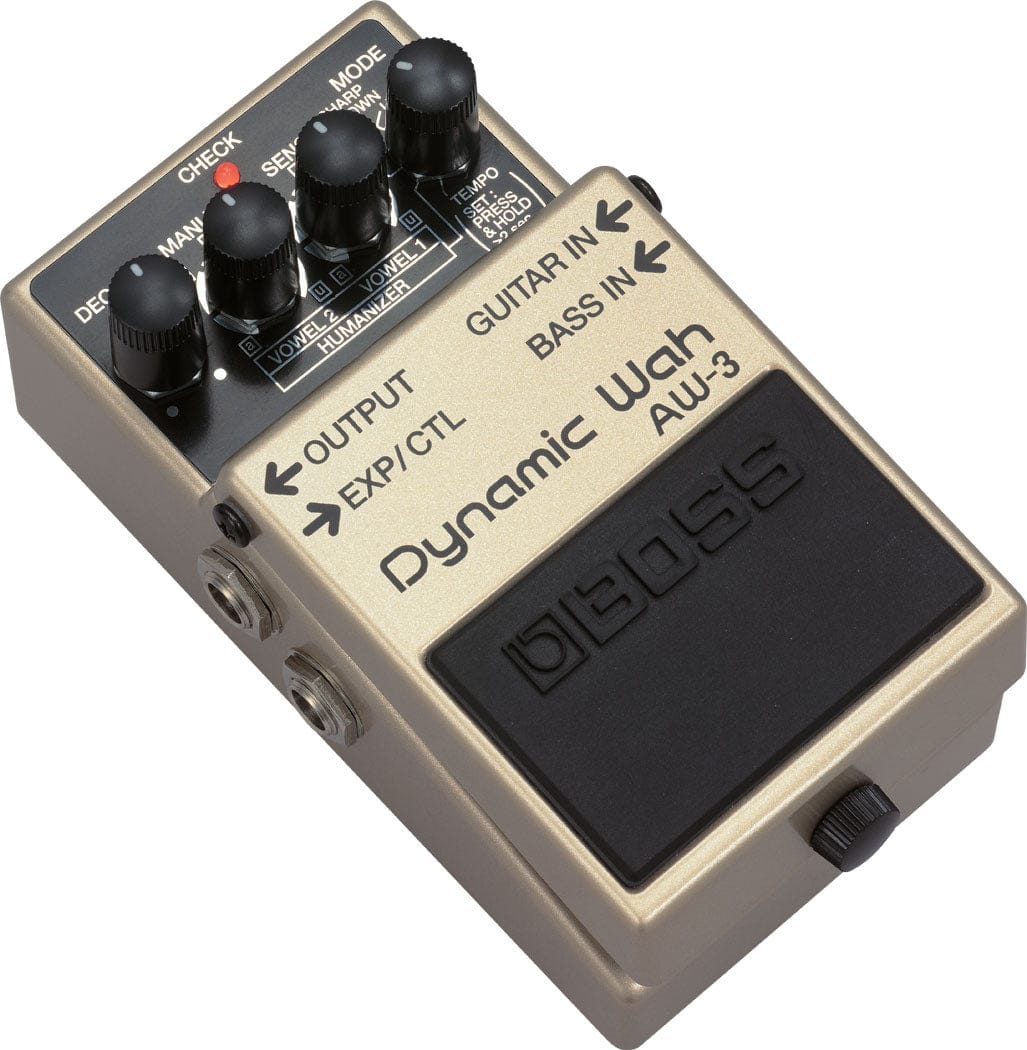

The BOSS AW-3 Dynamic Wah pedal gives guitarists a wide range of classic auto-wah and dynamic wah effects, plus a new "Humanizer" effect which can simulate human vowel sounds. A Bass input provides a variety of funky wah sounds for bass guitar.

• Compact pedal creates a variety of classic "wah" effects
• Dynamic wah sounds provide variable effect based on picking strength
• "Humanizer" effect creates human voice-type vowel sounds
• Dedicated Bass input for processing bass guitar
• EXP Pedal mode allows wah control via optional expression pedal
• Tempo can be set for pedal control or at fixed rate via Manual mode
• BOSS five-year warranty

A “Talking” Pedal

The AW-3 Dynamic Wah is the first compact wah pedal to incorporate human voice-type sounds through a new “Humanizer” Mode. Of course, you can also choose from standard up-and-down wah effects, plus a Tempo Mode and resonant synth-like Sharp Mode.

Endless Possibilities

Choose from both fixed and auto wah settings using the Manual control or pedal for tempo input. By connecting an optional expression pedal, the AW-3 can also be used for Pedal Wah effects. A dedicated Bass input permits direct processing of bass guitars.

Nominal Input Level: -20 dBu

Input Impedance: 1M ohm

Nominal Output Level: 20 dBu

Output Impedance;1k ohm

Recommended Load Impedance: 10 k ohms or greater

Bypass: Buffered bypass

Controls

MODE knob
SENS knob
MANUAL knob
DECAY knob

Connectors

GUITAR IN jack: 1/4-inch phone type
BASS IN jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
EXP/CTL jack: 1/4-inch phone type
DC IN jackPower SupplyAlkaline battery (9 V, 6LR61)
AC adapter (PSA series: sold separately) Current Draw50 mAExpected battery life under continuous use Alkaline: Approx. 8 hours

SIZE AND WEIGHT

Width73 mm 2-7/8 inches
Depth129 mm 5-1/8 inches
Height59 mm 2-3/8 inches
Weight (including battery) 430 g/1 lb
