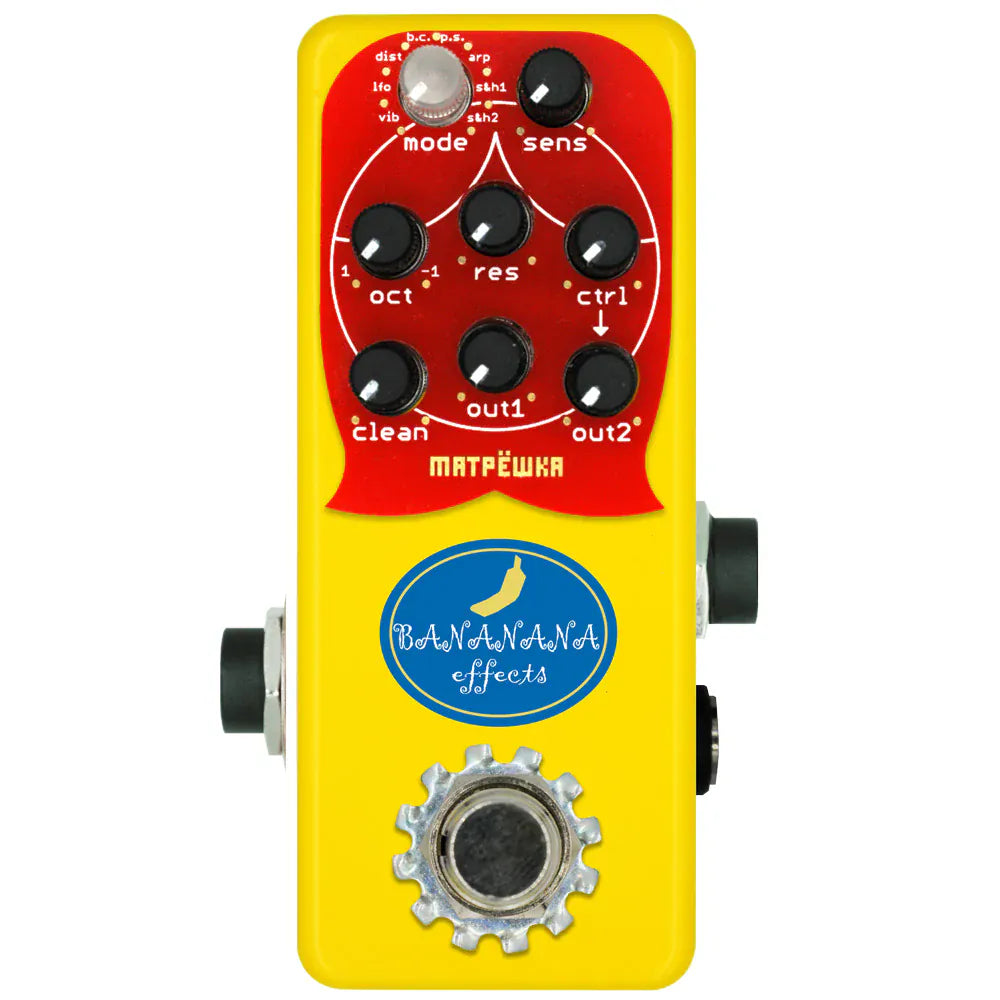

Bananana Effects Matryoshka

MATRYOSHKA is a compact yet powerful bass synth pedal that has 8 selectable modes.

This pedal detects your input pitch and envelope and produces a fat synth sound. The colour of the "Mode Knob" changes for each mode.

Mode Chart

● 1) Red - Vibrato (ctrl: Rate)
● 2) Orange - LFO (ctrl: Rate)
● 3) Yellow - Distortion (ctrl: Gain) [Note ※1]
● 4) L Green - Bit Crush (ctrl: Bit Rate)
● 5) Green - Pitch Shift (ctrl: -4th, Detune, 5th, OctUp)
● 6) L Blue - Arpeggiator (ctrl: Rate) [Note ※2]
● 7) Blue - Filter Sample & Hold (ctrl: Rate)
● 8) Violet - Aliaser Sample & Hold (ctrl: Rate)

This pedal can output 2 types of synth sounds simultaneously: i. out1: Normal synth sound that has a deeper tone than "out2". ii. out2: FX synth sounds that change the sound by "Mode knob". Levels of these synth sounds can be controlled separately allowing you to make various sounds while keeping a deep bass tone.

Further: iii. you can mix in clean (e.g. allowing for make unison phrases). iv. The octave mix knob (between the same octave as direct sound and one octave lower) can provide for a deeper synth tone. Notes ※1: In this mode, the out1 tone is darker than other modes to match the out2 tone. ※2: In this mode, the out1 tone is brighter than other modes to match the out2 tone.

Specifications

・Dimensions: 52mm(W) x 93mm(D) x 49mm(H) [1590A Hammond]
・Input Impedance: 1MΩ
・Power Source: 9V DC (Centre Minus)
・Current Draw: 60mA
