Backline work Isolated Line Out Interface

This interface provides a transformer-isolated line signal from your amplifier's speaker output.

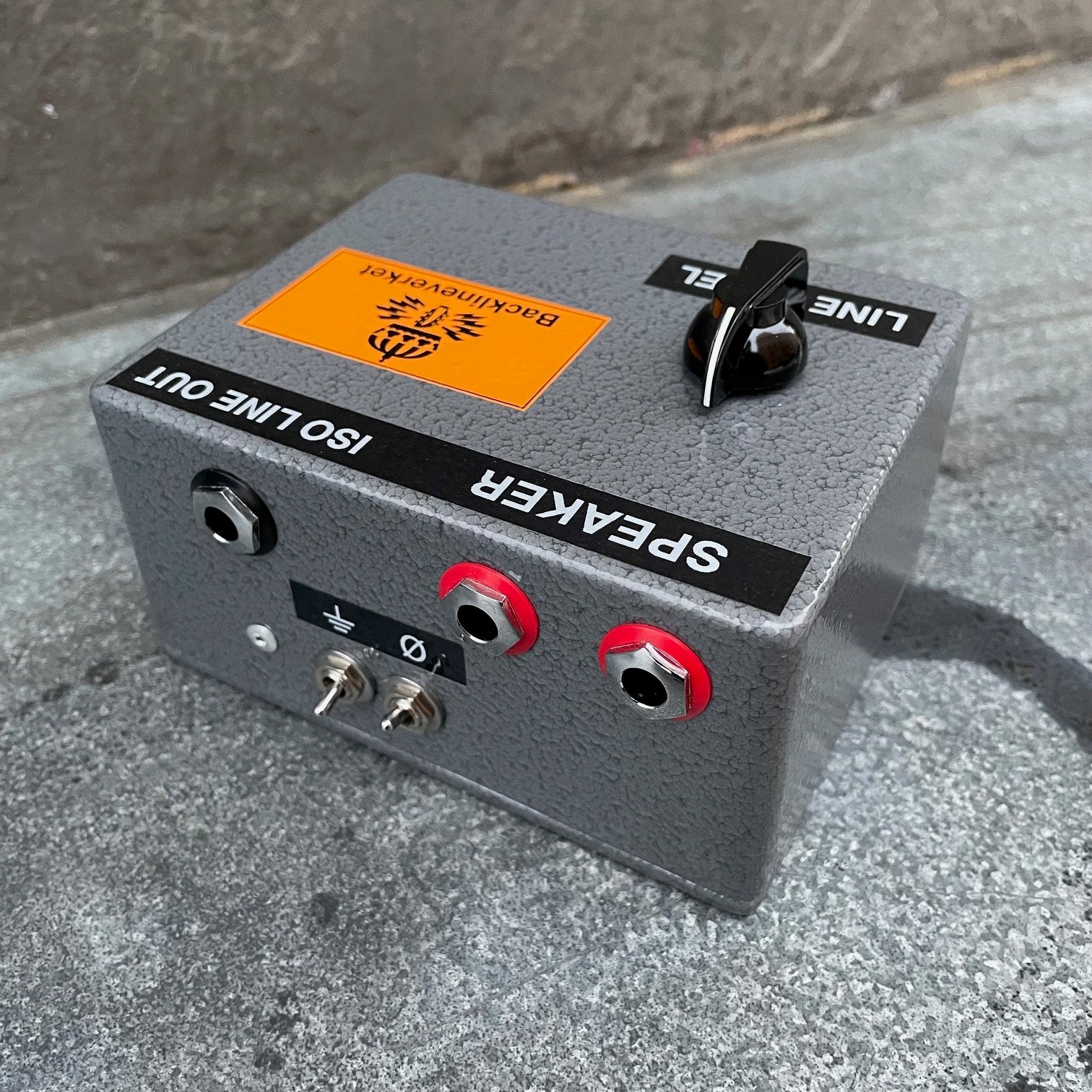

It is equipped with two speaker jacks - one to be connected to the amplifier's speaker output, and the other to your speaker.

Consider this interface as an extension to your speaker cable.

Connect the line out to your effects, mixer, recording device, or speaker emulator.

For a balanced connection, use a TRS cable, and for an unbalanced connection, use a TS cable.

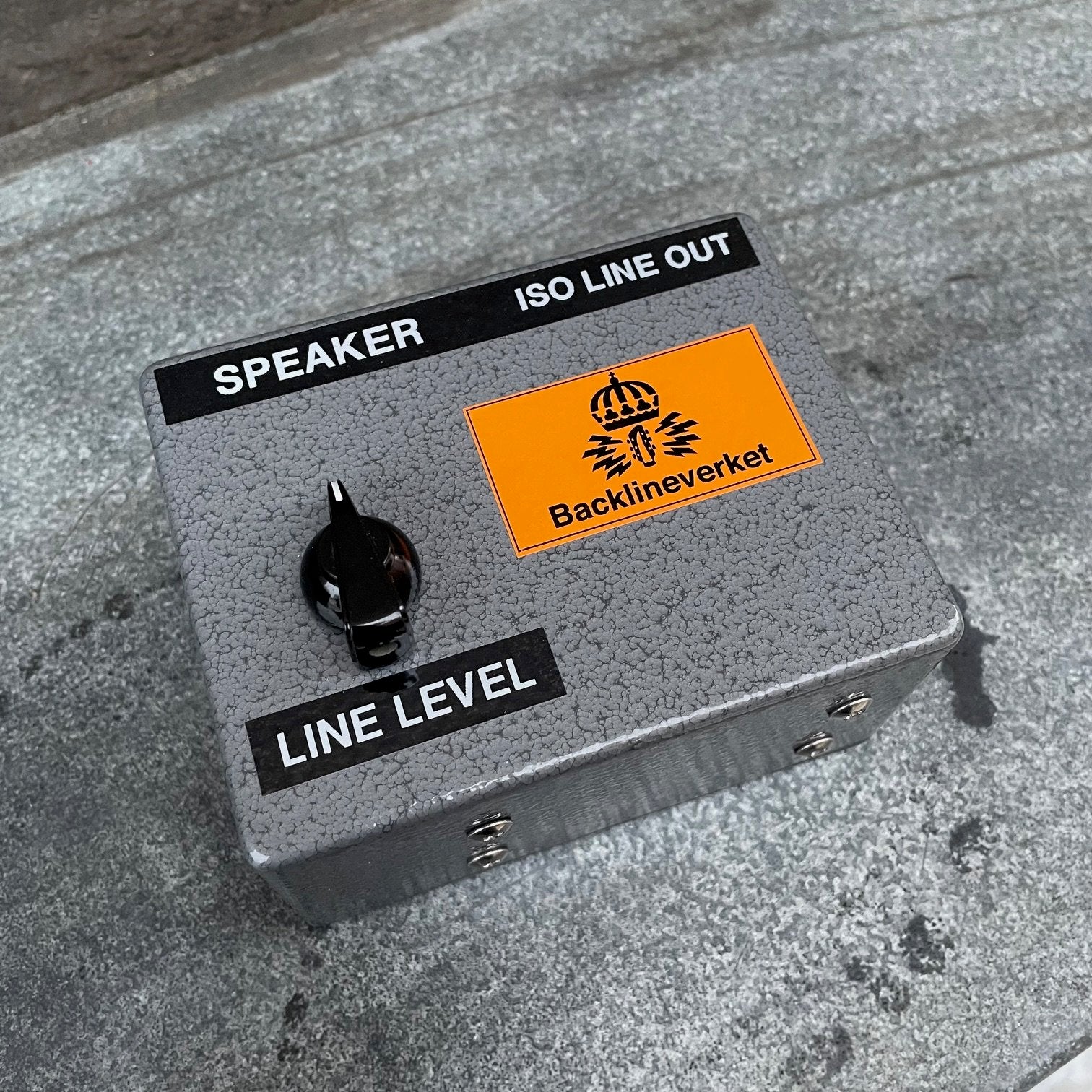

The level potentiometer allows you to adjust the line signal to your desired level. When fully turned clockwise, the signal is attenuated by -20dB, and when set at noon, it reaches approximately -26dB.

Please note that this device is not a load box, so ensure that it is connected to a speaker or appropriate load. Remember, your amplifier must have a load in place.
