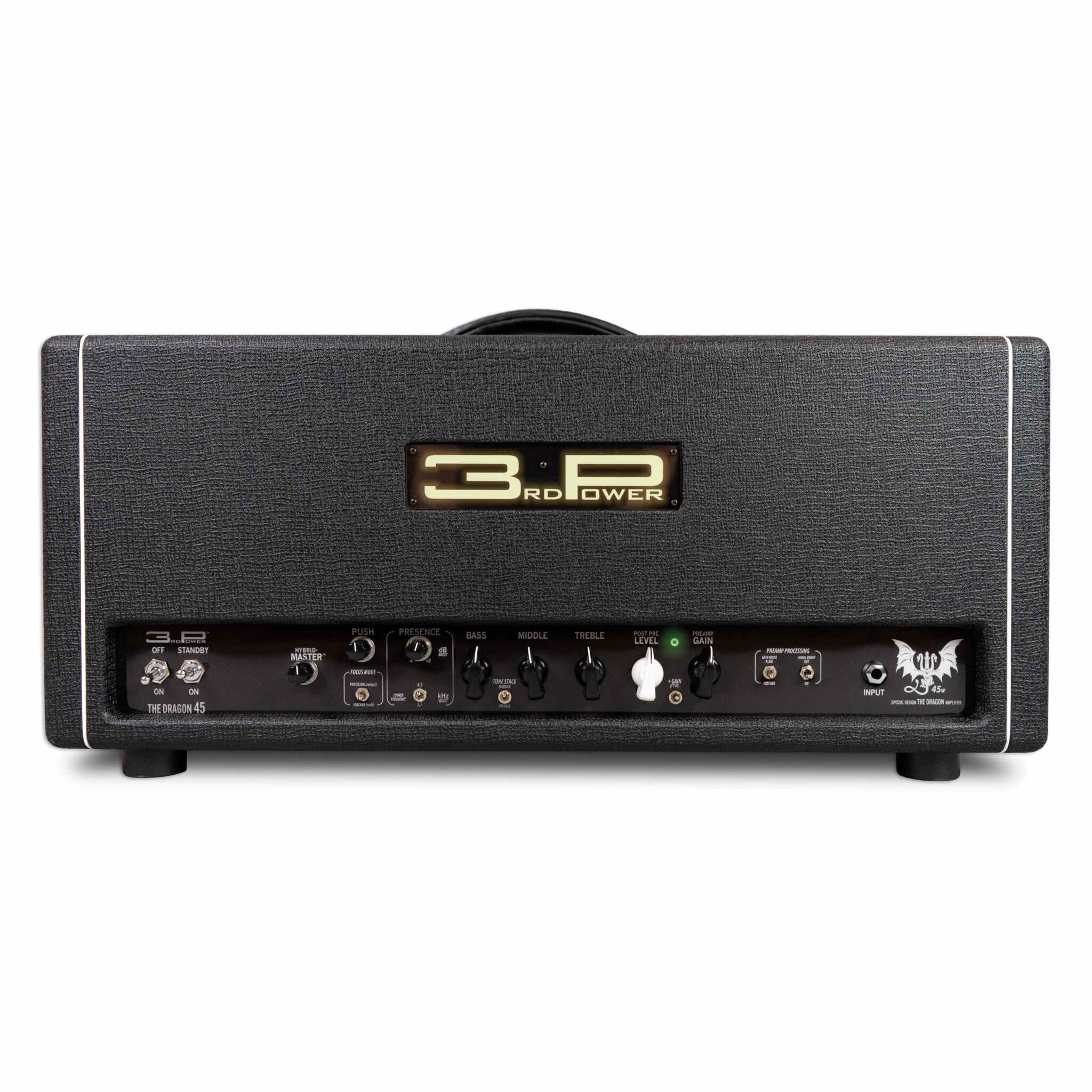

3rd Power Dragon 45 Amp Head

HE DRAGON 45
DRAGON AMPLIFIERS are a vintage inspired, modern featured range of electric guitar amplifiers designed in collaboration with Joe Satriani and 3rd Power's Dylana Scott. Its vintage inspiration comes from the legendary 1967/1968 Plexi Super Lead 100. Its modern features come from the vast combined knowledge and experience of Joe and Dylana.

Features of the DRAGON 45 amplifier include:

• Head or 112 Combo Versions Available
• Dual EL34 Power Tubes (45W Operation)
• British Voiced Plexi & Cascaded High Gain Preamp Section (switchable)
• Switchable 400Hz Boost fattens and shapes unwound treble strings
• Dual-mode 3-Band EQ (JTM/JMP – switchable)
• Tube Buffered FX Loop
• Preamp Gain Boost (foot-switchable)
• Ultra-Presence High Frequency Shelving Filter Switch: (1.7kHz, 4.3kHz corner frequencies)
• Switchable FOCUS mode (vintage or mid-forward for more vocal-like lead tones)
• HybridMaster™ Volume Management Technology (3P Patented)

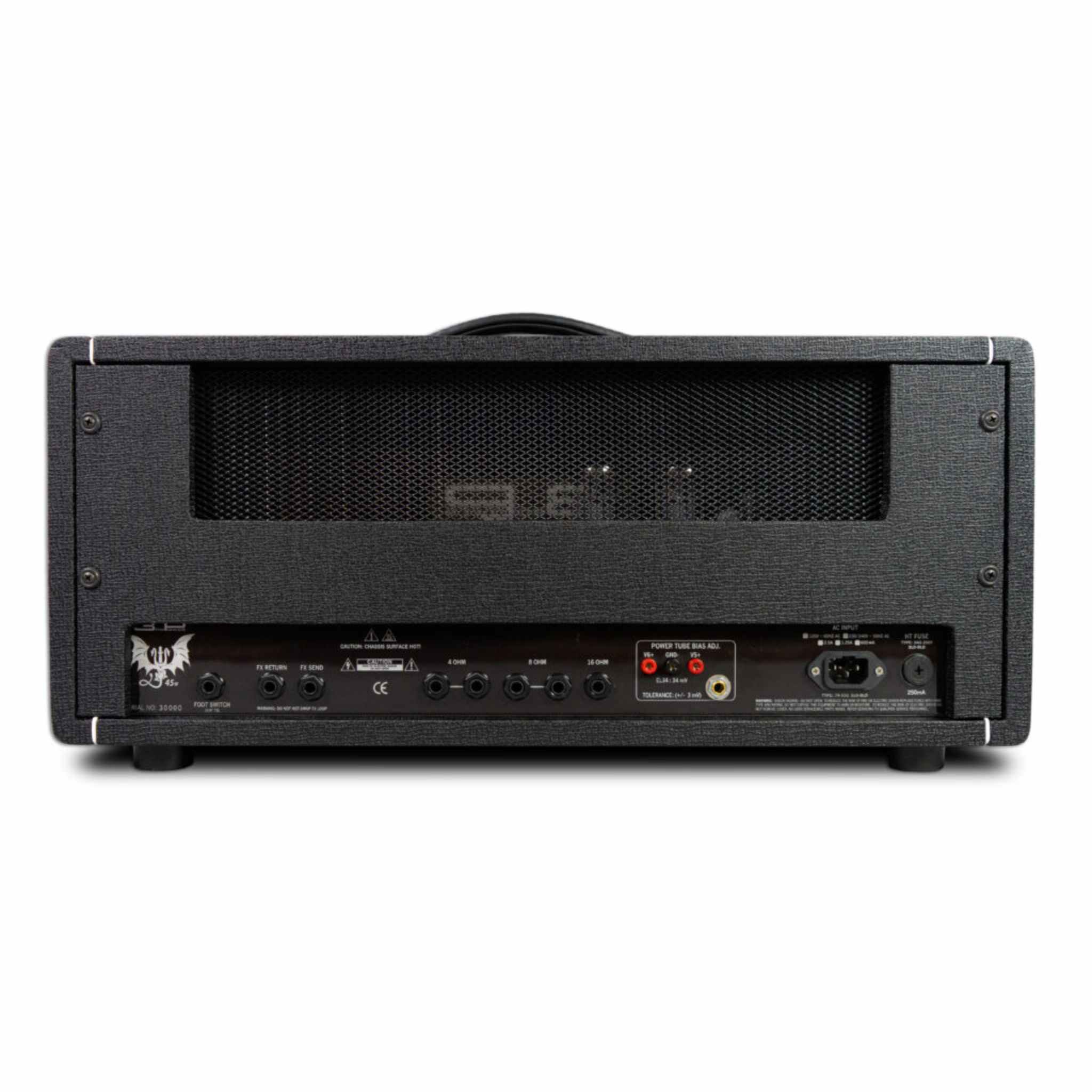

• Back-panel Bias Test Points and Adjustment Pot
• Custom Wound USA-made Power & Output Transformers by Heyboer
• 1 Button Foot Switch (included)
• Hand-wired and Hand Built in Nashville, TN
• Limited Lifetime Warranty

Model Name: Dragon 45
Output Architecture: 2x Power Tubes (Class AB), Fixed Bias
Power Rectification: (4x) 1000V 1N4007 Solid State Diodes
Plate Voltage: 120V AC input yields ~495V DC plate voltage (SS Rectified)
Power Output: ~45W (EL34)
Output Impedance: Discrete Jacks, (1x) 16 Ohm, (2x) 8 Ohm, (2x) 4 Ohm Outputs
Country of Manufacture: 100% Designed and hand built in the USA
Preamp Architecture: (3x ) JJ ECC83S, (1x) Sovtek 12AX7LPS
Speaker (Combo Version): (1x) Celestion Classic Lead 80 (8 Ohms)
Speaker Power Handling: 80 Watts
Dimensions: 112 Combo: 24” x 20.875” x 11”
Head: 19.875″ x 9″ x 8.5″
Weight: 112 Combo: 59 lbs
Head: 24 lbs
Case Composition: 5/8" Birch Cabinetry, 1/2" Birch Baffles
Included Accessories: Single Button Foot Switch
