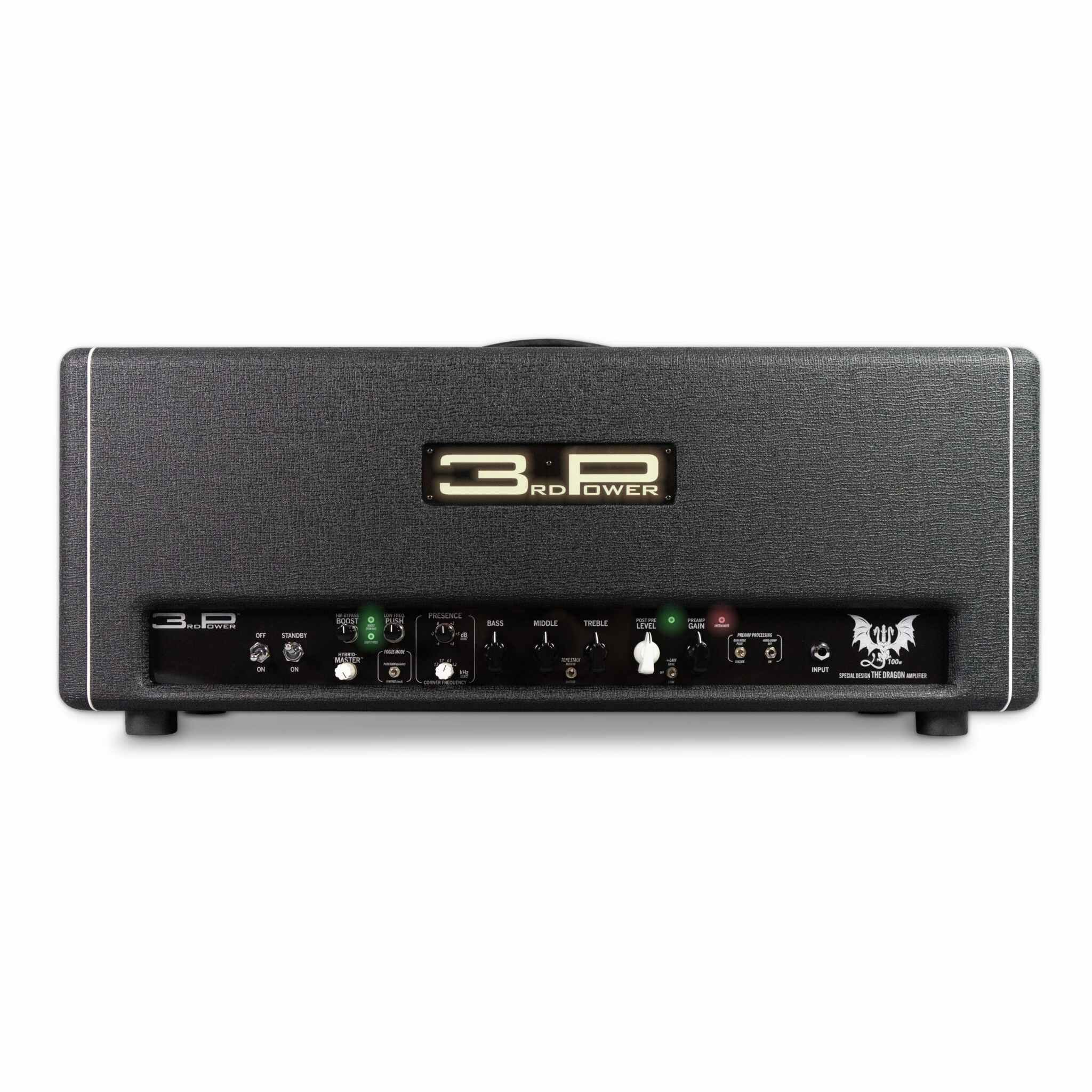

3rd Power Dragon 100 Amp Head

DRAGON AMPLIFIERS are a vintage inspired, modern featured range of electric guitar amplifiers designed in collaboration with Joe Satriani and 3rd Power's Dylana Scott.

Its vintage inspiration comes from the legendary 1967/1968 Plexi Super Lead 100. Its modern features come from the vast combined knowledge and experience of Joe and Dylana.

Features of the DRAGON 100 amplifier include:

• Quad EL34 Output Tubes for 100W of Power
• British Voiced Plexi & Cascaded High Gain Preamp Section (switchable)
• Switchable 400Hz Boost fattens and shapes unwound treble strings
• Dual-mode 3-Band EQ (JTM/JMP – switchable)
• Tube Buffered FX Loop (foot-switchable)
• Preamp Gain Boost (foot-switchable)
• Ultra-Presence High Frequency Shelving Filter: (1.7, 3.7, 4.3 and 5.2kHz corner frequencies)
• Switchable FOCUS mode (vintage or mid-forward for more vocal-like lead tones)
• Foot Switchable MUSICAL SILENT MUTE (FX tails finish their cycle before amp goes silent)
• HybridMaster™ Volume Management Technology (3P Patented)

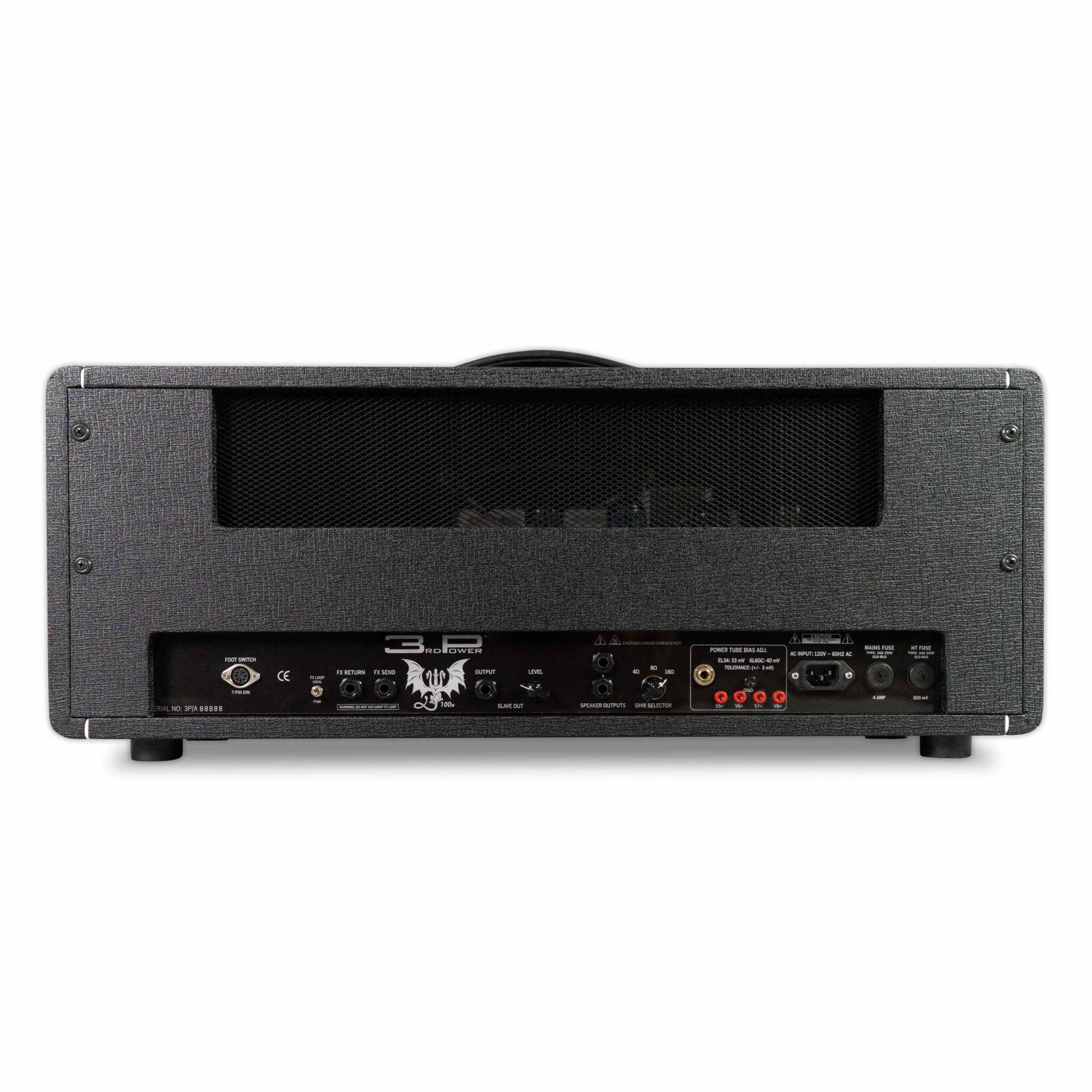

• Back-panel Bias Test Points and Adjustment Pot
• Custom Wound USA-made Power & Output Transformers by Heyboer
• 4 Button Pro Foot Switch & 7 Pin Cable (included)
• Hand-wired and Hand Built in Nashville, TN
• Limited Lifetime Warranty

Model Name: Dragon 100
Output Architecture: 4x Power Tubes (Class AB), Fixed Bias
Power Rectification: (4x) 1000V 1N4007 Solid State Diodes
Plate Voltage: 120V AC input yields ~495V DC plate voltage (SS Rectified)
Power Output: ~100W (EL34)
Output Impedance: Switchable 16/8 and 4 Ohm Outputs
Country of Manufacture: 100% Designed and hand built in the USA
Preamp Architecture: (3x ) JJ ECC83S, (1x) Sovtek 12AX7LPS
Dimensions: Head: 29” x 10.75” x 8.375”
Weight: 45 lbs.
Included Accessories: 4 Button Pro Foot Switch, Premium 15′ 7-Pin DIN cable
