Multifunction Expression Pedal
One pedal. Three expression functions.
The Xotic XXP-1 combines three separate control functions in one rugged aluminium enclosure. It is designed for players who need to control several parameters without filling the pedalboard with multiple expression pedals.

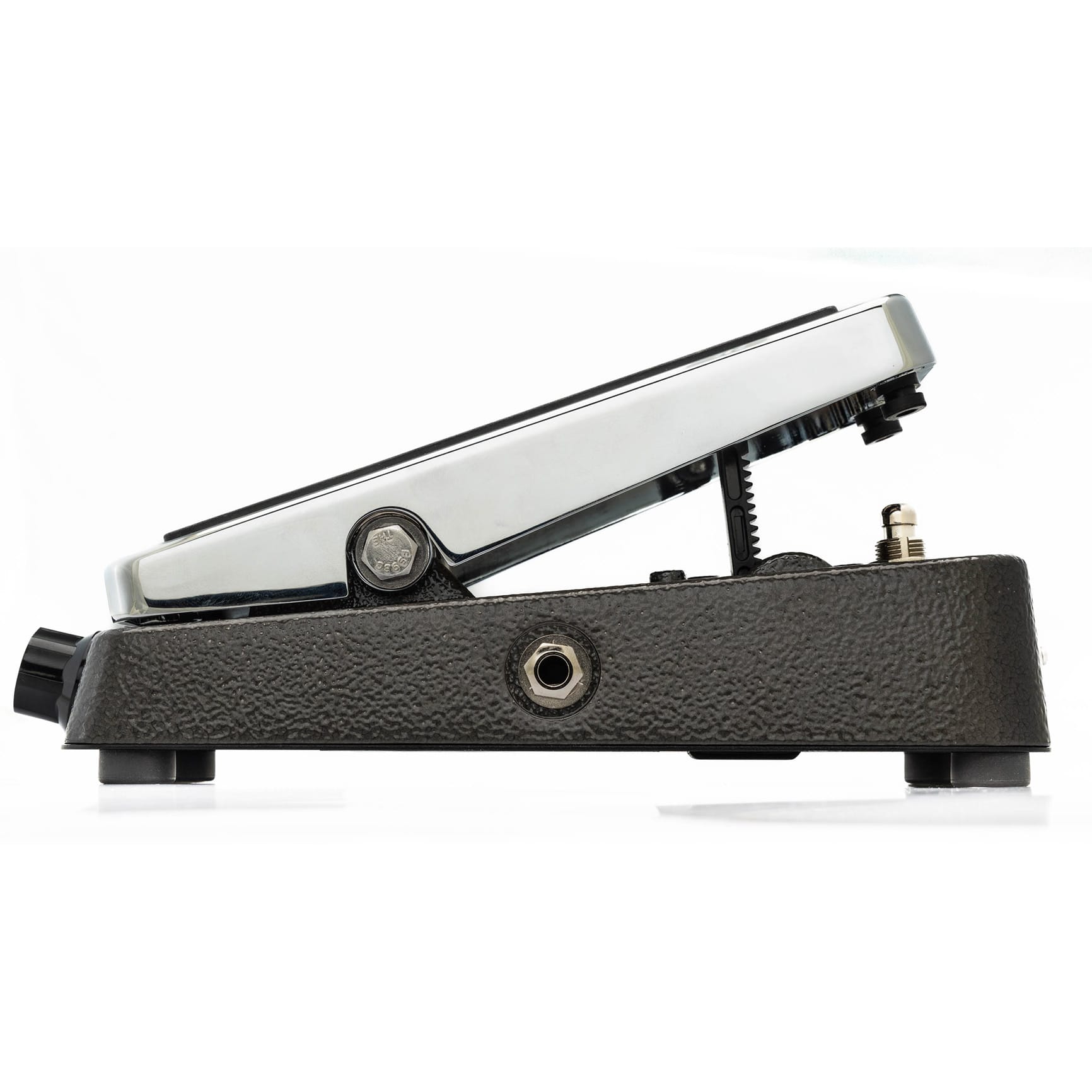

The main treadle provides a wide, smooth sweep and uses a durable plastic-conductive potentiometer. Its resistance can be adjusted using the side-mounted hex bolt, allowing you to choose anything from a loose, fast action to a firmer and more controlled feel.
Three points of control
-
EXP 1: Main treadle expression control with a smooth 20k ohm sweep.
-

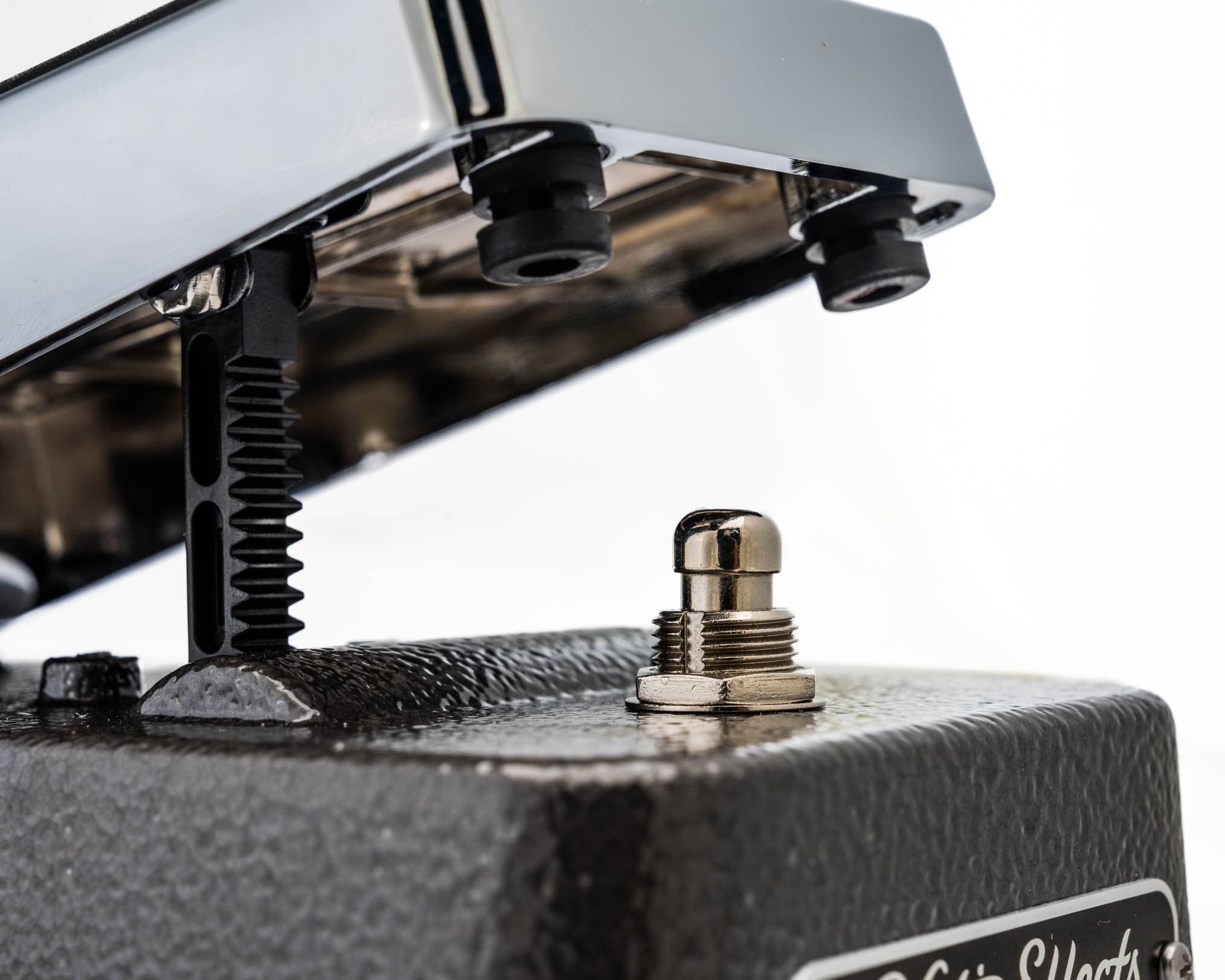

EXP 2: Toe-operated momentary switch for additional control functions.
-

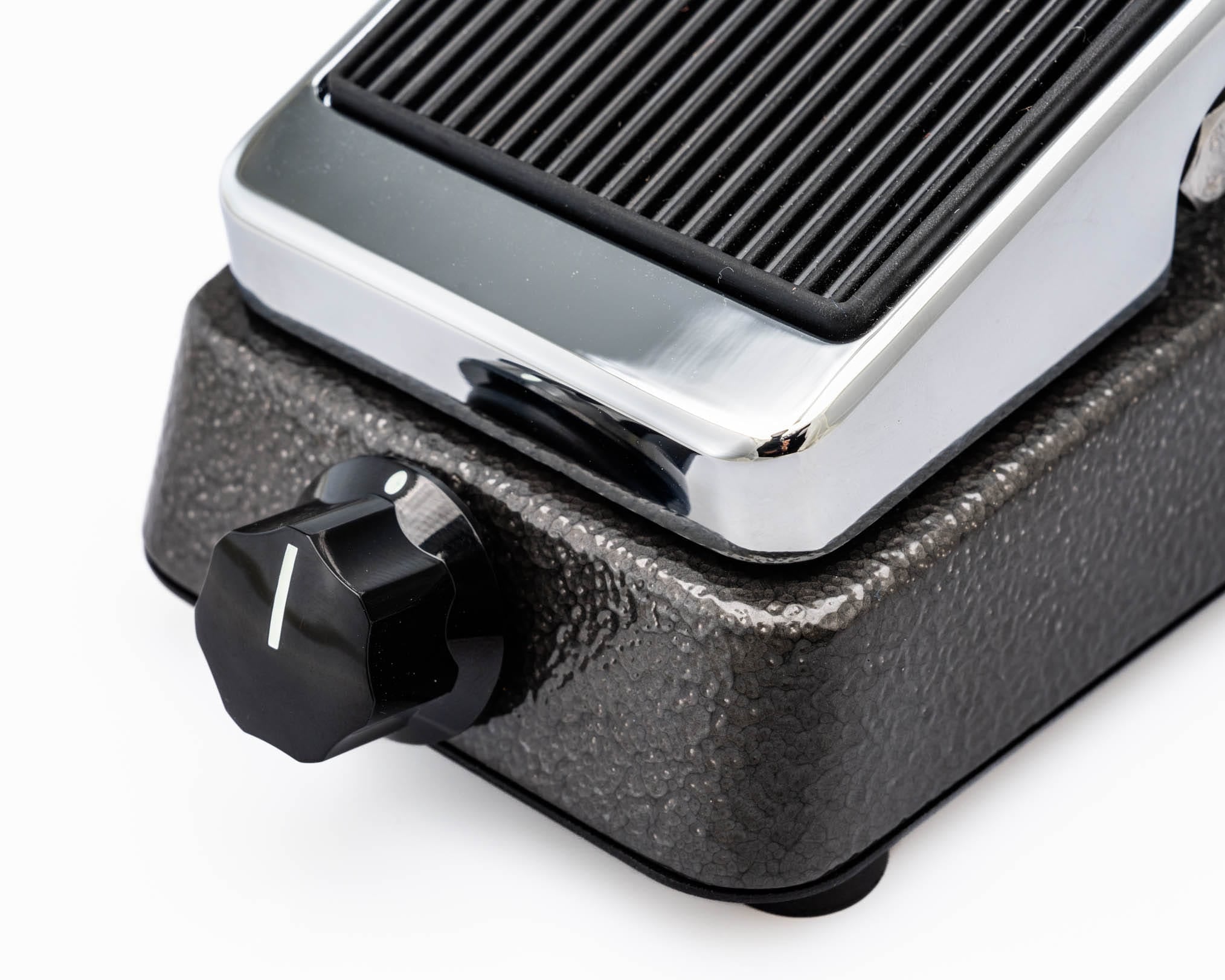

EXP 3: Xotic’s proprietary heel-control knob, allowing you to adjust a second parameter in real time with your heel.
The heel knob includes a rubber O-ring that provides adjustable resistance and helps prevent accidental setting changes while still allowing precise foot control.
Compatible with today’s most popular rigs
Each expression output can be configured for either TRS or TS operation using internal DIP switches. This makes the XXP-1 compatible with a wide range of amp simulators, modelers, effects processors and MIDI controllers, including Neural DSP Quad Cortex, Kemper Profiler, Eventide, Hotone, Line 6, Fractal Audio and Morningstar, depending on the expression-input configuration of the connected device.

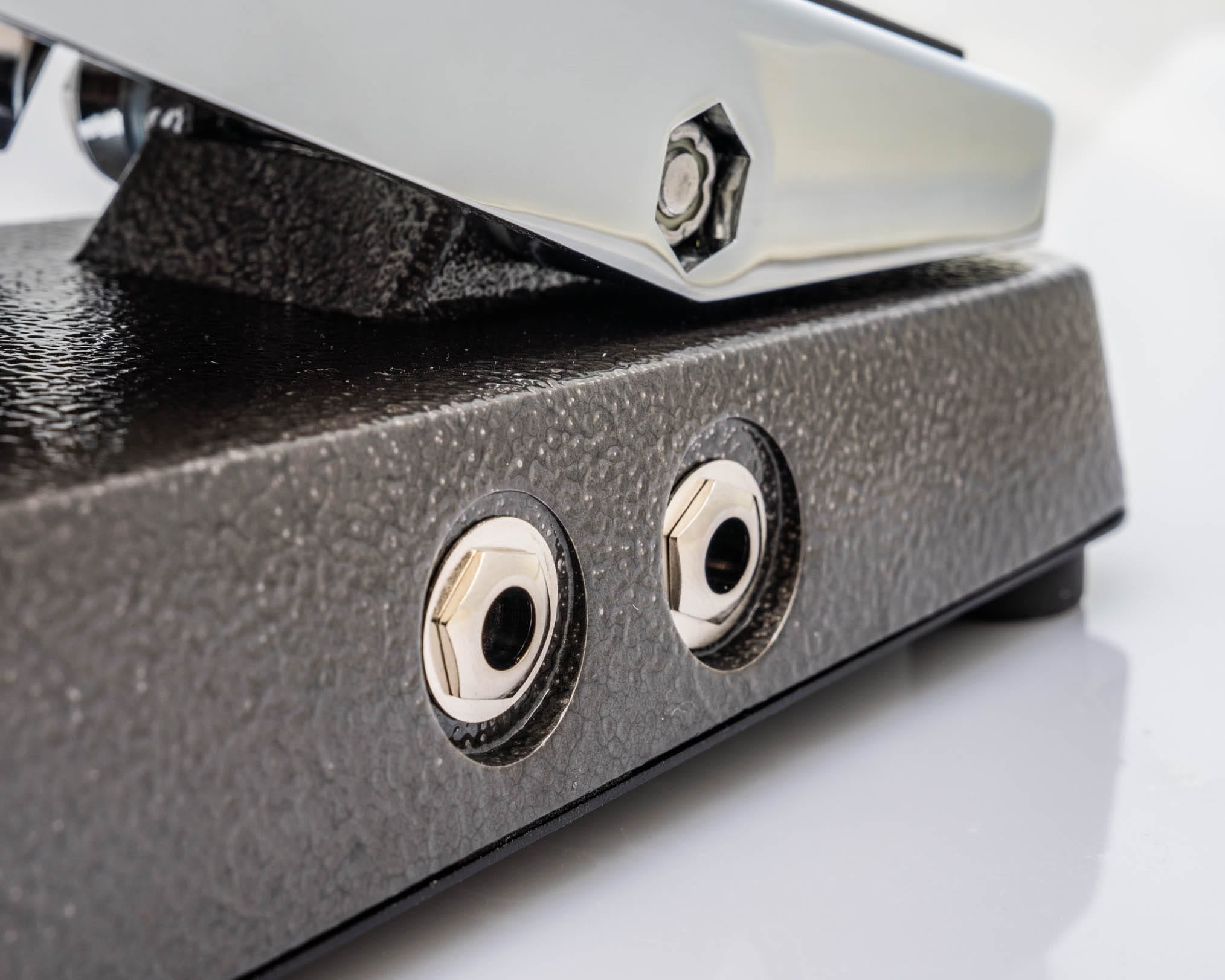

Every control function can also be assigned to your preferred output jack. Xotic’s internal quick-connect wiring makes it possible to rearrange the jack configuration in minutes without soldering.
Expression control, engineered
Whether you need to control several parameters in a digital rig or want one pedal to handle functions such as wah, volume and parameter switching, the XXP-1 provides exceptional flexibility in a single footprint.
- Rugged aluminium enclosure
- Smooth nylon pivot system
- Adjustable treadle resistance
- Three independent control functions
- Switchable TS/TRS expression outputs
- Reassignable output-jack configuration
- Quick-connect internal wiring – no soldering required
- Compatible with Quad Cortex, Kemper, Eventide, Hotone, Line 6, Fractal Audio, Morningstar and many other devices
Specifications
| Dimensions |
210 × 100 × 67 mm |
| Weight |
910 g |
| Treadle expression output |
20k ohm, switchable TRS or TS |
| Heel-knob expression output |
20k ohm, switchable TRS or TS |
| Toe-switch output |
TS momentary switch |
Download the Xotic XXP-1 manual (PDF)
