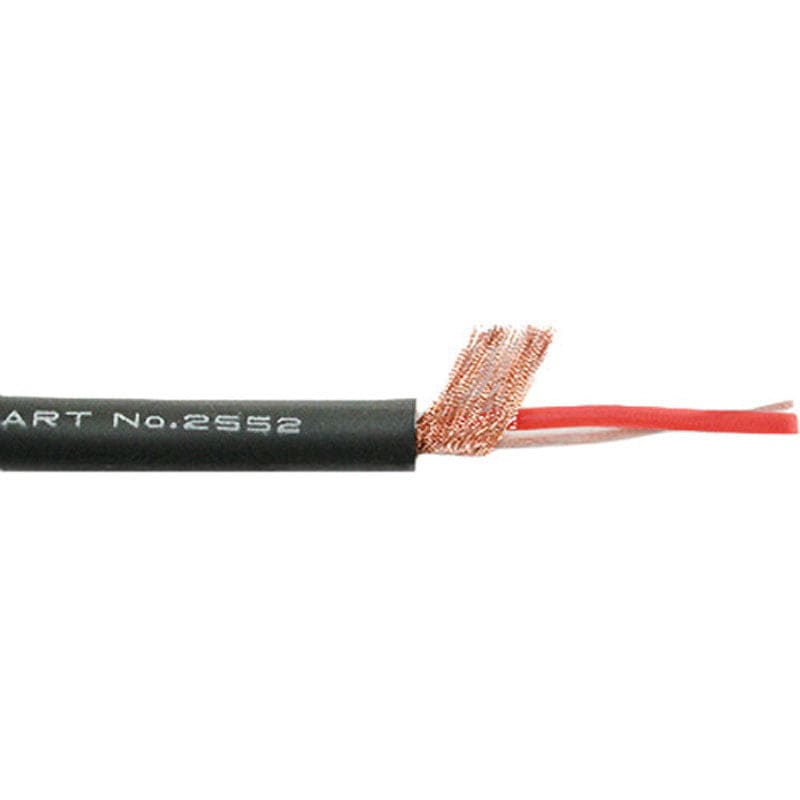

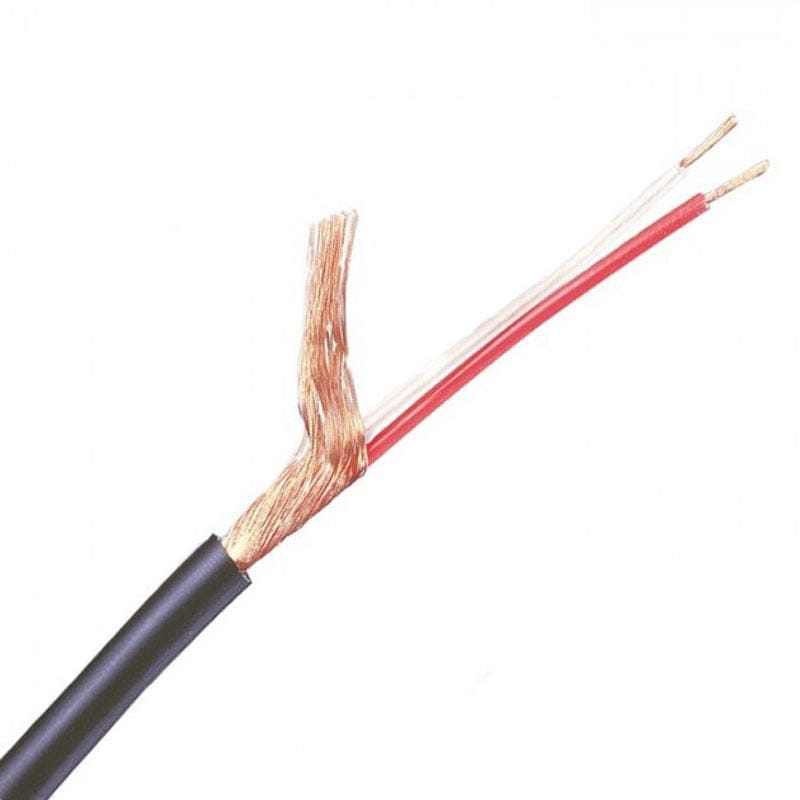

Mogami 2552 TRS or Microphone Stereo Cable (per meter)

The Mogami 2552 is the perfect stereo cable for TRS or microphone use. A specially developed high performance yet economical series of low impedance balanced microphone cables. These cables are small in size and special rubber - like PVC jacket is extremely flexible and exhibits good resistance to rough handling and abrasion.

Works perfectly with SquarePlug SP550-S Stereo Angle Plug

Specification - 2552

No. of Conductor -  2

Conductor

• Details - 12/0.12 A
• Size(mm²) - 0.135mm² (#26 AWG)



Insulation

• Ov. Dia.(mm) - 1.5Ø (0.059")
• Material - LNXLPE (Low Noise Cross-Linked Polyethylene)
• Colors - Red / Clear



Served Shield

• Approx. 67/0.12A

Jacket

• Ov. Dia.(mm) - 5.0Ø (0.197"
• Material - Flexible PVC
• Colors - Black



Capacitance at 1kHz, 20°C - 90pF/m(27pF/Ft)
Inductance between conductors at 1kHz. 20°C - 0.8µH/m(0.24µH/Ft)
