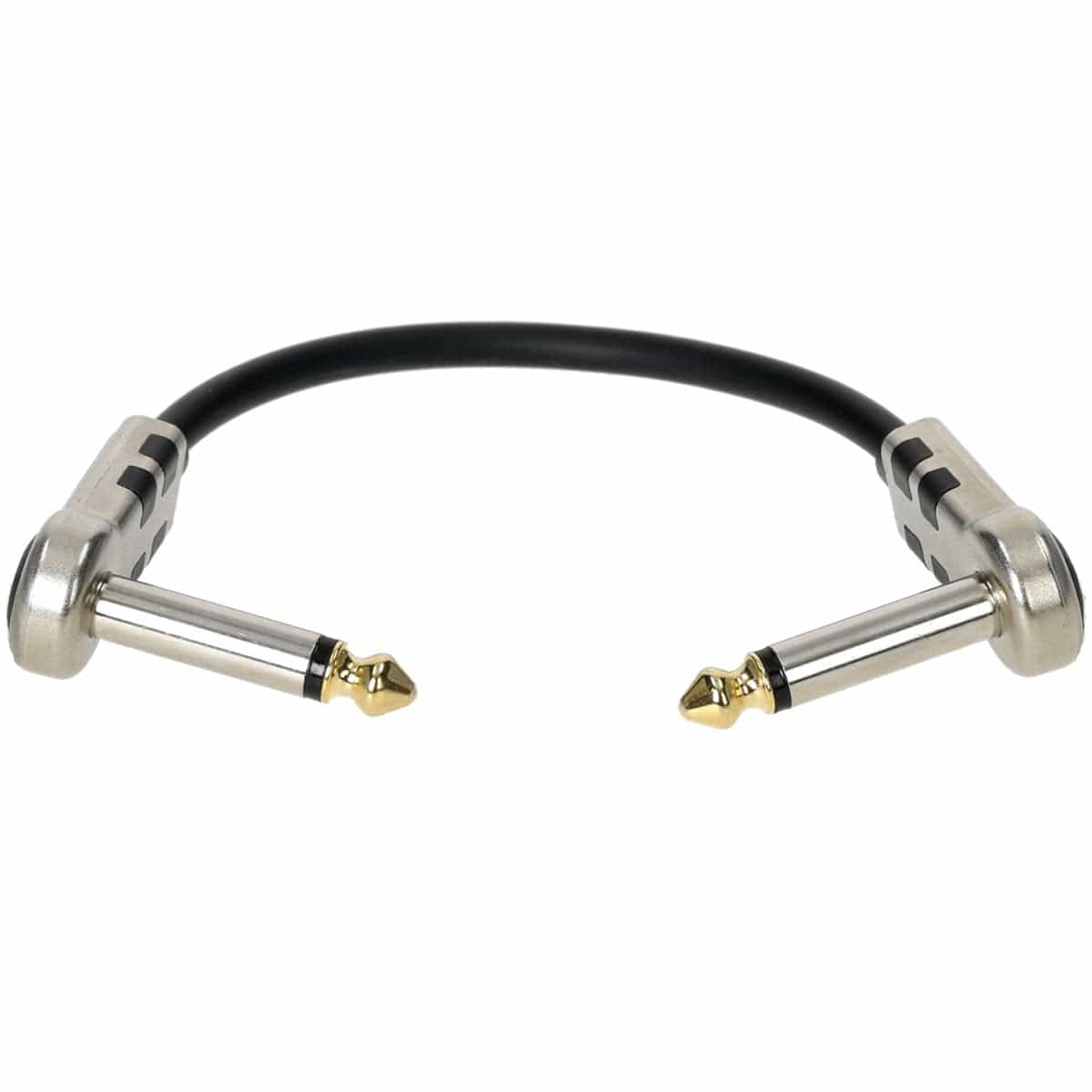

Klotz PatchMaster PRO 0,40 m

Introducing the PatchMaster Pro Series by KLOTZ – a revolutionary step forward in patch cable design. Engineered from the ground up specifically for use in pedalboard setups, this cable combines cutting-edge innovation with handcrafted precision. As the world’s first double-shielded patch cable, it delivers uncompromised signal integrity, exceptional flexibility, and unmatched durability. Developed and handcrafted in Germany, the PatchMaster sets a new benchmark in sound quality and performance – making it the most advanced pedal patch cable available today.

Key Features

• World's first double-shielded patch cable
• Conductive plastic layer + tightly wound copper spiral shield for interference-free transmission
• 99.9% pure oxygen-free copper (OFC) inner conductor
• Ultra-low capacitance of 0.8 pF/10 cm (0.33 ft)
• Designed for maximum flexibility despite complex round design
• Hand-soldered & fully handcrafted in Germany at KLOTZ factory in Vilchband

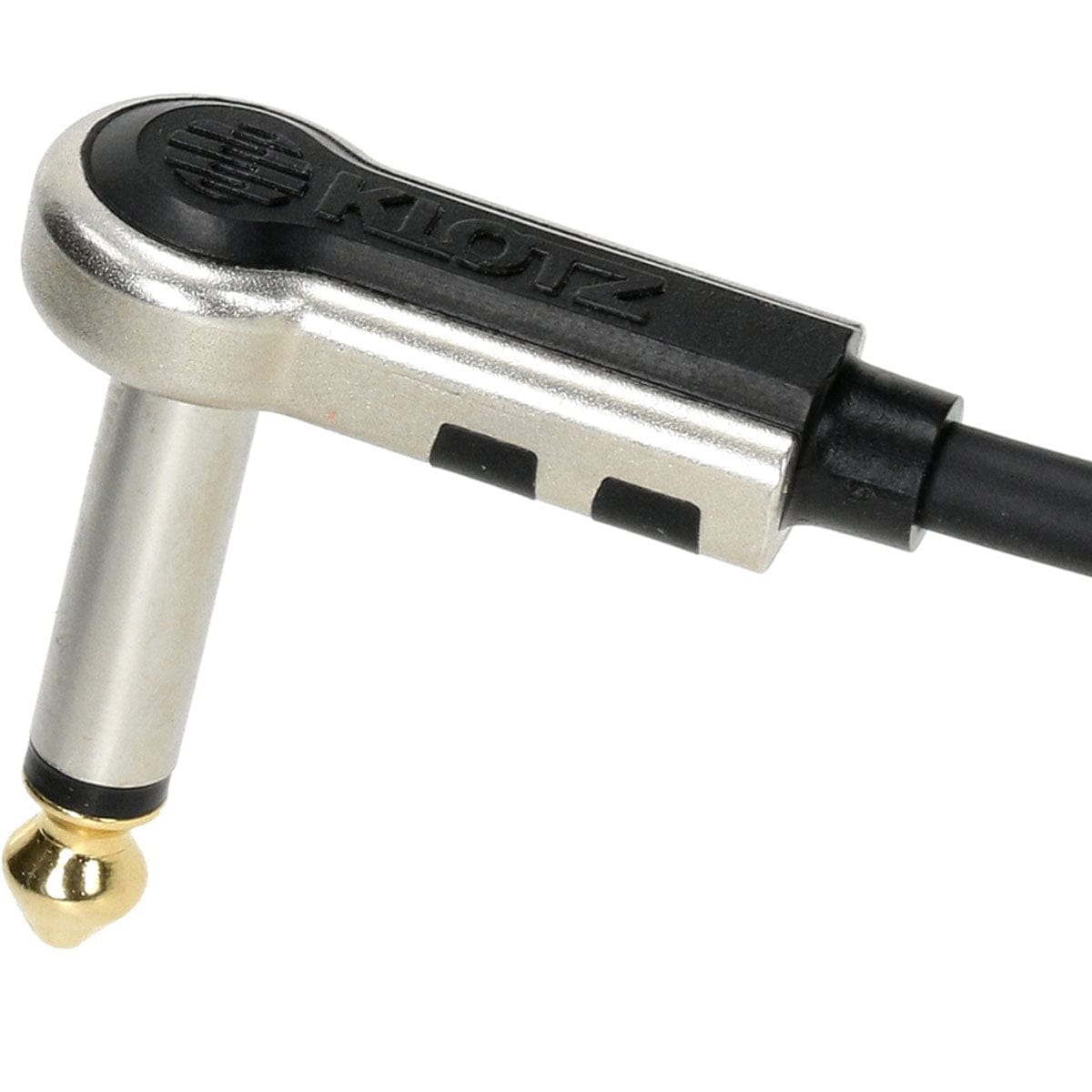

• Ultra-flat boutique-style plug design for space-saving pedalboard connections
• Unbreakable zinc diecast connector housing
• Robust strain relief tested to withstand > 310 Newton
• Gold-plated tip for supreme sound clarity

Construction Details

• Conductor: Stranded bare copper (OFC), 28 x 0.10 mm
• Cross-section: 0.22 mm² (AWG 24)
• Shields:
  • Conductive plastic layer
  • Bare copper spiral shield (> 93% coverage)
• Insulation: Foam
• Outer Jacket: PVC, matte finish
• Overall Diameter: 4.5 mm
• Housing: Unbreakable zinc diecast
• Plug: Jack 2p. 90°, 6.3 mm, nickel-plated brass with gold tip
• Strain Relief: Molded plastic, tested > 310 Newton

Quality Guarantee

Every cable is hand-soldered and tested in Germany. Each unit undergoes a 6-time quality assurance test in compliance with ISO 9001:2015 standards.
