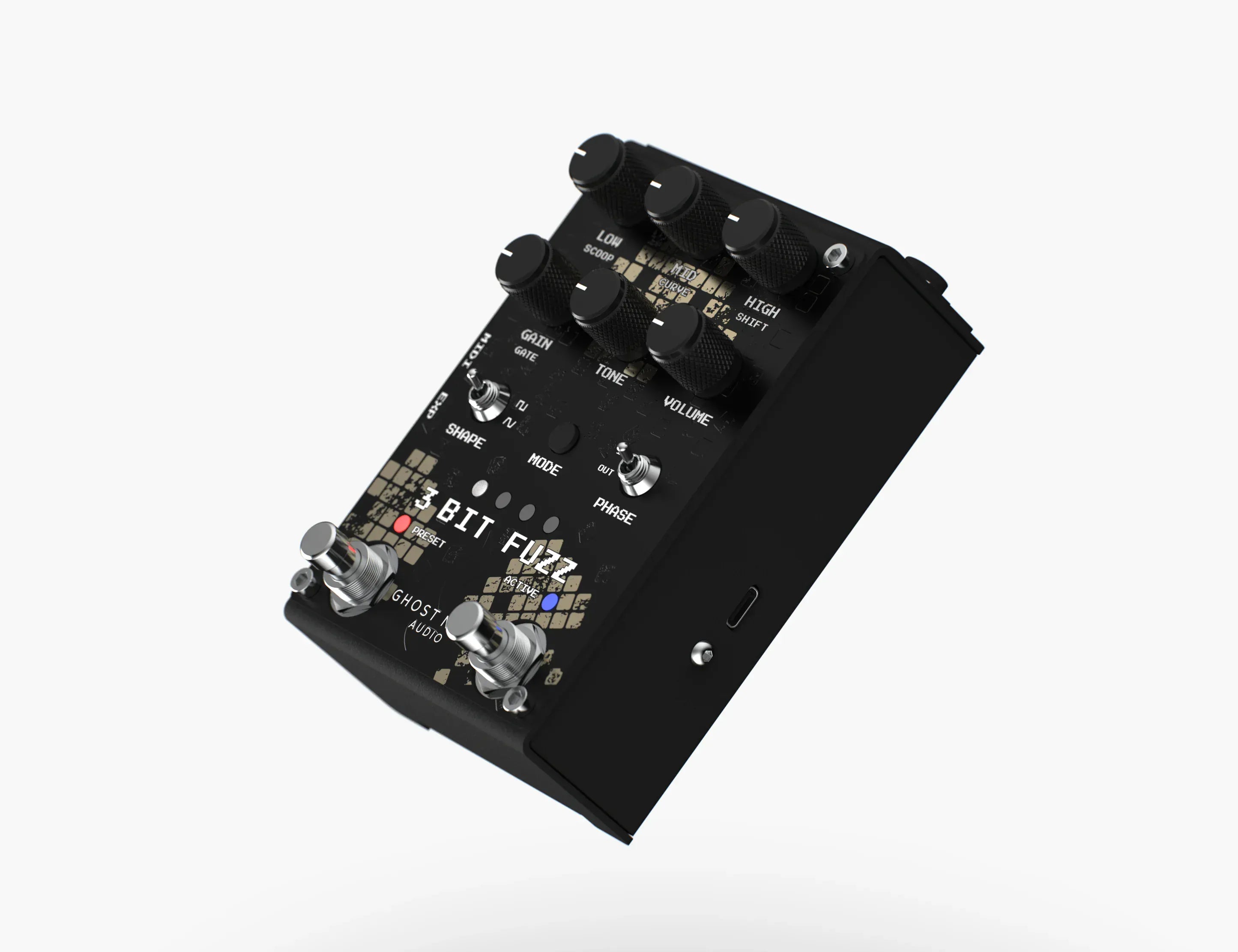

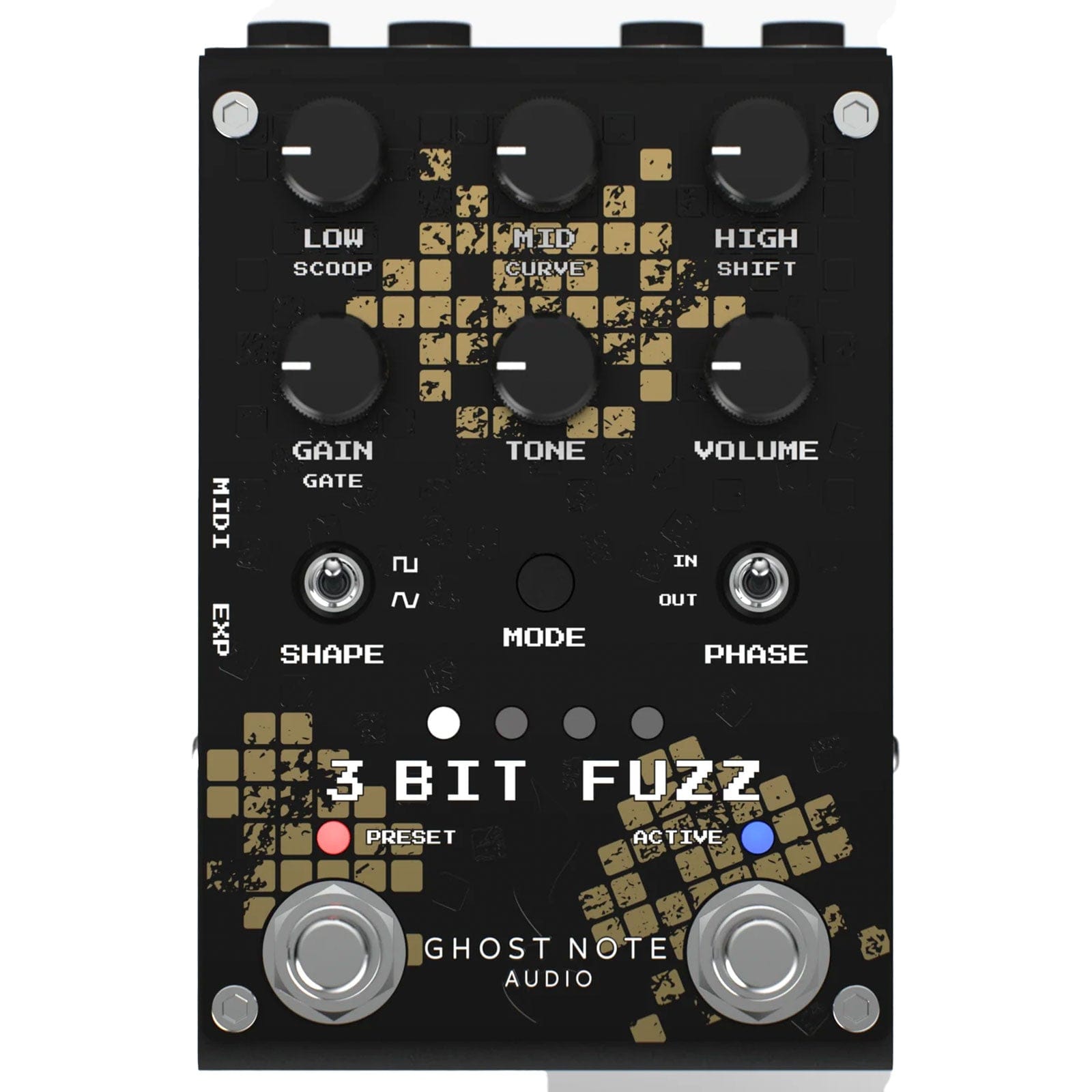

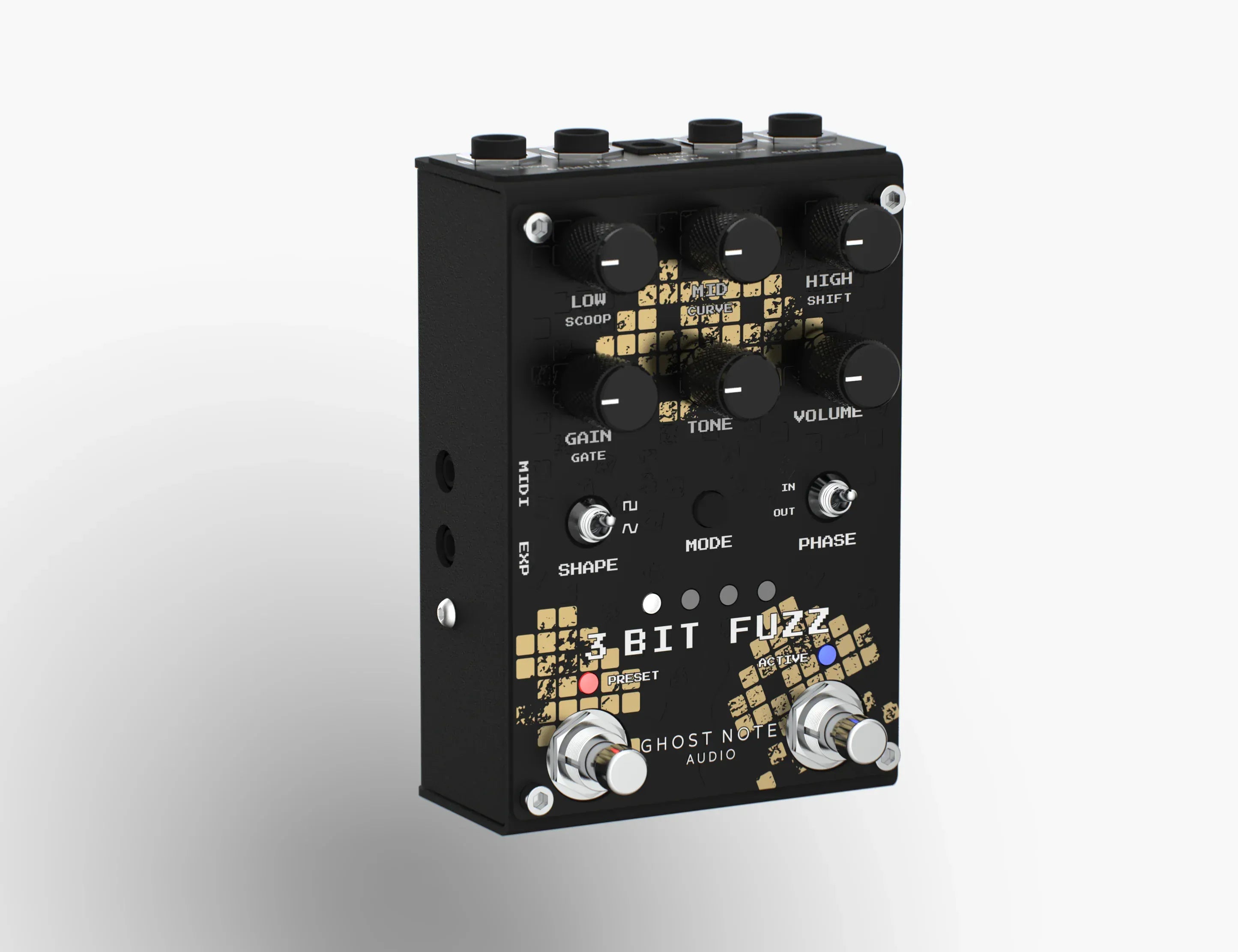

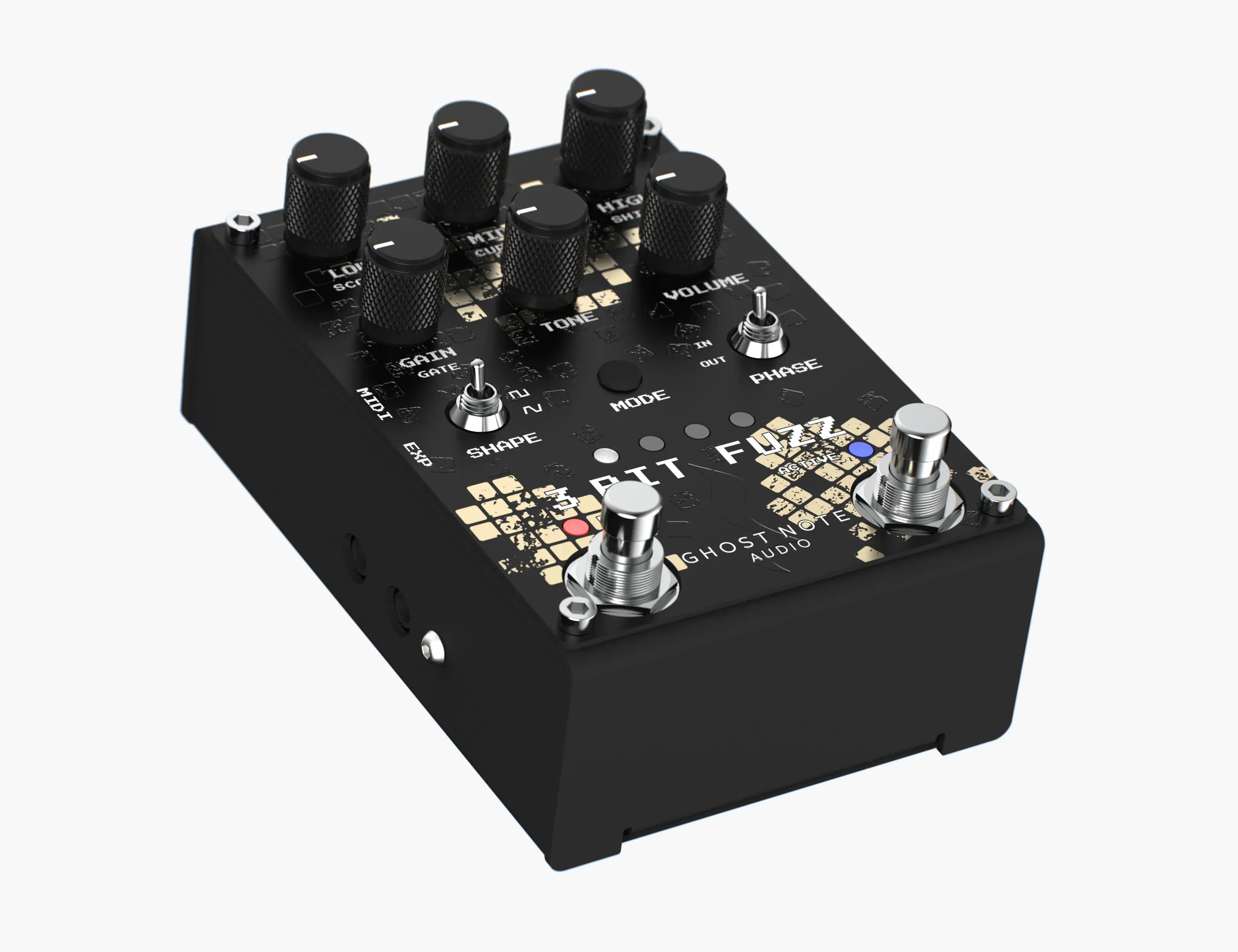

3 Bit Fuzz is an experimental, multi-band bitcrusher. It's our attempt to do something a little bit different, and take some risk and try making an actually original pedal.

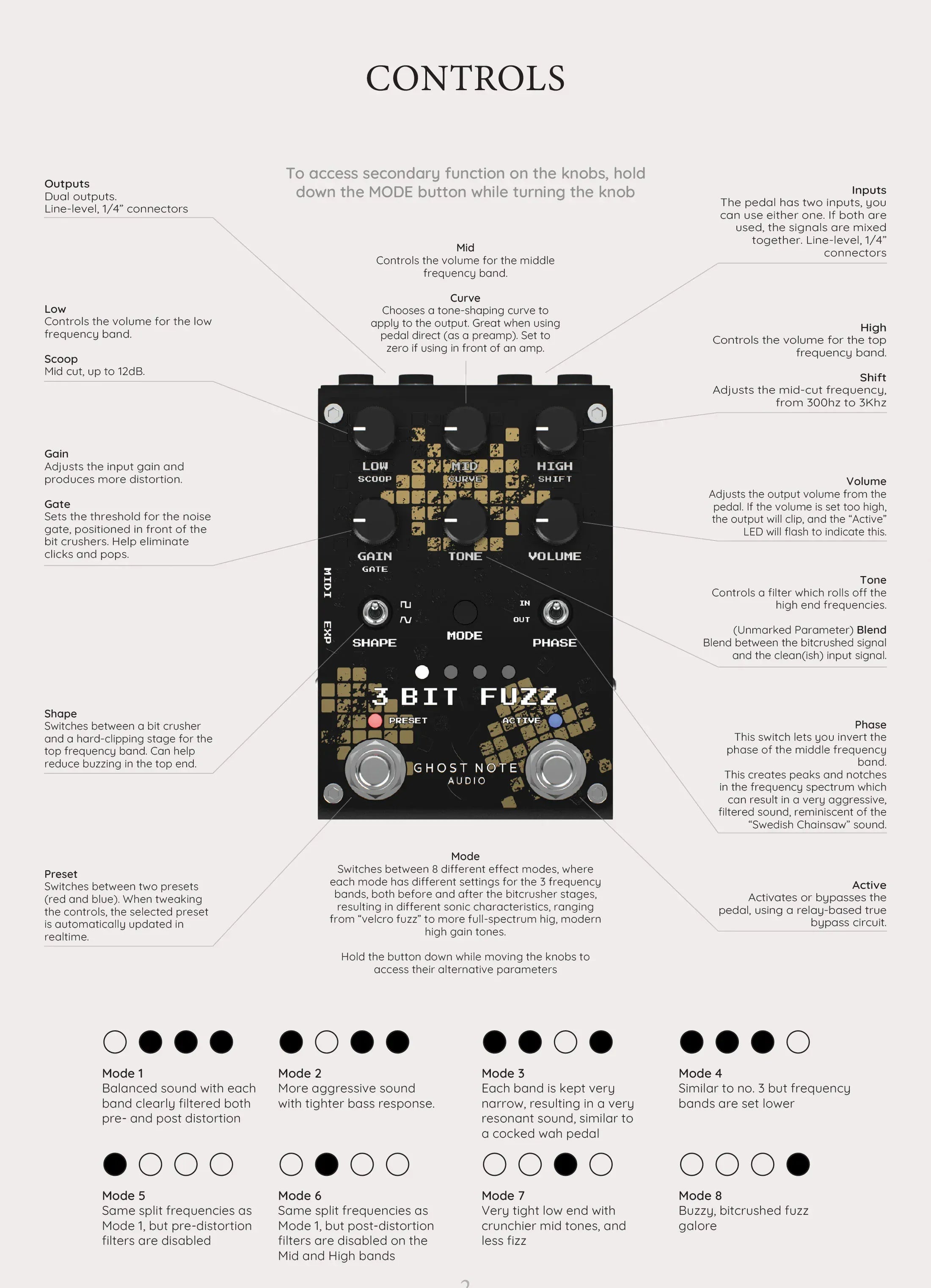

The signal chain splits into three paths, with each path having pre-distortion low- and high pass filters, a bitcrusher, and post-distortion filters. The pedal has 8 different modes, which tweak the cutoff frequencies for the pre- and post distortion filters, offering a wide variety of sounds. The signal chain is then finished off with a few tone-shaping controls - a treble-rolloff tone control, a mid-scoop filter, and a feature we call "Curves", which introduces an output EQ curve to the sound, which makes the pedal suitable for running either in front of an amp or directly into a power amplifier.

Web Editor

Open Web Editor

Daedalus Effects Series

Daedalus is a line of digital effects pedals, with the unique feature of being able to swap out the faceplates on the pedals, to re-program the device to any other effect in the series. It also features full MIDI control, Expression pedal control and it can be powered via USB (or a standard 9V DC adapter)

Features

• 24 bit audio codec
• Supports instrument or line-level inputs
• MIDI 3.5mm TRS (Type-A) input
• Expression pedal / external footswitch input
• MIDI over USB
• 9V DC or USB powered
• Dual, soft-touch footswitches
• 1.5mm thick, powder-coated steel enclosure for an extremely rugged build
• Reversable faceplate with two different designs on each pedal
• Ability to completely reprogram the pedal to a different effect from the Daedalus line-up
• All effect firmware is available for free

Firmware Downloads

Go to the Firmware Page
