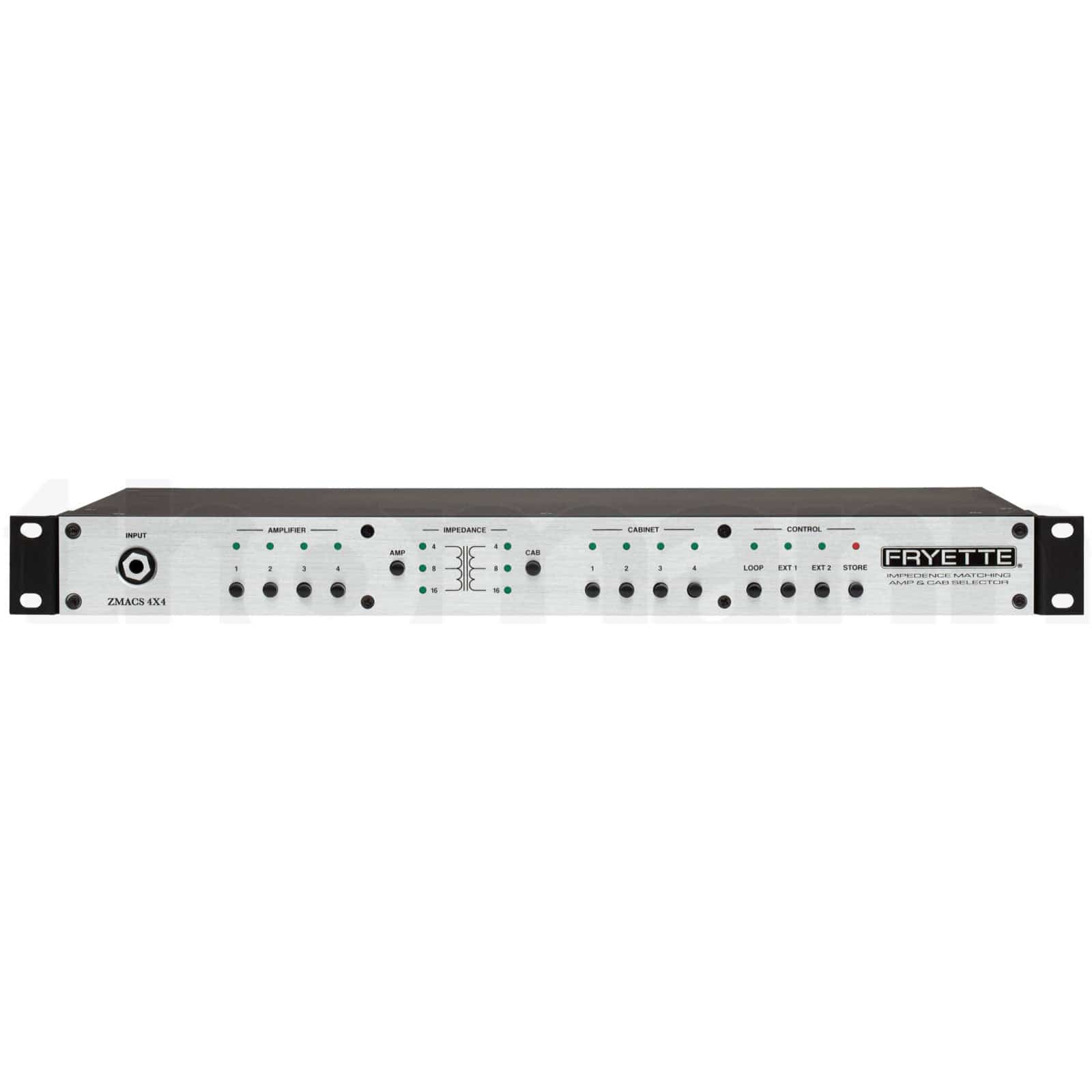

Fryette ZMACS 4X4

IMPEDANCE MATCHING AMP & CAB SELECTOR

Fryette Amplification introduces ZMACS, the world’s first and only selectable and programmable Impedance Matching Amp & Cab Selector!

• Allows switching between any of 4 amplifiers, 4 cabs and 2 attenuators.
• Allows selection of 2 cabs simultaneously.
• Safely handles 100 watts of continuous amplifier power.
• Built-in high-fidelity audio grade impedance matching transformer.
• Selectable Amp impedance - 2/4, 8 and 16 Ohms (programmable).
• Selectable Cabinet impedance - 2/4, 8 and 16 Ohms (programmable).
• Safety internal load for each unused amplifier output.
• Switched and unswitched attenuator loops.

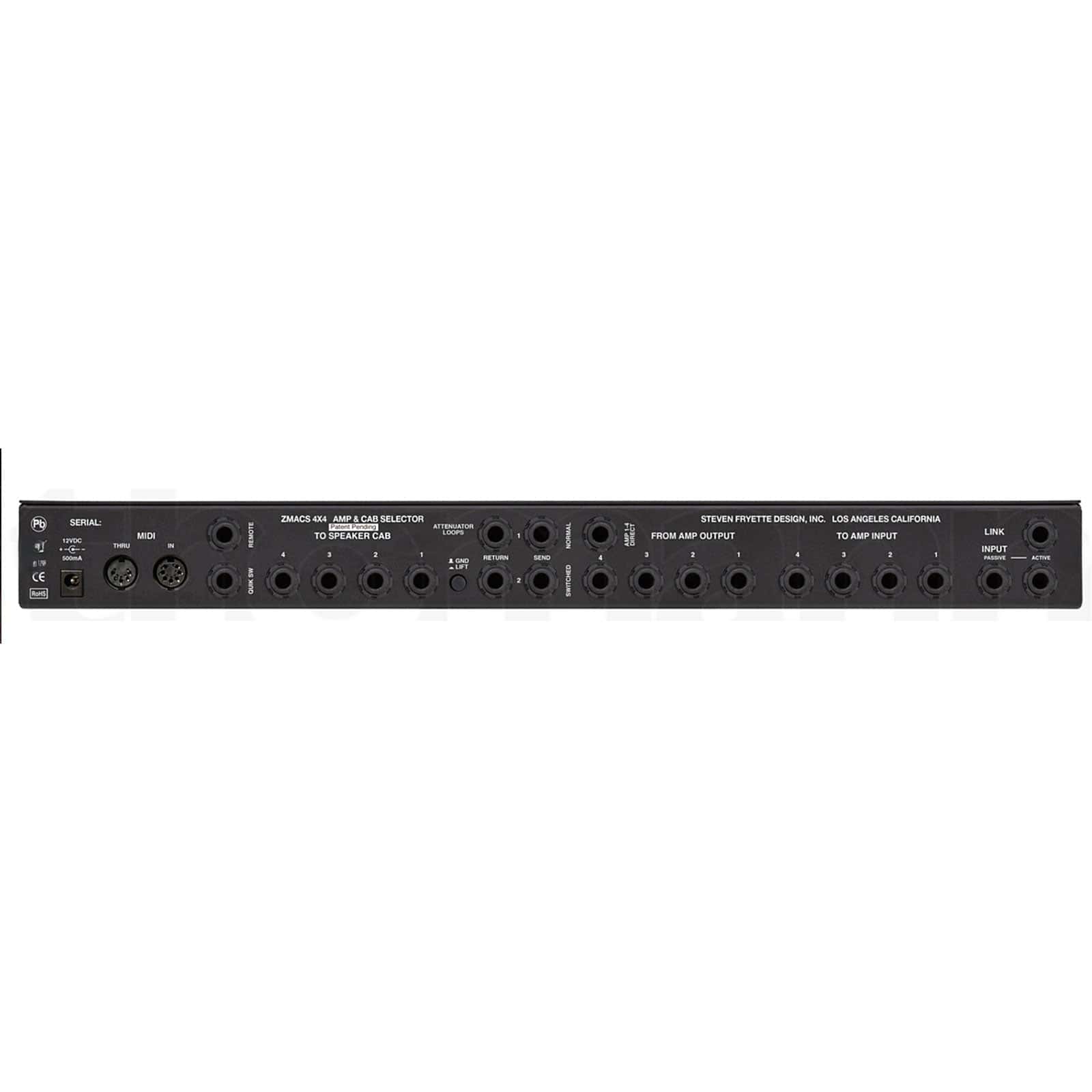

• Front and rear panel instrument inputs.
• Passive and active (buffered) instrument inputs.
• Link Out for ganging multiple switching units.
• Fully MIDI programmable and simple to operate.
• Last used preset memory.
• Long cable load transfer.
• Silent switching in all modes with no dropouts, pops or clicks.
• Transformer isolated amplifier input sends eliminate annoying ground loop issues.
• Remote switching control port controls Power Station PS-100 channel and loop select functions.
• QuickSwitch mode allows simple preset selection when MIDI is not required.
• 100% analog signal path

Dimensions: 19” (48 cm) W x 1.75” (4.4 cm) H x 9” (23 cm) D

Product Weight: 12 Lbs. (5.5 kg)

Click here for ZMACS Owner's Manual
