Dreadbox KINEMATIC Compressor / Filter

Kinematic is a Greek based word (Κίνημα), which describes motion - of points, bodies or systems of bodies, without the consideration of the forces that cause them to move.

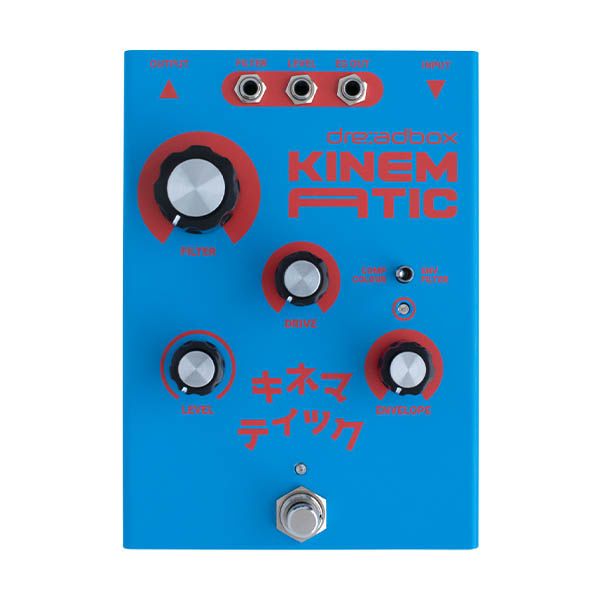

The Dreadbox KINEMATIC is a VCA based Compressor and an Envelope Filter effect pedal suitable for fretted instruments and synthesizers, with eurorack compatibility. This is not all however - KINEMATIC features an integrated drive circuit that can add soft overdrive up to big, fat distortion to your sound. The Envelope Filter provides a slow envelope curve that can be used as Auto Wah or Low Pass Filter, while the Compressor offers a substantial level boost in addition to providing soft to limiting brickwall-style compression. Its three patch points grant CV control over the Filter and Level knobs and provide you with an EG output, making the KINEMATIC a perfect device for synth fans.

Main Features:

• Compressor / Filter Effects Pedal
• Fully Analog VCA based Compressor - offers Level Boost up to +18dB
• Envelope Filter with slow Envelope curve useable as Auto Wah or Low Pass Filter
• 2 modes of operation o COMP COLOUR - Compressor with Frequency Booster o ENV FILTER - 12 dB Low Pass Filter with Auto Wah
• Integrated post Diode Overdrive Circuit - adds drive in the end of the circuit
• Extreme compression ratio for brickwall style limiting compression
• 3 patch points to interact with modular and CV gear o FILTER - accepts CV to control the Filter at +/- 5V o LEVEL - accepts CV to control the Level at +/- 5V o EG OUT - sends out the Envelope Generator at 0-7V
• Silent CMOS Buffered Bypass Switching

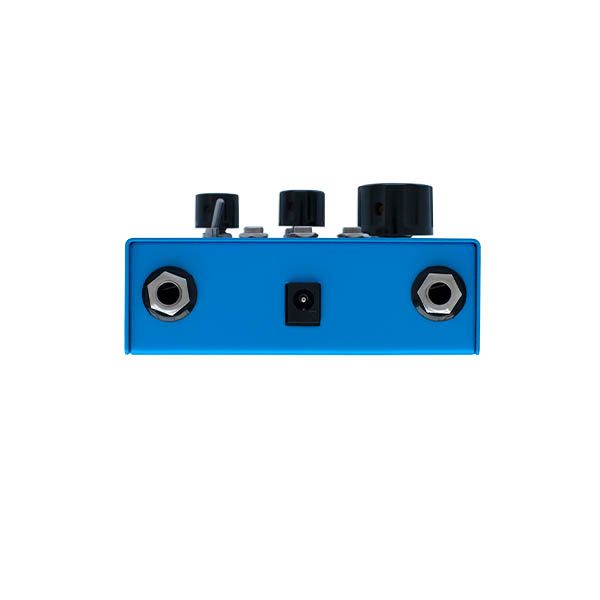

• Powered by opt. 9V DC power adapter (2.1 mm, center -, 85 mA current draw)
