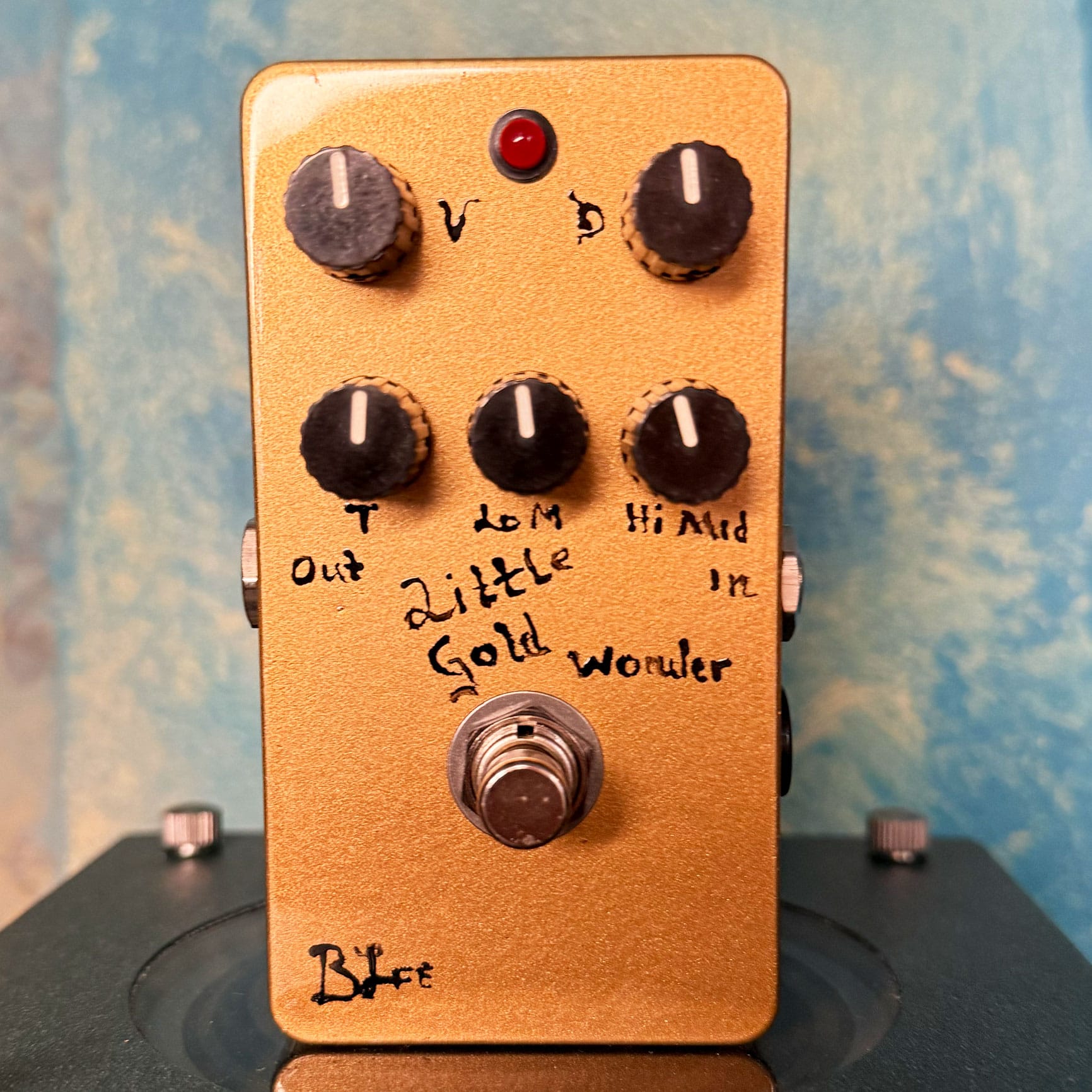

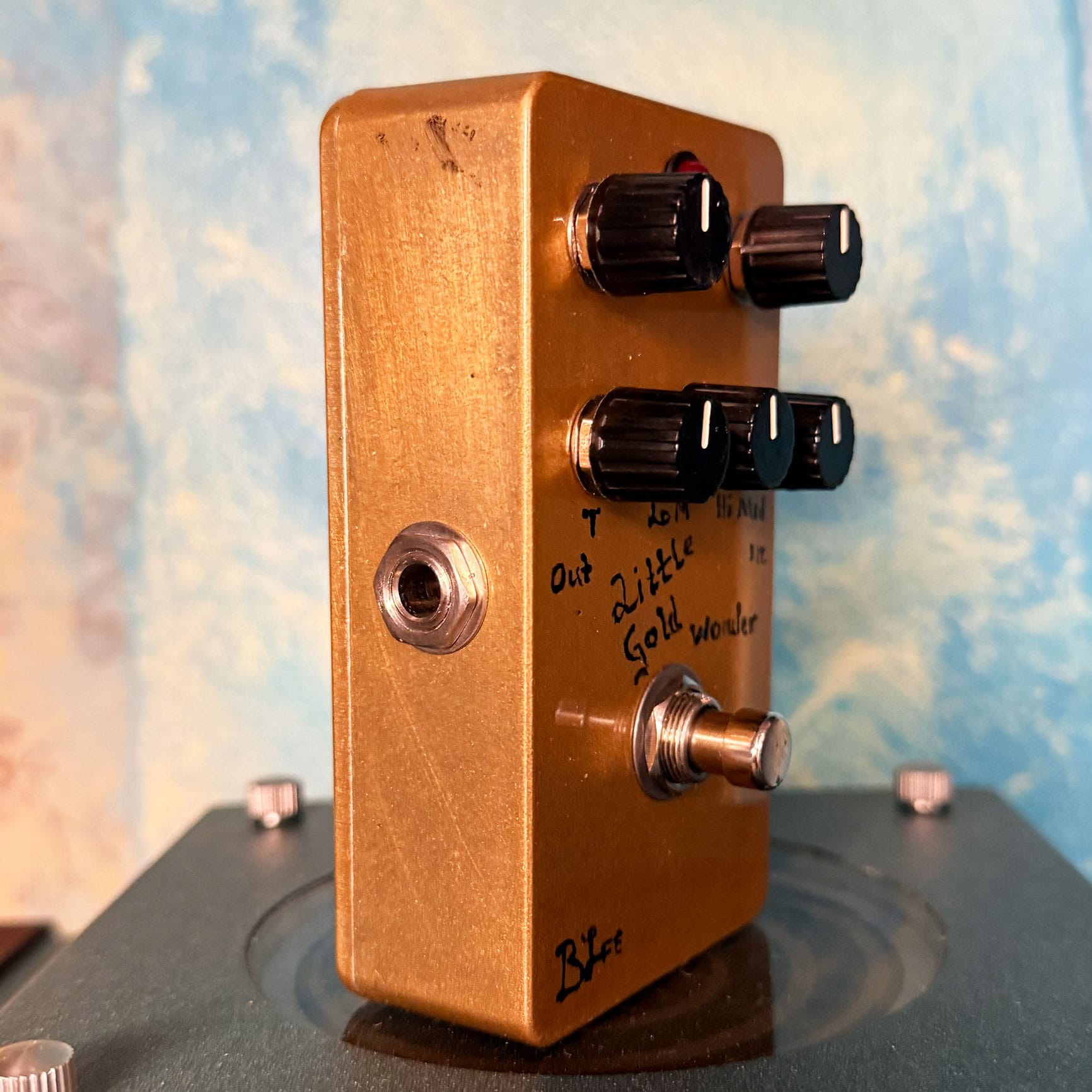

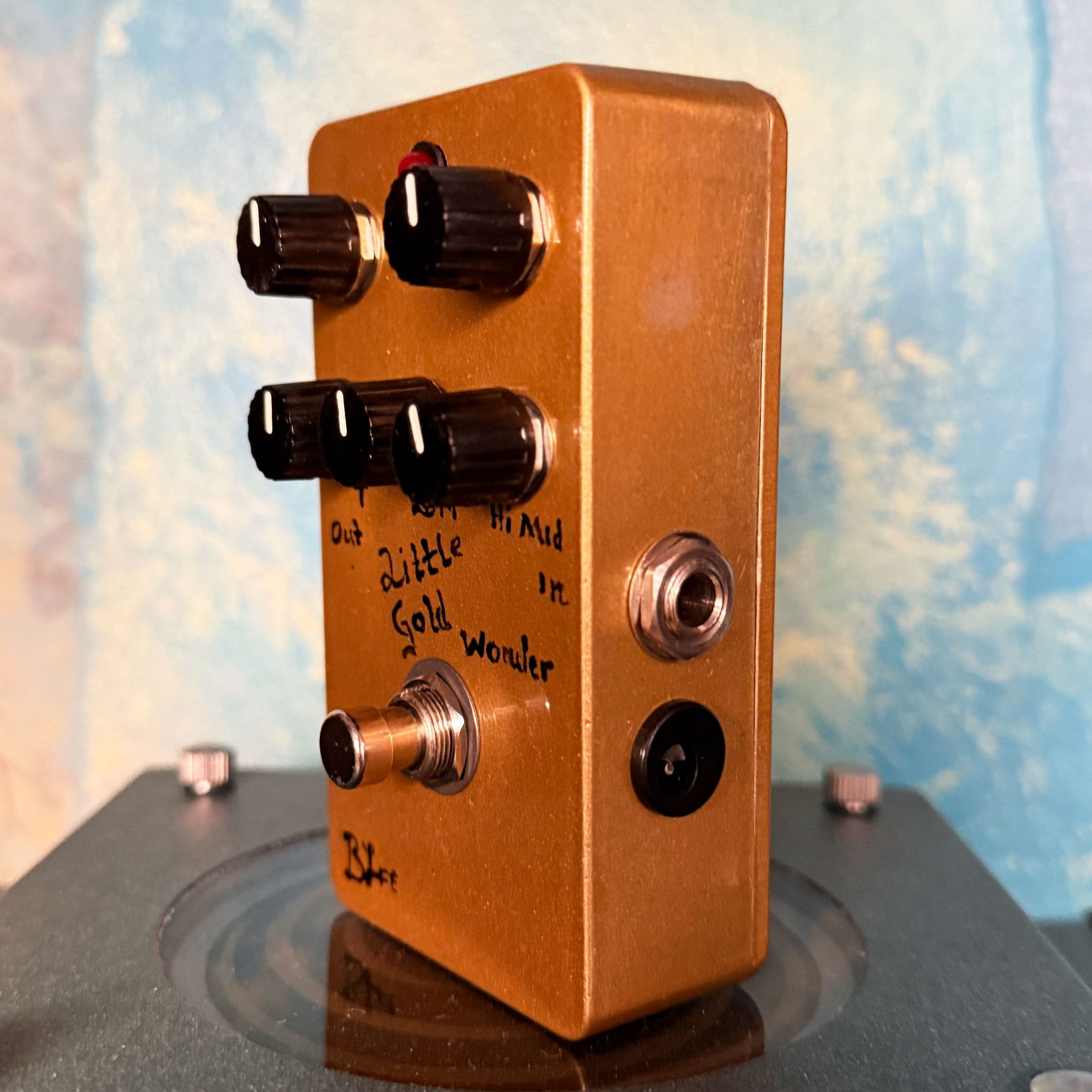

BJF Little Green Wonder 5K gold

The BJFE Little Gold Wonder is a versatile overdrive pedal with high headroom and an emphasis on the low-mid frequencies.

Designed to recreate the powerful overdrive of a cranked stack amplifier, it works equally well with clean and driven amps. It covers everything from smooth, TS-style overdrive to crunchy, gritty distortion with plenty of edge and character.

Controls

• L (Level): Adjusts the overall output volume.
• D (Drive): Adjusts the amount of distortion, from low-gain overdrive to a heavily distorted and edgy sound.
• Lo Mid: Adjusts the low-mid frequency response.
• Hi Mid: Adjusts the high-mid frequency response.
• T (Treble): Adjusts the high-frequency response.

Power

The Little Gold Wonder can be powered by a 9V battery or a standard 2.1 mm barrel-type, center-negative DC adapter. The pedal accepts a supply voltage from 7.5V to 18V.

Specifications

• Type: Overdrive
• Controls: Level, Drive, Lo Mid, Hi Mid, Treble
• Power supply: 7.5–18V DC, center negative
• Battery operation: 9V battery
• Input impedance at 1kHz: Approx. 500kΩ
• Minimum recommended load: Approx. 10kΩ
• Maximum output: 3V peak
• Maximum current consumption: Approx. 5.5mA at 10V
• Upper frequency response (-3dB): Approx. 10kHz
• Maximum gain at 1kHz: Approx. 58dB
• Maximum input signal: 3V peak
