ANALOG DELAY REISSUE

1978 rarity reissued with modern updates and a tiny pico footprint!

The 50s era gave birth to an iconic sound in which a single, short delay was utilized to add depth and rhythmic effect on countless recordings. The newly reissued all-analog design of the EHX Slap-Back Echo delivers this beloved classic sound and more in a Pico-sized pedalboard-friendly package. With three delay time settings and up to +20dB of boost, the Slap-Back Echo can achieve subtle doubling effects to intense bathroom reflections all with the distinct flavor of bucket-brigade (BBD) circuitry.

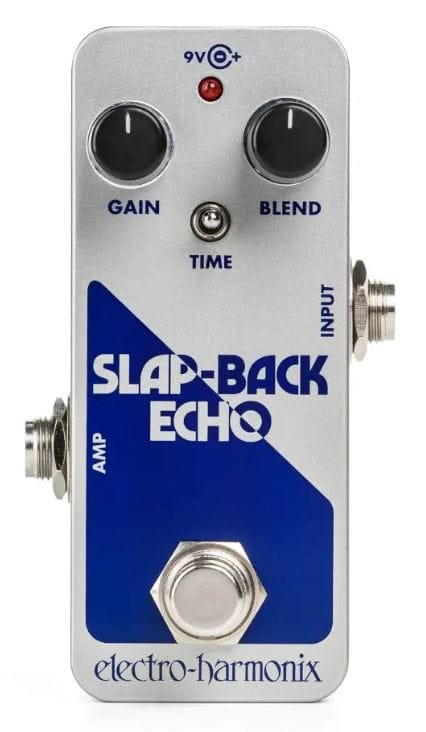

Housed in EHX’s Pico-sized chassis, the Slap-Back Echo features Gain and Blend knobs as well as a Time switch. The Gain knob controls the input signal before the echo circuit and also adjusts the overall volume at the output with a boost of up to +20dB. The Blend knob mixes the dry signal and the echo signal from 100% dry to 100% echo. The Time switch selects between three different delay times: 45ms, 65ms, and 100ms.

• Independent gain and blend knobs
• Time switch with 45ms, 65ms, and 100ms delay times
• Up to 20dB of boost
• True-Bypass
• Small, pico-sized chassis
• 9V power supply included

SPECIFICATIONS

• Circuit - Analog
• Bypass - True Bypass
• Audio - Mono
• Power Supply - 9.6VDC-200m A power adapter included
• Dimensions (in) - 3.65 x 2.0 x 2.0
• Current Draw - 15mA
• Year Released - 2023
