CIOKS 8 (expander kit)

2150 :-
Lagerstatus: I lager
FRI FRAKT FRI FRAKT PÅ DENNA PRODUKT
SNABB SERVICE vi skickar samma dag om ordern är lagd innan kl 13:00 CET
14 DAGAR FULL RETURRÄTT byt eller pengarna tillbaka

The largest power supply extender in the Future Power Generation

CIOKS 8 is our largest switch-mode power supply extender and it features 8 isolated outlets which each deliver 9V DC with 660mA. All eight outlets offer four switchable voltages (9V, 12V, 15V and 18V).
CIOKS 8 was primarily designed to be used as a large extender to DC7 in case you need more outlets but it can also be used as a stand-alone power supply. To use CIOKS 8 as an extension to DC7 simply use the included DC Link cable to connect the CIOKS 8 to the courtesy 24V outlet on your DC7 and you are good to go. In case you want to use CIOKS 8 as a stand-alone power supply you can power it with any 24V DC adapter with the appropriate DC plug. To get the full 6W output power on all 8 isolated outlets the adapter used to power CIOKS 8 should have an output power of 60W.

Features

• CIOKS 8 has the same groundbreaking 1-inch profile (25,4mm) as CIOKS DC7
• Ultra-low noise achieved by multistage filtering
• 8 isolated DC-outlets, 6W each
• 660mA at 9V DC on each outlet
• 4 selectable voltages on each outlet
• Global overload status LED
• Total maximum output power 48W*
• Mounting hardware for Pedaltrain and Templeaudio boards included
• Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards
• 12 Flex cables included
• 24V DC Link cable included
• Designed in Denmark, assembled in Poland
• 5-year worldwide warranty

* provided sufficient power is applied on the input of the CIOKS 8.

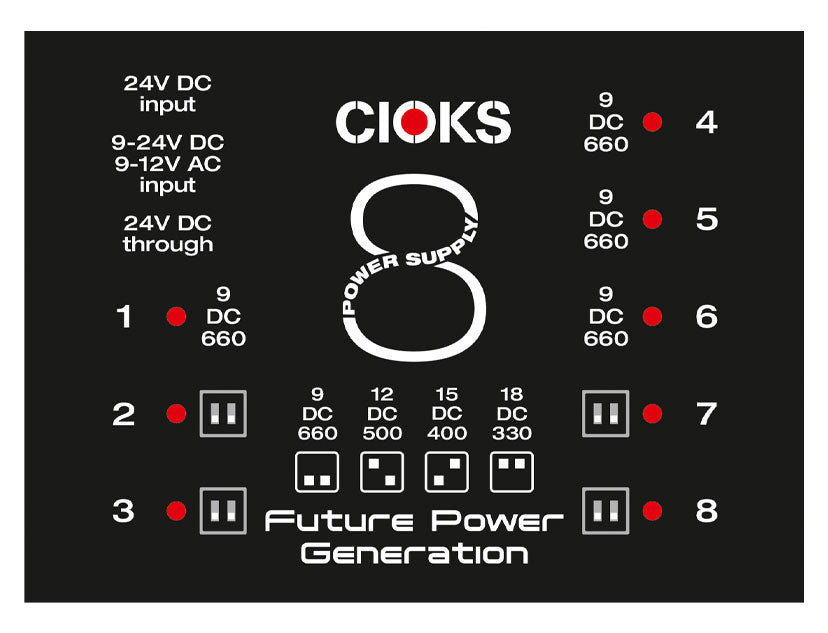

Outlet 1-8:

• 9V DC / 660mA or
• 12V DC / 500mA or
• 15V DC / 400mA or
• 18V DC / 330mA each
