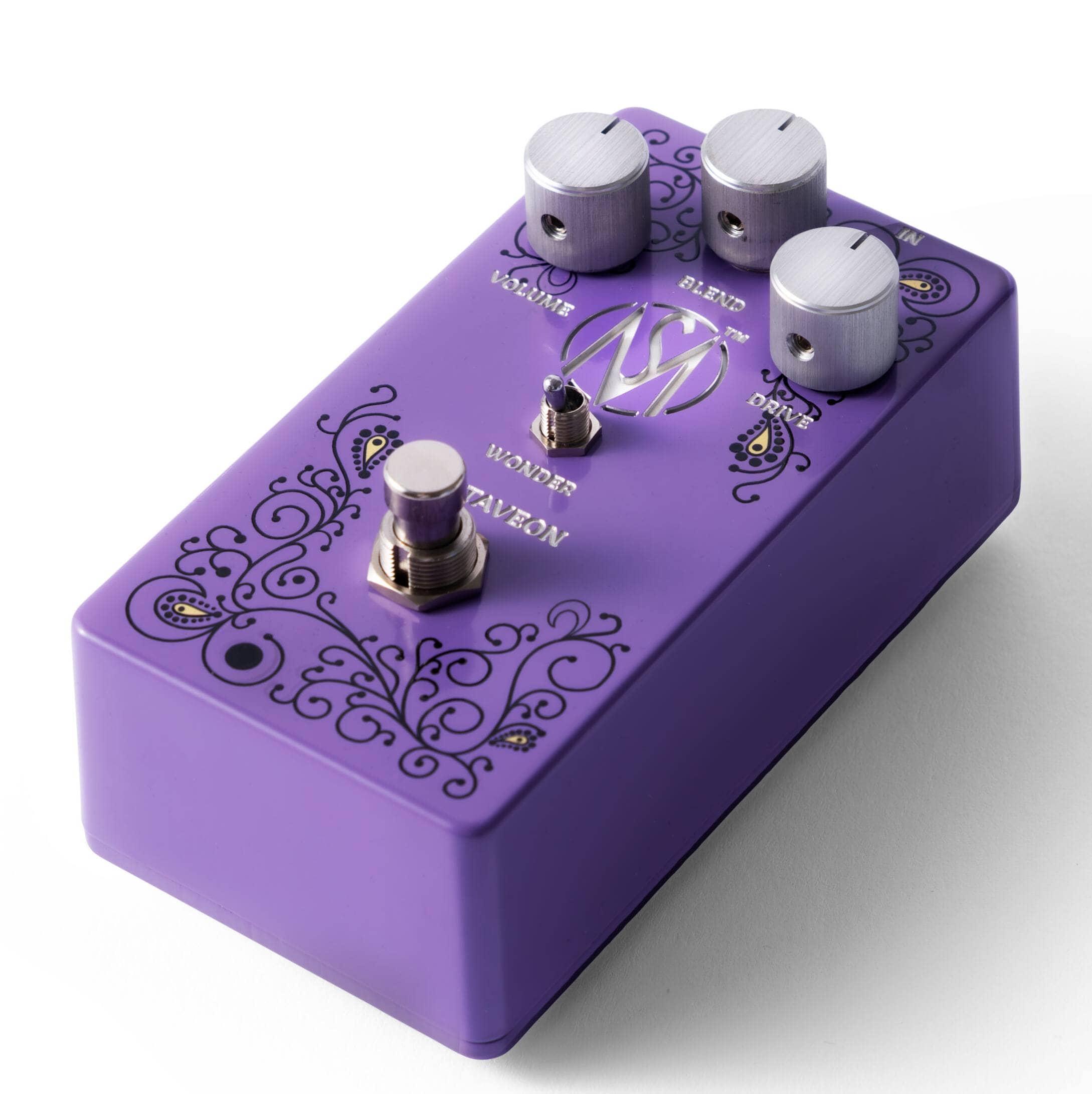

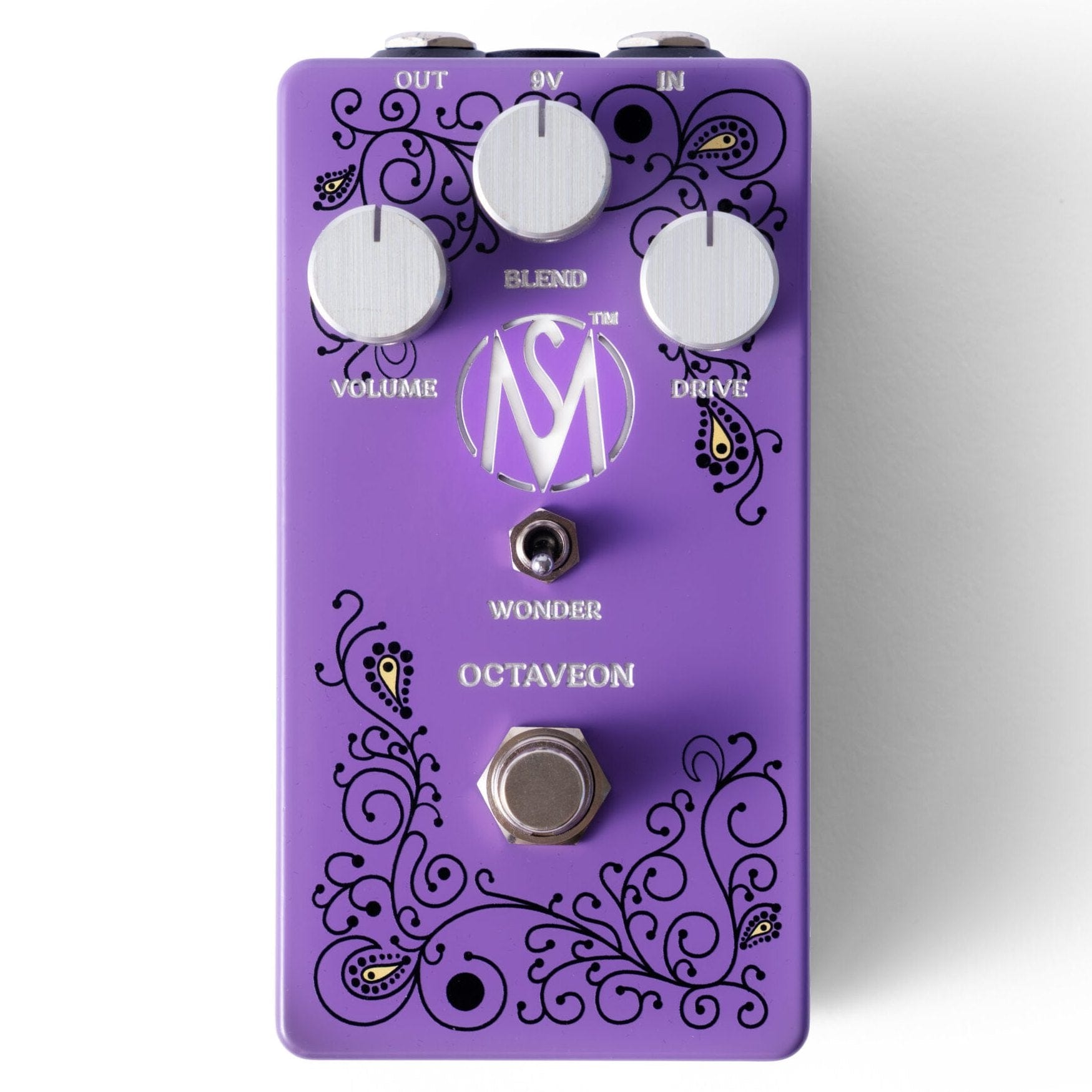

Scott McKeon SM Octaveon

At its core, the circuit in the Octaveon is a vintage style octave/fuzz which uses analogue circuitry to rectify and mix the guitar signal with a phase-inverted version of itself producing higher octave harmonics. In addition, certain lower frequencies are cancelled out, accentuating the effect.

By limiting the higher frequencies in the guitar signal, the usable octave characteristics can be improved, and so the “Wonder” switch was added which cuts frequencies above approximately 600Hz.

Lastly, to push the flexibility of the circuit even further, a “Clean Blend” control was added, which bypasses the phase inverter to blend some clean signal back in at the output.

• DESIGNED AND BUILT IN THE UK – 1/100
• CUSTOM DESIGNED VINTAGE STYLE CIRCUIT, BASED ON A COMBINATION OF SCOTT’S FAVOURITE OCTAVIA STYLE PEDALS.
• HIGH OCTAVE PERCUSSIVE, FUNKY, NASTY TONES.
• ‘BLEND’ POT, BLEND IN YOUR CLEAN SOUND OR IF USING A FUZZ PEDAL BEFORE, YOU CAN BLEND THAT SOUND INTO THE MIX.
• USING THE ‘BLEND’ YOU CAN PLAY CHORDS WHILE KEEPING THE ‘OCTAVEON’ SOUND IN THERE.
• GIVES A UNIQUE VINTAGE BRITISH SOUNDING BOOST WHEN BLENDING IN LESS OF THE OCTAVEON SOUND.
• CUSTOM LED GLOWING BULB/ LOGO
• ‘WONDER’ EQ SWITCH IS A LOW PASS FILTER THAT GIVES A MORE SYNTH LIKE SOUND.
• 9V POWER INPUT OR 9V BATTERY (INCLUDED)
• GOES FROM VERY LOW GAIN, PERCUSSIVE CLEAR OCTAVE TO FULL ALMOST FUZZ LIKE OCTAVE FUZZ.

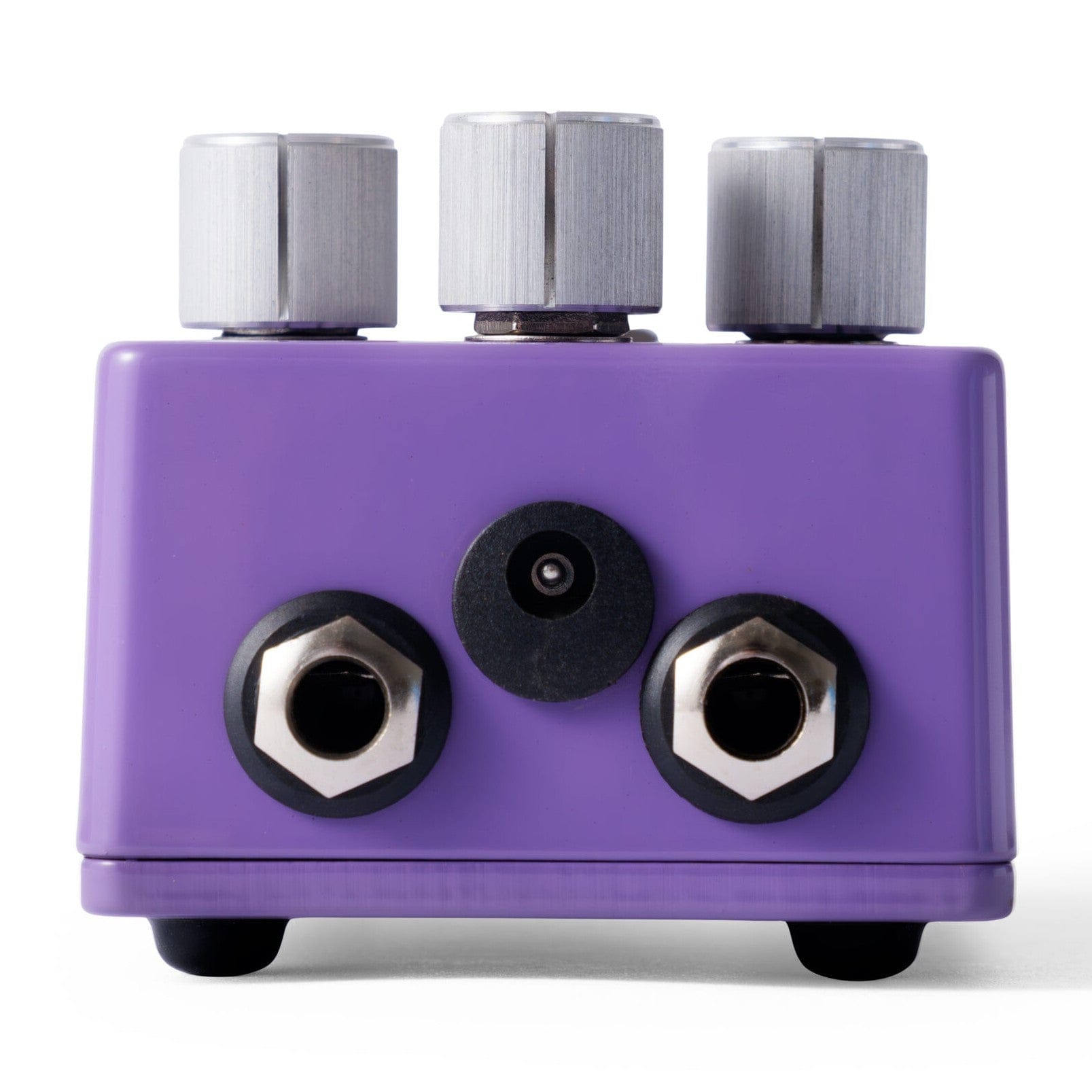

• TOP LOADING JACKS, IDEAL FOR PEDALBOARD SPACE
• STURDY DESIGN AND BUILT TO LAST
• HIGH OUTPUT
• VINTAGE TONE WITH MODERN BUILD QUALITY.
• TRUE BYPASS

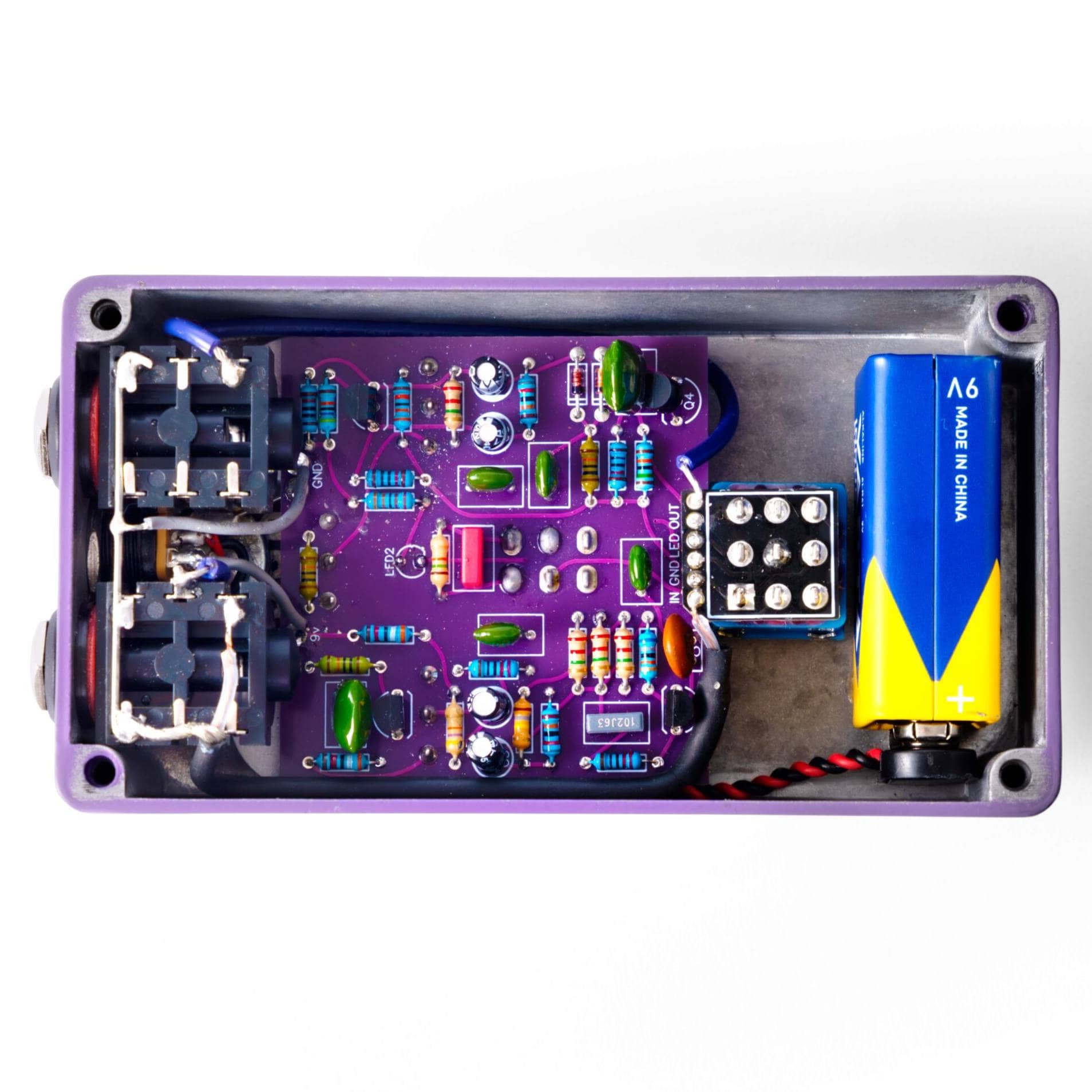

• COMES WITH NO SMD COMPONENTS
