Passive AB/Y Switcher

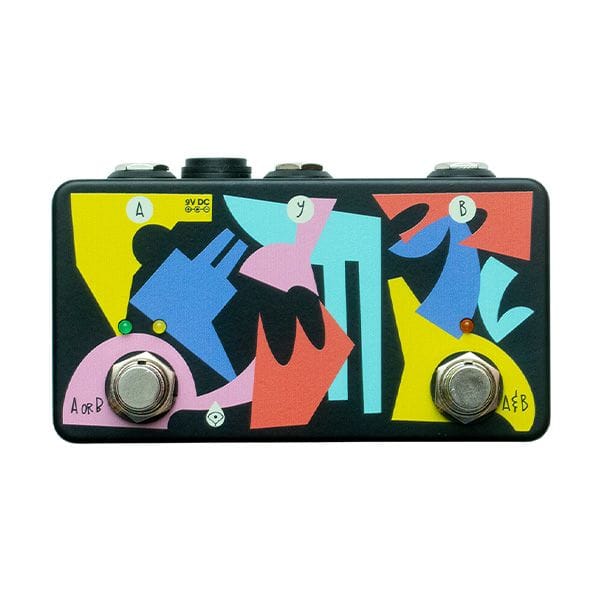

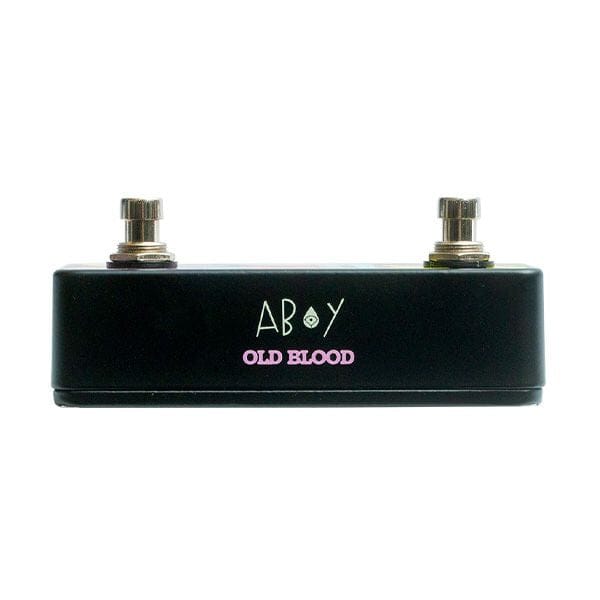

The Old Blood Noise Endeavors AB/Y Switcher HK is a classic passive AB/Y switcher, giving you three mono jacks (A, B, and Y), and the choice of whether Y is connected to A, B, or both. Turn one input into two outputs, or vice versa. No impedance matching, phase correction, etc., just a simple tool for simple applications.
Two footswitches make it easy - on the right, the A&B footswitch sets whether Y is connected to both A and B or only one of them; on the left, the A or B footswitch sets whether A or B is connected to Y when A&B is off. LEDs show you how everything is set. AB/Y can pass signal without power, but the LED indication requires a 9V DC center negative 2.1mm jack power supply capable of 10mA (not included).
Main Features:
• Passive operation
• Foot-switchable A&B or A/B
• Status LEDs
• Tough metal housing
• Art by Holey Kids
• Made in the USA
• Powered by 9V DC PSU (only required for Status LEDs)(centre -, 2.1 mm, ~ 10 mA current draw, not included)
