Meris Enzo X

Meris Enzo X
Modular Instrument Synthesizer

A supernova expansion from the original Enzo pedal, Enzo X is the highest quality and most flexible polyphonic synthesizer ever created in a pedal format (with no pickup installation required).

Combining 5 synth modes, Enzo X incorporates each of these into a modular system UI/architecture from both the award-winning LVX and MercuryX pedals. In addition to being a 6-voice poly synth, Enzo X includes 3 reverbs which are adapted from Mercury X (Prism algorithm), 5 Drives (including Bitcrush), a full stereo 2.5 second Delay and 5 modulation types. To make this complex system immediately intuitive to navigate, Meris again leveraged the simple and easy to use UI first developed for LVX.

Unveil the Universe Within.

Main Features:

• Modular Instrument Synthesizer architecture pedal
• 5 Synthesizer modes including Mono, Polyphonic and Dry Processing modes
• Polyphonic Pitch Detection with no special pickup necessary
• Synthesizer playable via instrument input OR MIDI keyboard
• 6 Fully Polyphonic Voices available simultaneously
• ADSR Envelope Generators for both Amplitude and Filter
• Configurable Oscillator and Filter types
• SAW, TRIANGLE, and SQUARE Waveforms selectable per Oscillator w/ Cross Modulation
• Intuitive, Award Winning Color Screen based User Interface adapted from LVX and MercuryX
• Expressive Hold Modifier Switch for on the fly control
• 99 Preset Locations in 33 Banks
• Favorite Preset Bank for instant access to your 3 favorite presets
• Instant Access Tuner with configurable Reference and Output mode
• Deep Modifier Section lets you route control signals to processing parameters
• All New Processing Elements including Meris custom Flanger and Phaser
• Digitally controlled Analog mix bus

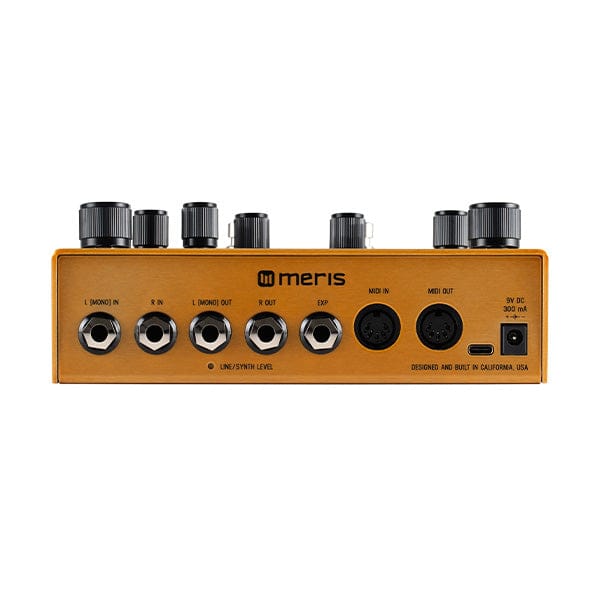

• Stereo input and output with separate jacks for each
• Switchable input/output headroom level for Instrument or Synthesizer / Line levels
• MIDI In and Out over standard MIDI Din Jacks
• Assignable Expression Pedal control for multiple parameters simultaneously
• Dedicated Expression Pedal Jack
• MIDI implementation for Continuous Control Parameters
• MIDI Preset Send and Receive
• MIDI beat clock synchronization
• Advanced ARM Processor
• Premium analog signal path and 24-bit AD/DA w/32-bit floating-point DSP
• Premium Analog Devices JFET input section
• Dimmable screen and logo light
• Designed and built in California, U.S.A.
• Powered by standard 9 V power (9 V DC, centre -, 2.1mm, ~ 280 mA current draw - not supplied)
