Crazy Tube Circuits ORAMA Dual Channel Amp in a box / Fuzz

Name: Crazy Tube Circuits ORAMA Dual Channel Amp in a box / Fuzz
Brand: Crazy Tube Circuits
SKU: 15614
Price: 3295.00 SEK
Availability: OutOfStock

3 295 SEK

Slutsåld

Orama (meaning vision in Greek) is a dual-drive creation that unites two raging voices in one versatile circuit.

On the left, the AMP section channels the character of a legendary British amplifier known for its unmistakable roar and harmonic depth. It captures the full range of that circuit’s gain structure, from clean and edge-of-breakup tones to fully saturated drive and features JFET technology combined with an internal voltage booster that elevates the 9V DC supply to high-voltage operation, providing authentic
amp-like response, enhanced dynamics, and massive headroom.
On the right, the FUZZ section takes cues from a revered ’90s boutique design, fine-tuned to our specifications for improved flexibility and clarity while preserving the massive, singing sustain of the original.

Used separately or stacked, these two sides deliver everything from rich, classic crunch to thick, saturated walls of sagging fuzz; a complete palette that captures our vision of unapologetic rock tone, from timeless classics to modern stoner and doom sounds.

Product Features

All analog dual pedal: fuzz / amp-in-a-box.
Recreates classic rock and stoner / doom tones.
Right (FUZZ) side: a fine-tuned recreation of a fuzz pedal born in the early boutique pedal scene of the 90s (Frantone Peachfuzz)
Independent operation of the FUZZ and AMP sections.
Left (AMP) side: JFET based circuit, running at internally boosted high voltage of 34V DC for true amplike response and captures the full gain range and harmonic complexity of the legendary Orange OR120.
Click-less true bypass design via high quality relays for each section.
2 Footswitches / 2 Status LEDs - one for each effect section.
Power-up bypass/engage preset function for the footswitches.

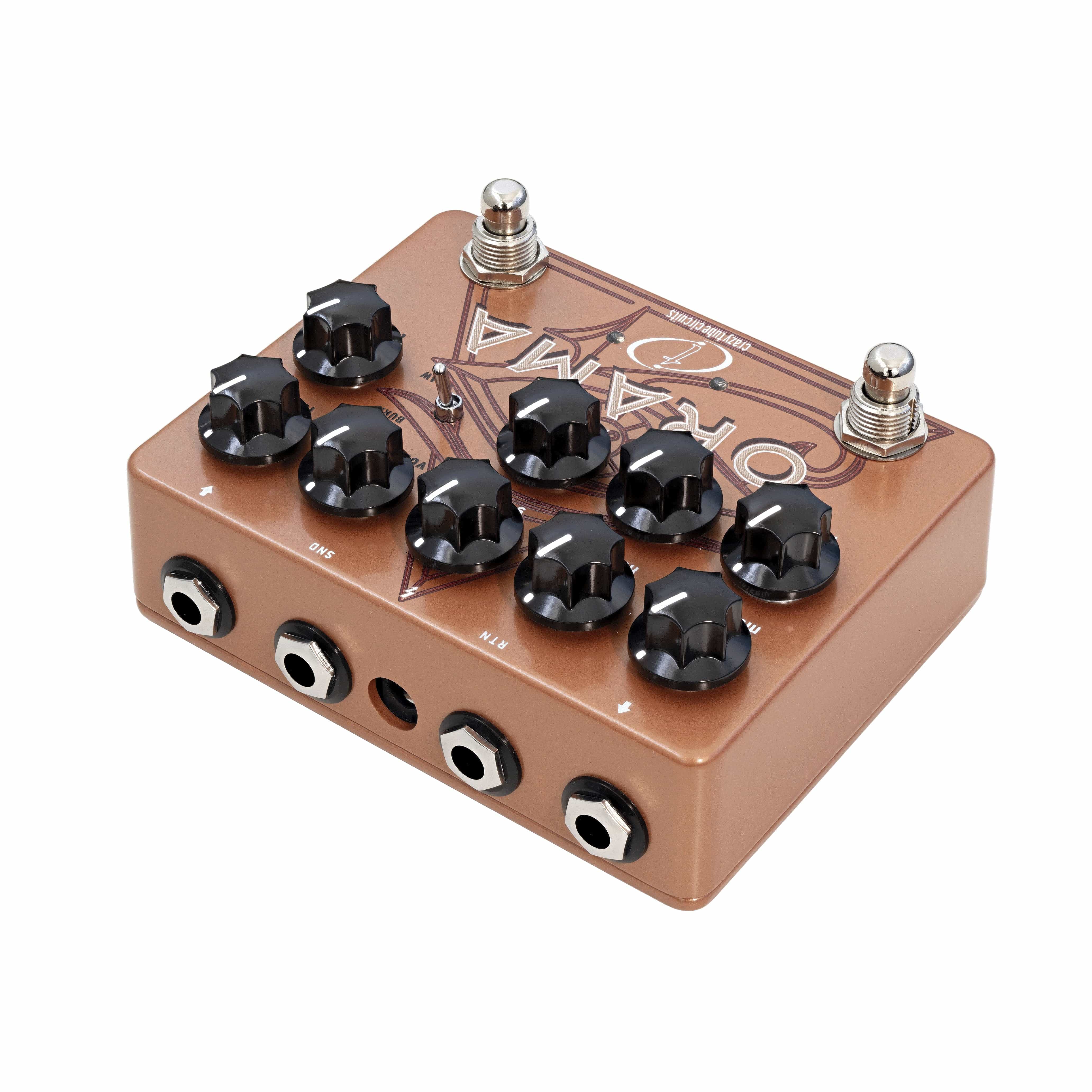

Top mounted jacks.
Passive series effects loop to connect pedals between the two sections or use them separately as independent effects.
Power Supply: Use only 9V DC, 2.1 mm x 5.5 mm, center negative (not included).
Current consumption 82mA.
Rich “burnt orange” with a subtle bronze warmth, die-cast enclosure with color-coded lettering for the control section (black for the FUZZ section, white for the AMP section).
Dimensions:(WxLxH):120x97x49mm
Weight 423 g
Designed and hand-built in Athens, Greece

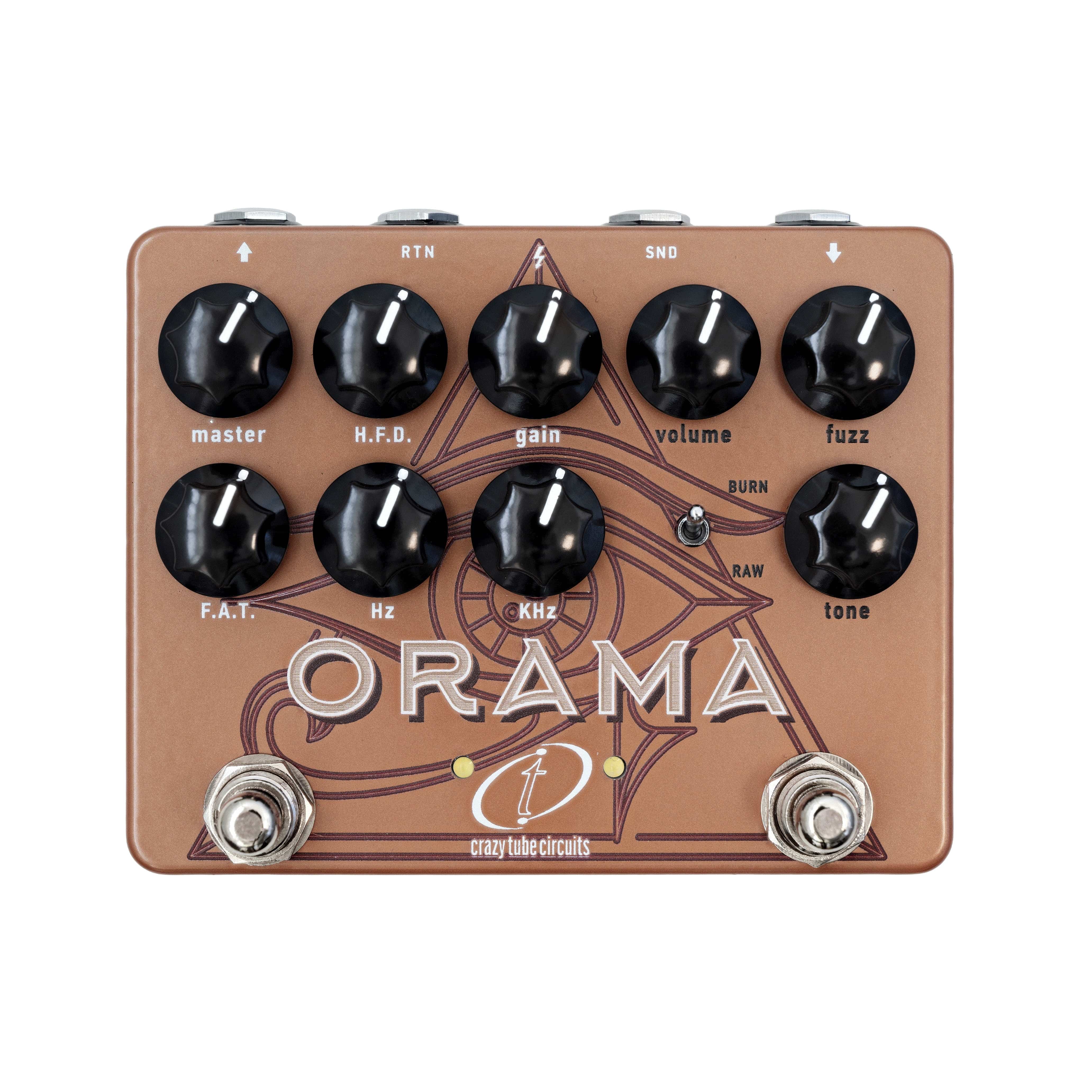

Controls:

Fuzz:

fuzz: adjusts intensity and saturation, from smooth to explosive o tone: shapes EQ, from dark and woolly to bright and cutting
volume: controls output level of the fuzz section
RAW: tighter, lower-gain vintage fuzz
BURN: higher gain, more sustain and low-end

Preamp:

gain: control the amount of amp drive / saturation, from clean to full saturation
F.A.T. (Fatness Adjustment Tweak): adjusts low-mid emphasis and gain character
Hz (Bass): low-frequency contron
kHz (Treble): high-frequency control
H.F.D. (High Frequency Dynamics): adds upper harmonic content drive and presence
master: controls overall output level. Can be used as a boost / preamp
