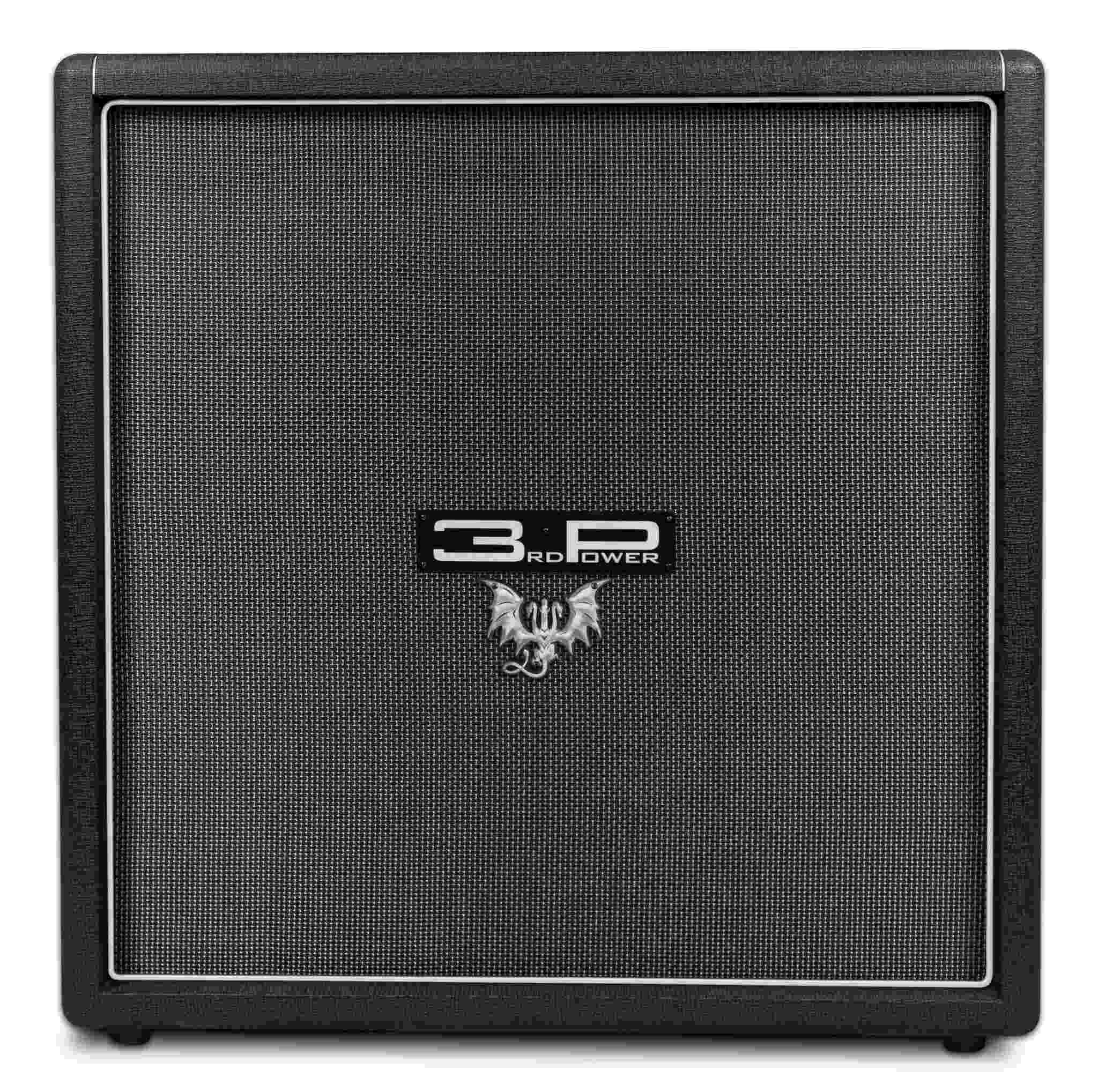

3rd Power Dragon 412 Speaker Cabinet

THE DG412 CAB

The DRAGON 412 cab features our patented triangular quad chamber design for refined tone and precision performance. While the DG412 cab is 4-channel sound capable it delivers a monstrous mono 412 performance. Maximum setup flexibility is ensured as the DG412 makes easy work of wet/dry/wet, X-pattern, dual 212, stereo 212 (vertical or horizontal) configurations – all within the footprint of a single 412 cabinet.

Features include:
• Our internal triangular speaker chamber design eliminates standing waves
• 16-ohm Mono or…
• Dual 8-ohm Stereo or…
• 8-ohm 212 plus two 16-ohm Stereo FX (wet/dry/wet)
• 5/8″ baltic birch enclosure construction

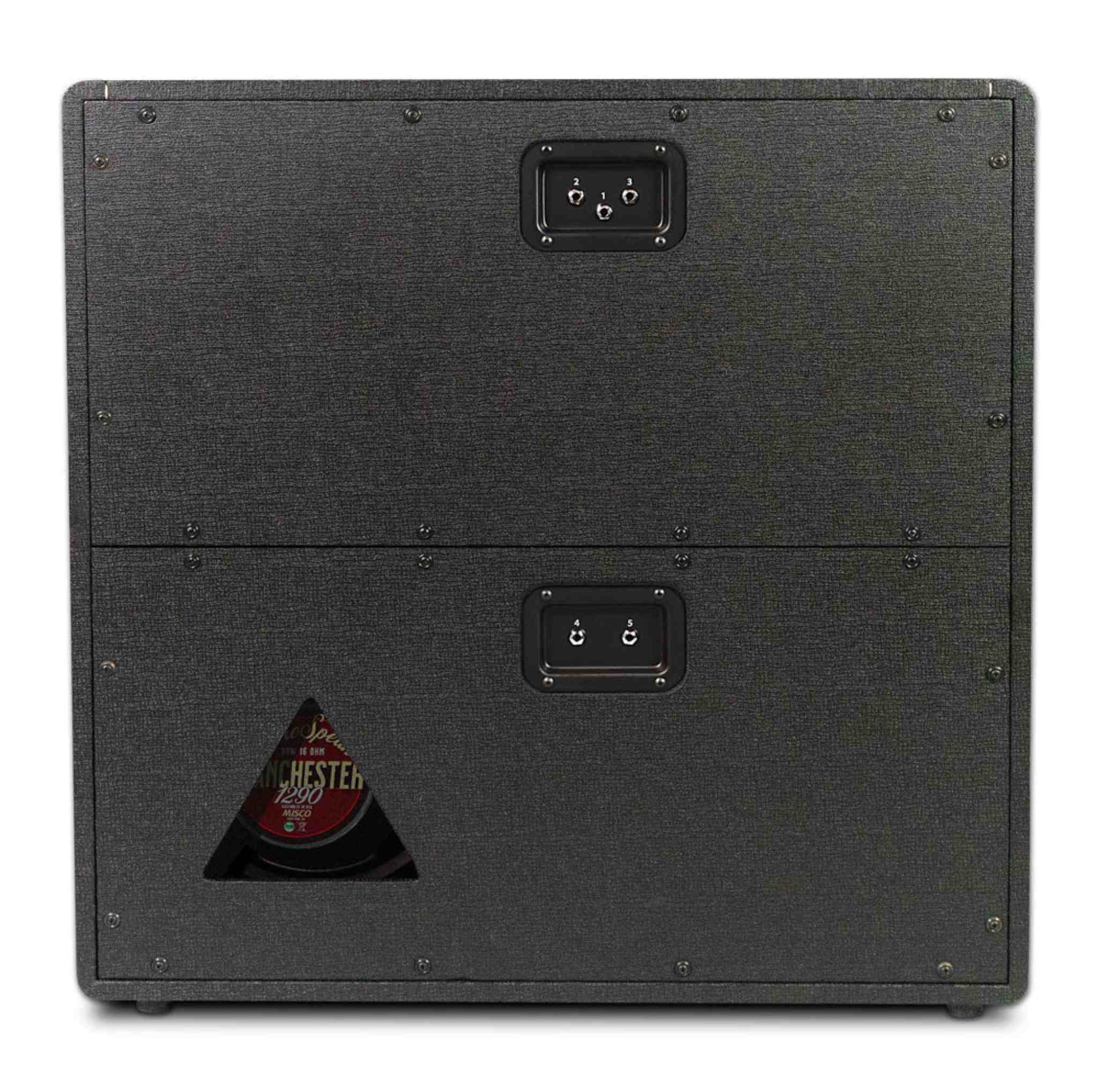

• Closed-back upper chambers, single open-back chamber on the bottom

Model Name: DG412
Speakers Installed: Top Two Drivers: Celestion G12T-75 (16 Ohms Each)
Bottom Two Drivers: Tone Speak Manchester 1290 (16 Ohms Each)
Power Handling: Mono 412 Mode: 330 Watts
Stereo 212 Mode: 165 Watts Per Channel
Single Driver Mode Celestion G12T-75: 75 Watts Each
Single Driver Mode Tone Speaker Manchester 1290: 90 Watts Each
Impedance: Mono Mode: 16 Ohms
Stereo Mode: 8 Ohms Per Channel
Three Channel Sound: 8 Ohms Mono (212), 16 Ohm 2 Channel FX in Stereo
Quad Mode: 16 Ohms Discreet
Country of Manufacture: Designed and built in USA
Case Composition: 5/8″ birch enclosure, dado joinery throughout
Dimensions (LxWxD): 30” x 30” x 14”
Weight: ~90 lbs loaded (~55 lbs unloaded)
